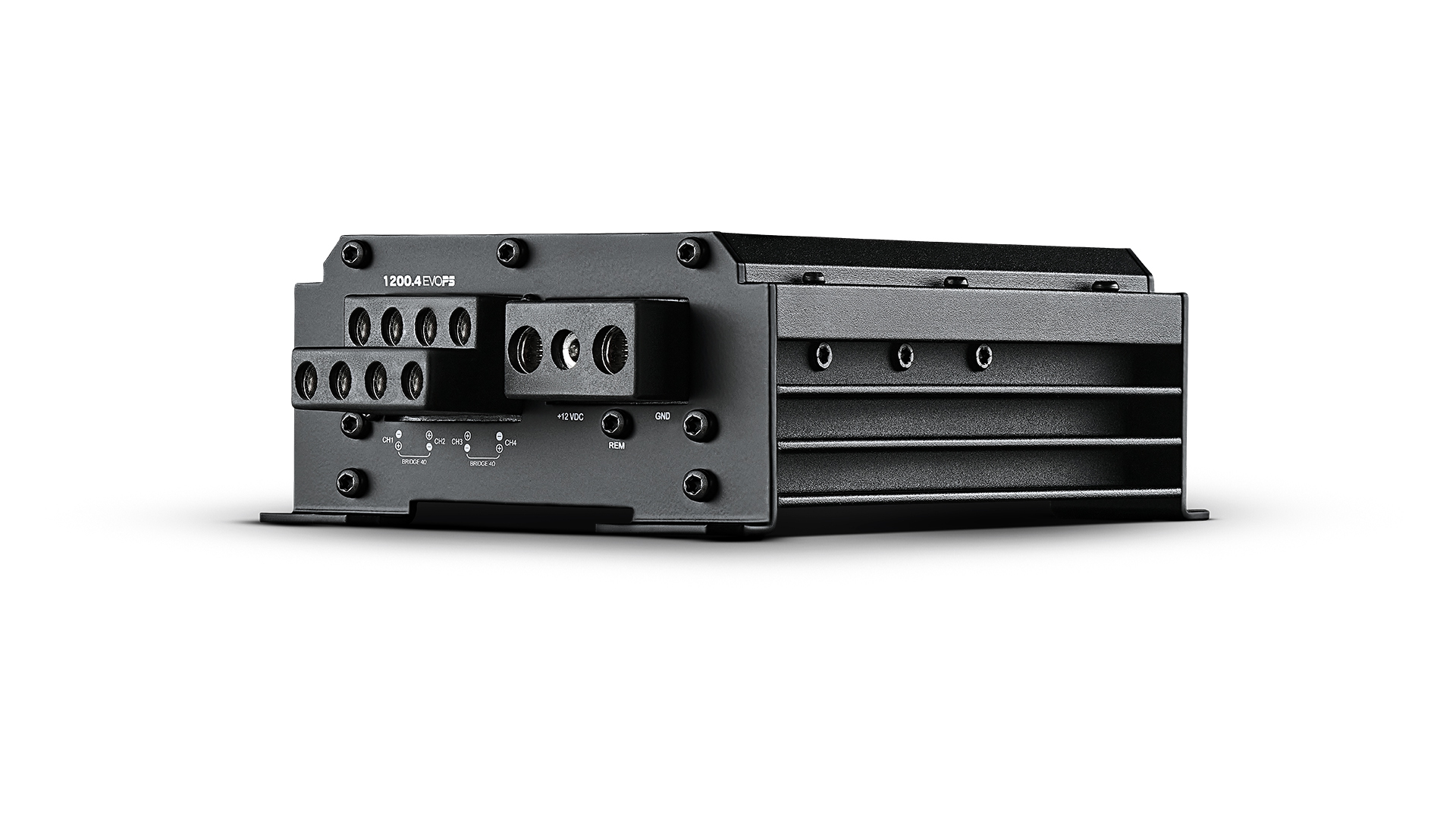

SounDigital SD1200.4-4 EVOPS 4 ohm
EAN: 7898644524128
SD1200.4-4 EVOPS
4-channel amplifier
4 x 300W or 2 x 600W
IP64 rating
Splash waterproof
4 Ohm model
Läs Mera
IP64 Rating
8 990,00 kr
Beskrivning
Teknisk information

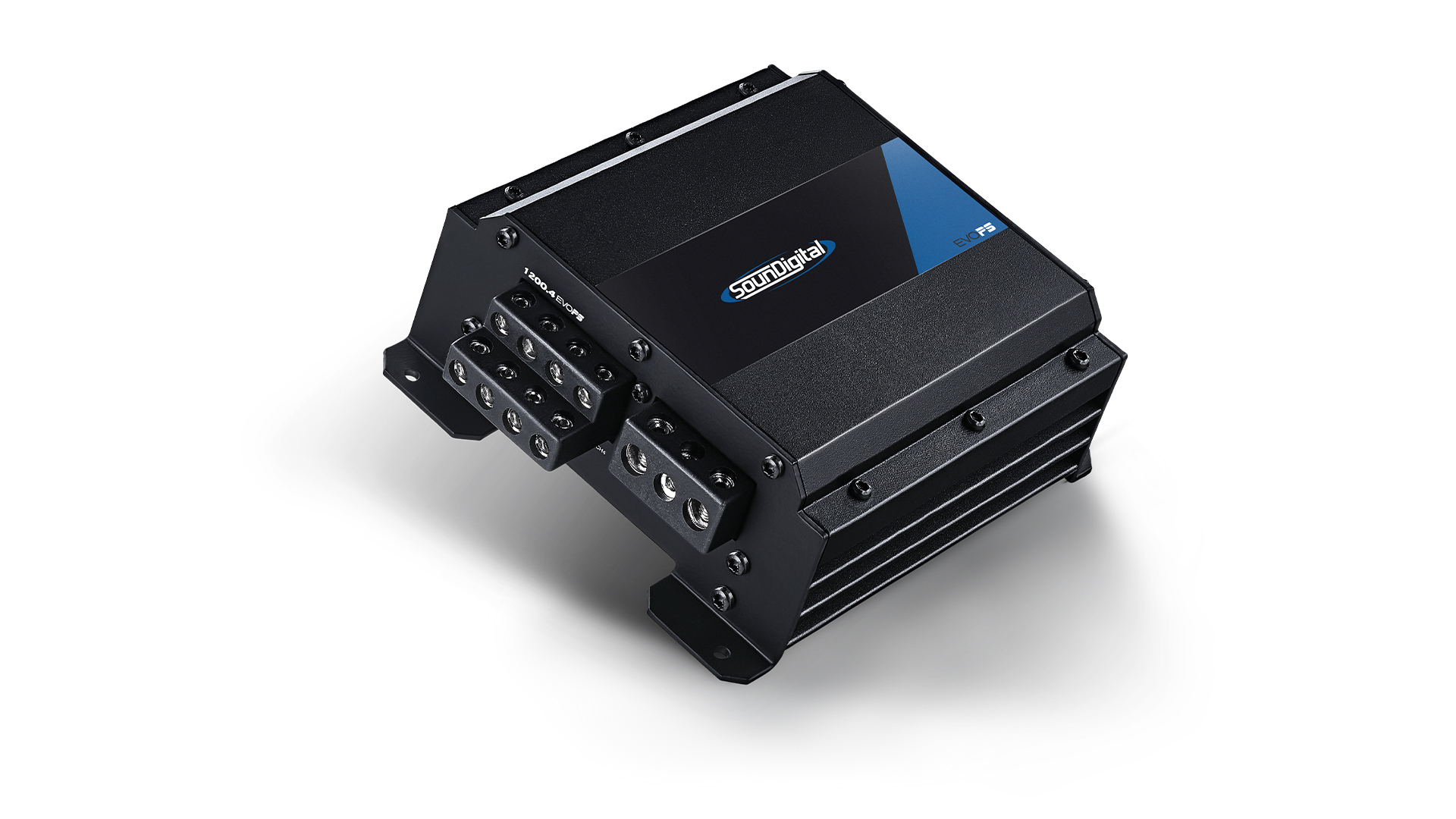

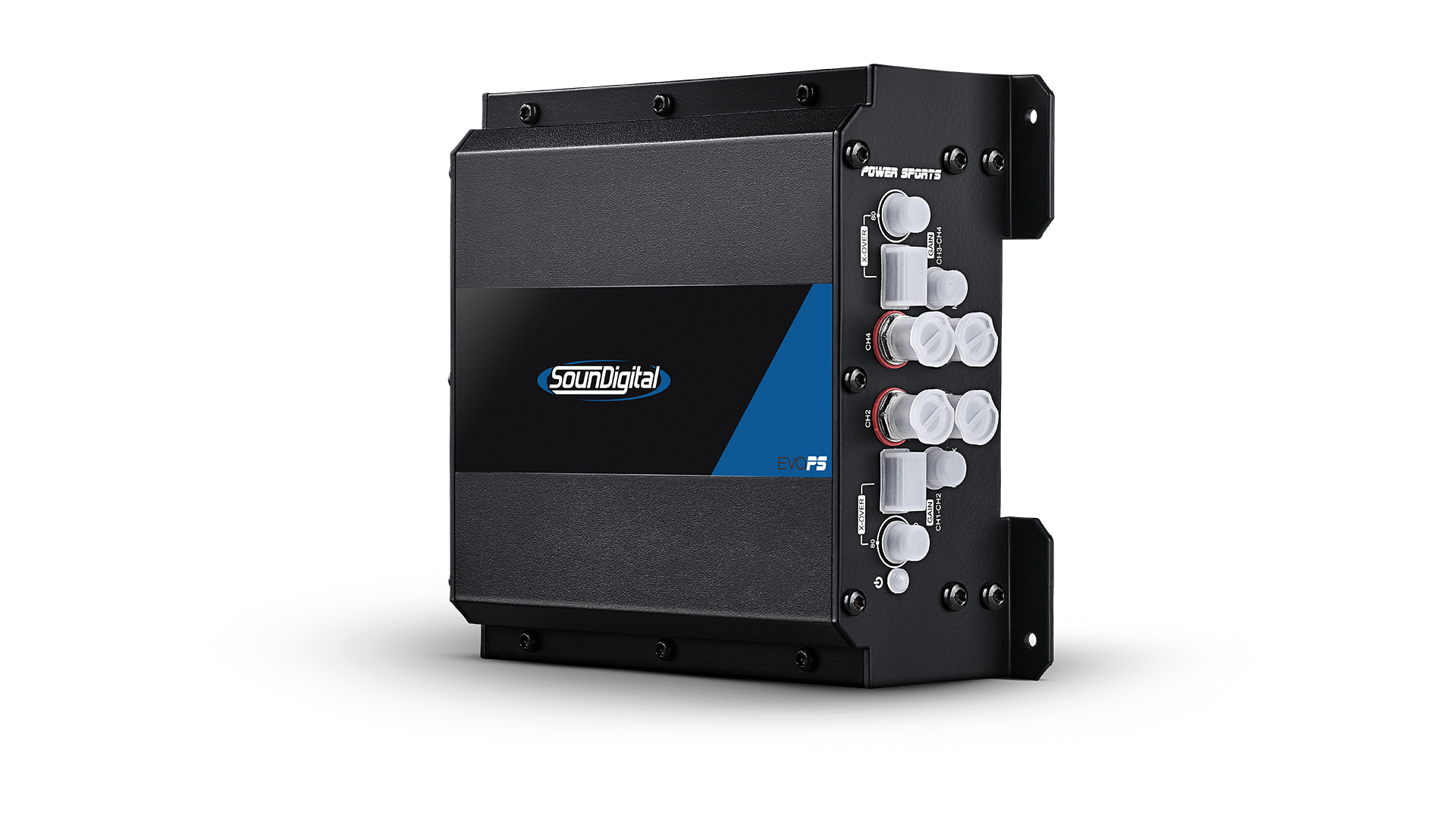

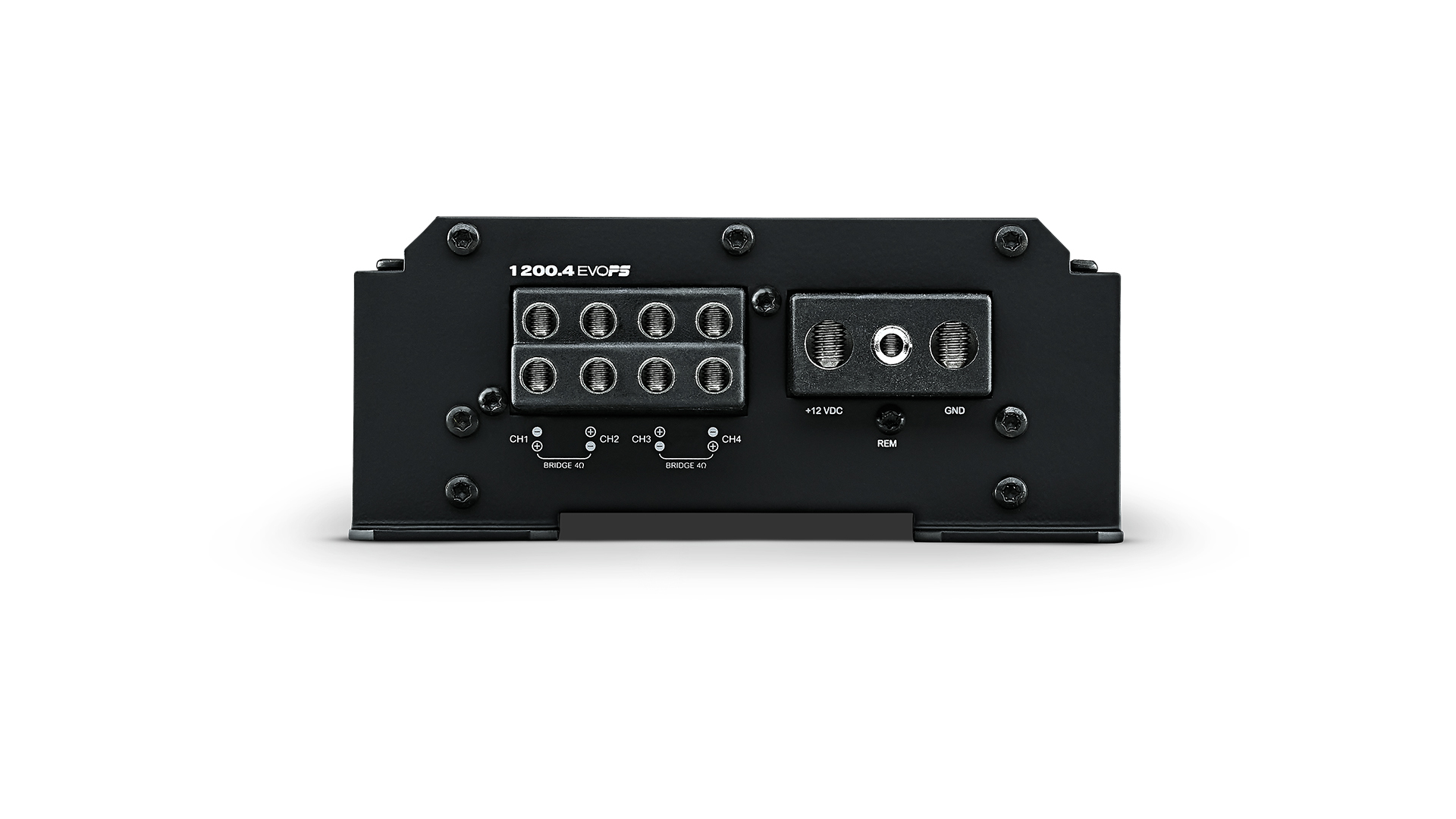

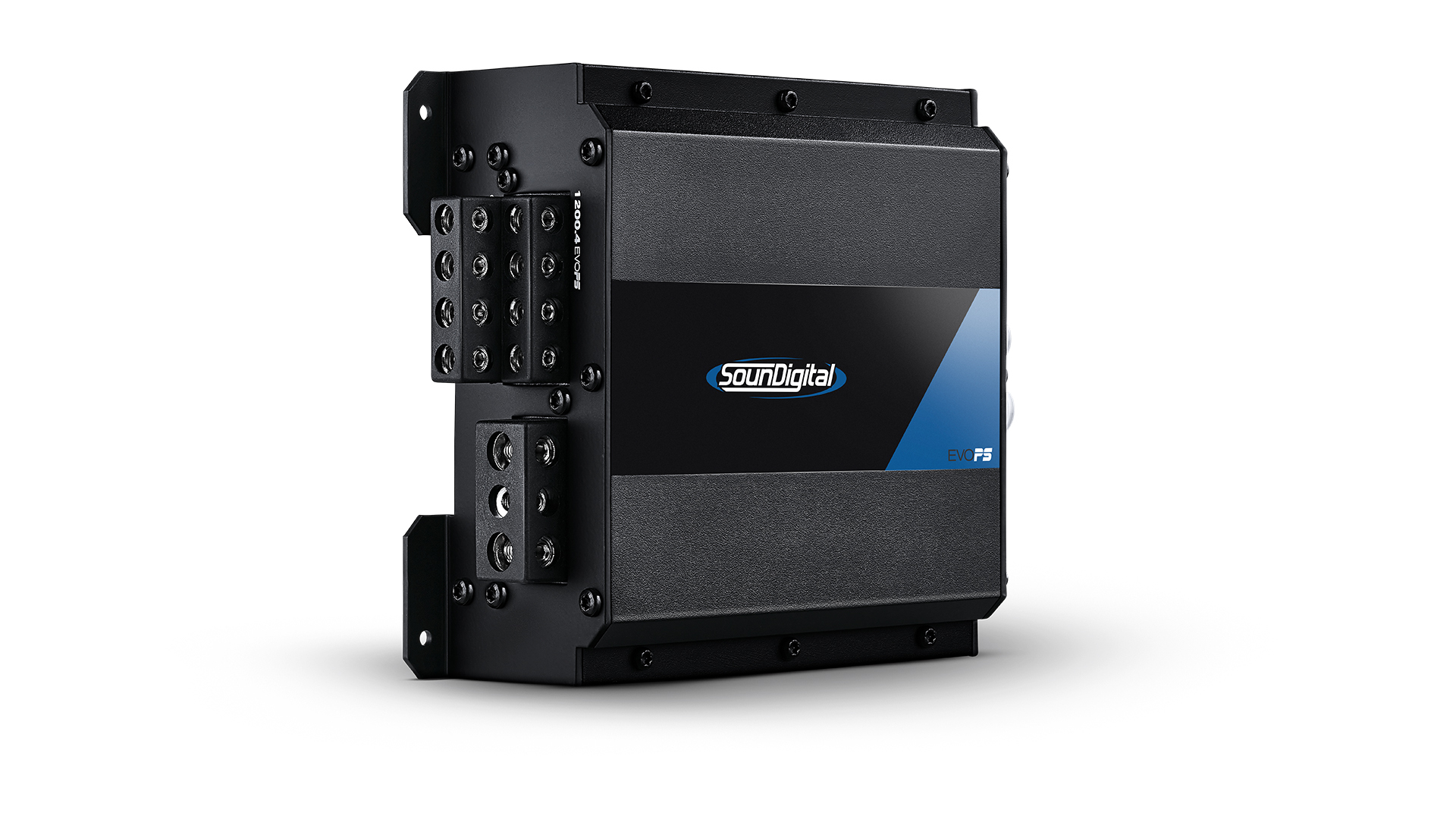

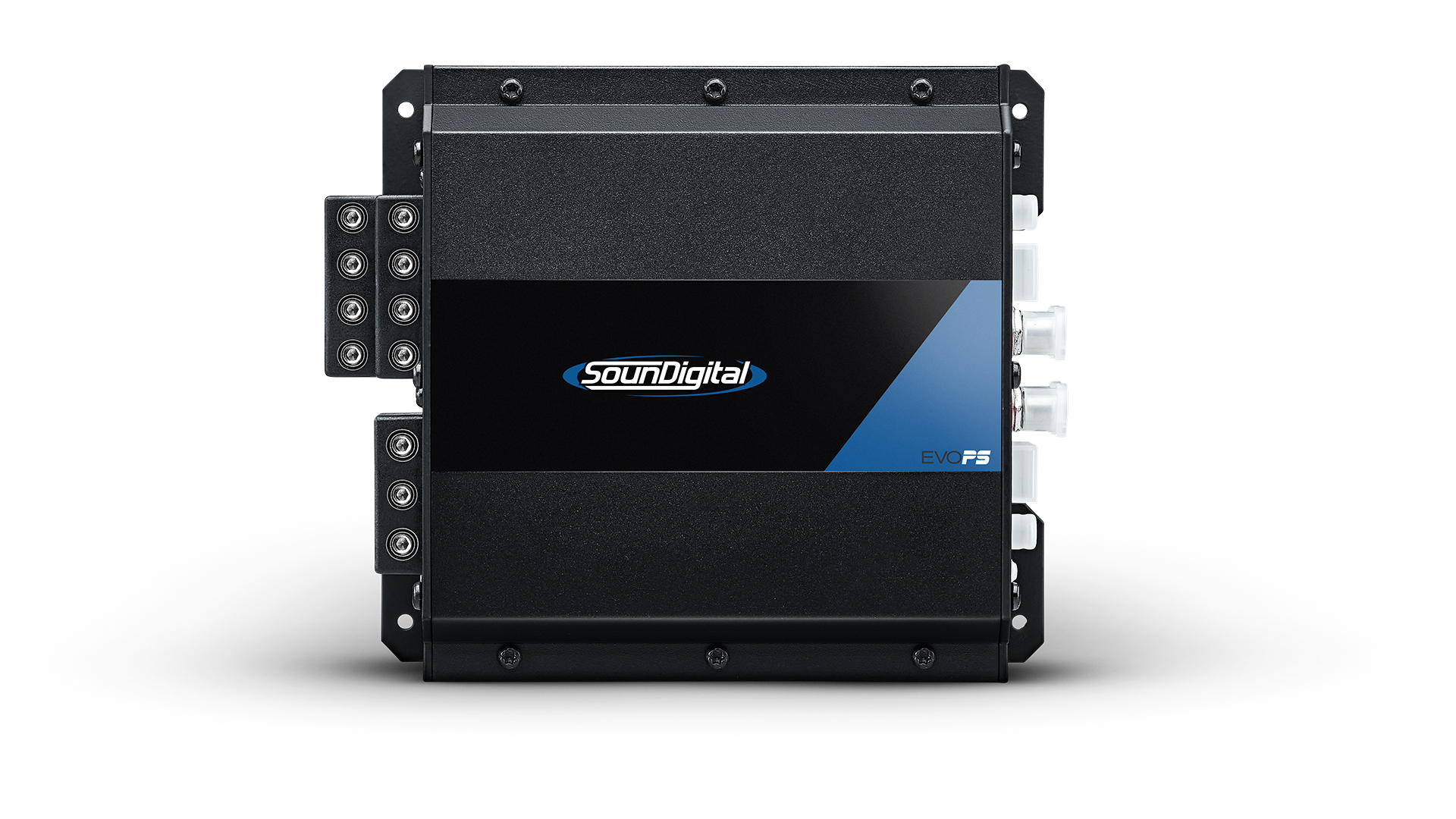

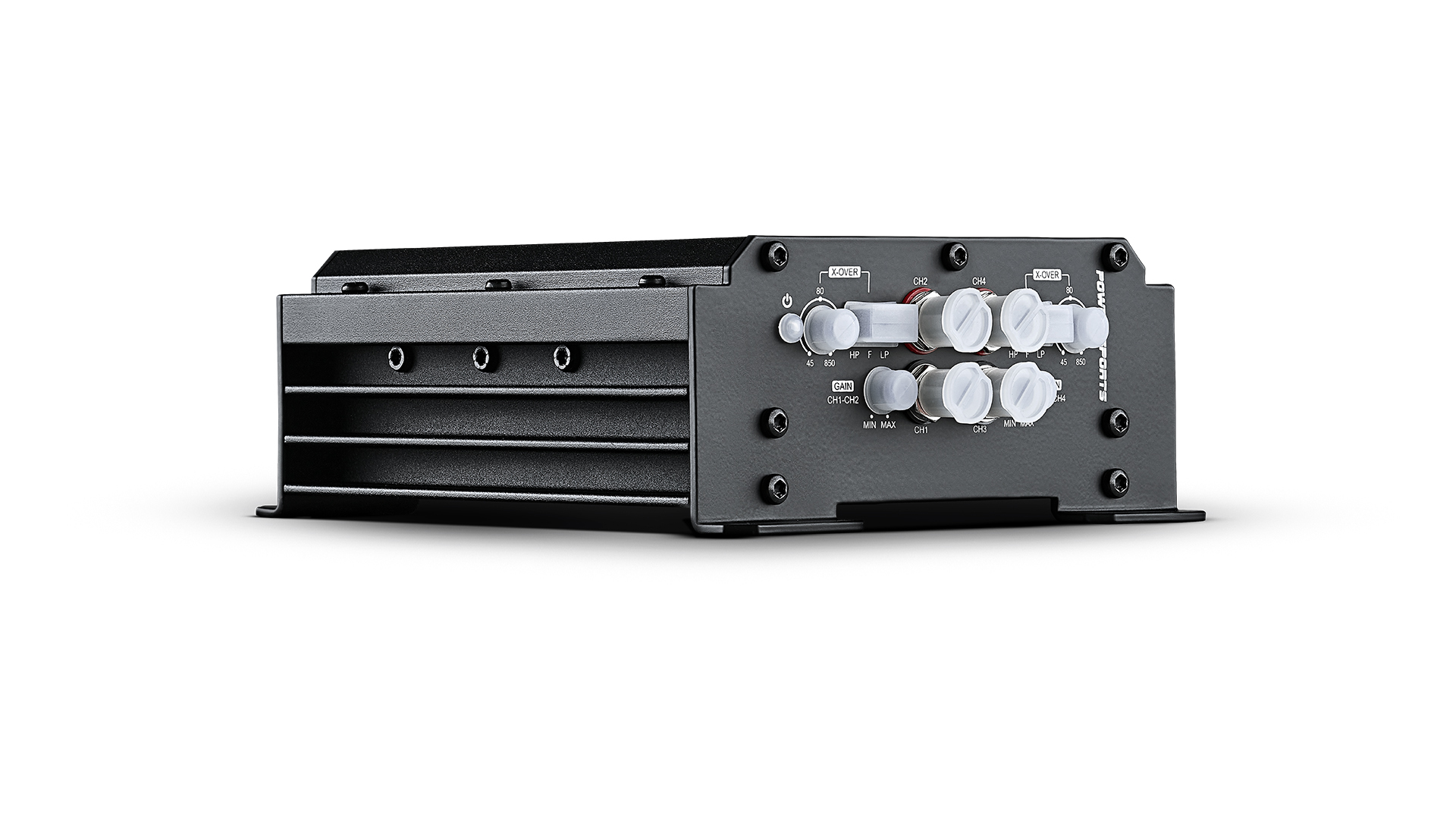

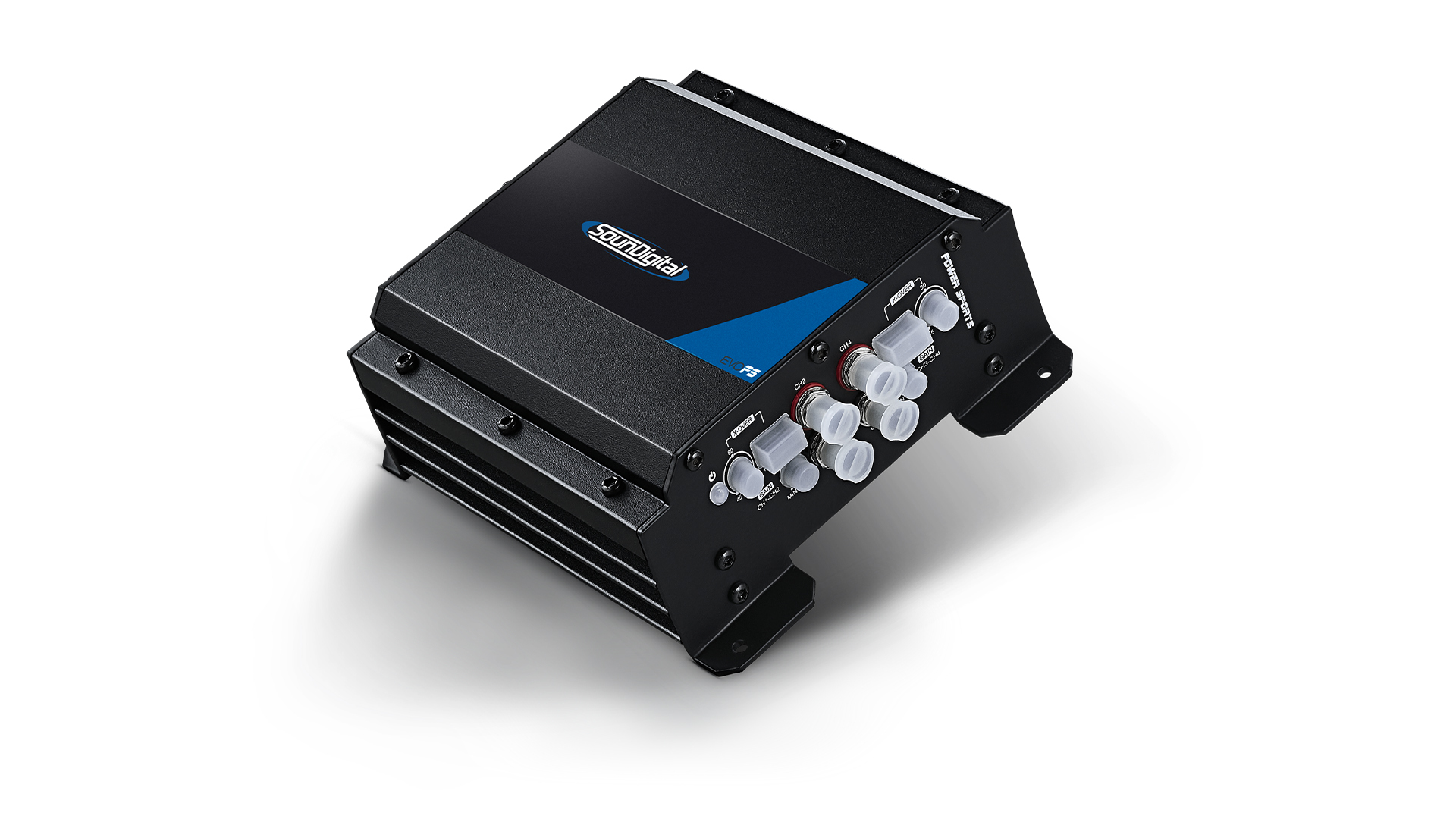

For use in Power Sports projects, the 1200.4 EVOPS is a compact, modern design amplifier that delivers 1200W RSM of power distributed over 4 channels.
The amplifier features exclusive and patented technologies that make the sound experience cleaner and more faithful, in addition to ensuring better performance and efficiency for projects in water, clay and other Power Sports settings.
The amplifier features exclusive and patented technologies that make the sound experience cleaner and more faithful, in addition to ensuring better performance and efficiency for projects in water, clay and other Power Sports settings.
1200.4 EVOPS – 4 OHMS
Power @ 1Ω: N/A
Power @ 2Ω: 4 X 300W RMS
Power @ 4Ω: 4 X 198W RMS
Bridge Power @ 2Ω: N/A
Bridge Power @ 4Ω: 2 X 600W RMS
Operating Voltage:
8V – 16V
Current Draw (Music):
49A
Current Draw (Max):
99A
Recommended Fuse (Music):
60A
Total Efficiency:
84%
Damping Factor:
200
Frequency Response (-3dB):
5Hz – 22kHz
SNR:
88dB

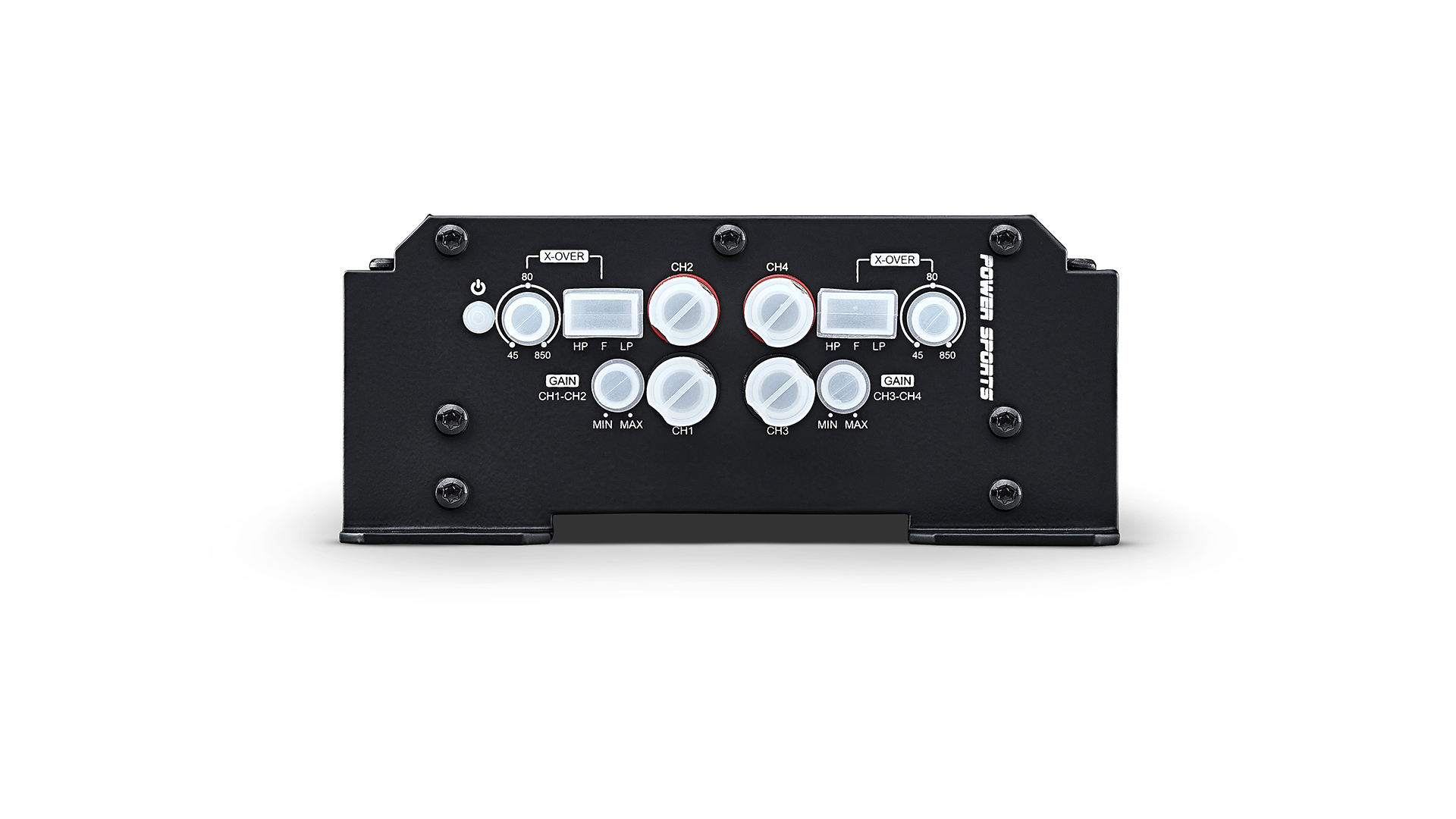

Crossover
LPF / HPF: 45Hz – 850Hz
Width:
5.8 in / 14,9 cm
Length:
6.5 in / 16,6 cm
Height:
2.4 in / 6,2 cm
Weight:
1,27 Kg
Power @ 1Ω: N/A
Power @ 2Ω: 4 X 300W RMS
Power @ 4Ω: 4 X 198W RMS
Bridge Power @ 2Ω: N/A
Bridge Power @ 4Ω: 2 X 600W RMS
Operating Voltage:
8V – 16V
Current Draw (Music):
49A
Current Draw (Max):
99A
Recommended Fuse (Music):
60A
Total Efficiency:
84%
Damping Factor:
200
Frequency Response (-3dB):
5Hz – 22kHz
SNR:
88dB
Crossover
LPF / HPF: 45Hz – 850Hz
Width:
5.8 in / 14,9 cm
Length:
6.5 in / 16,6 cm
Height:
2.4 in / 6,2 cm
Weight:
1,27 Kg
