Ground Zero GZUA 6SQ

EAN: 4037072024616
GZUA 6SQ

6-Channel SQ Amplifier
4 x 175W + 2 x 280W
wide bandwidth hpf / lpf filters
Ultimate sound quality
Adjustable BIAS setting

Läs Mera
10 990,00 kr
Vikt: 7.84 kg
I lager
Frågor? Kontakta ossinfo(at)audioimport.fi
Beskrivning
Teknisk information

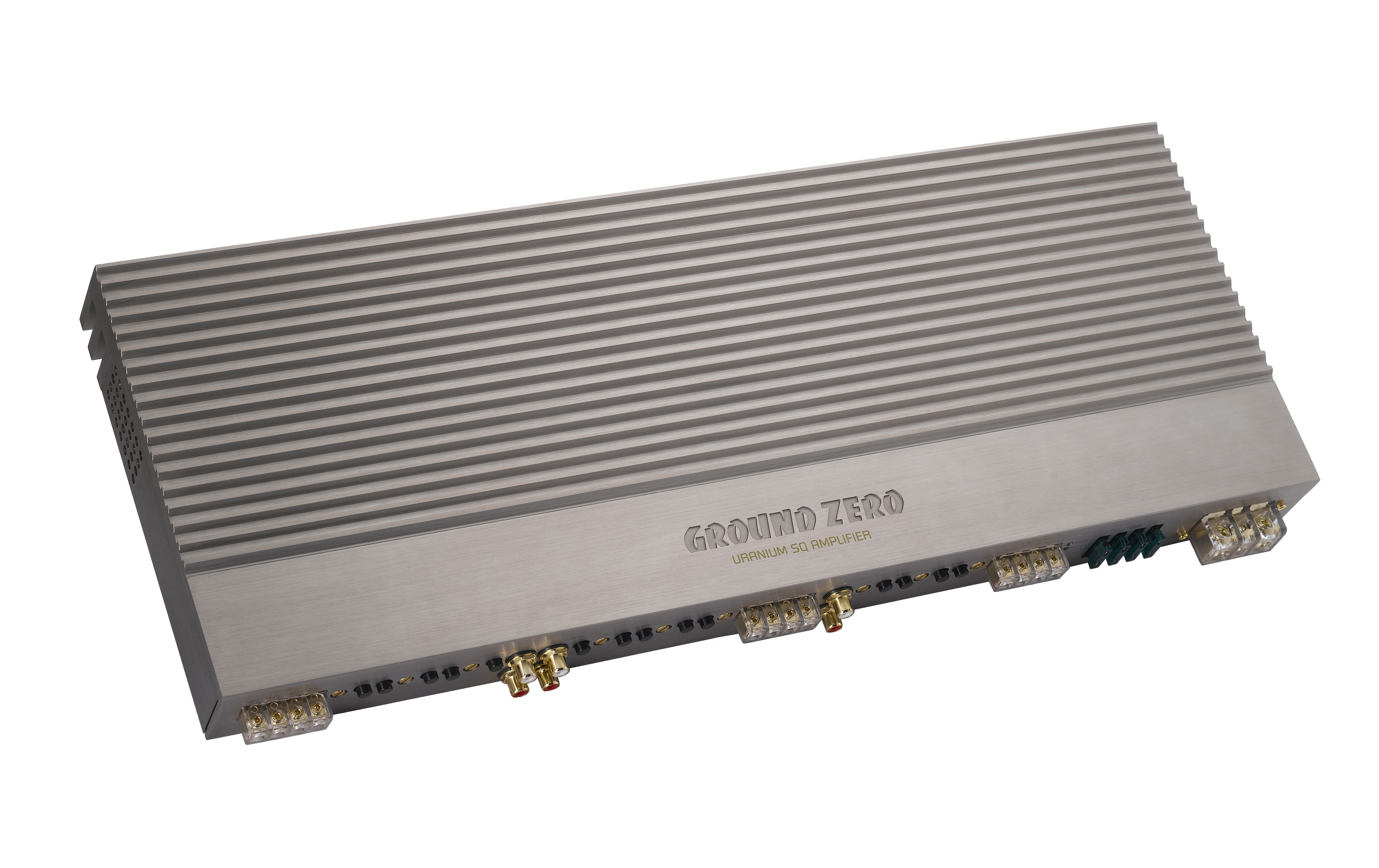

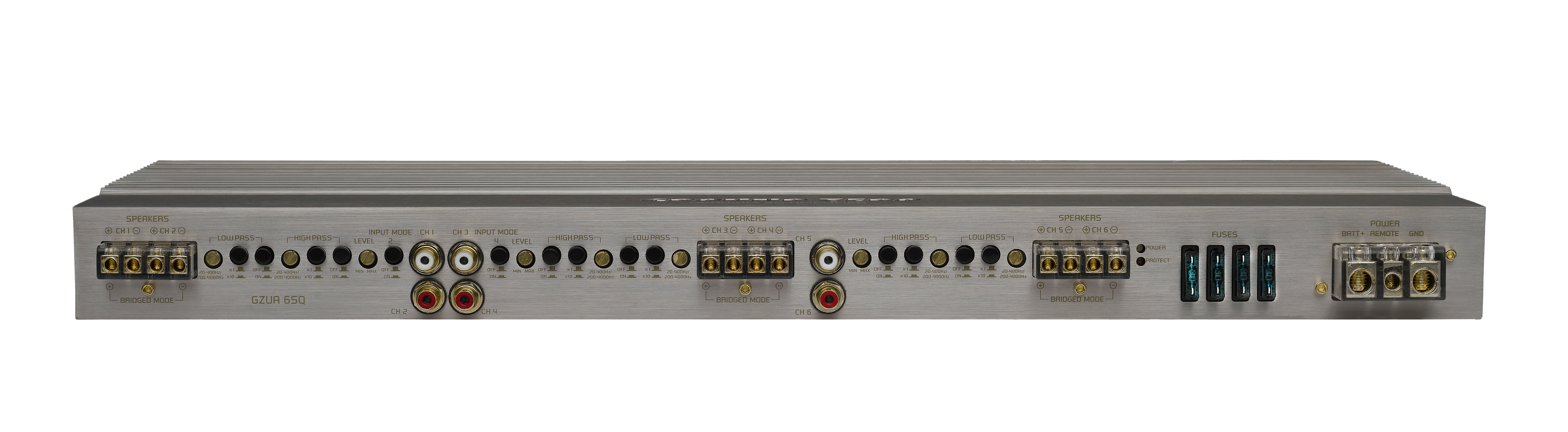

Ground Zero Uranium 6-channel high-end class A/B SQ amplifier.
2 ohms stable (stereo operation)
Adjustable BIAS setting
Adjustable high and low pass filters with wide bandwidth
Bandpass function with activated high and low pass filter
Adjustable input sensitivity
Power on delay
Temperature / short circuit / overload protection
6-channel high-end class A/B SQ amplifier

Output power:
- 4x 110 W RMS + 2x 160 W RMS @ 4 ohms
- 4x 175 W RMS + 2x 280 W RMS @ 2 ohms
- 2x 425 W max. + 1x 650 W max. @ 4 ohms (bridged)
2 ohms stable (stereo operation)
THD+N 0.01%
Frequency Response 10 Hz - 70kHz ( -3dB )
LPF: 20 Hz - 400 Hz / 200 - 4000 Hz ( x10 )
HPF: 20 Hz - 400 Hz / 200 - 4000 Hz ( x10 )
Band Pass Filter 20 Hz - 4000Hz ( x10 )
SNR:  110dB
Damping Factor: 800
Adjustable BIAS setting
Adjustable high and low pass filters with wide bandwidth
Bandpass function with activated high and low pass filter
Adjustable input sensitivity
Power on delay
Temperature / short circuit / overload protection.

Dimensions:
209 x 48 x 550 mm
