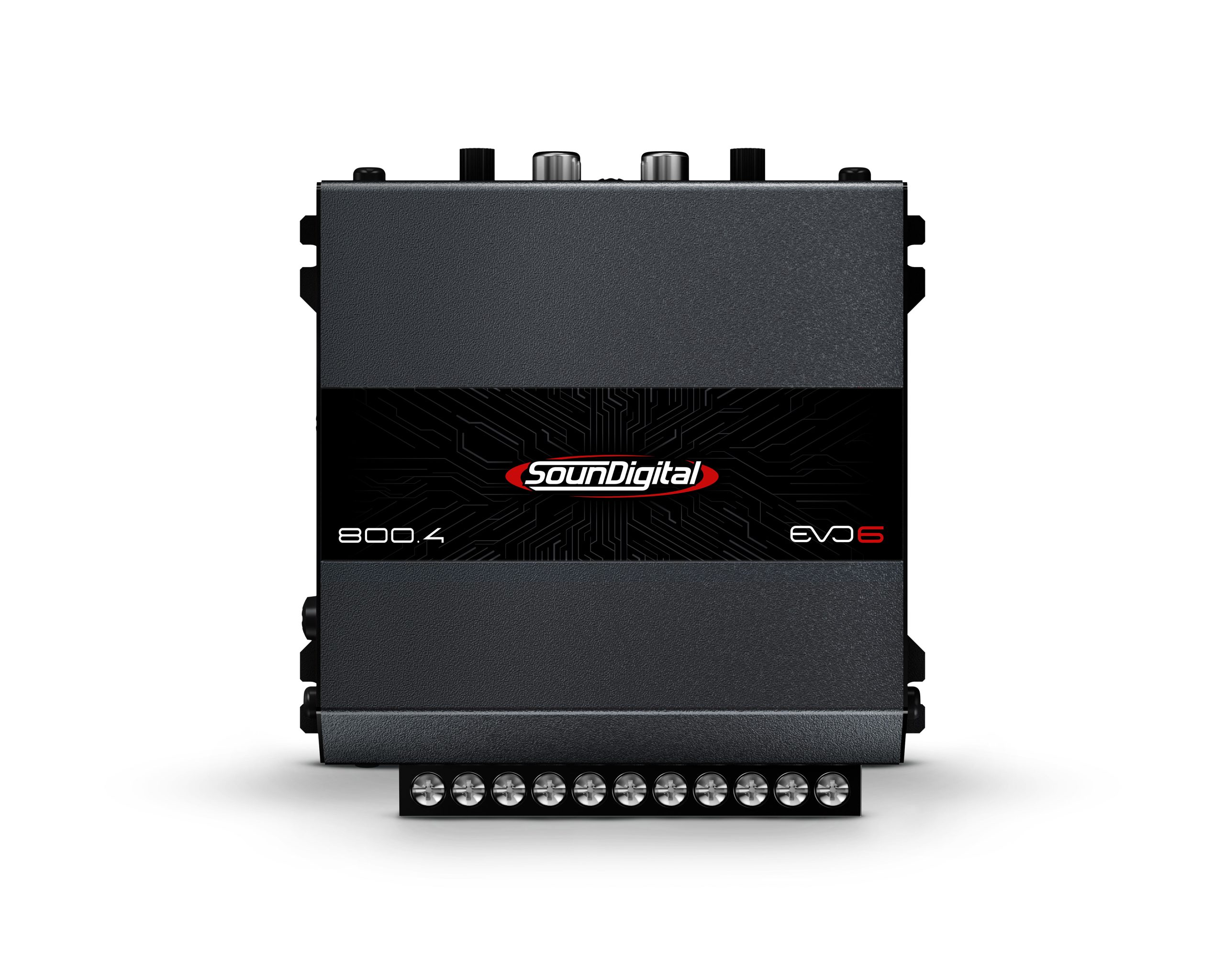

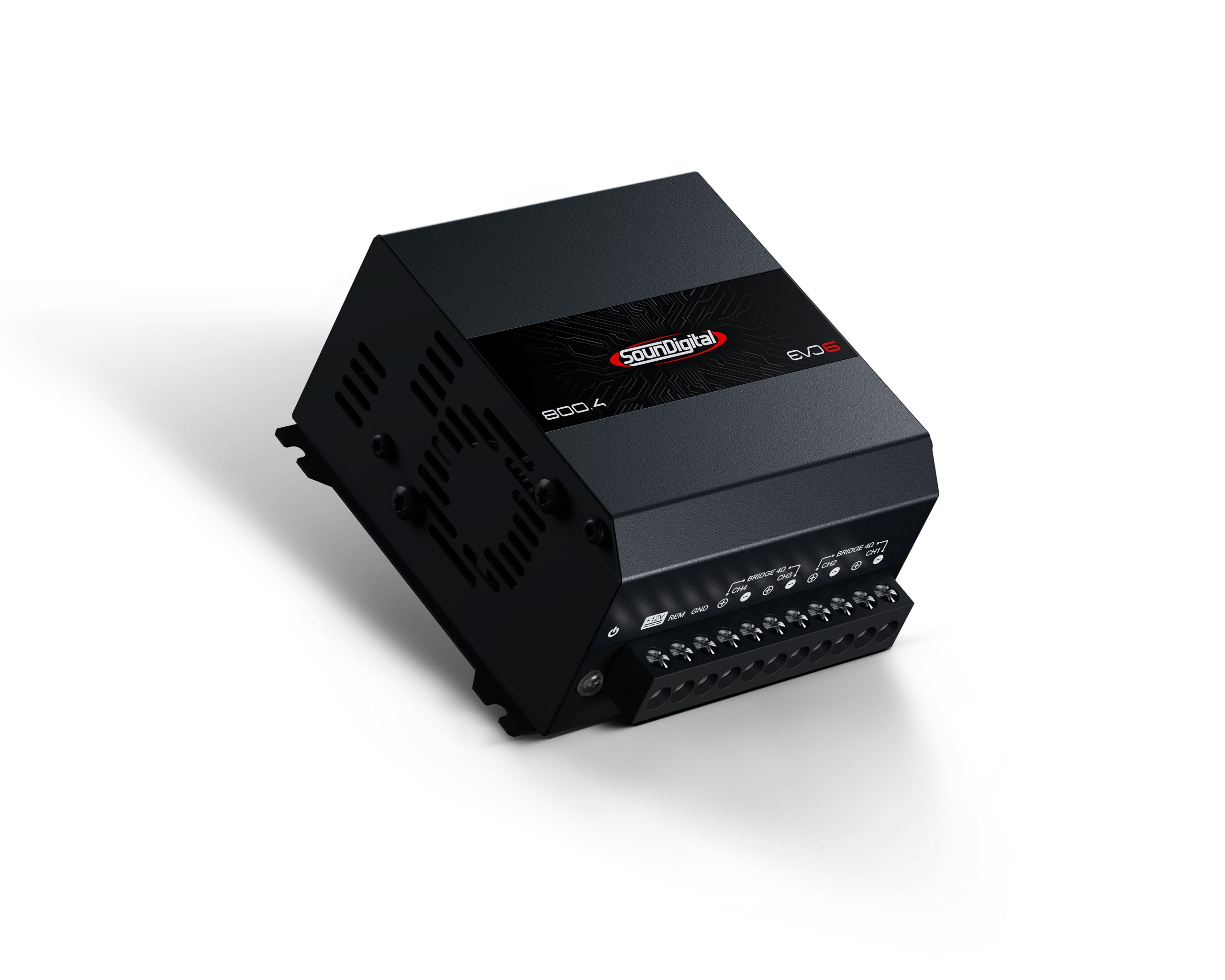

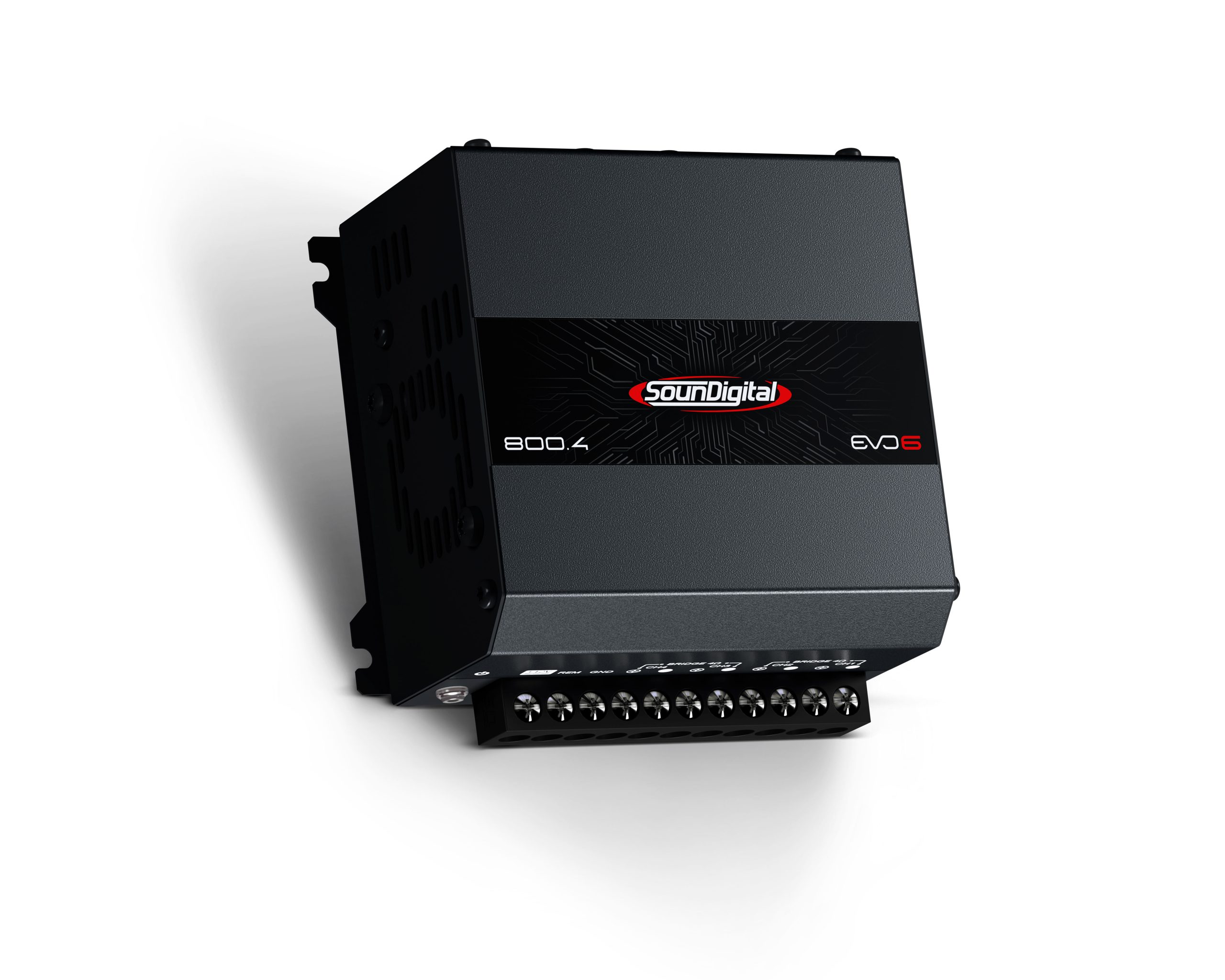

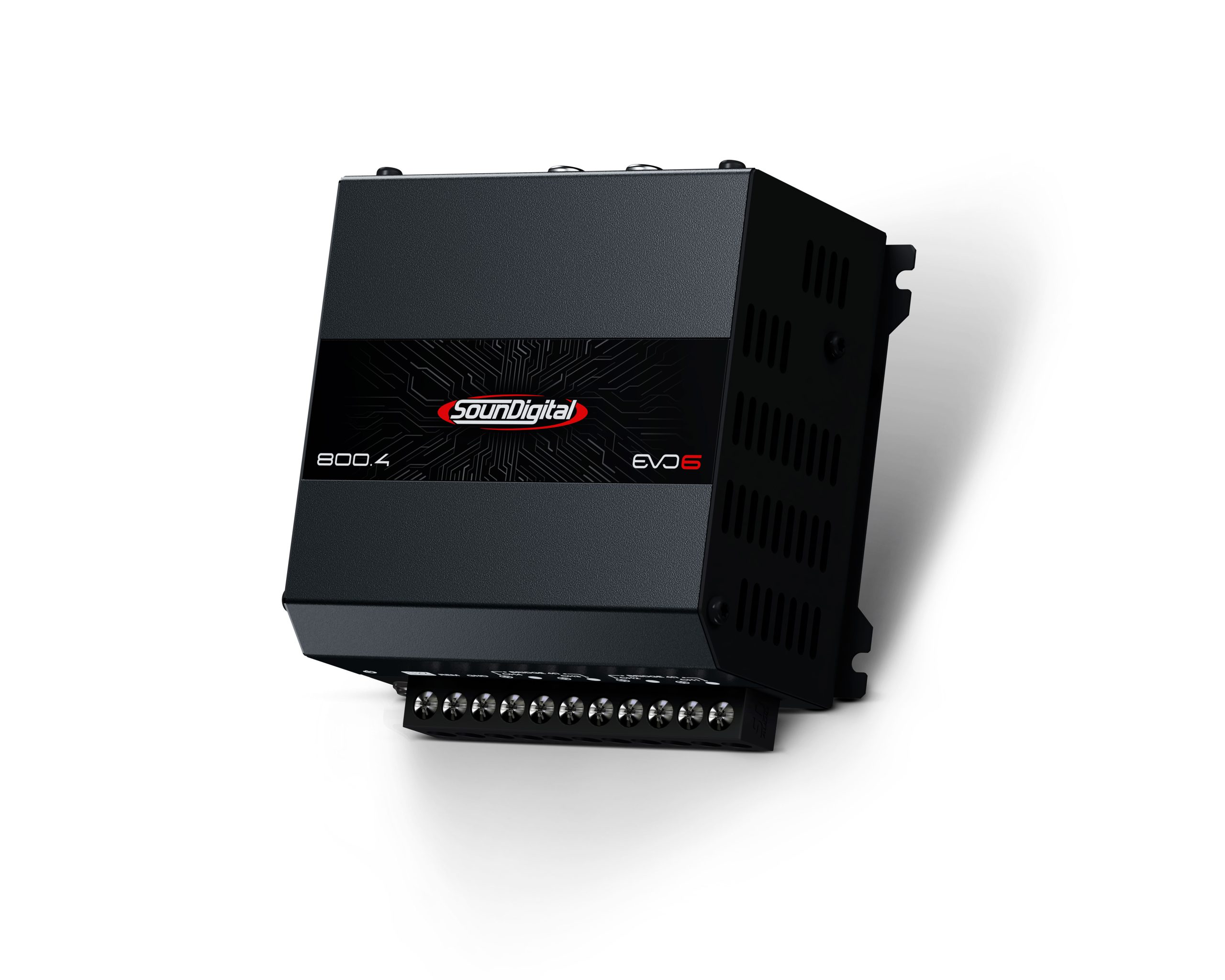

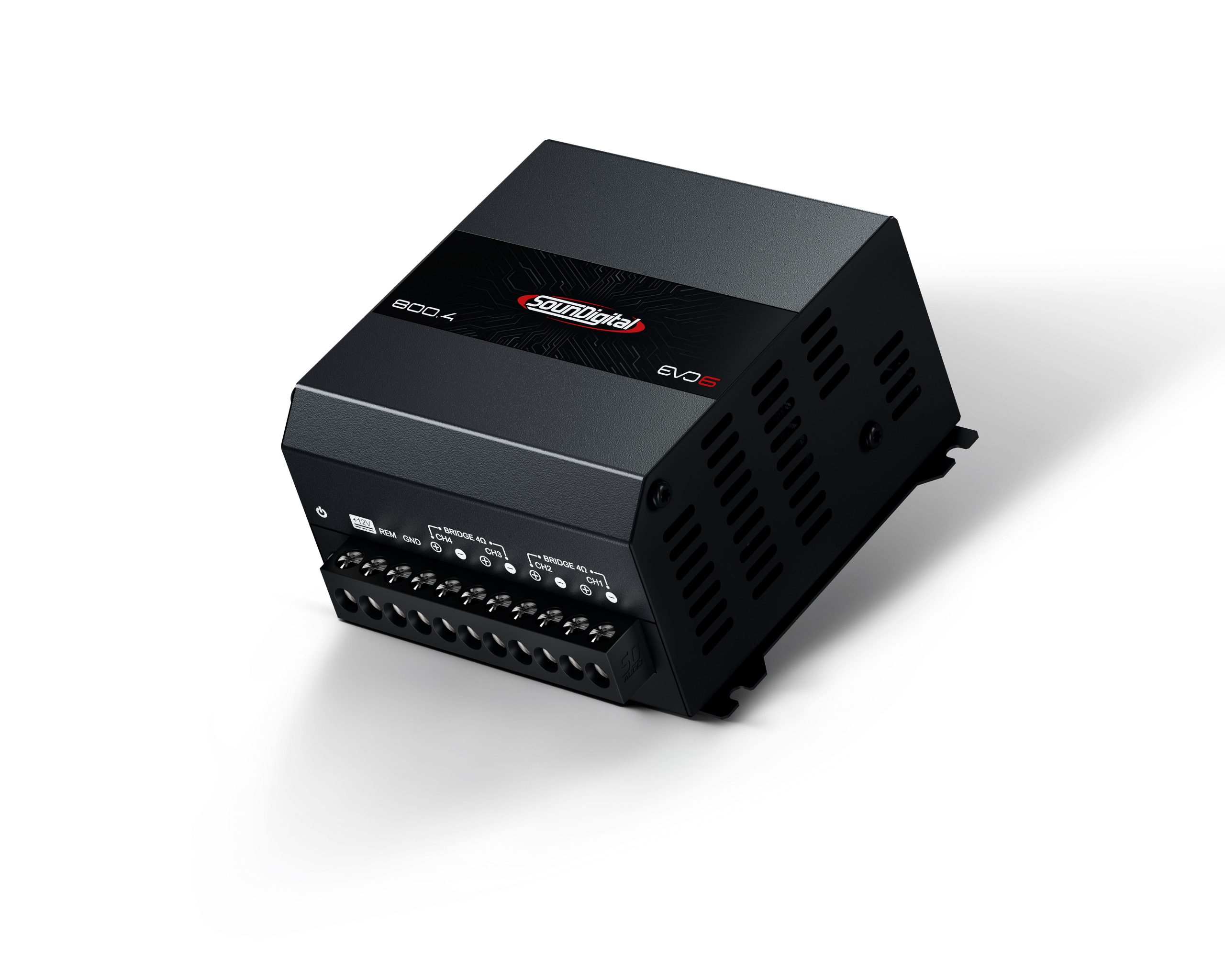

SounDigital 800.4 EVO 6 - 4 Ohm
SD800.4-4 EVO6
4 Channel amplifier
Very small size
4 x 200 / 2 x 400W
4 Ohm model
Läs Mera
1 990,00 kr
Beskrivning
Teknisk information
Bruksanvisningar
It′s not just about audio.
It′s sensation, technology and emotion. IT′S EVO6.
This isn′t just another amplifier, it′s a leap in the evolution of car audio.
It redefines amplifier design. Every detail has been redesigned for excellence in audio quality, making your musical perception much more immersive.
Introducing the new 400.4 EVO6. With the help of AI we have achieved a miniaturization never seen before, these are the smallest amplifiers in the world, breaking power density records.
High efficiency that fits anywhere.
Join us on a journey into the future.
It′s sensation, technology and emotion. IT′S EVO6.
This isn′t just another amplifier, it′s a leap in the evolution of car audio.
It redefines amplifier design. Every detail has been redesigned for excellence in audio quality, making your musical perception much more immersive.
Introducing the new 400.4 EVO6. With the help of AI we have achieved a miniaturization never seen before, these are the smallest amplifiers in the world, breaking power density records.
High efficiency that fits anywhere.
Join us on a journey into the future.
POWER RATING
12,6V: @ 2Ω: 4 x 200 W RMS
12,6V: @ 4Ω: 4 x 132 W RMS

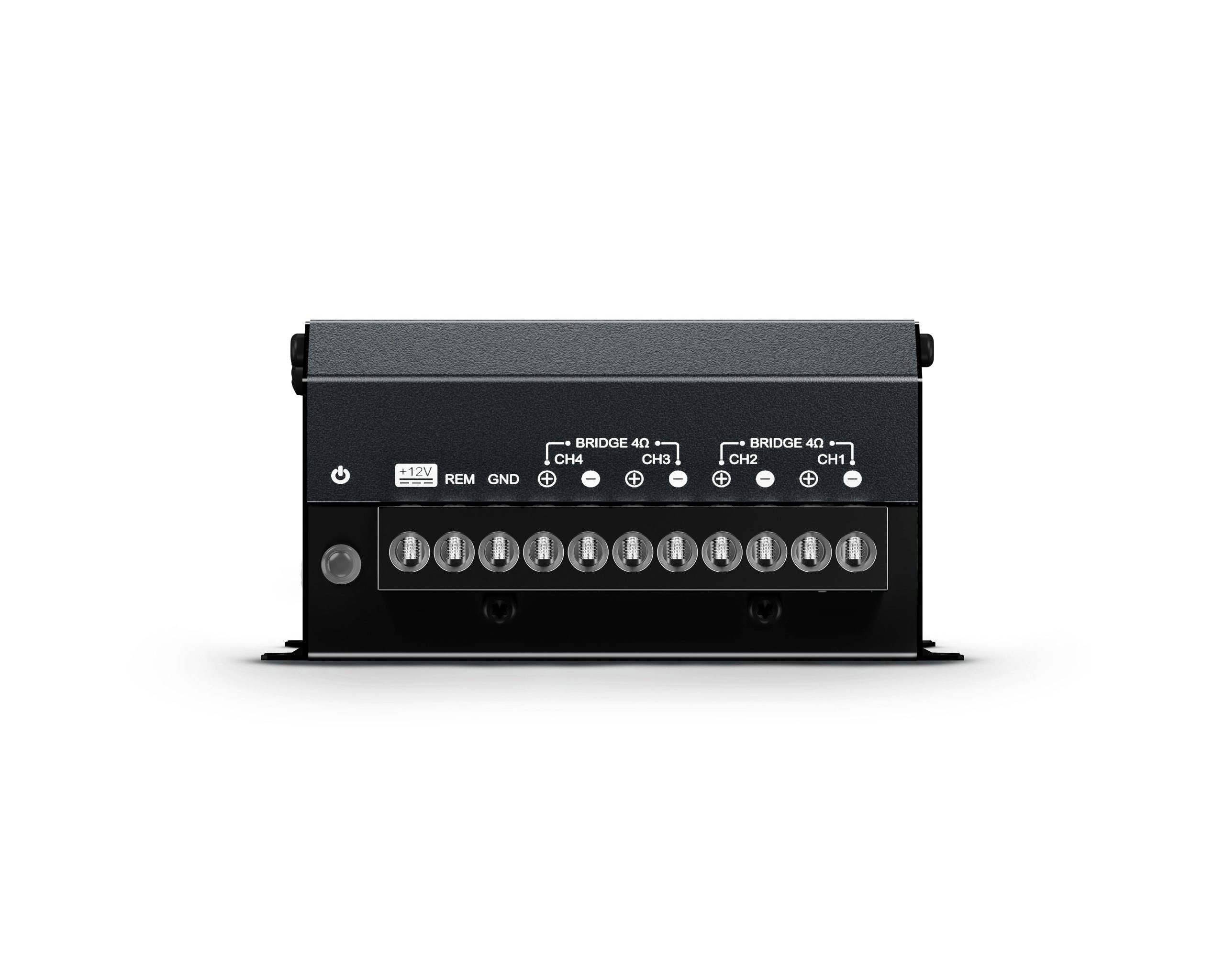

12,6V: @ 4Ω 2 x 400 W RMS ( Bridge )
14,4V: @ 2Ω: 4 x 225 W RMS
14,4V: @ 4Ω: 4 x 140 W RMS
Frequency Response (-3dB): 5Hz ~ 20kHz
Low Pass Filter (12dB/octave): 80Hz
High Pass Filter (12dB/octave): 80Hz
Operating Voltage: 9V ~ 16V
SNR: 93dB

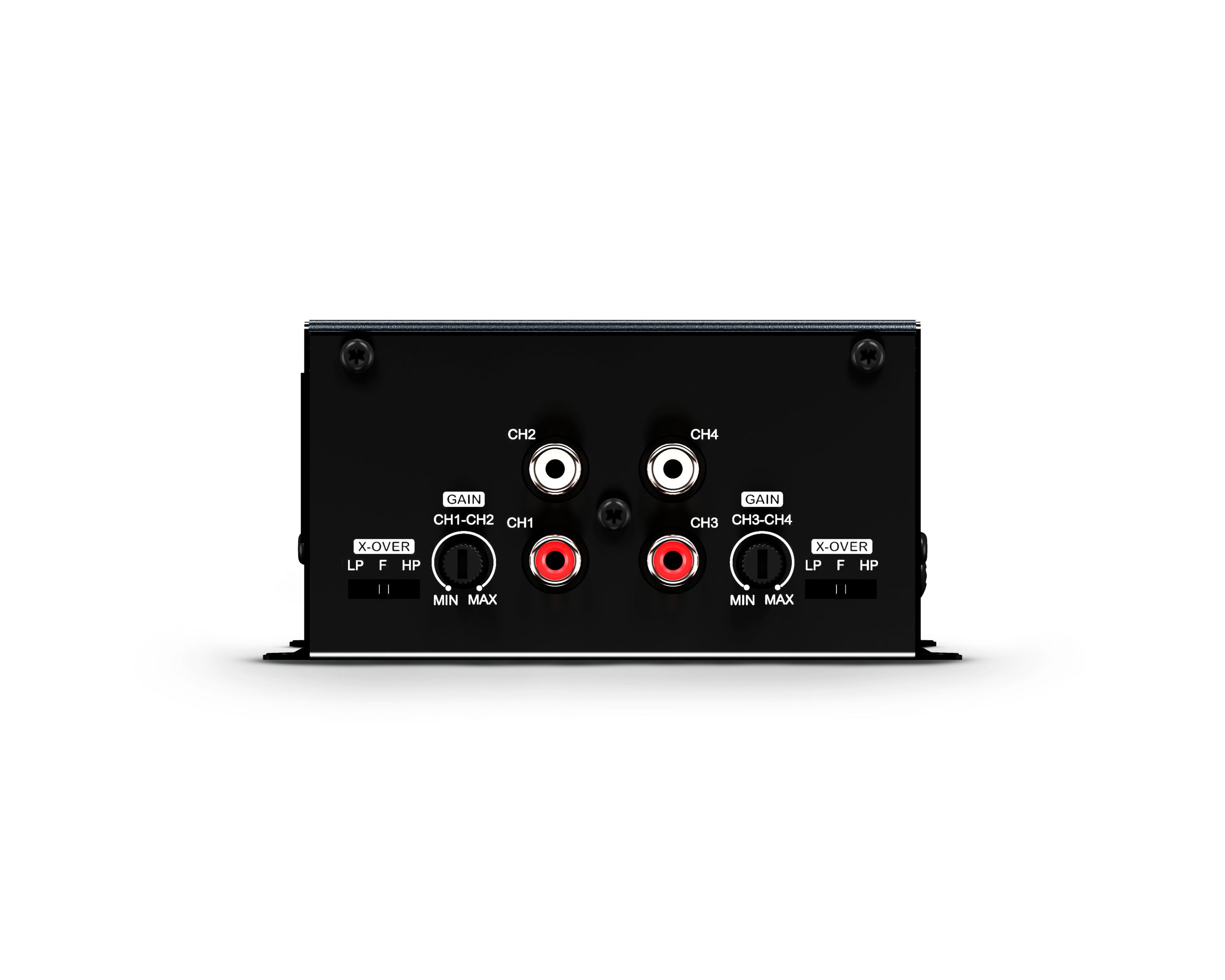

Input Sensitivity (RCA): 0.2V ~ 2V
Current Draw (music): 39A
Current Draw (max.): 78.7A
Total Efficiency: 80%
Damping Factor (@100Hz nominal impedance): 200
Power Cable: 10mm² (7 AWG)
Speaker Cable: 2 x 2.5mm² (13 AWG)
Recommended Fuse (music): 40A
Recommended Battery (minimum): 60Ah
Width: 4.4″ / 11.2 cm
Lenght: 4.2″ / 10.7 cm
Height: 2.0″ / 5.2 cm
Weight: 0,609 kg / 1.342 lb
Älä kytke vahvistinta alle nimelliskuorman!
Do not run your amp under rated impedance!.
12,6V: @ 2Ω: 4 x 200 W RMS
12,6V: @ 4Ω: 4 x 132 W RMS
12,6V: @ 4Ω 2 x 400 W RMS ( Bridge )
14,4V: @ 2Ω: 4 x 225 W RMS
14,4V: @ 4Ω: 4 x 140 W RMS
Frequency Response (-3dB): 5Hz ~ 20kHz
Low Pass Filter (12dB/octave): 80Hz
High Pass Filter (12dB/octave): 80Hz
Operating Voltage: 9V ~ 16V
SNR: 93dB
Input Sensitivity (RCA): 0.2V ~ 2V
Current Draw (music): 39A
Current Draw (max.): 78.7A
Total Efficiency: 80%
Damping Factor (@100Hz nominal impedance): 200
Power Cable: 10mm² (7 AWG)
Speaker Cable: 2 x 2.5mm² (13 AWG)
Recommended Fuse (music): 40A
Recommended Battery (minimum): 60Ah
Width: 4.4″ / 11.2 cm
Lenght: 4.2″ / 10.7 cm
Height: 2.0″ / 5.2 cm
Weight: 0,609 kg / 1.342 lb
Älä kytke vahvistinta alle nimelliskuorman!
Do not run your amp under rated impedance!.
