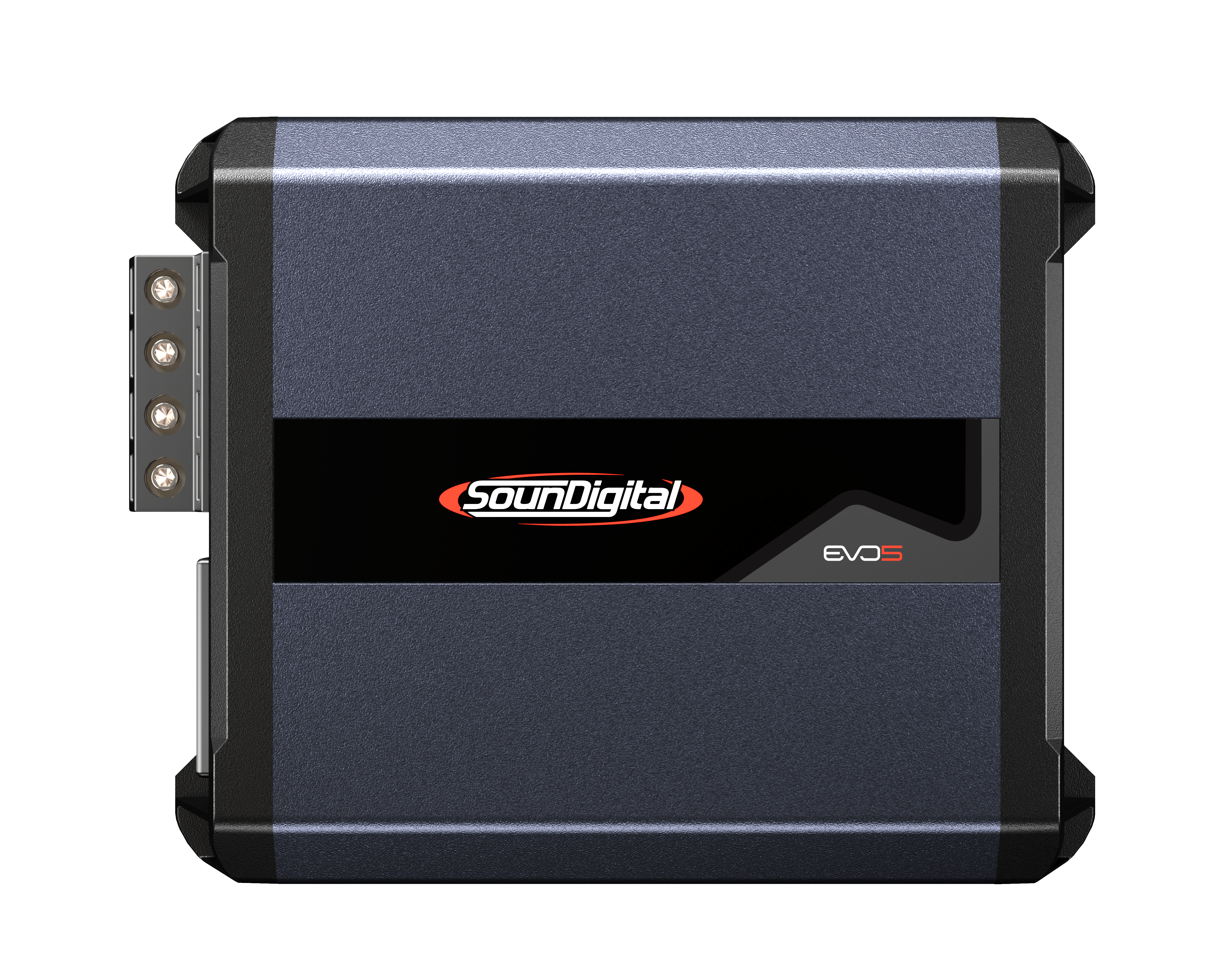

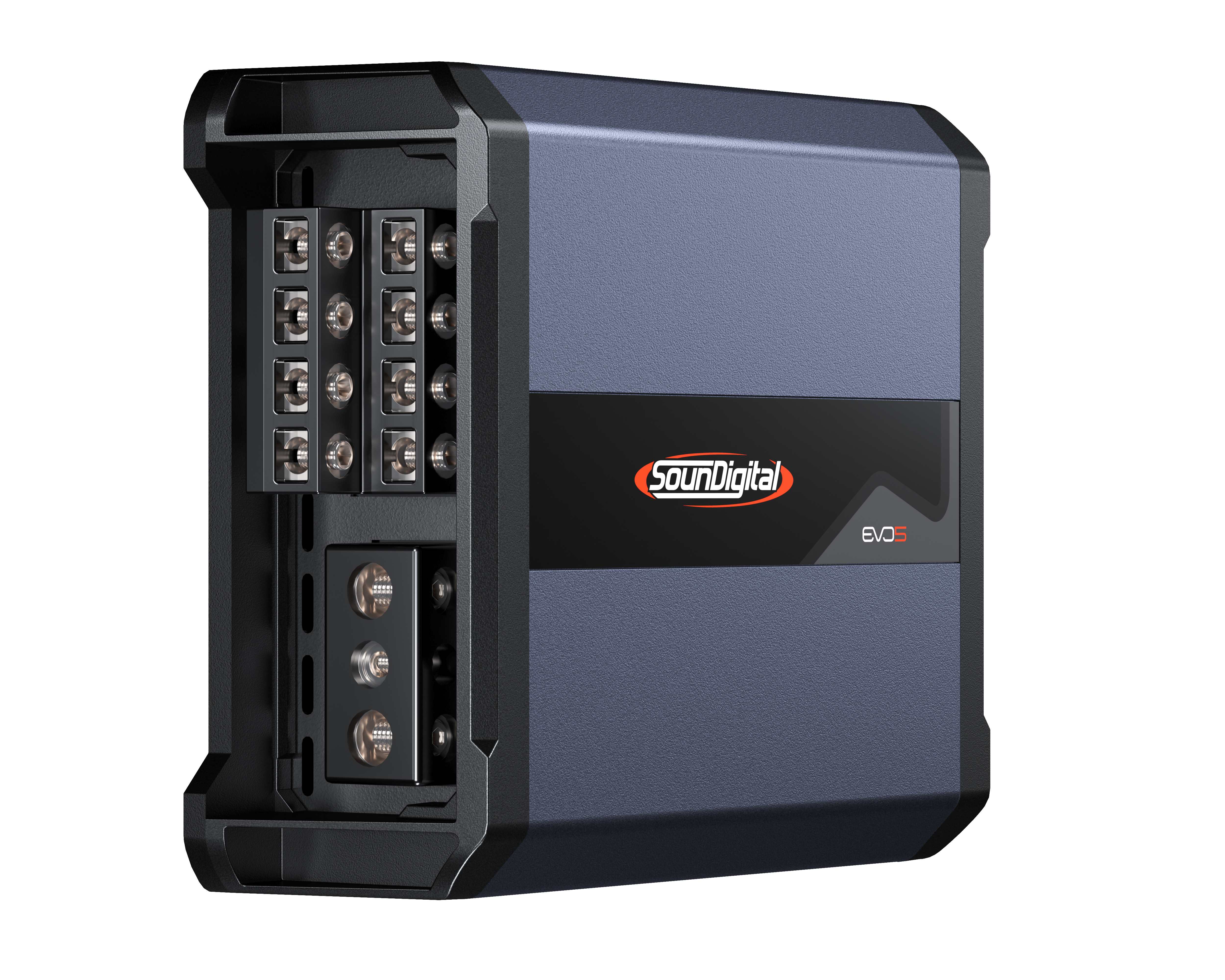

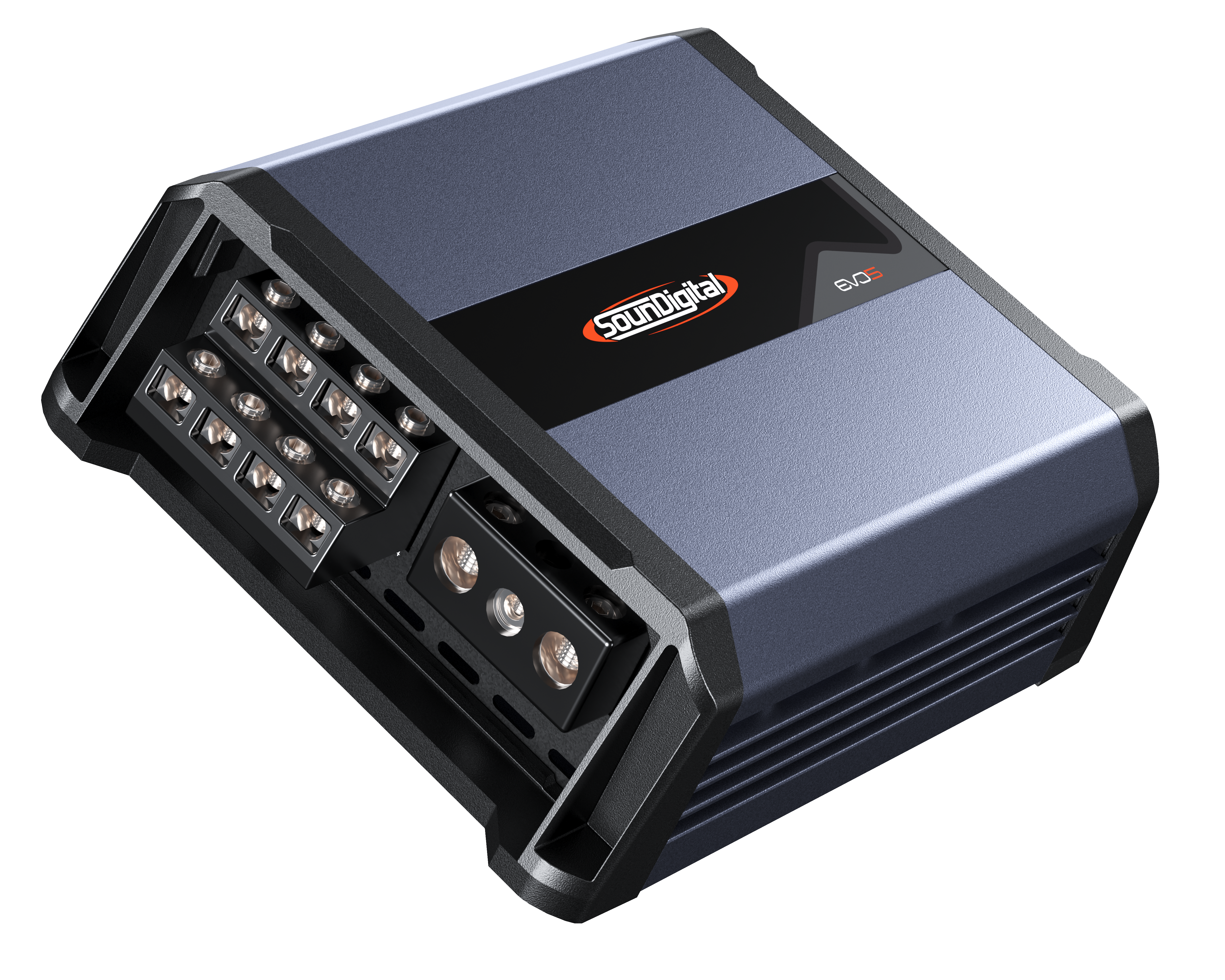

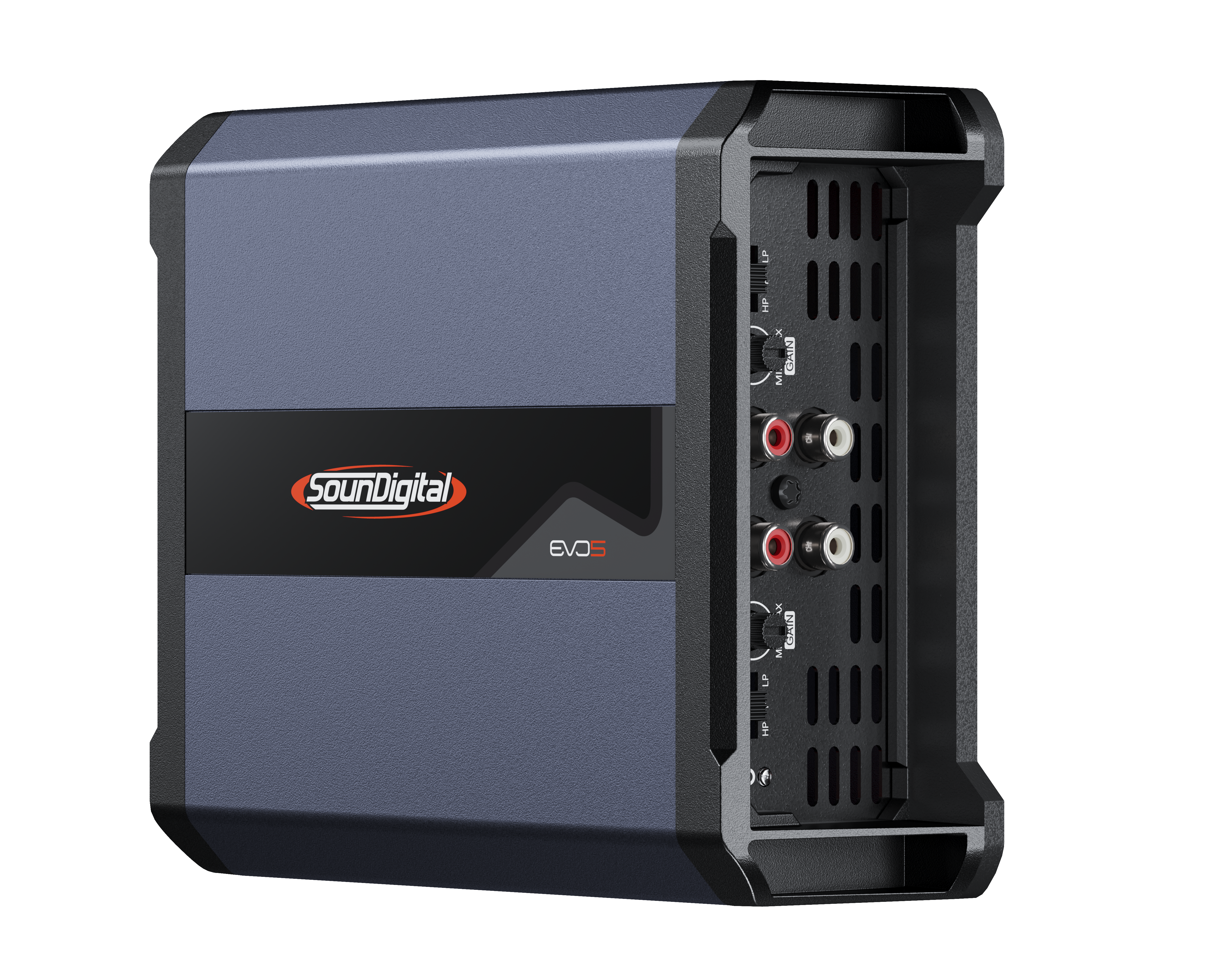

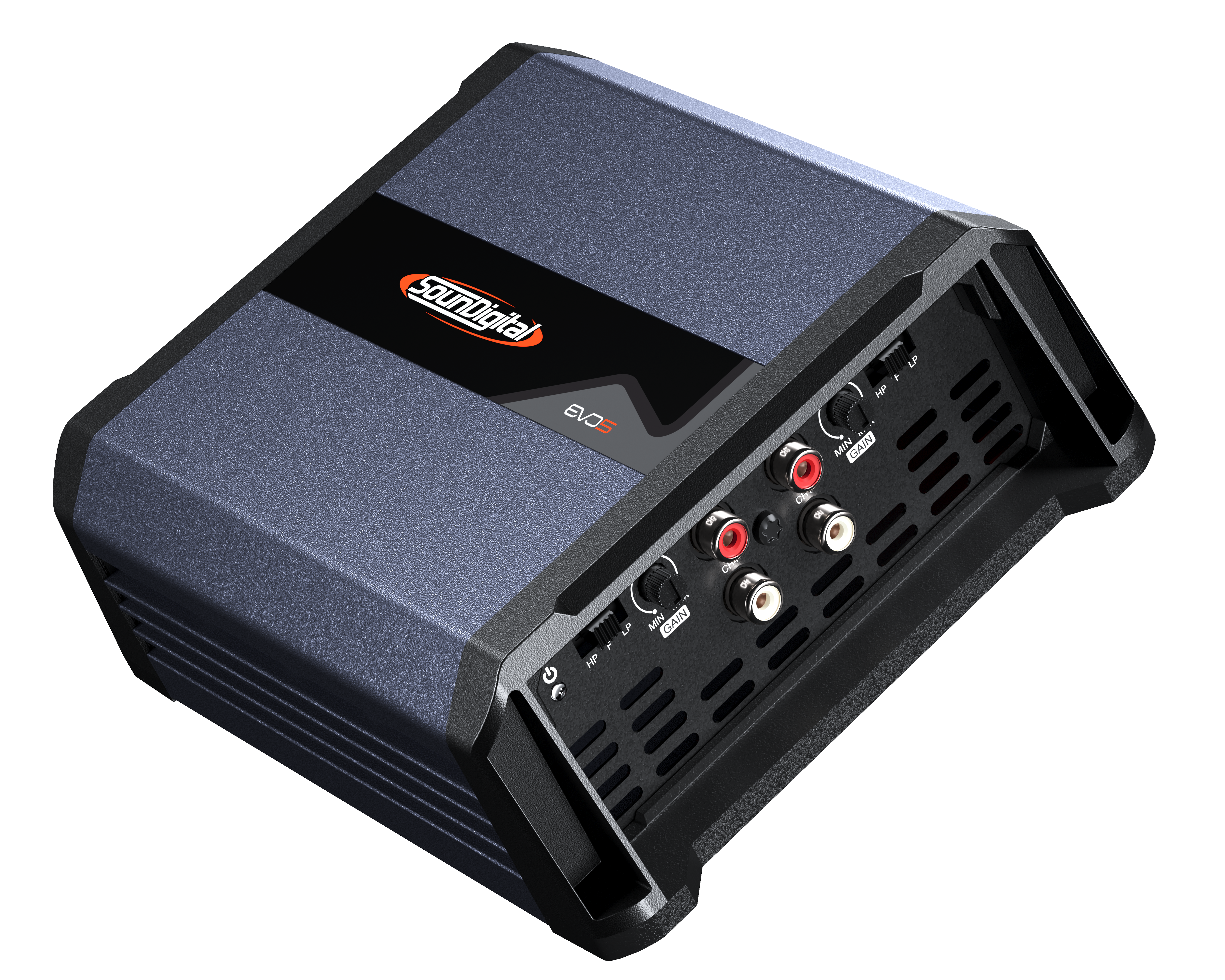

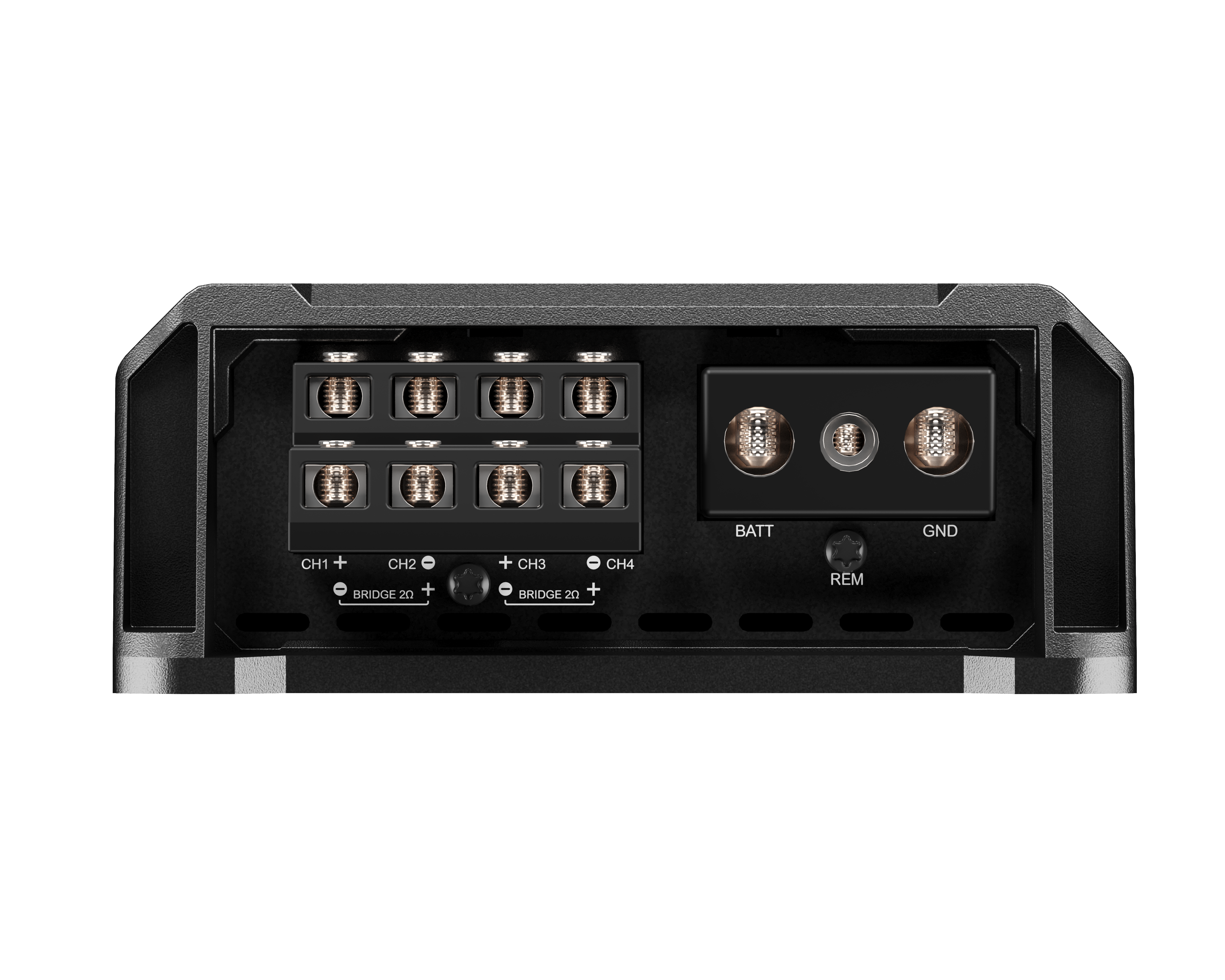

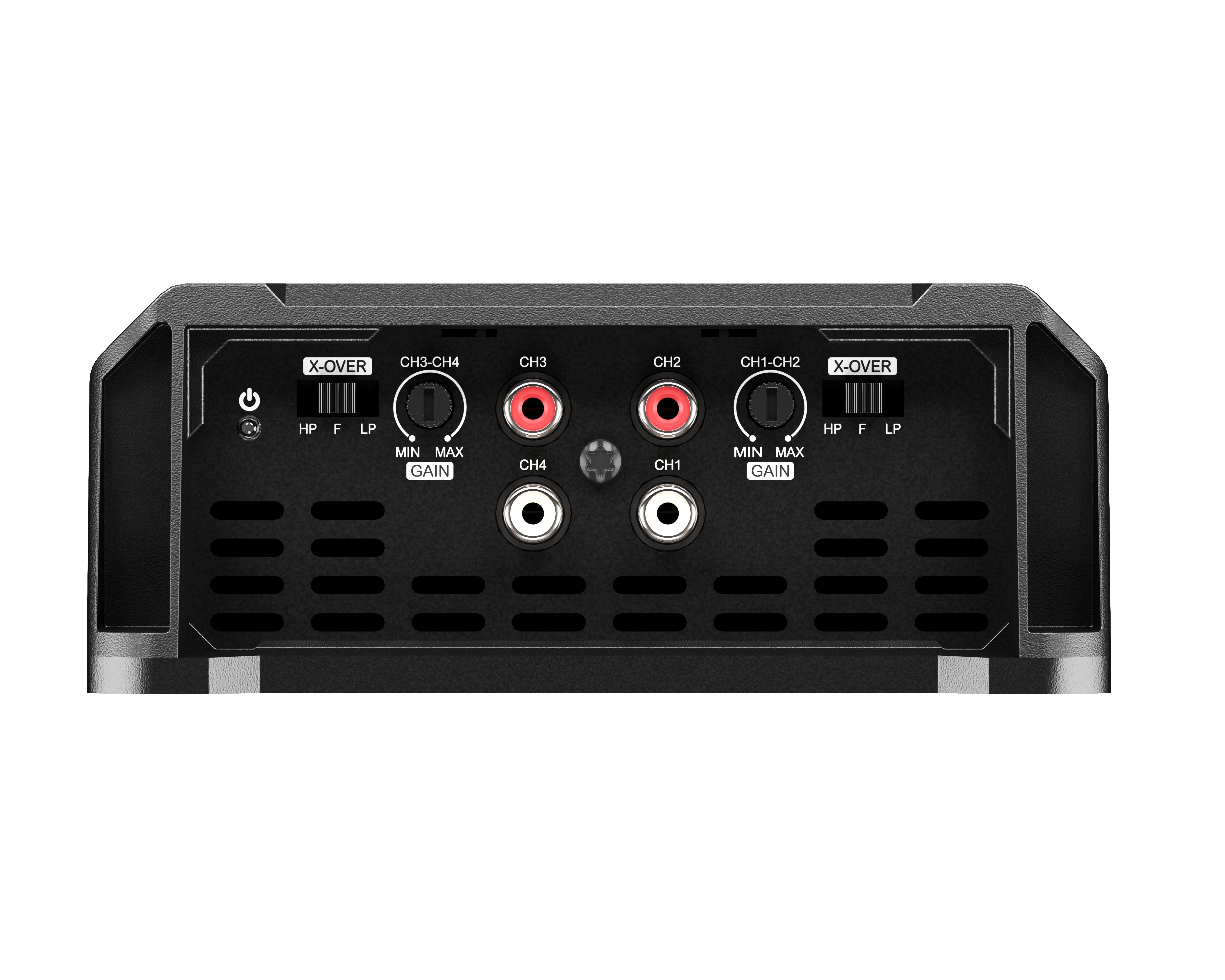

SounDigital 1200.4 EVO 5 - 4 Ohm
SD1200.4-4 EVO5
4-channel amplifier
4 x 300W or 2 x 600W
4 Ohm model

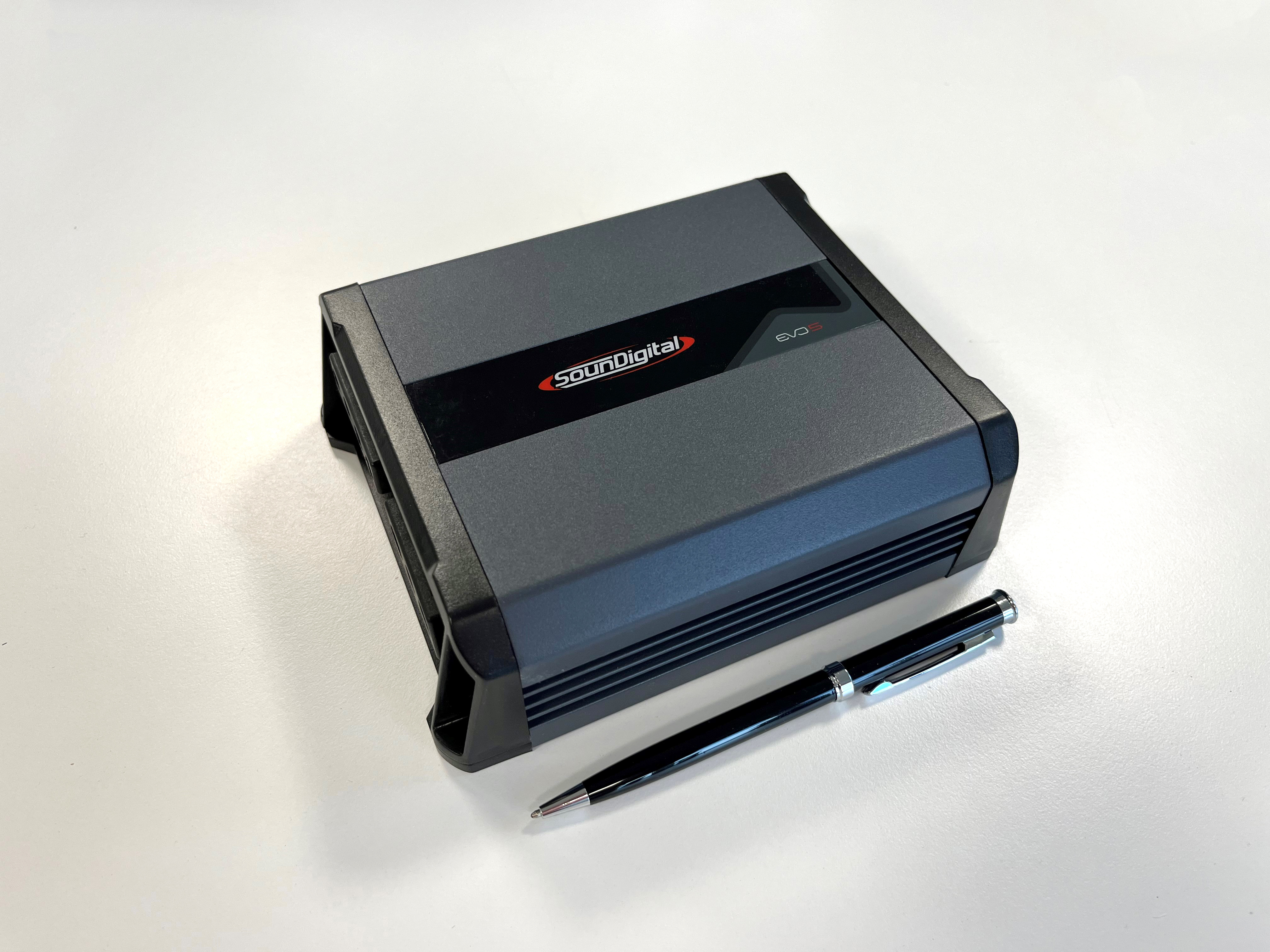

Small size
Läs Mera
2 990,00 kr
Beskrivning
Teknisk information
Bruksanvisningar
The 1200.4 EVO 5 is a compact, modern amplifier that delivers 1200W RMS of power distributed over 4 channels. The amplifier features exclusive and patented technologies that make the sound experience cleaner and more faithful, in addition to ensuring better performance and efficiency for the most daring projects.
Power @ 1Ω: N/A
Power @ 2Ω: 4 X 300 WRMS
Power @ 4Ω: 4 X 198 WRMS
Bridge Power @ 2Ω: N/A
Bridge Power @ 4Ω: 2 X 600W RMS
Frequency Response (-3dB):
5Hz ~ 22kHz
Low Pass Filter (12dB/oct):
80Hz
High Pass Filter (12dB/oct):
80Hz
Operating Voltage:
10V ~ 16V
SNR:
87dB
Input Sensitivity (RCA):
0.2V ~ 2V
Current Draw (music):
59A
Current Draw (max.):
118A
Total Efficiency:
81%
Damping Factor:
200
Power Cable:
16mm² (5 AWG)
Speaker Cable:
2 x 2mm² (14 AWG)
Recommended Fuse (music):
60A
Recommended Battery (minimum):
60Ah
Width:
6.7″ / 12.1 cm
Length:
5.4″ / 17 cm
Height:
2.2″ / 5.48 cm
Weight:
2.36 lb / 1,07 kg
Power @ 2Ω: 4 X 300 WRMS
Power @ 4Ω: 4 X 198 WRMS
Bridge Power @ 2Ω: N/A
Bridge Power @ 4Ω: 2 X 600W RMS
Frequency Response (-3dB):
5Hz ~ 22kHz
Low Pass Filter (12dB/oct):
80Hz
High Pass Filter (12dB/oct):
80Hz
Operating Voltage:
10V ~ 16V
SNR:
87dB
Input Sensitivity (RCA):
0.2V ~ 2V
Current Draw (music):
59A
Current Draw (max.):
118A
Total Efficiency:
81%
Damping Factor:
200
Power Cable:
16mm² (5 AWG)
Speaker Cable:
2 x 2mm² (14 AWG)
Recommended Fuse (music):
60A
Recommended Battery (minimum):
60Ah
Width:
6.7″ / 12.1 cm
Length:
5.4″ / 17 cm
Height:
2.2″ / 5.48 cm
Weight:
2.36 lb / 1,07 kg
