SounDigital 2000.2 EVO 5 - 2 ohm
EAN: 7898644525378
SD2000.2-2 EVO5
2-channel amplifier
2 x 1000W
2 Ohm model
Small size
Läs Mera
3 990,00 kr
Beskrivning
Teknisk information
Bruksanvisningar

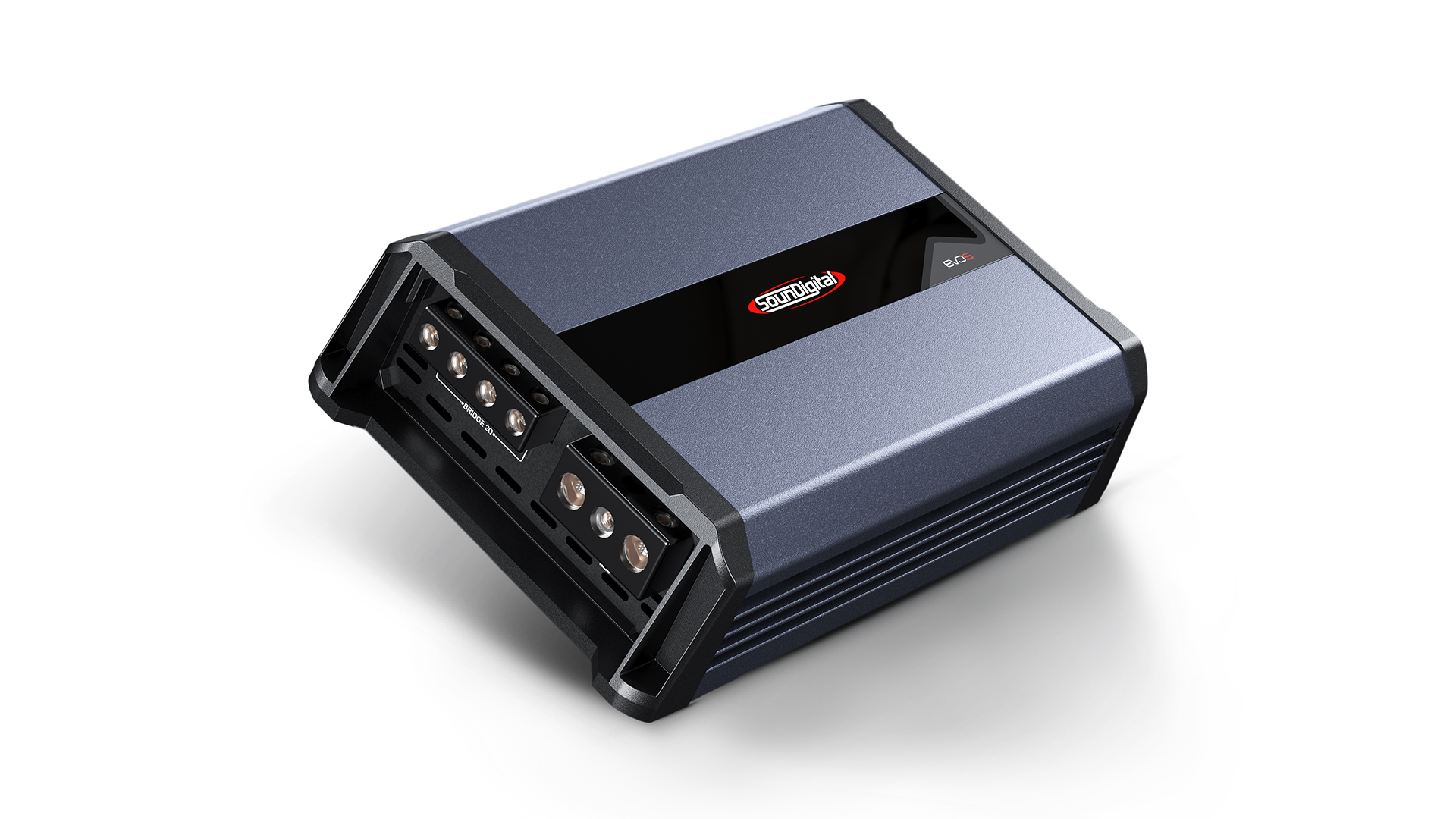

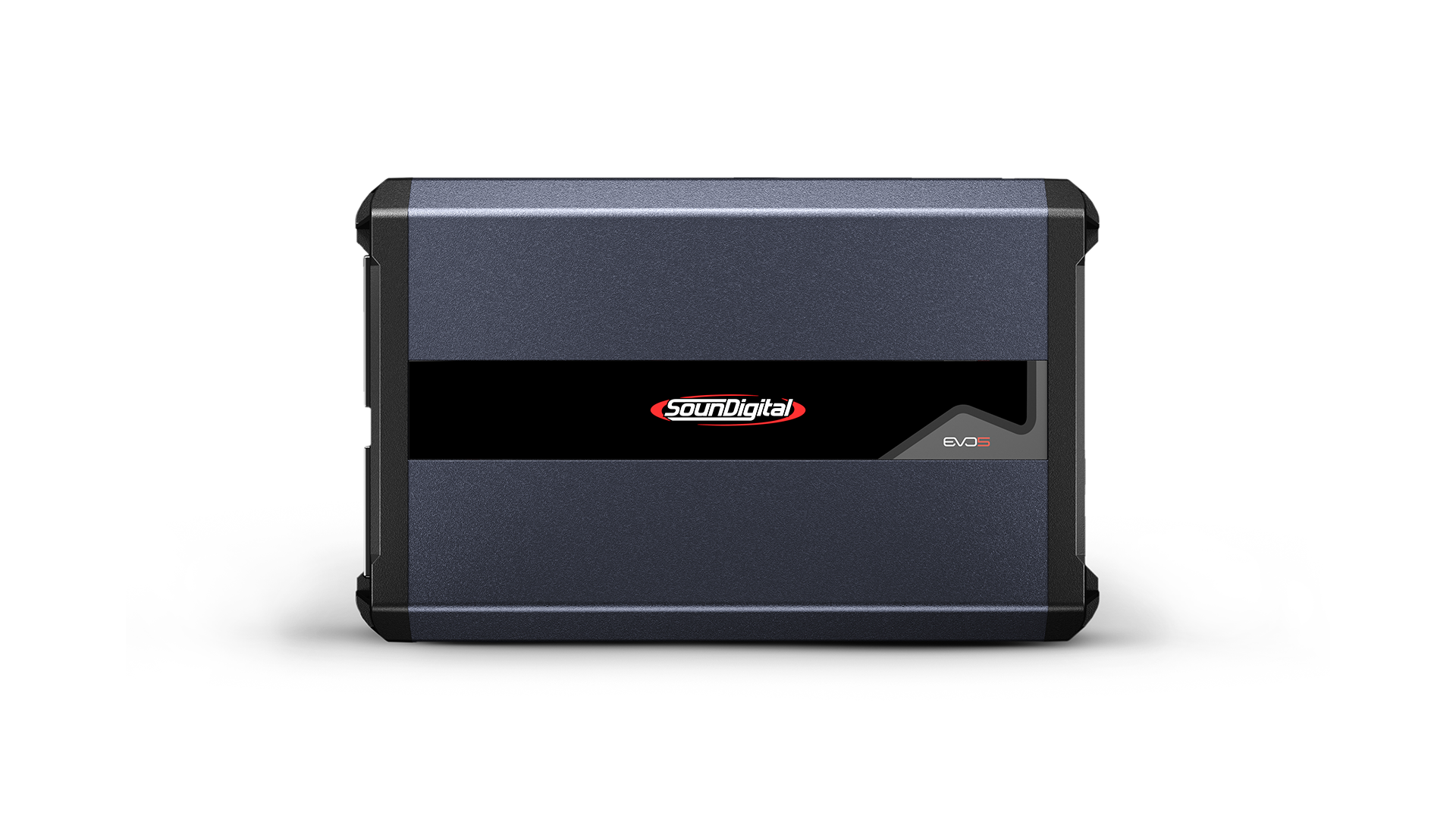

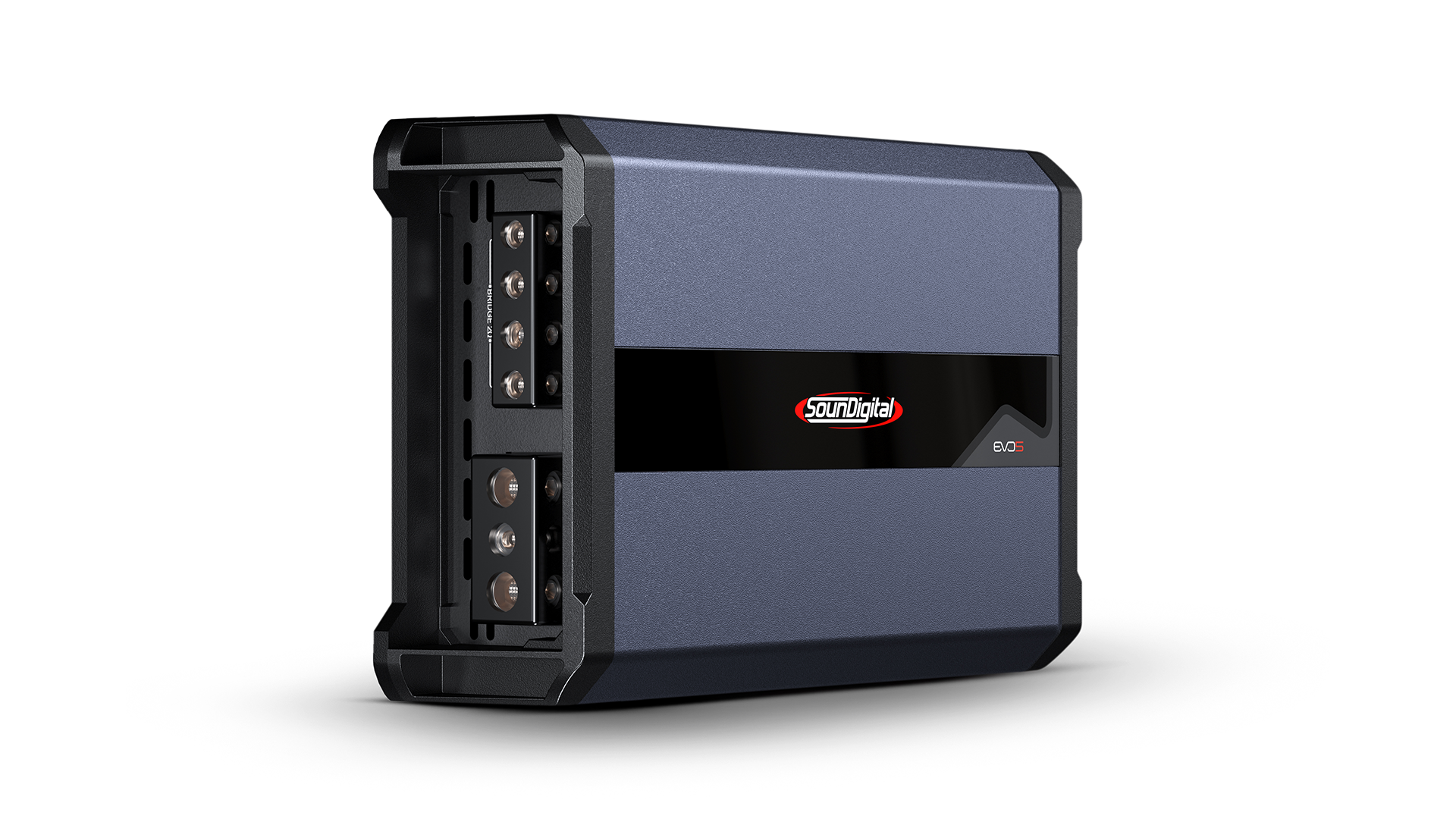

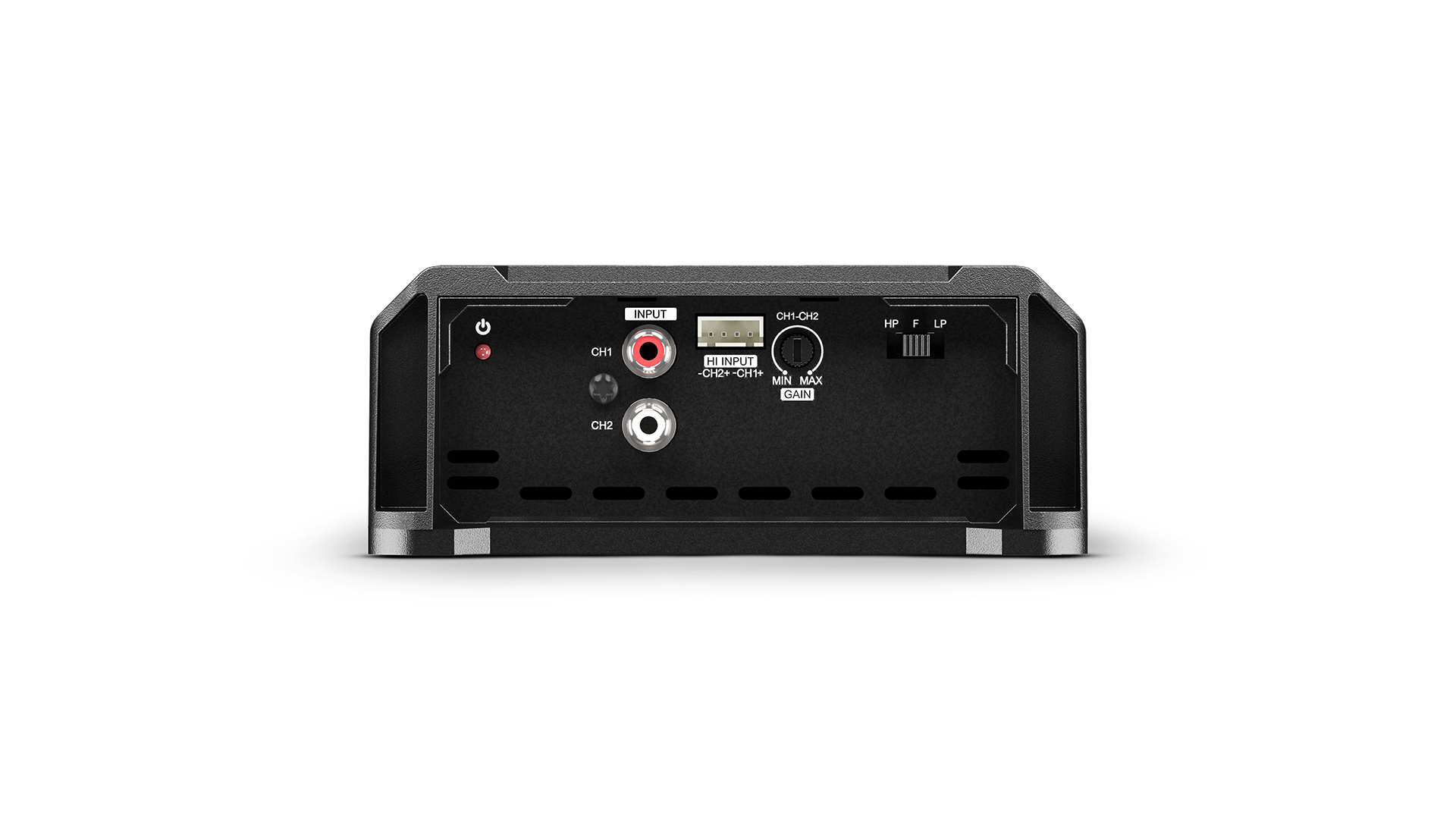

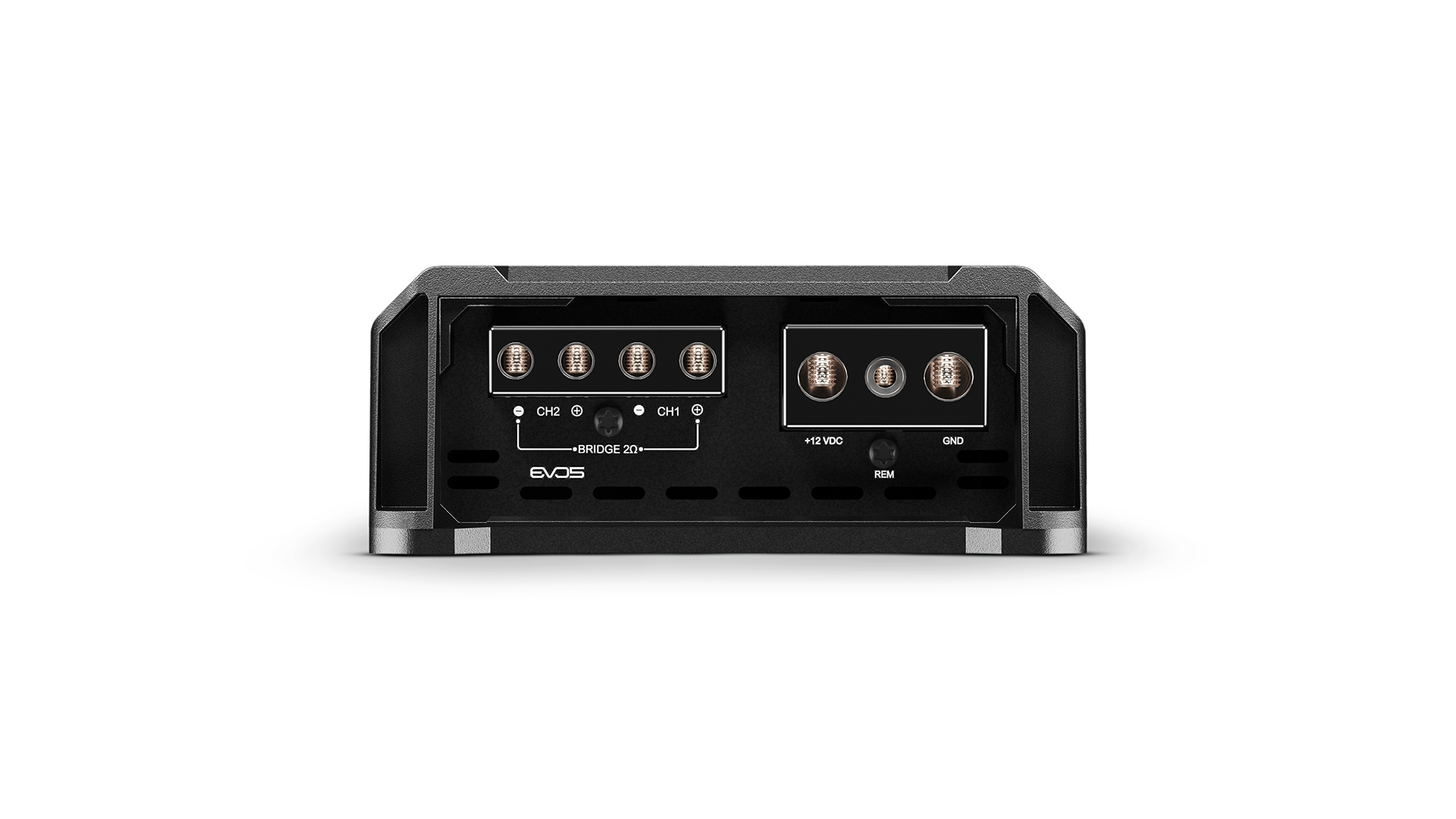

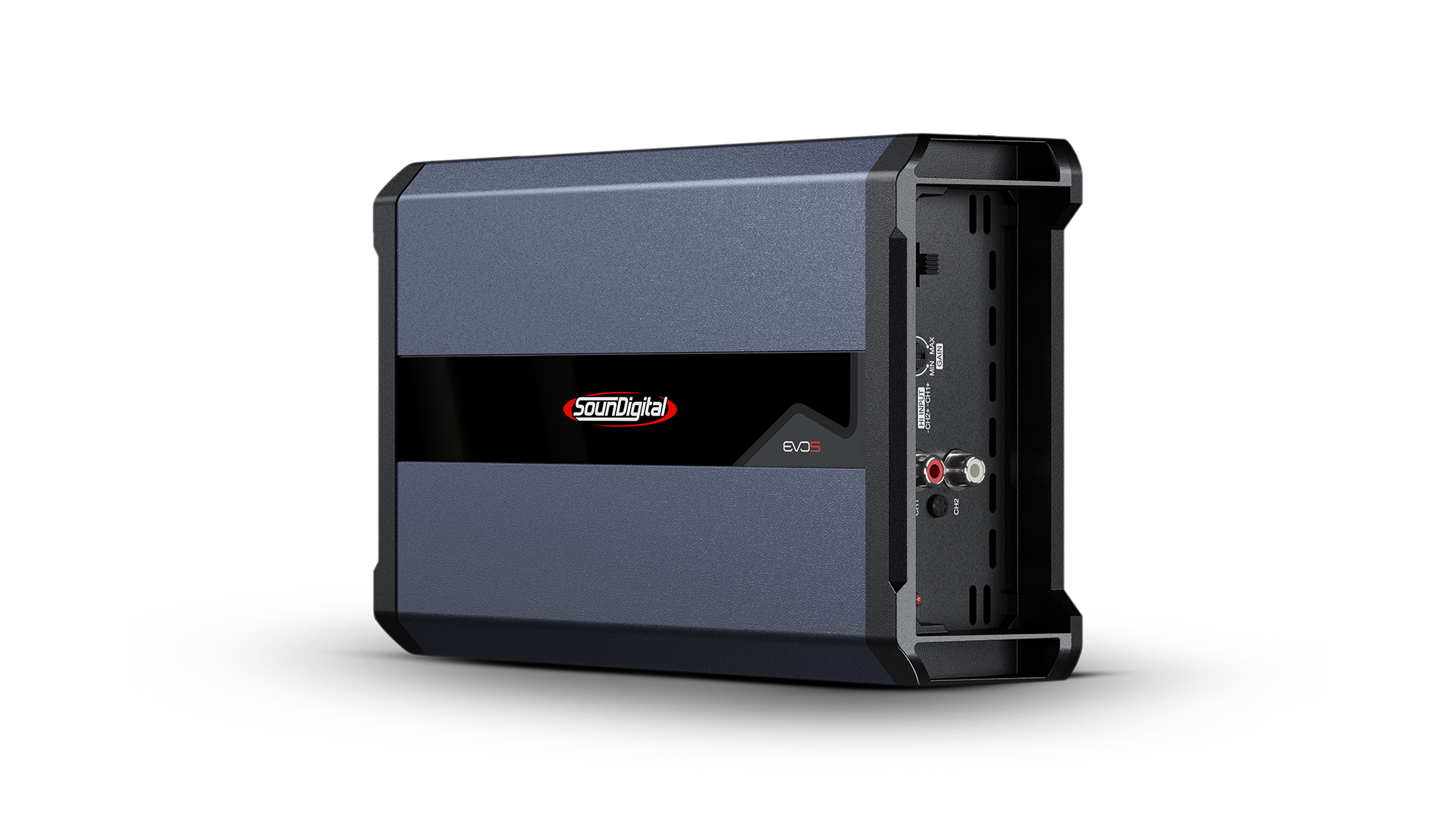

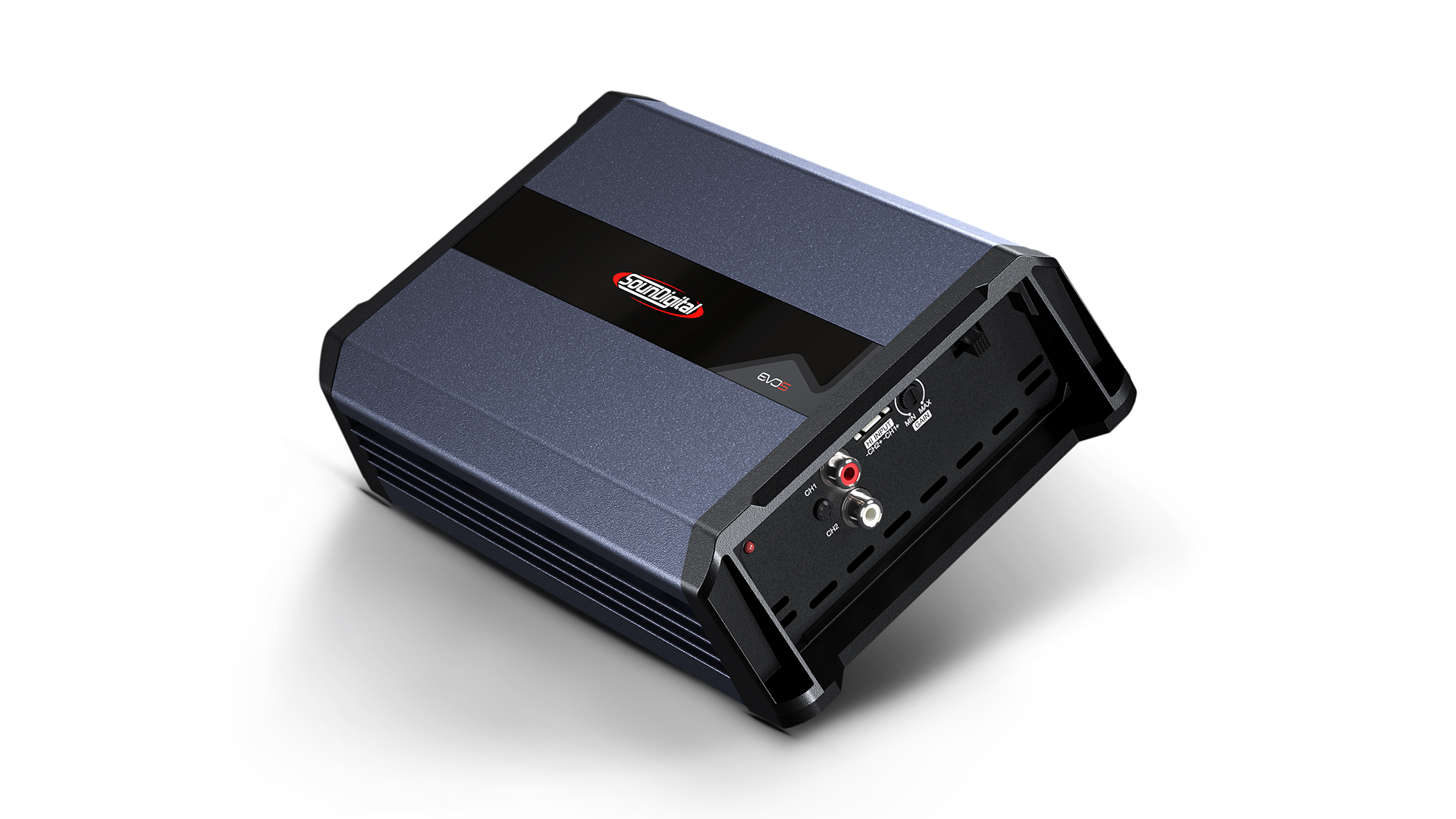

The 2000.2 EVO 5 is a compact, modern amplifier that delivers 2000W RMS of power distributed over 2 channels.
The amplifier features exclusive and patented technologies that make the sound experience cleaner and more faithful, in addition to ensuring better performance and efficiency for the most daring projects.
The amplifier features exclusive and patented technologies that make the sound experience cleaner and more faithful, in addition to ensuring better performance and efficiency for the most daring projects.
Power @ 1Ω: 2 X 1000W
Power @ 2Ω: 2 X 660W
Bridge Power @ 2Ω: 1 X 2000W
Bridge Power @ 4Ω: 1 X 1320W
Frequency Response (-3dB):
10Hz ~ 20kHz
Low Pass Filter (LP -12dB/8):
80Hz
High Pass Filter (HP -12dB/8):
80Hz
Operating Voltage:
8V ~ 16V
SNR:
90dB
Input Sensitivity:
0.2 ~ 4V
Current Draw (Music):
2Ω: 89A
4Ω: 88A
Current Draw With Resistive Load (1kHz @ 12.6V):
2Ω: 178A
4Ω: 176A
Total Efficiency:
2Ω: 89%
4Ω: 90%
Damping Factor (@100Hz Rated Impedance):
200
Minimum Audio Output Impedance:
2Ω: 1 ohm
4Ω: 2 ohms
Minimum Bridge Impedance:
2Ω: 2 ohm
4Ω: 4 ohms
Recommended Fuse (Music):
100A
Recommended Battery (Music):
100Ah
Width:
5.4 in / 13,6 cm
Length:
8.9 in / 22,7 cm
Height:
2.2 in / 5,5 cm
Weight:
3.39 lb / 1,54 Kg.
