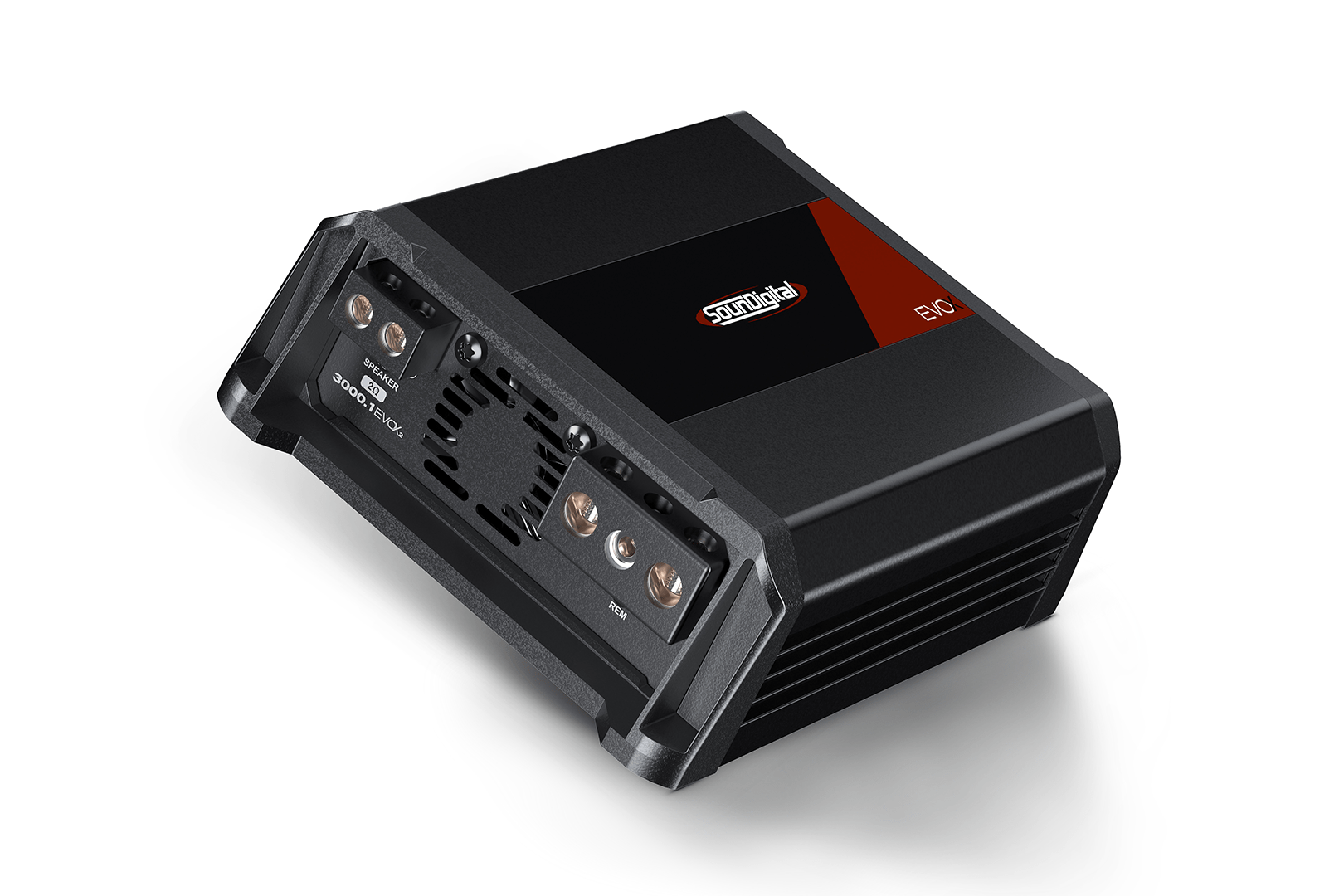

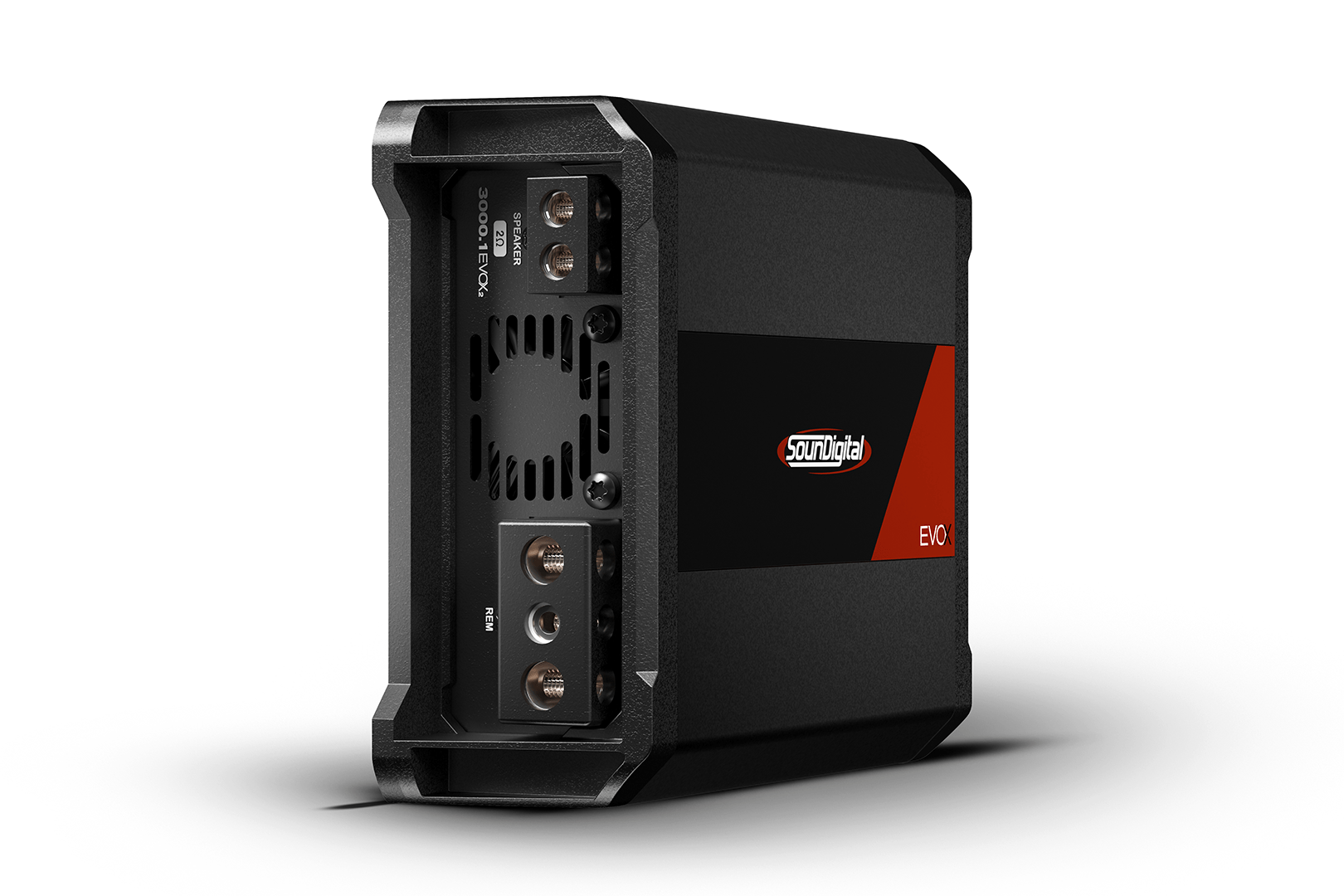

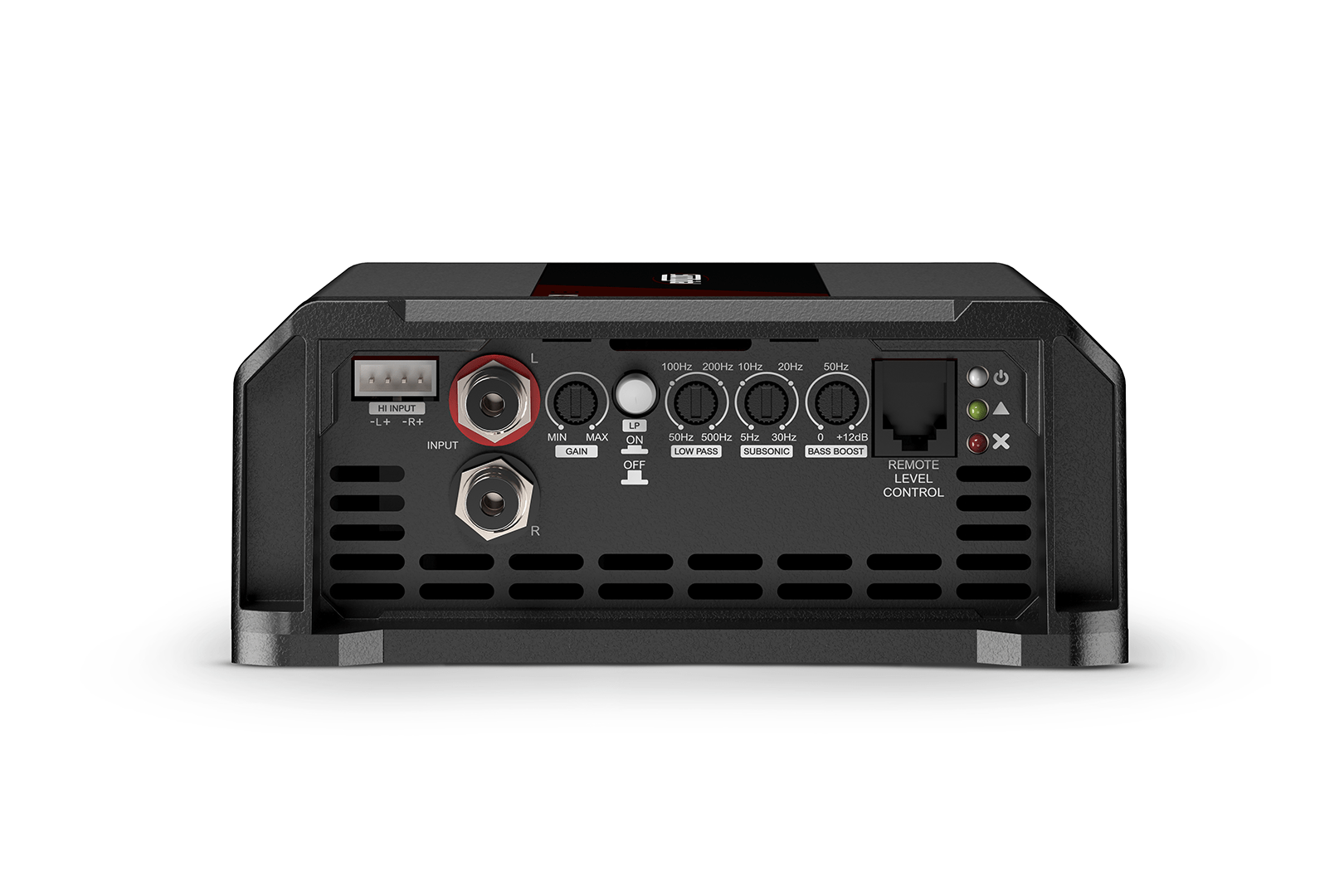

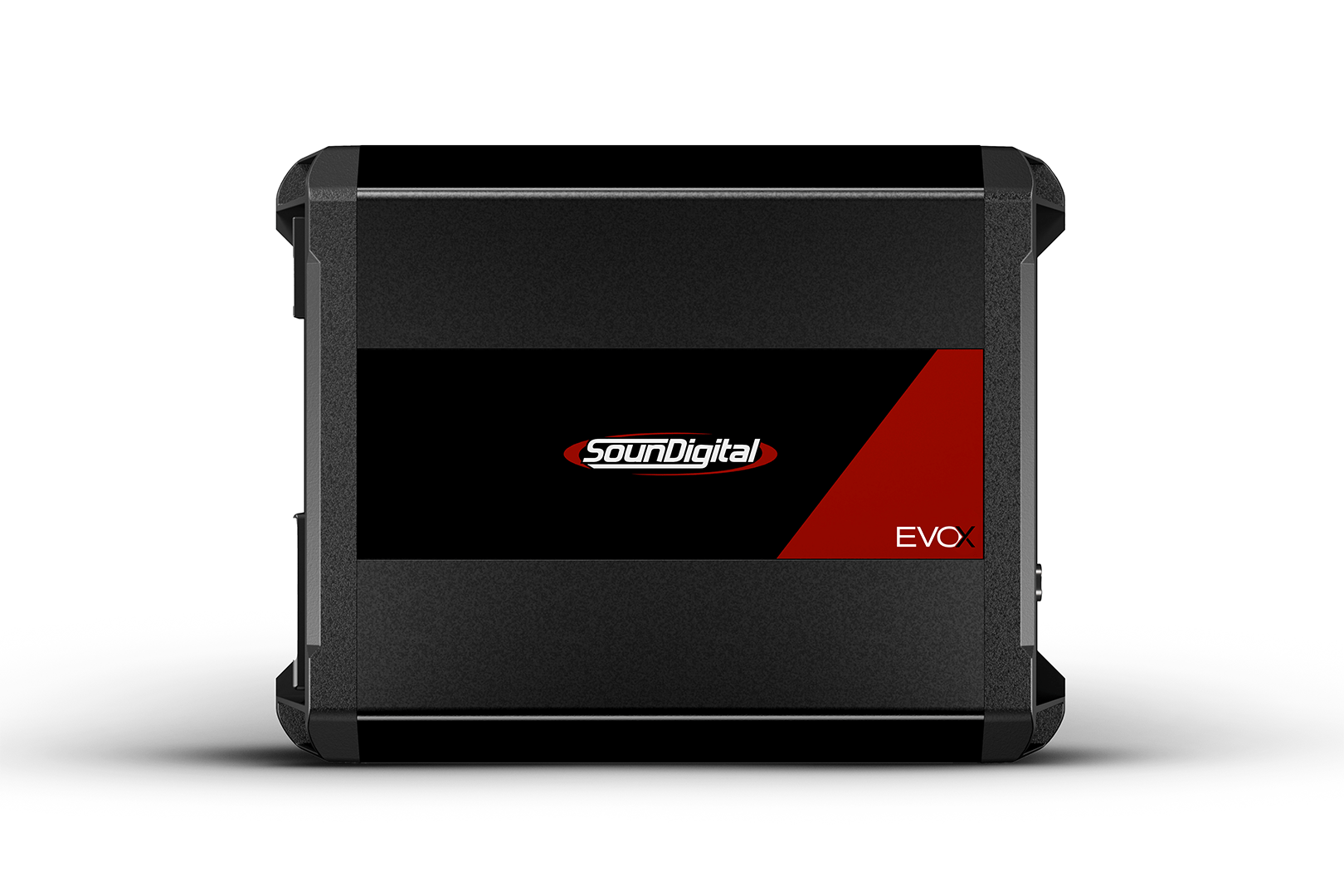

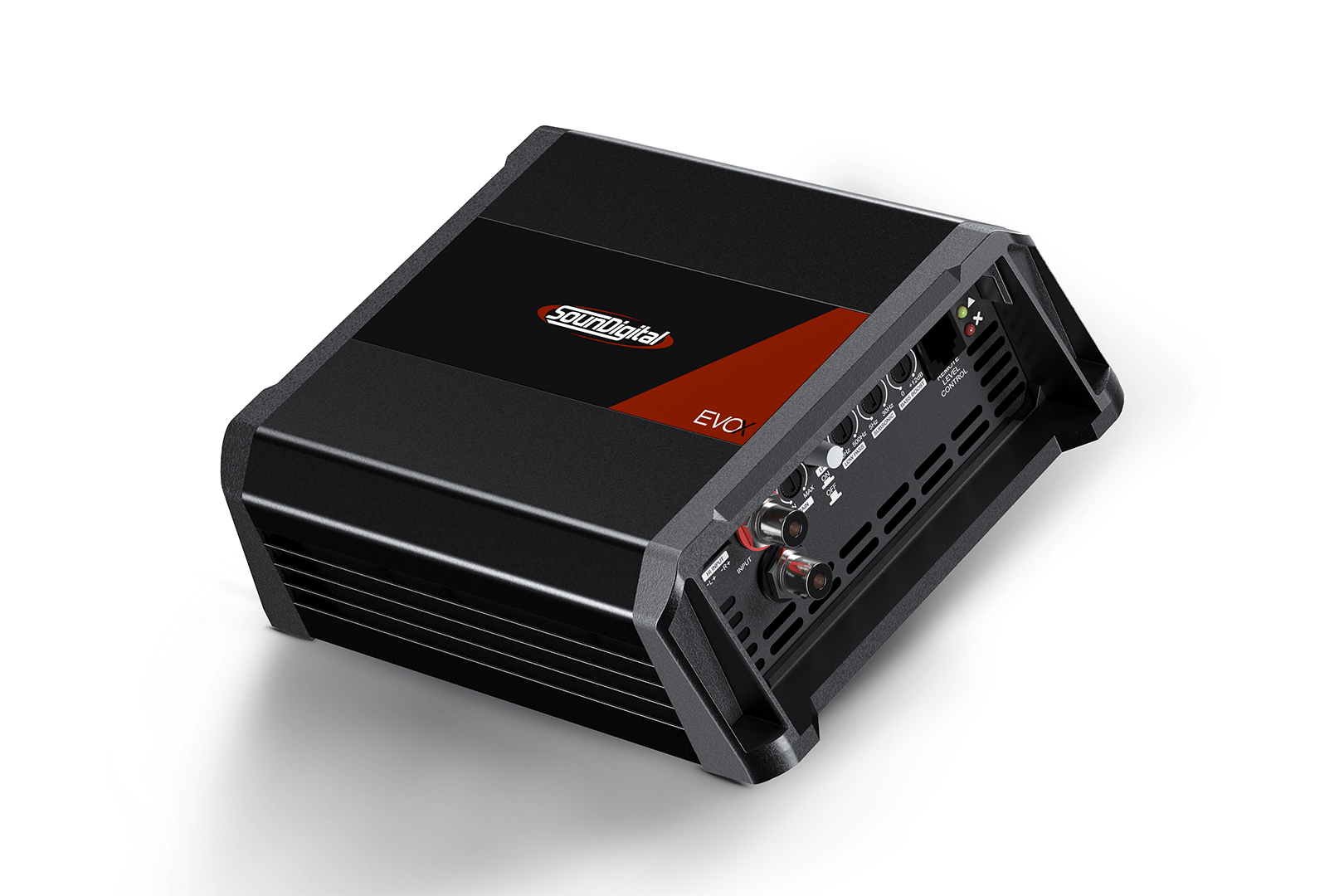

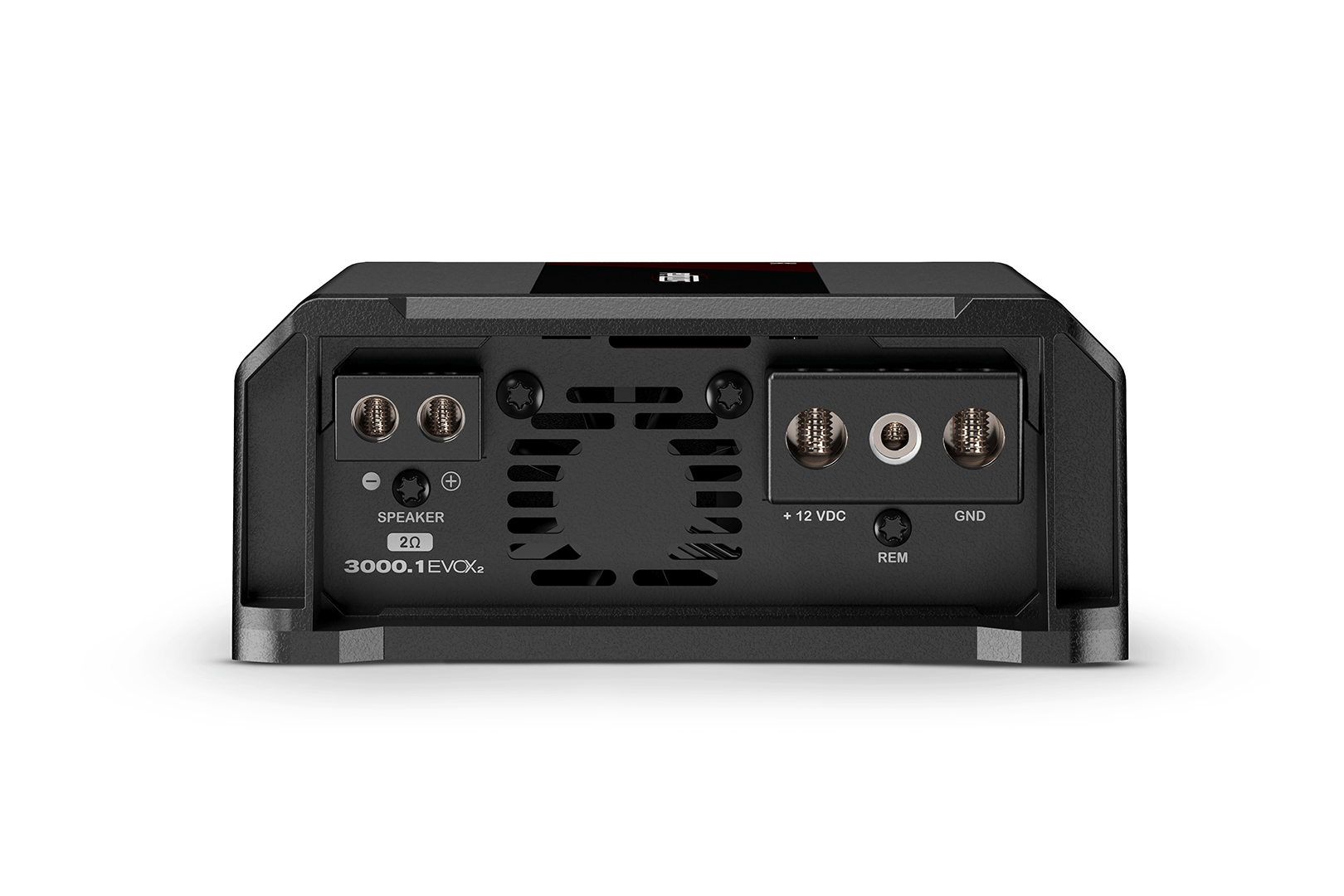

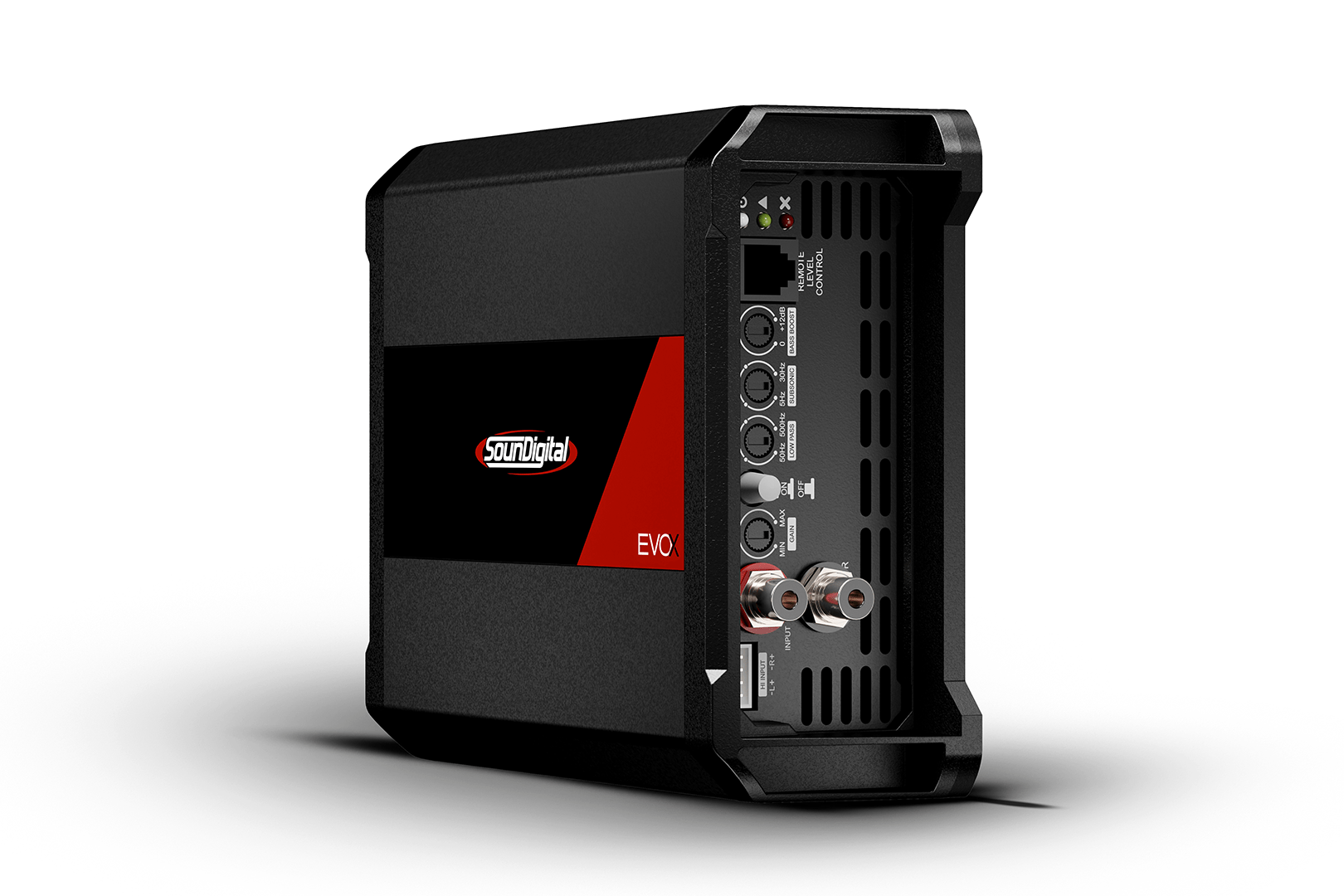

SounDigital SD3000.1 EVOX2 1 ohm
SD3000.1-1 EVOX2
Mono amplifier
1 Ohm model
3000W
New better circuit board
Better cooling than before
Läs Mera
7 990,00 kr
Beskrivning
Teknisk information
The 3000.1 EVOX2 is a compact, modern amplifier that delivers 3000W RMS of power over 1 channel.
EVOX2 is the best series that SounDigital has ever made!
The amplifier features exclusive and patented technologies that make the sound experience cleaner and more faithful, in addition to ensuring better performance and efficiency for the most daring projects.
Features:
- New better circuit board
- New RCA connectors
- Better cooling than before
- Renewed signal input: improved interference distance
- better audio quality
EVOX2 is the best series that SounDigital has ever made!
The amplifier features exclusive and patented technologies that make the sound experience cleaner and more faithful, in addition to ensuring better performance and efficiency for the most daring projects.
Features:
- New better circuit board
- New RCA connectors
- Better cooling than before
- Renewed signal input: improved interference distance
- better audio quality
Power @ 1Ω: 1 X 3000W RMS
Power @ 2Ω: 1 X 1980W RMS
Power @ 4Ω: 1 X 1307W RMS
Frequency Response (-3dB):
5Hz – 25kHz
Subsonic Filter (12dB/octave):
5Hz ~ 40Hz
Low Pass Filter (12dB/octave):
50Hz ~ 500Hz
Bass Boost:
0dB ~ 12dB @ 50Hz
Operating Voltage:
8V ~ 16V
SNR:
1Ω: 92dB
2Ω: 90dB
Input Sensitivity (RCA):
0.2V ~ 2V
Input Sensitivity (High Level input):
1.4V ~ 14V
Current Draw (Music):
121A
Current Draw (Max):
242A
Total Efficiency:
86%
Damping Factor (@100Hz nominal impedance):
3000
Power Cable:
35mm² / 2AWG
Speaker Cable:
1Ω: 2 x 6mm² / 9 AWG
2Ω: 2 x 4mm² / 11 AWG
Recommended Fuse* (music):
150A
Recommended Battery (minimum):
150Ah
Width:
5.3 in / 13,6 cm
Length:
8.9 in / 22,8 cm
Height:
2.1 in / 5,5 cm
