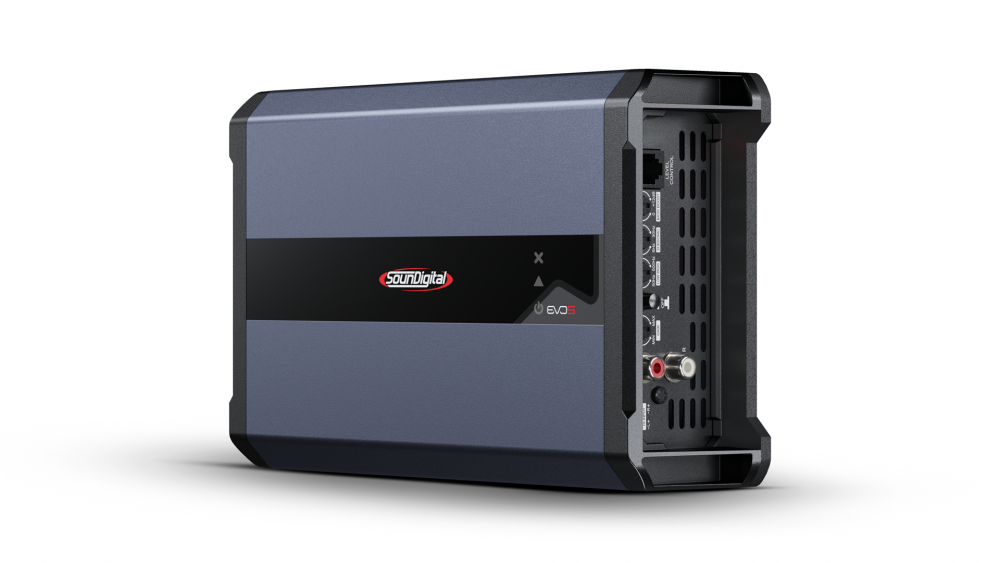

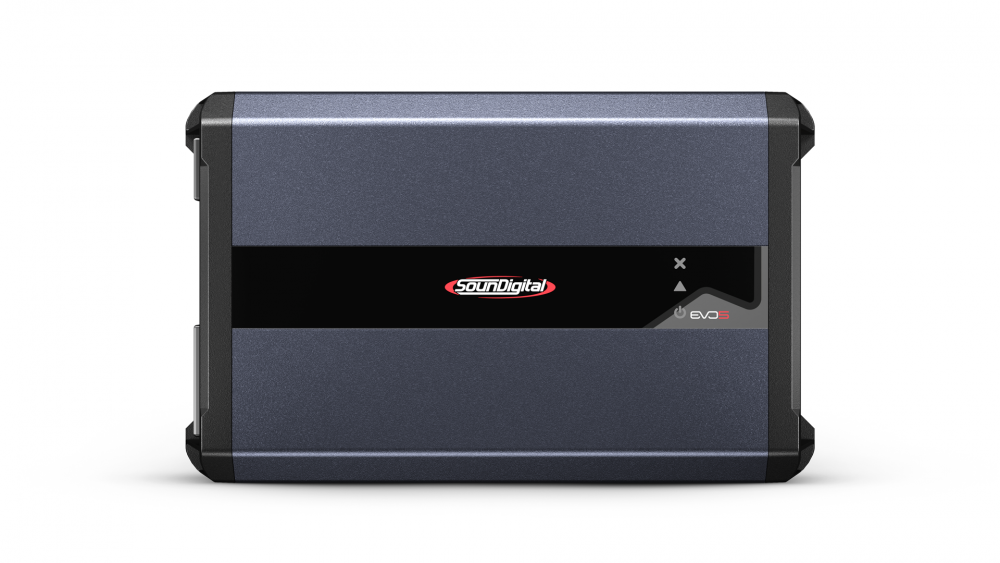

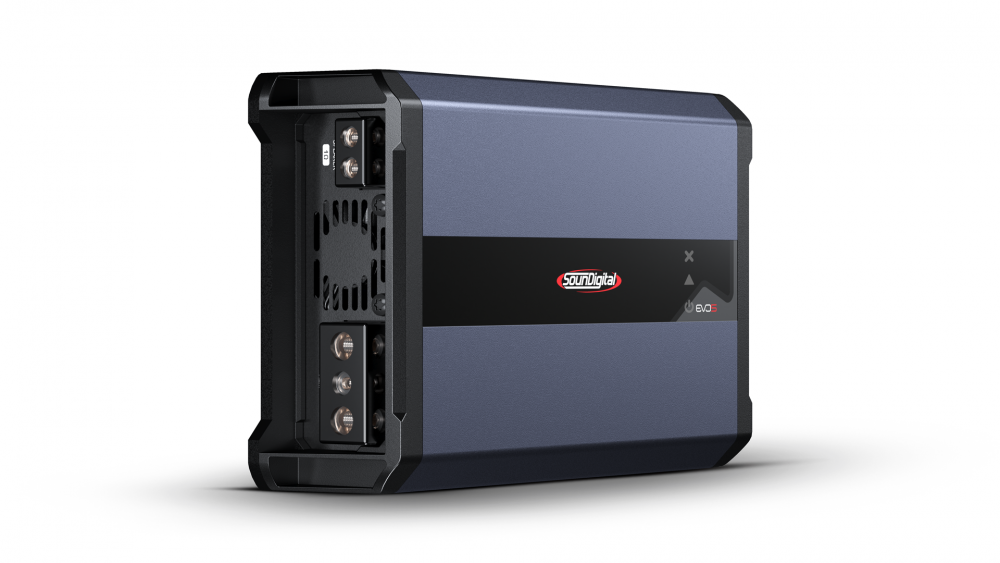

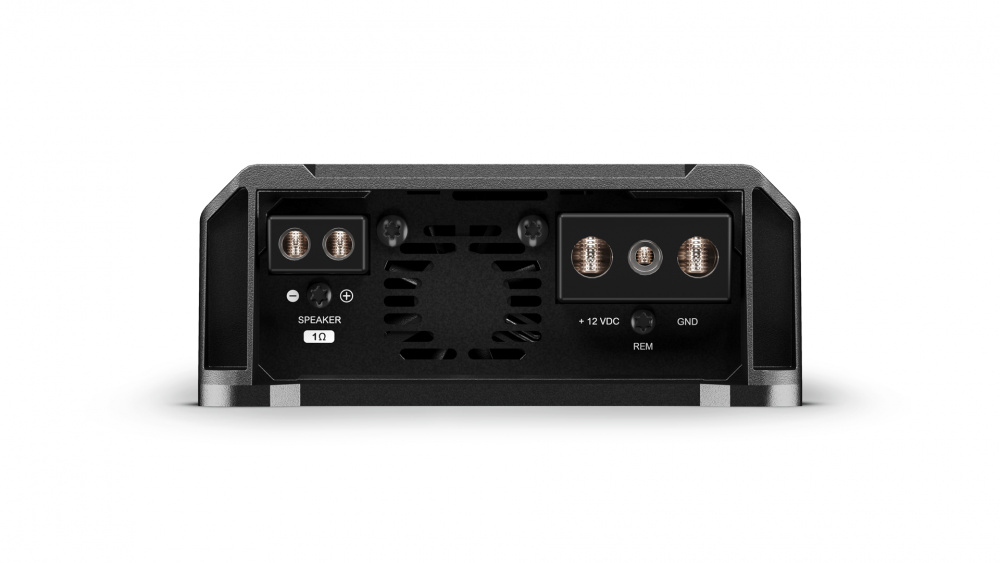

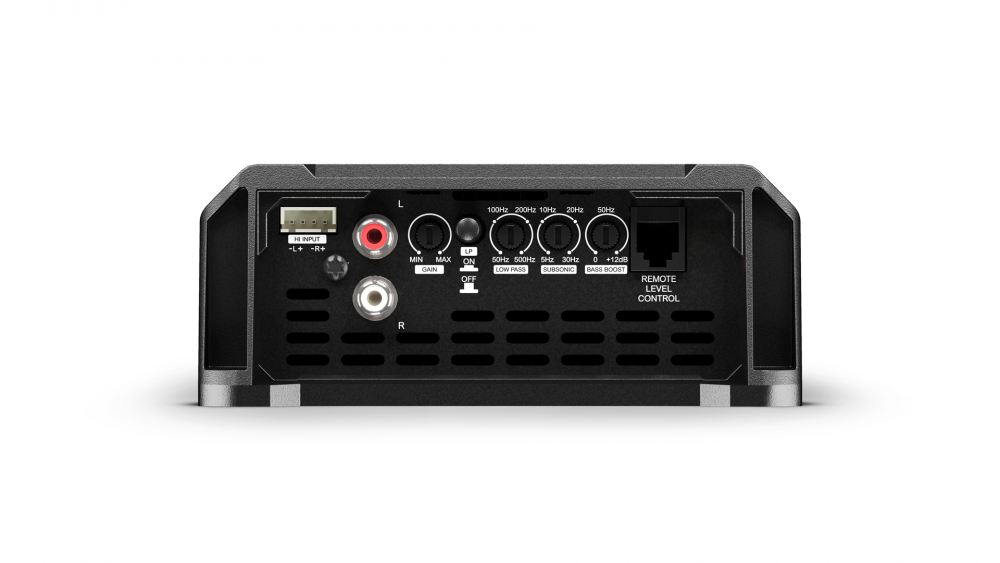

SounDigital 3000.1 EVO 5 - 4Ohm
EAN: 7898644525439
SD3000.1-4 EVO5
1-channel amplifier
3000W
4 Ohm model
Small size
Läs Mera
2 990,00 kr
Beskrivning
Teknisk information
The 3000.1EVO 5 is a compact, modern amplifier that delivers 3000W RMS of power distributed over 1 channel. The amplifier features exclusive and patented technologies that make the sound experience cleaner and more faithful, in addition to ensuring better performance and efficiency for the most daring projects.
Power @ 4Ω: 1 X 3000W RMS
Frequency Response (-3dB):
5Hz ~ 25kHz
Subsonic Filter:
5Hz ~ 30Hz
Low Pass Filter:
50Hz ~ 1kHz
Bass Boost:
0dB ~ 12dB @ 50Hz
Operating Voltage:
8V – 16V
SNR:
92dB
Input Sensitivity:
0.2V ~ 2V
Current Draw (Music):
4Ω: 140A
Current Draw With Resistive Load:
4Ω: 280A
Total Efficiency:
4Ω: 85%
Damping Factor:
2000
Power Cable:
35mm² (2AWG)
Audio Output Cable:
4Ω: 2 x 1.5 mm² (15 AWG)
Recommended Fuse (Music):
150A
Recommended Battery:
150Ah
Width:
5.3 in / 13.6 cm
Length:
8.9 in / 22.8 cm
Height:
2.1 in / 5.48 cm
Weight:
1.75 Kg
