SLUTSTEG OCH TILLBEHÖR Slutsteg 1-kanals SounDigital 1600.1 EVO 5 - 4 Ohm

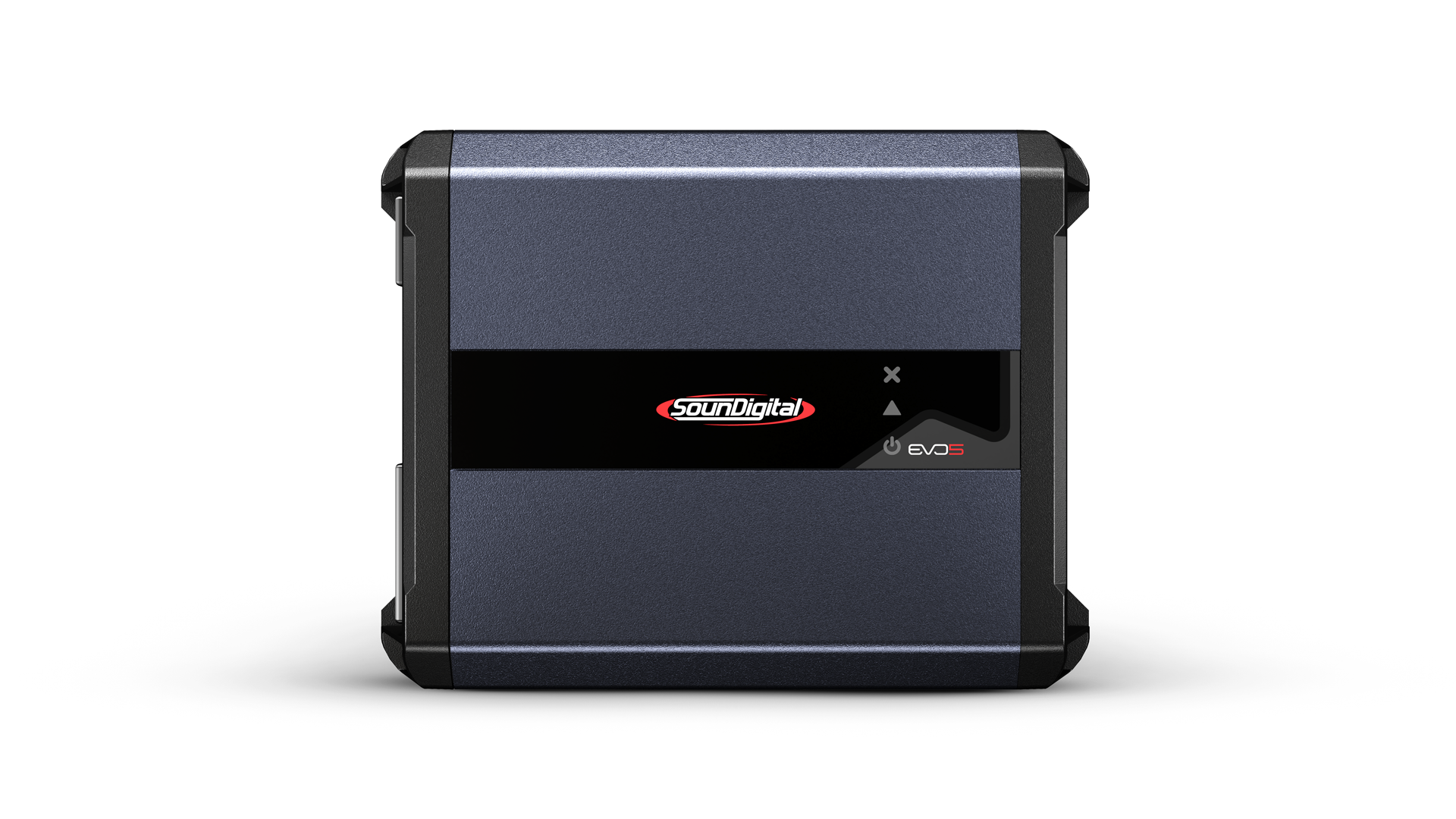

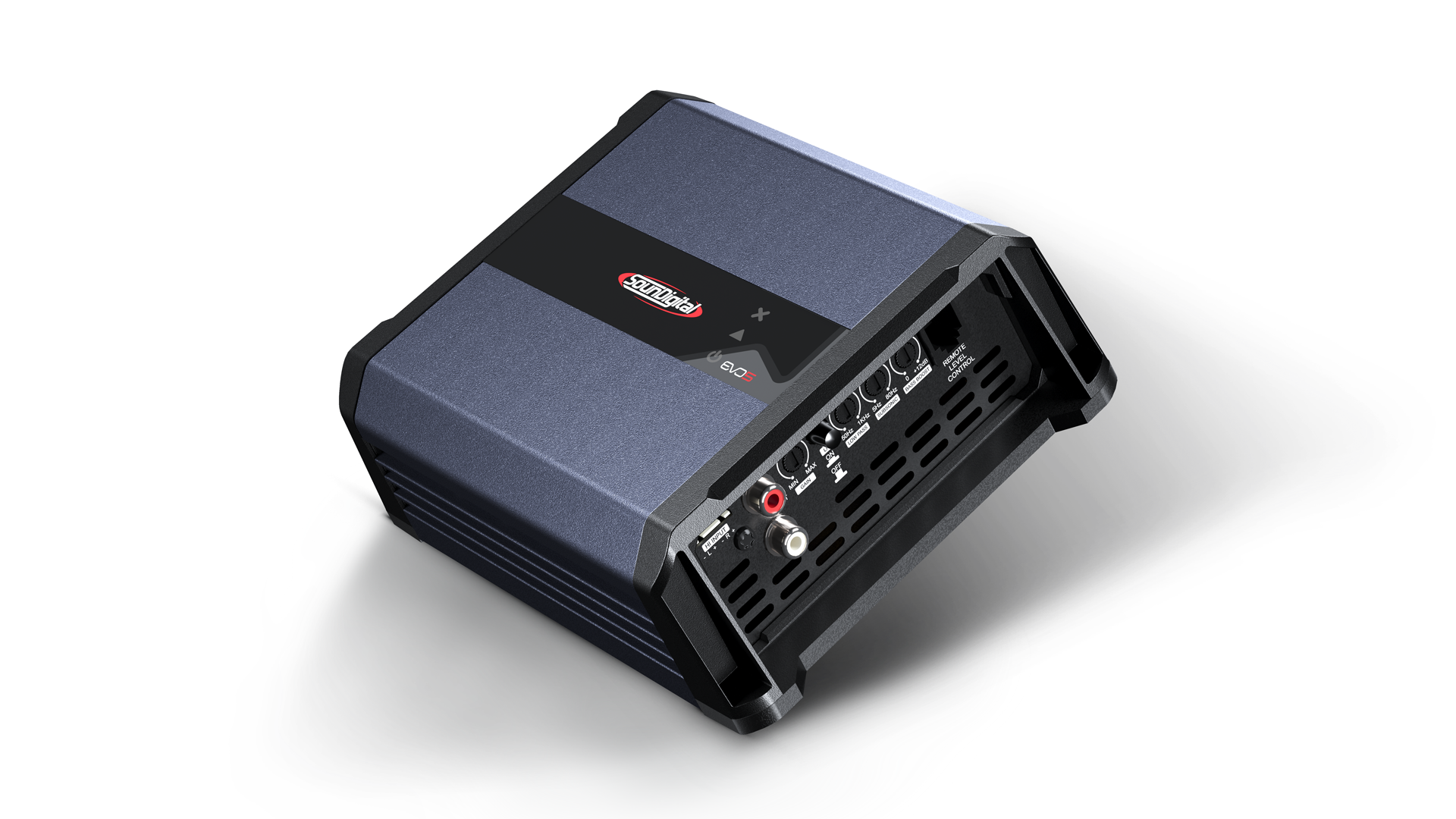

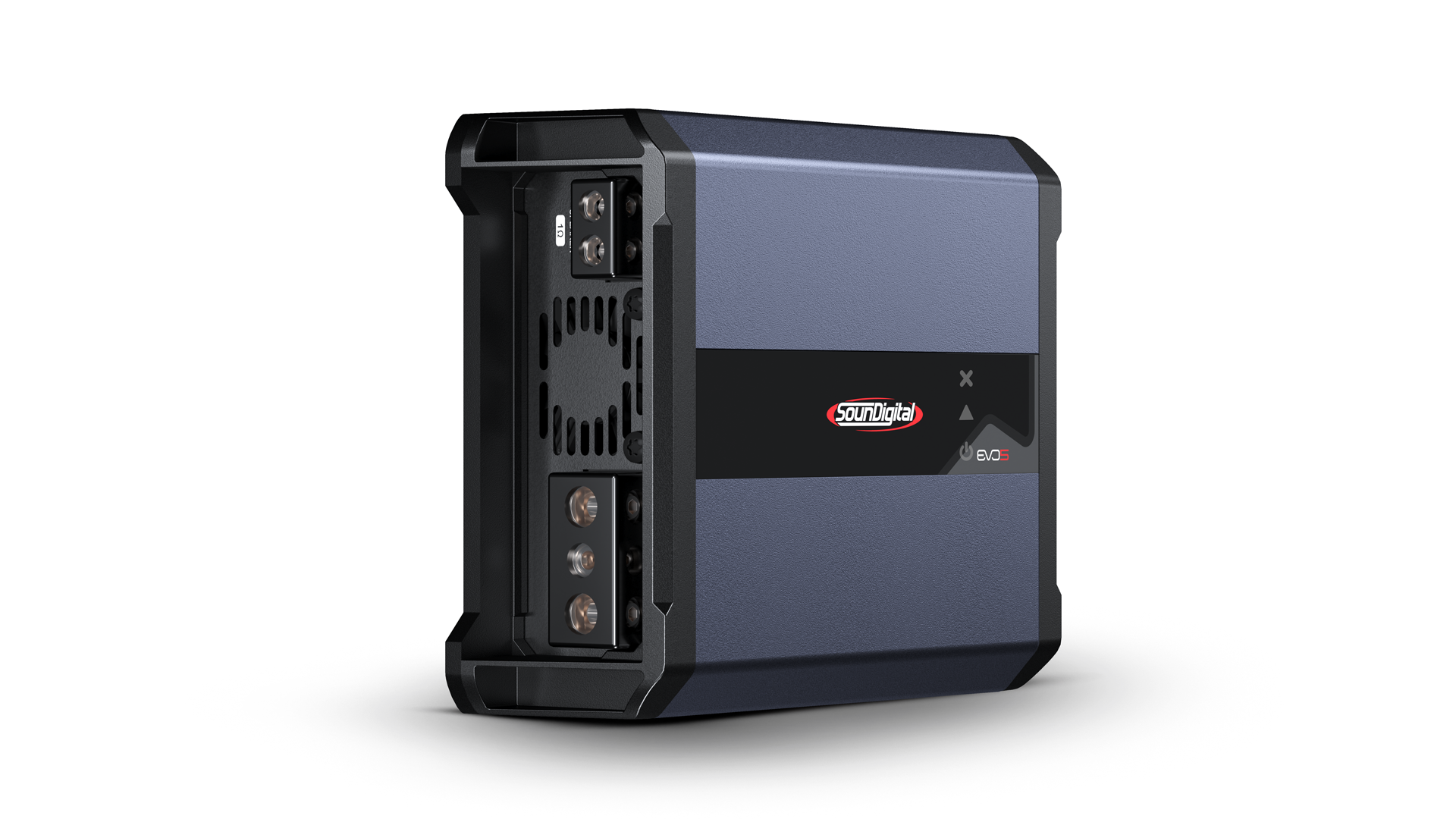

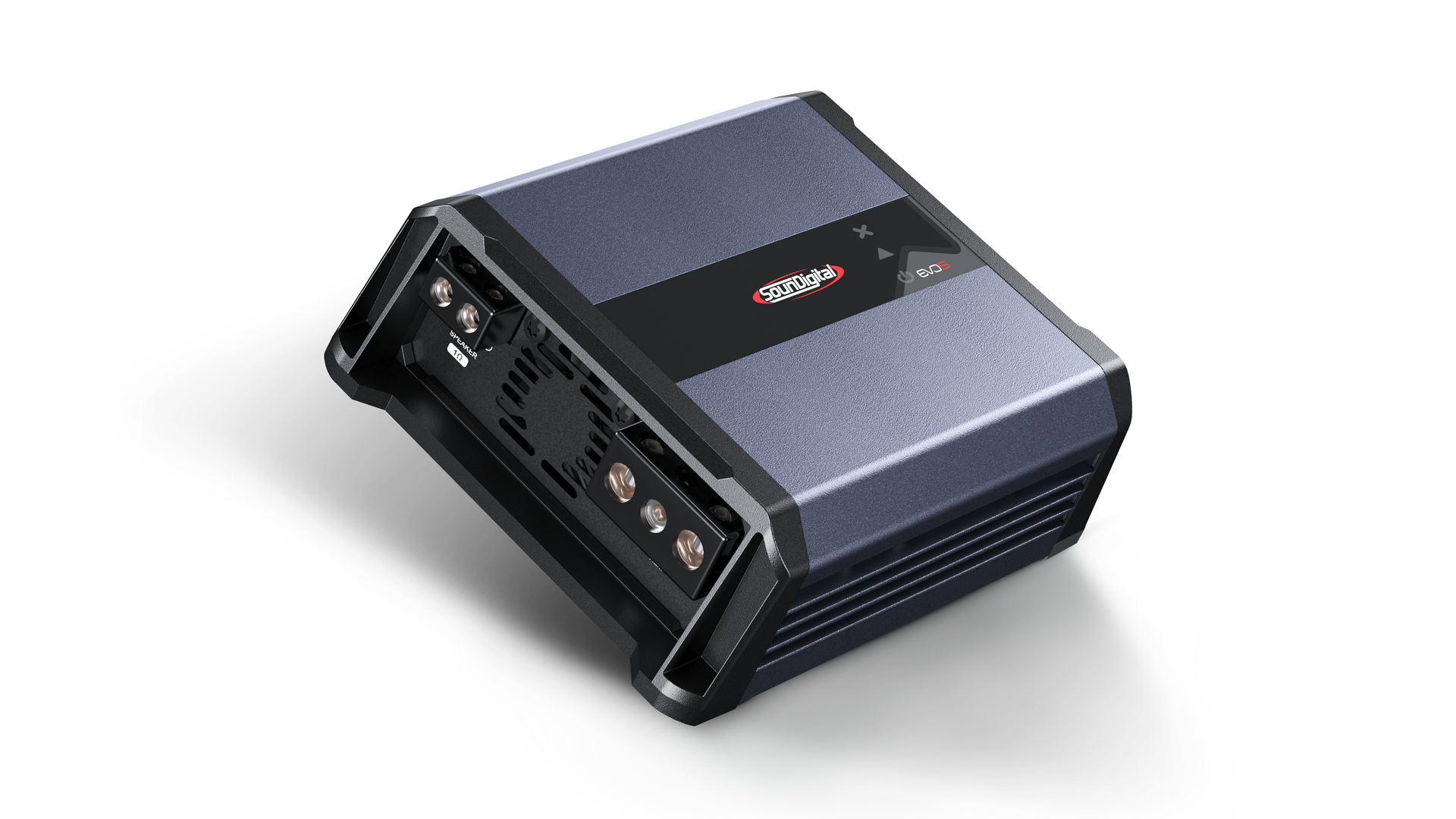

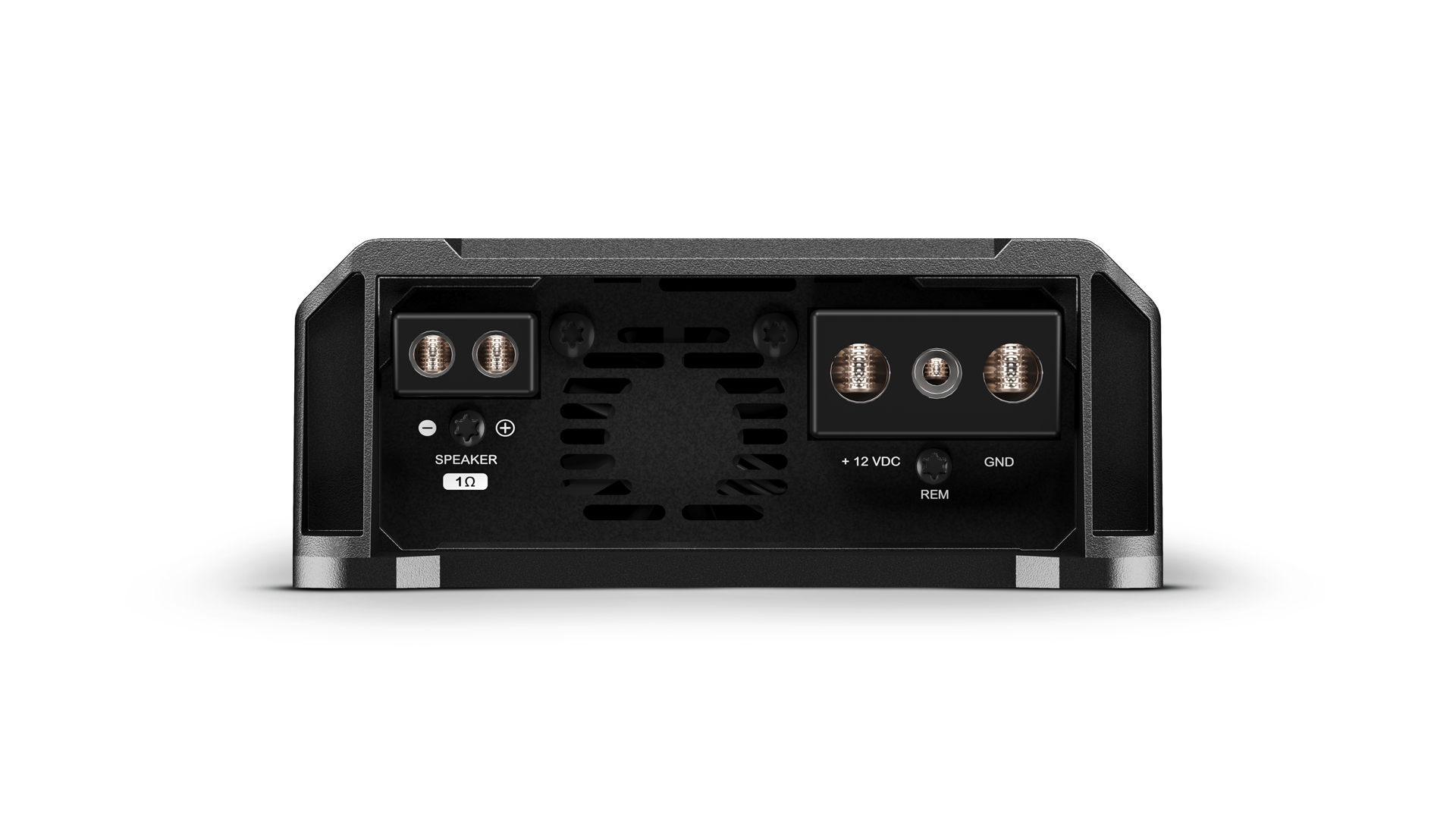

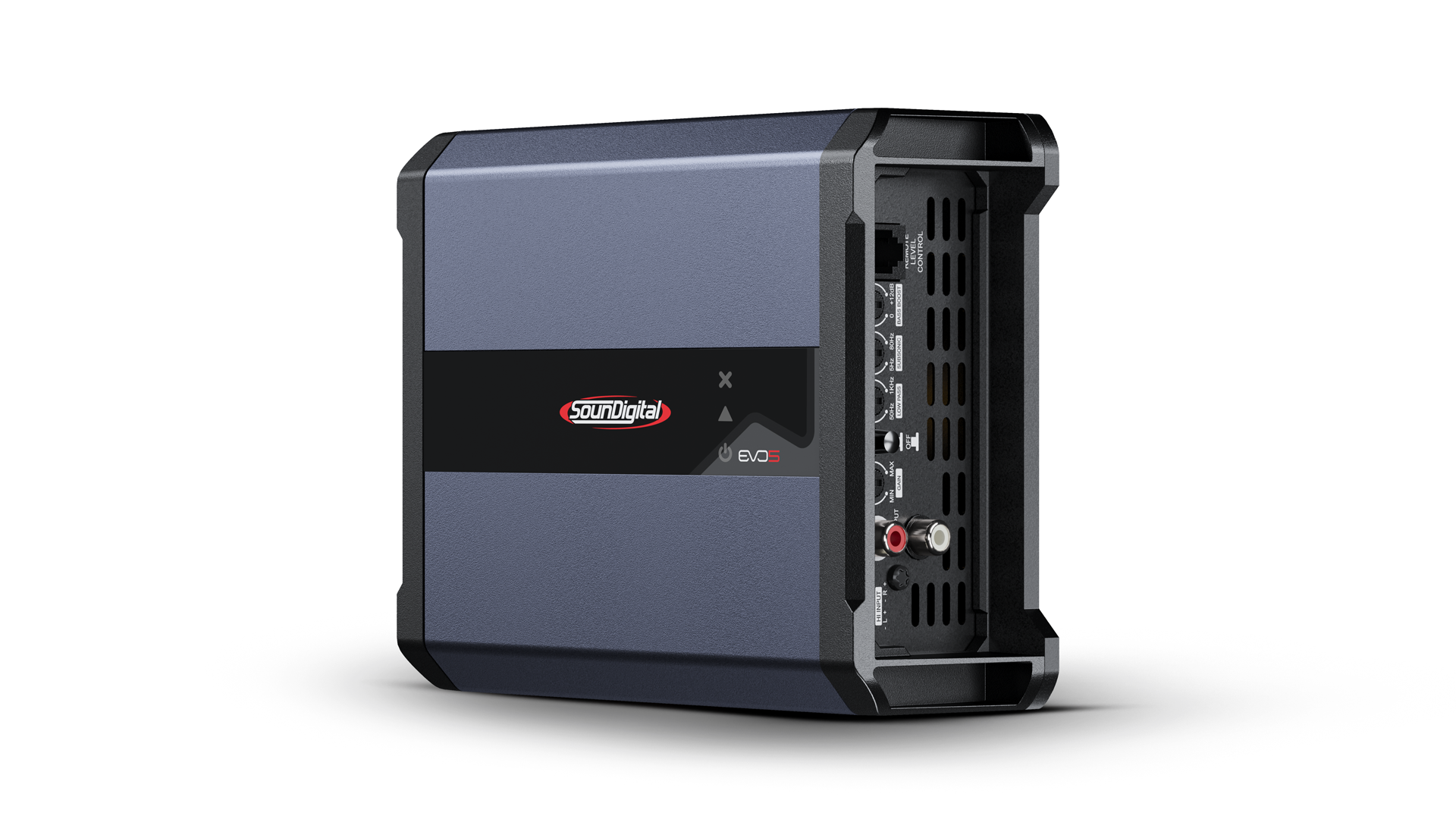

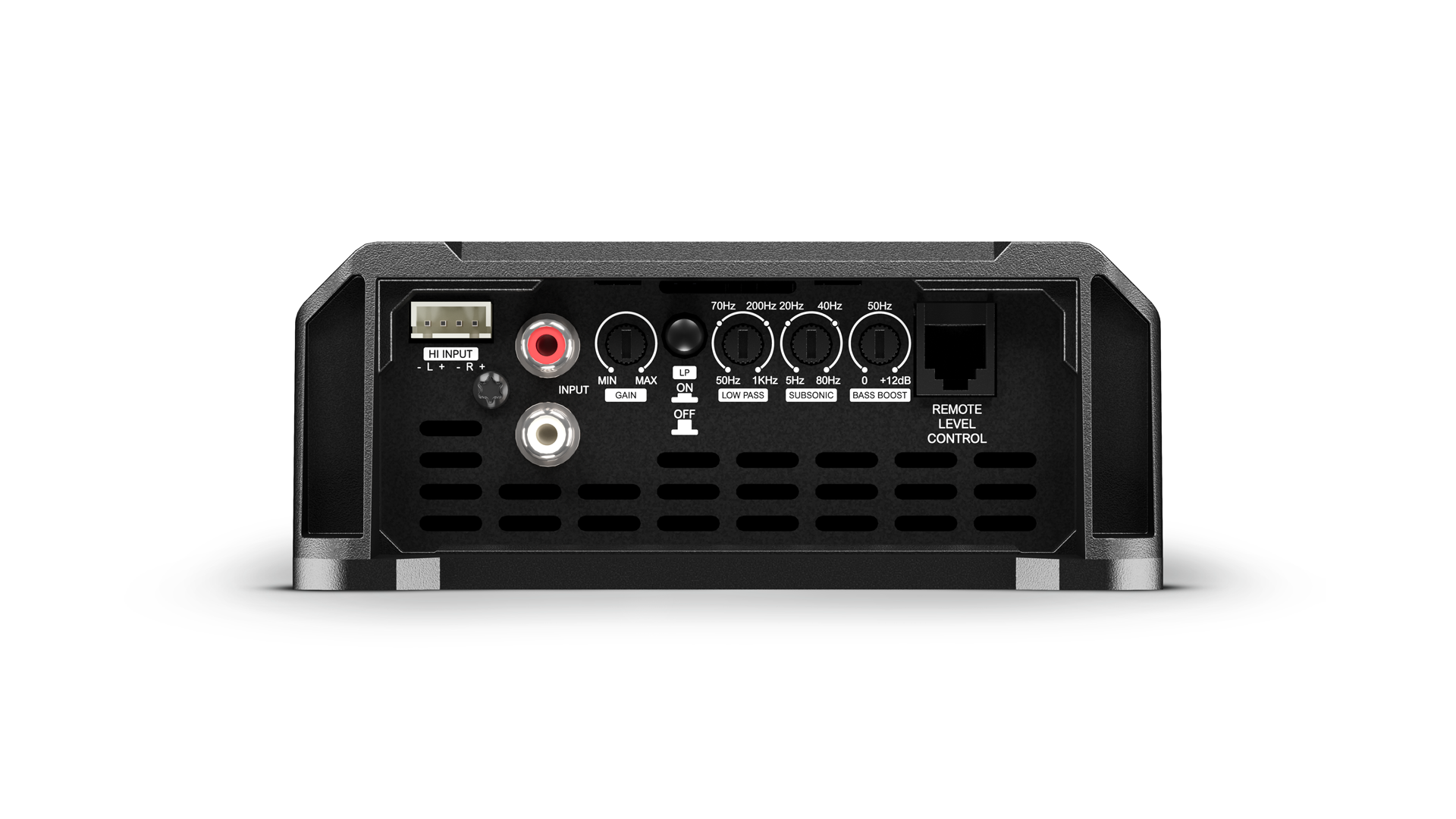

SounDigital 1600.1 EVO 5 - 4 Ohm

EAN: 7898644525347
SD1600.1-4 EVO5

Mono amplifier
1600W
4 Ohm model
Small size

Läs Mera
2 790,00 kr
Vikt: 1.54 kg
I lager
Frågor? Kontakta ossinfo(at)audioimport.fi
Beskrivning
Teknisk information
Bruksanvisningar
The 1600.1 EVO 5 is a compact, modern amplifier that delivers 1600W RMS of power over 1 channel.

The amplifier features exclusive and patented technologies that make the sound experience cleaner and more faithful, in addition to ensuring better performance and efficiency for the most daring projects.
Power @ 4Ω: 1 X 1600 WRMS
Power @ 2Ω: N/A
Power @ 1Ω: N/A

Frequency Response (-3dB):

5Hz ~ 25kHz

Subsonic Filter:

5Hz ~ 80Hz

Low Pass Filter:

50Hz ~ 1kHz

Bass Boost:

0dB ~ 12dB @ 50Hz

Operating Voltage:

9V ~ 16V

Signal-Noise Ratio:

1Ω: 93.7dB
2Ω: 95dB
4Ω: 93.4dB

Input Sensitivity:

0.2V ~ 2V

Current Draw (Music):

1Ω: 75A
2Ω: 71A
4Ω: 69.4A

Current Draw (Max):

1Ω: 149A
2Ω: 143A
4Ω: 138.8A

Total Efficiency:

1Ω: 85%
2Ω: 89%
4Ω: 91.5%

Damping Factor:

2000

Power Cable:

16mm² (5 AWG)

Audio Output Cable:

2 x 1.5 mm² (15 AWG)

Recommended Fuse (Music):

80A

Recommended Battery:

80Ah

Width:

13.6 cm / 5.4 in

Length:

18 cm / 7.1 in

Height:

5.48 cm / 2.1 in

Weight:

1.13 Kg.
