SounDigital 1600.1 EVO 5 - 1 Ohm
EAN: 7898644525323
SD1600.1-1 EVO5
Mono amplifier
1600W
1 Ohm model

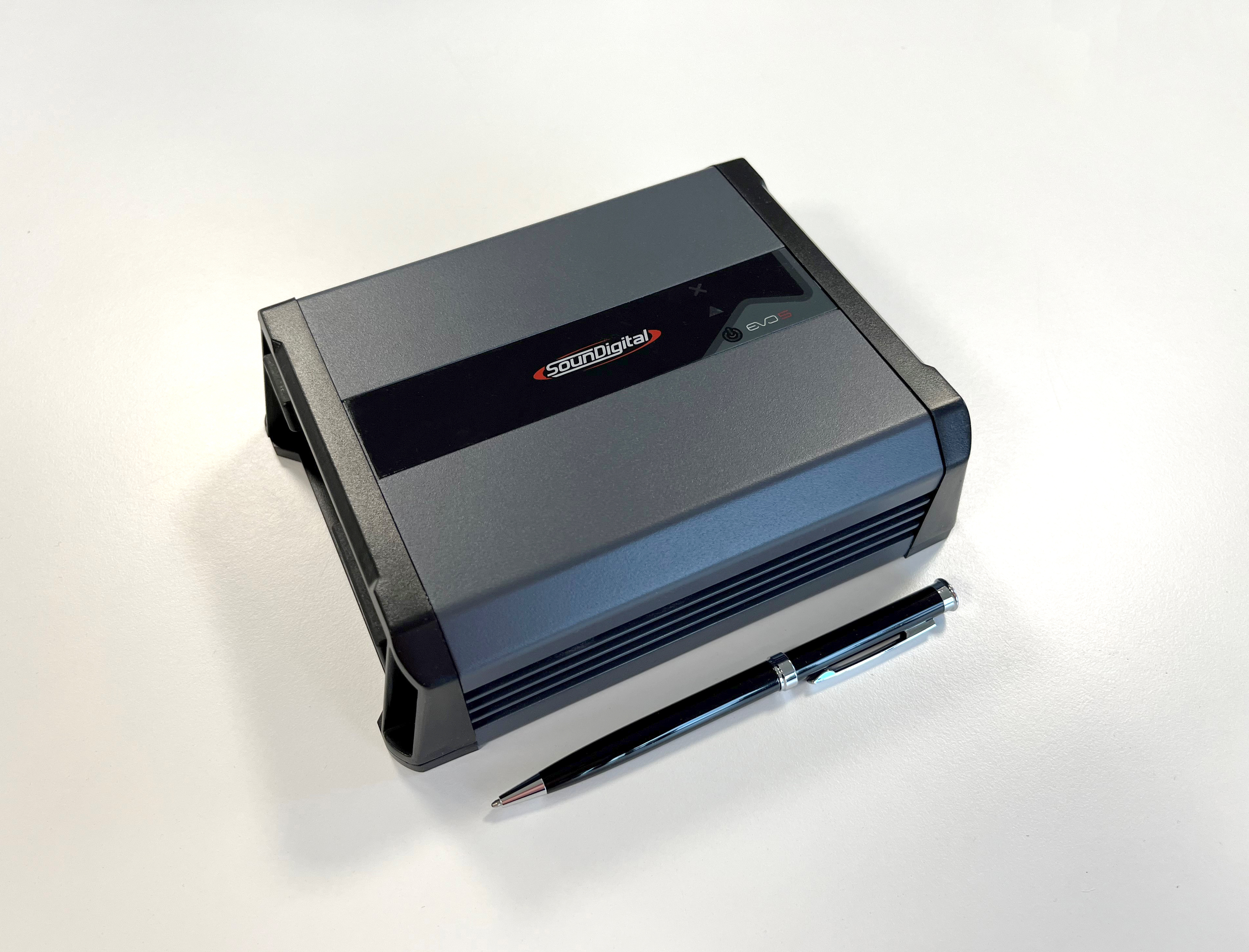

Small size
Läs Mera
2 790,00 kr
Beskrivning
Teknisk information
Bruksanvisningar

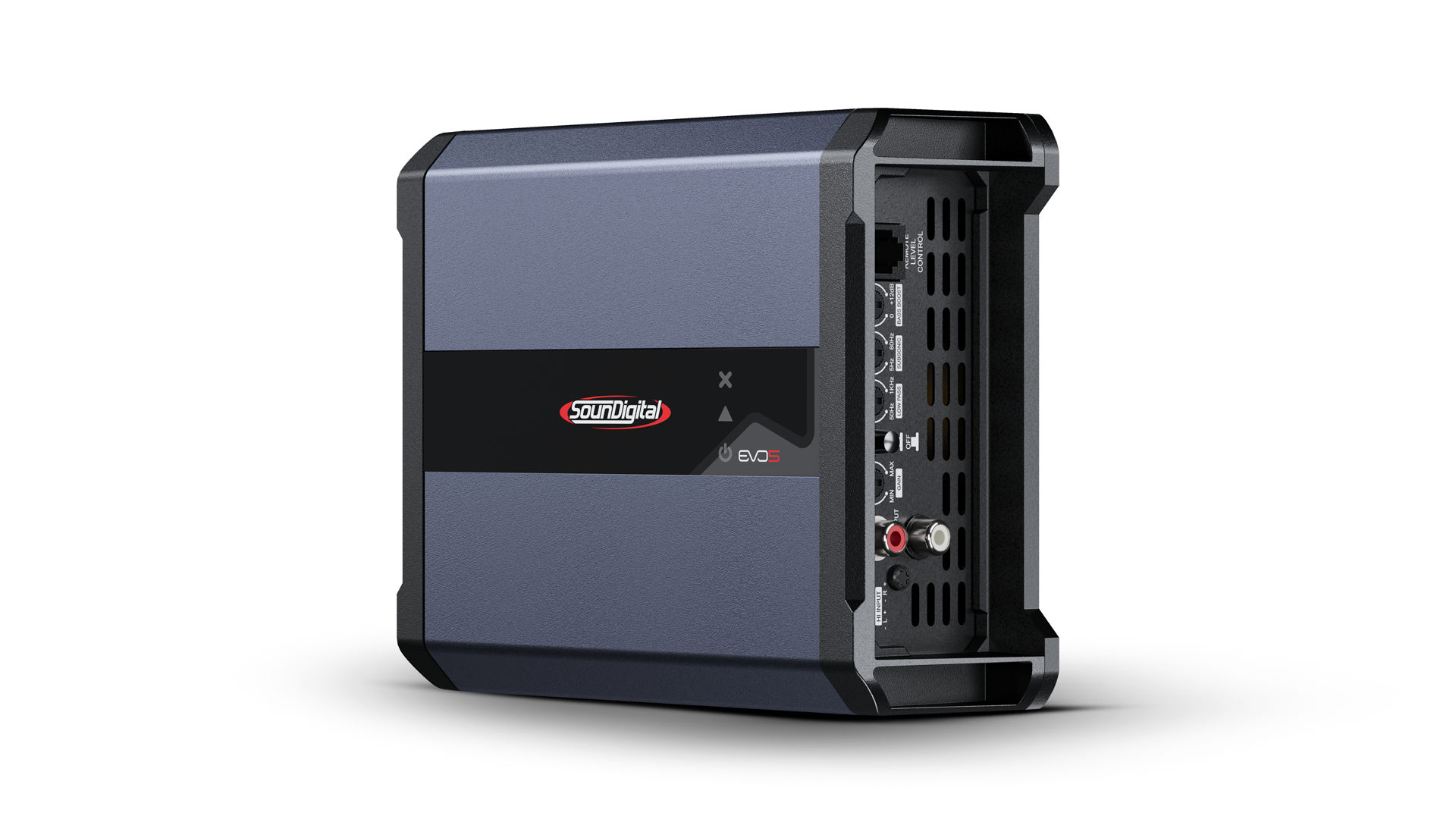

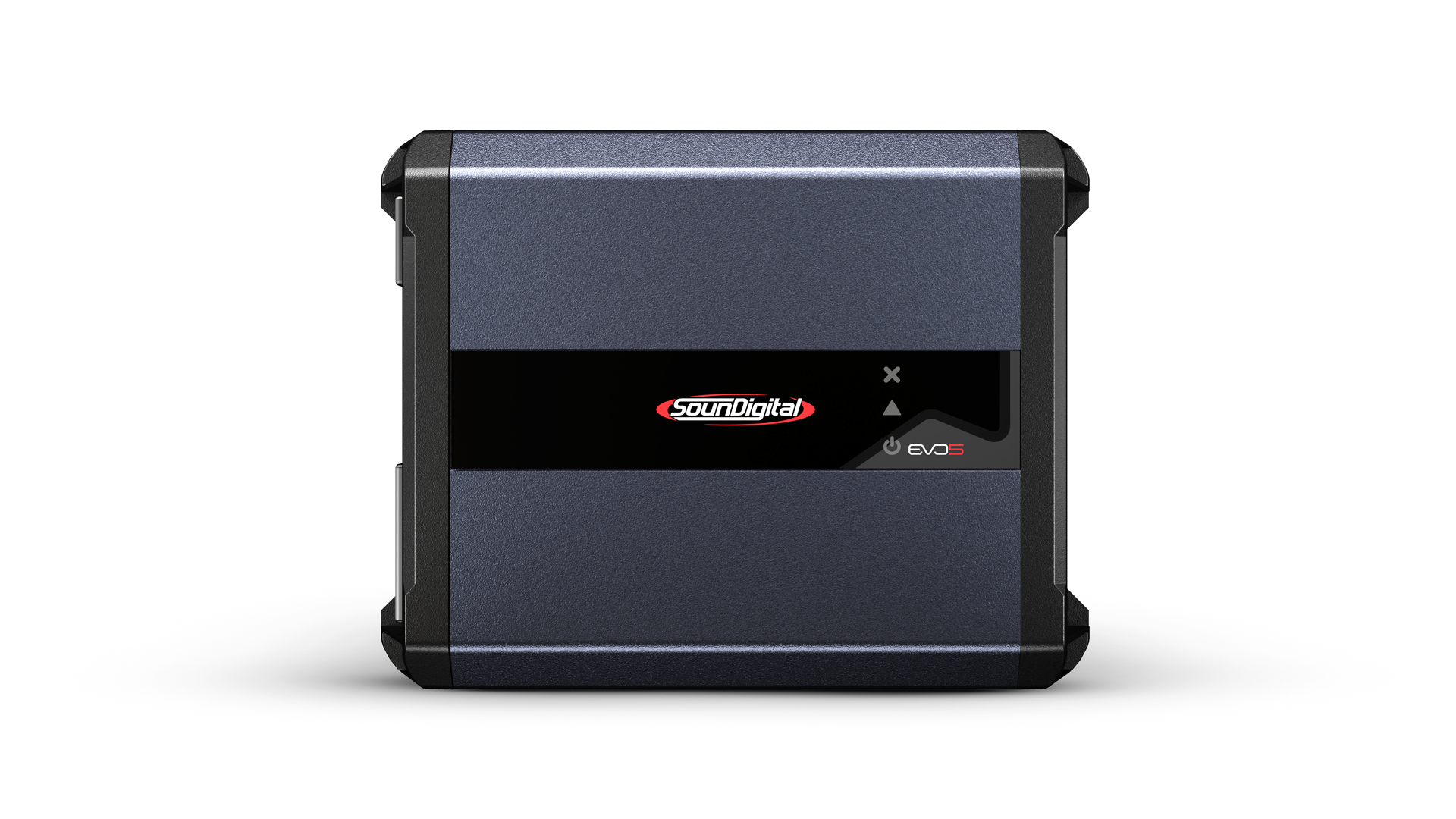

The 1600.1 EVO 5 is a compact, modern amplifier that delivers 1600W RMS of power over 1 channel.
The amplifier features exclusive and patented technologies that make the sound experience cleaner and more faithful, in addition to ensuring better performance and efficiency for the most daring projects.
The amplifier features exclusive and patented technologies that make the sound experience cleaner and more faithful, in addition to ensuring better performance and efficiency for the most daring projects.
Power @ 4Ω: 1 X 697 WRMS
Power @ 2Ω: 1 X 1056 WRMS
Power @ 1Ω: 1 X 1600 WRMS
Frequency Response (-3dB):
5Hz ~ 25kHz
Subsonic Filter:
5Hz ~ 80Hz
Low Pass Filter:
50Hz ~ 1kHz
Bass Boost:
0dB ~ 12dB @ 50Hz
Operating Voltage:
9V ~ 16V
Signal-Noise Ratio:
1Ω: 93.7dB
2Ω: 95dB
4Ω: 93.4dB
Input Sensitivity:
0.2V ~ 2V
Current Draw (Music):
1Ω: 75A
2Ω: 71A
4Ω: 69.4A
Current Draw (Max):
1Ω: 149A
2Ω: 143A
4Ω: 138.8A
Total Efficiency:
1Ω: 85%
2Ω: 89%
4Ω: 91.5%
Damping Factor:
2000
Power Cable:
16mm² (5 AWG)
Audio Output Cable:
2 x 1.5 mm² (15 AWG)
Recommended Fuse (Music):
80A
Recommended Battery:
80Ah
Width:
13.6 cm / 5.4 in
Length:
18 cm / 7.1 in
Height:
5.48 cm / 2.1 in
Weight:
1.13 Kg.
Power @ 2Ω: 1 X 1056 WRMS
Power @ 1Ω: 1 X 1600 WRMS
Frequency Response (-3dB):
5Hz ~ 25kHz
Subsonic Filter:
5Hz ~ 80Hz
Low Pass Filter:
50Hz ~ 1kHz
Bass Boost:
0dB ~ 12dB @ 50Hz
Operating Voltage:
9V ~ 16V
Signal-Noise Ratio:
1Ω: 93.7dB
2Ω: 95dB
4Ω: 93.4dB
Input Sensitivity:
0.2V ~ 2V
Current Draw (Music):
1Ω: 75A
2Ω: 71A
4Ω: 69.4A
Current Draw (Max):
1Ω: 149A
2Ω: 143A
4Ω: 138.8A
Total Efficiency:
1Ω: 85%
2Ω: 89%
4Ω: 91.5%
Damping Factor:
2000
Power Cable:
16mm² (5 AWG)
Audio Output Cable:
2 x 1.5 mm² (15 AWG)
Recommended Fuse (Music):
80A
Recommended Battery:
80Ah
Width:
13.6 cm / 5.4 in
Length:
18 cm / 7.1 in
Height:
5.48 cm / 2.1 in
Weight:
1.13 Kg.
