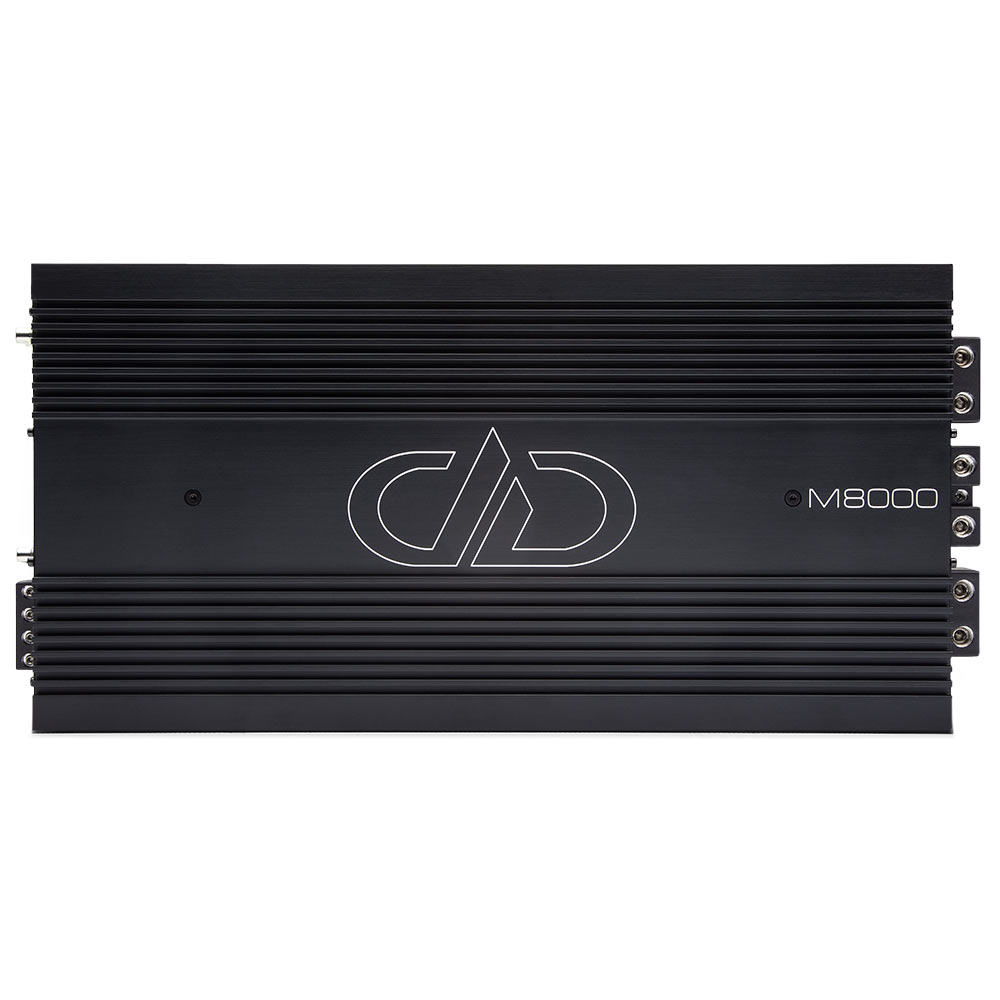

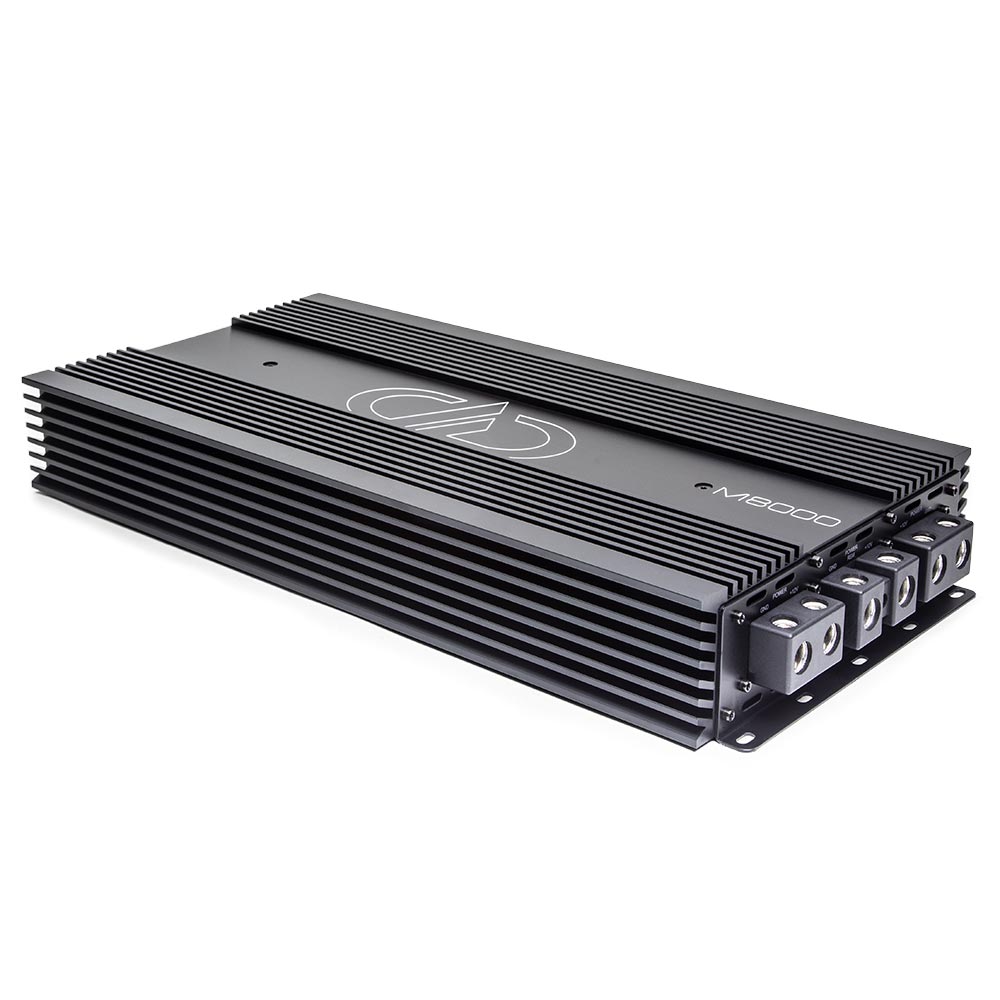

DD Audio M8000
EAN: 0850013938537
M8000
Mono amplifier
10500W
ZVL link module connector
Remote / LCD Voltage Display and Clipping Indicator
Läs Mera
18 900,00 kr
Beskrivning
Teknisk information
The next generation of the iconic M Series takes advantage of the latest semiconductor technology and combines it with state of the art amplifier design. This combination to offers power to footprint ratios previously impossible for current driven-half bridge amplifiers. Even though the chassis are more compact, the new M Series hasn’t lost any output power or stability. With robust heatsinks, multiple power and ground inputs, heavy duty PCBs, and top shelf internal components these amplifiers are ready to handle even the most demanding listening sessions.
Features:
Optimized High Current Power Supply
ZVL Linking Module Input
24dB/Oct Bandpass Filters
Custom Vanity Plate Ready
Remote / LCD Voltage Display and Clipping Indicator
Operating Voltage:9 - 16
Test Voltage:14.4
Output Channel(s):1
Continuous Wattage @4ohm:3000
Continuous Wattage @2ohm:5000
Continuous Wattage @1ohm:8000
Dynamic Wattage:10500
Max Current Draw (Amps):800
RCA Input Voltage Sensitivity:8 - 0.2
RCA Input S/N: 92dB
Damping Factor: 400
THD: 0.2%
Frequency Response (Hz):10 - 200Hz
Sub-Sonic Filter:10 - 50Hz
Low-Pass Filter:20 - 200Hz
ZVL Input:Yes
Pass Thru Output:No
Remote Control:Remote Included in Box
Power Wire Gauge:3 x 0
Speaker Wire Gauge:10
Dimensions (Inches):17.75 x 9 x 2.6
Dimensions (MM):450 x 230 x 66.
