AMPIRE RVA051
EAN: 4260052640845
RVA051
5″ TFT-screen
2x video inputs
Resolution 800 x 480
Operating voltage 10-30 V
Läs Mera
1 390,00 kr
Beskrivning
Teknisk information
Bruksanvisningar

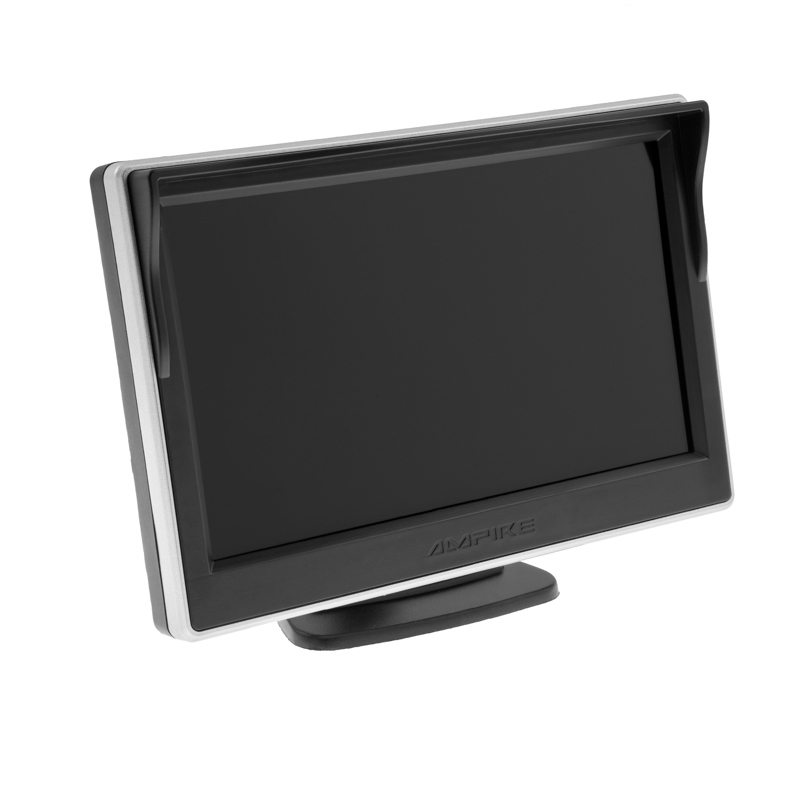

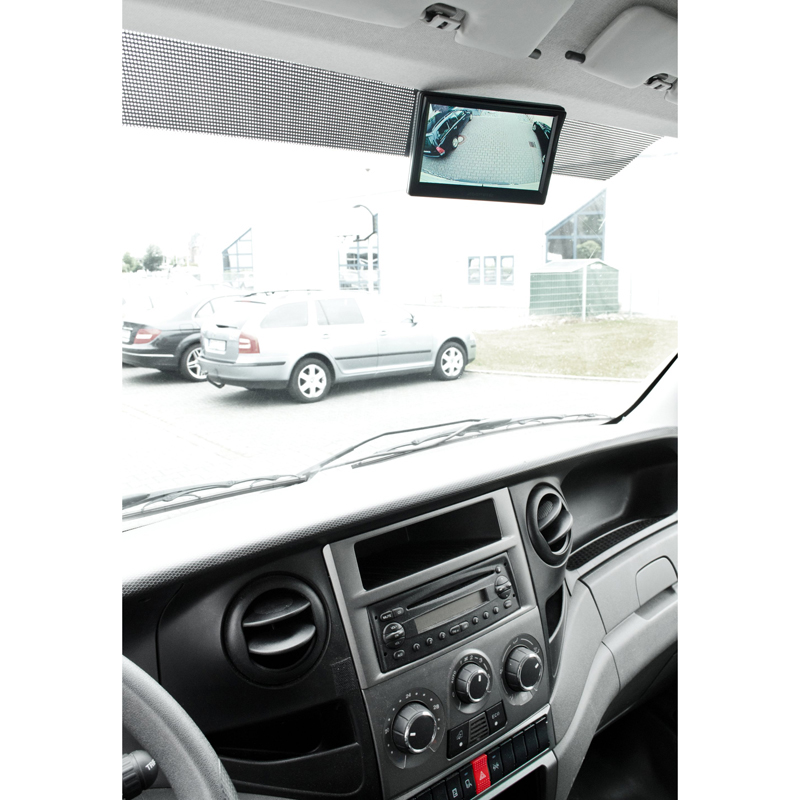

This high-resolution 12.7cm (5′′) digital LCD surface-mounted monitor is a compact monitor for up to two AHD or CVBS reversing cameras. If you do not have space for larger monitors in your vehicle or would like to install a monitor instead of the interior mirror, the RVA051 is the first choice. You will always find an installation location for the universal RVA051. It is also ideal for reversing cameras thanks to the wide range of digital image display settings.
TECHNICAL DATA
- 12.7cm (5′′) HD digital TFT LCD display (color)
- Viewing angle 85°/85°/85°/85°/85° (L/R/O/U)
- LED backlight
- 16:9 screen format
- High resolution 800x480 pixels (HD)
- 2x video inputs
- AHD 720P, AHD 1080P compatible
- CVBS (FBAS) compatible
- NTSC/PAL compatible
- Brightness 600 cd/m²
- Contrast 500:1

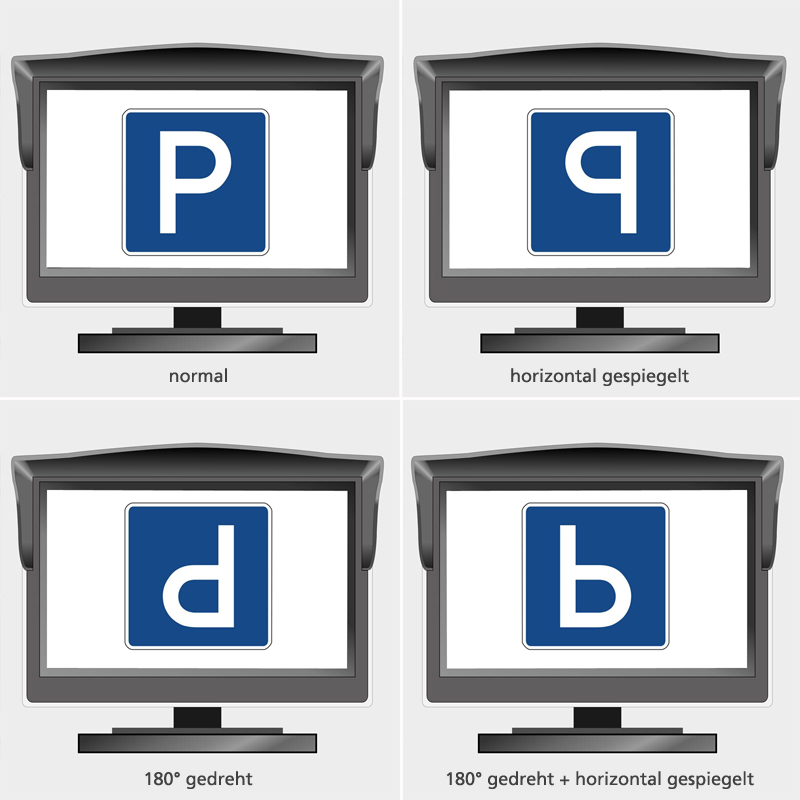

- Image reproduction normal/mirrored
- Image reproduction normal/ 180° rotated
- Guide lines adjustable/deactivatable
- Automatic switch-on (2 sec.)
- Operating voltage 9-32 Volt DC
- Power consumption (12V) 250mA (operation) 150mA (ignition on)
- Operating temperature -20° to 70°C
- Storage temperature -30° to 80°C

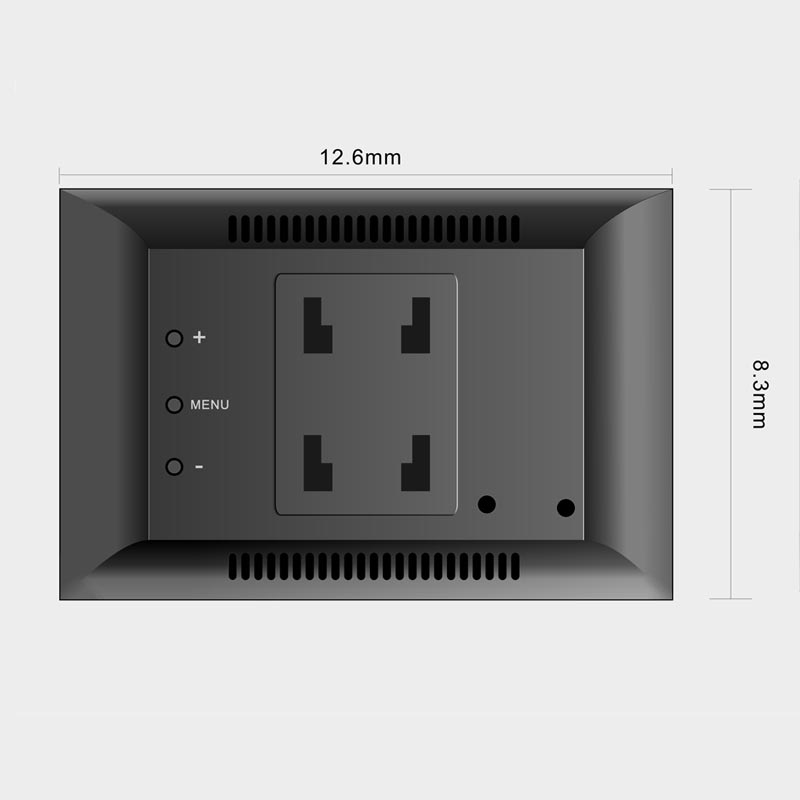

- Monitor dimensions 126x83x33mm
- Our monitors are subject to ISO 9241-307, pixel error class II
- 6 different menu languages
SCOPE OF DELIVERY
- 5″ (12.7cm) AHD monitor

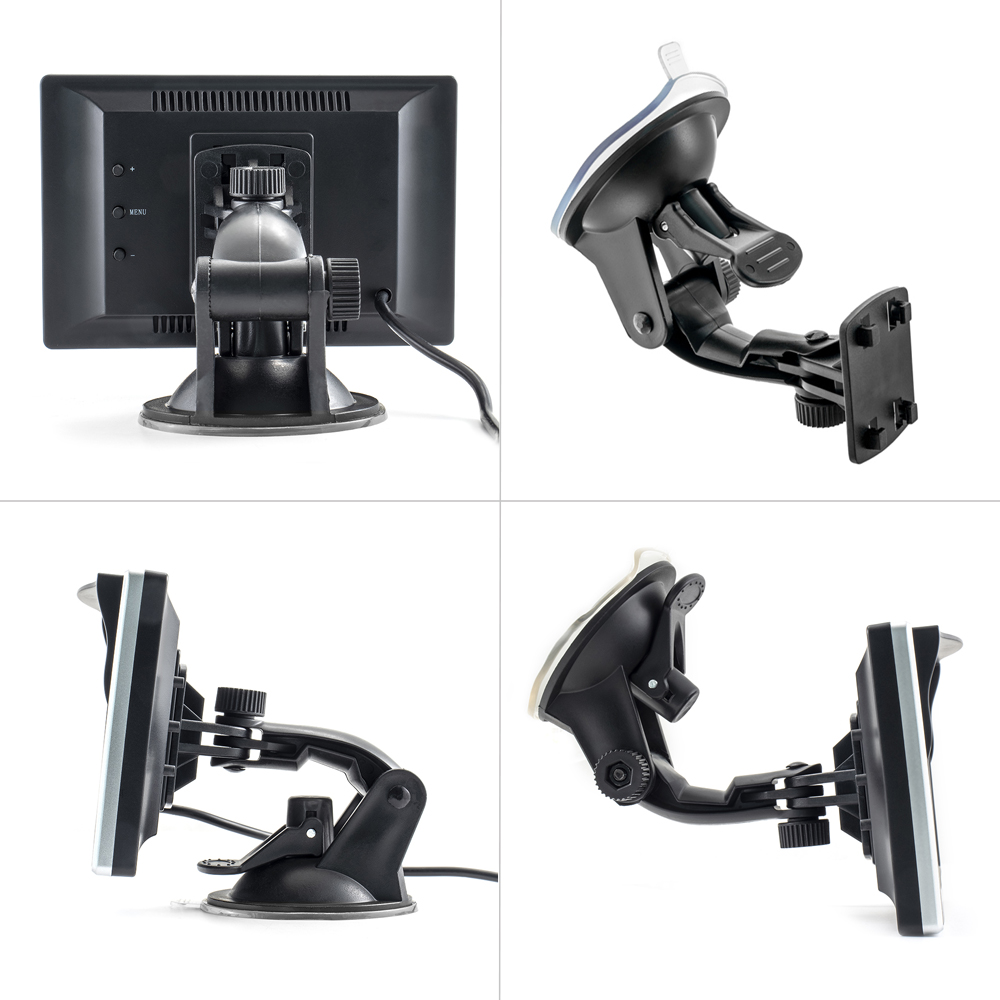

- Suction cup mount

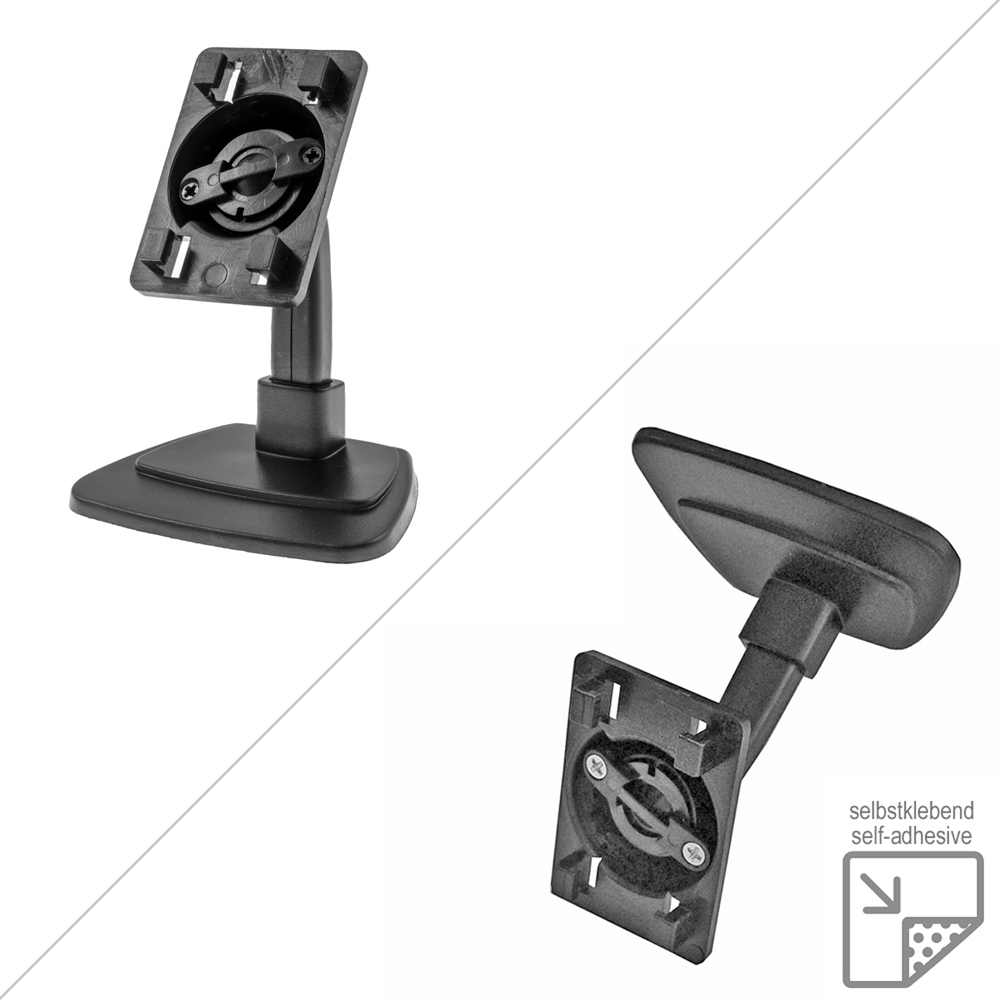

- Adhesive base mount

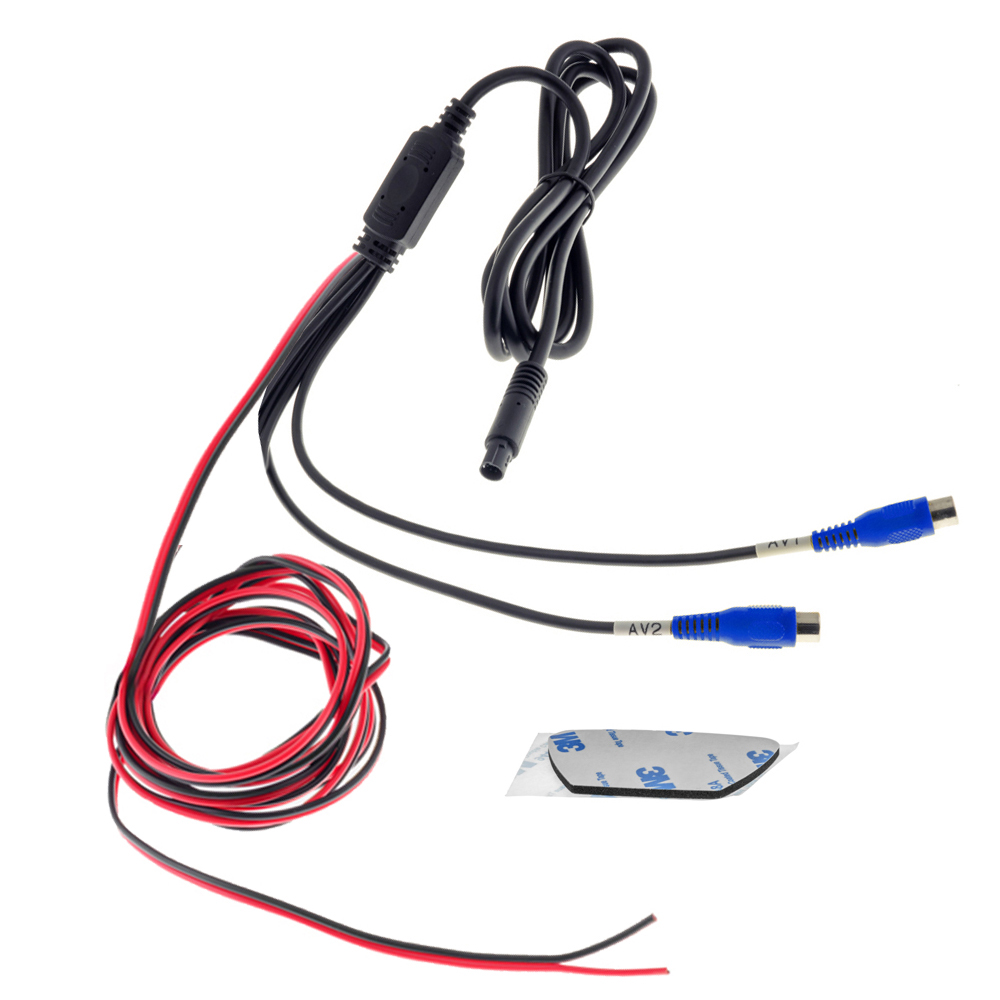

- Connection cable
CERTIFICATION
- CE
- E13 10R-02 2332
- WEEE-No. DE54949565
- Protection class IP51
