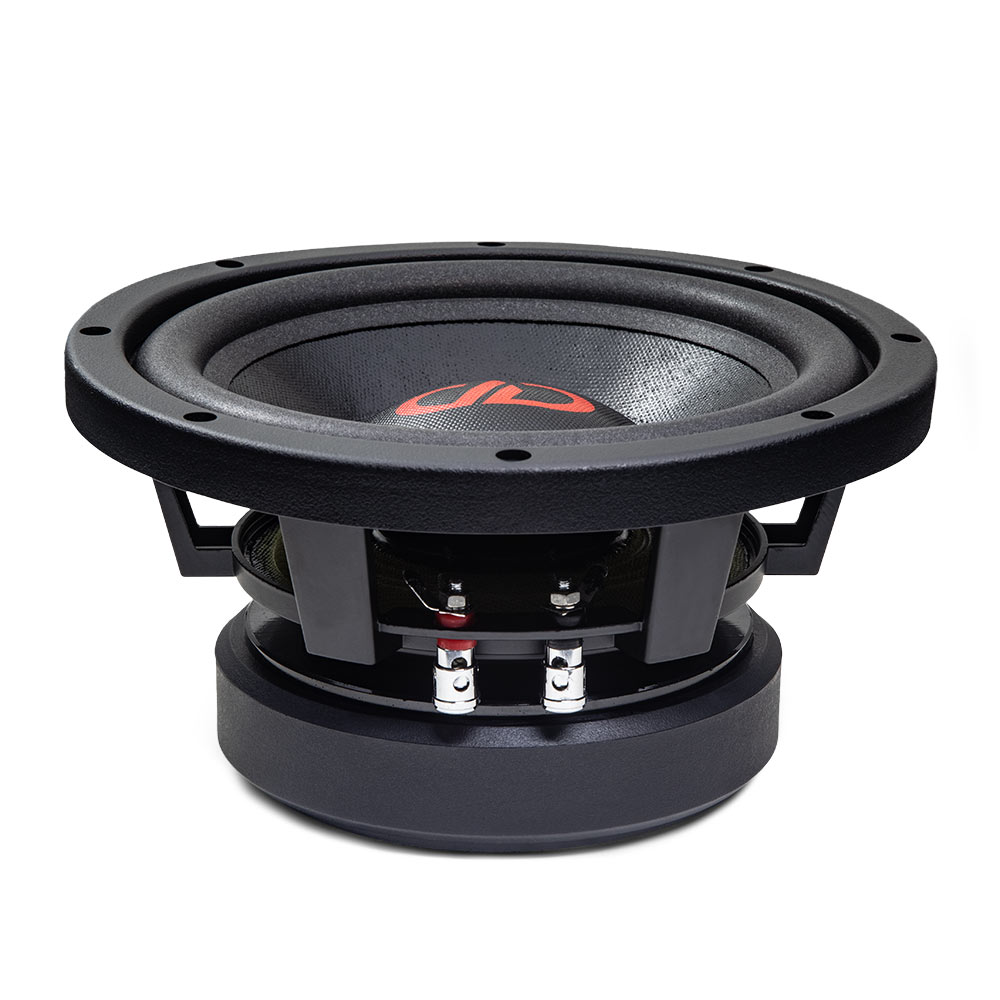

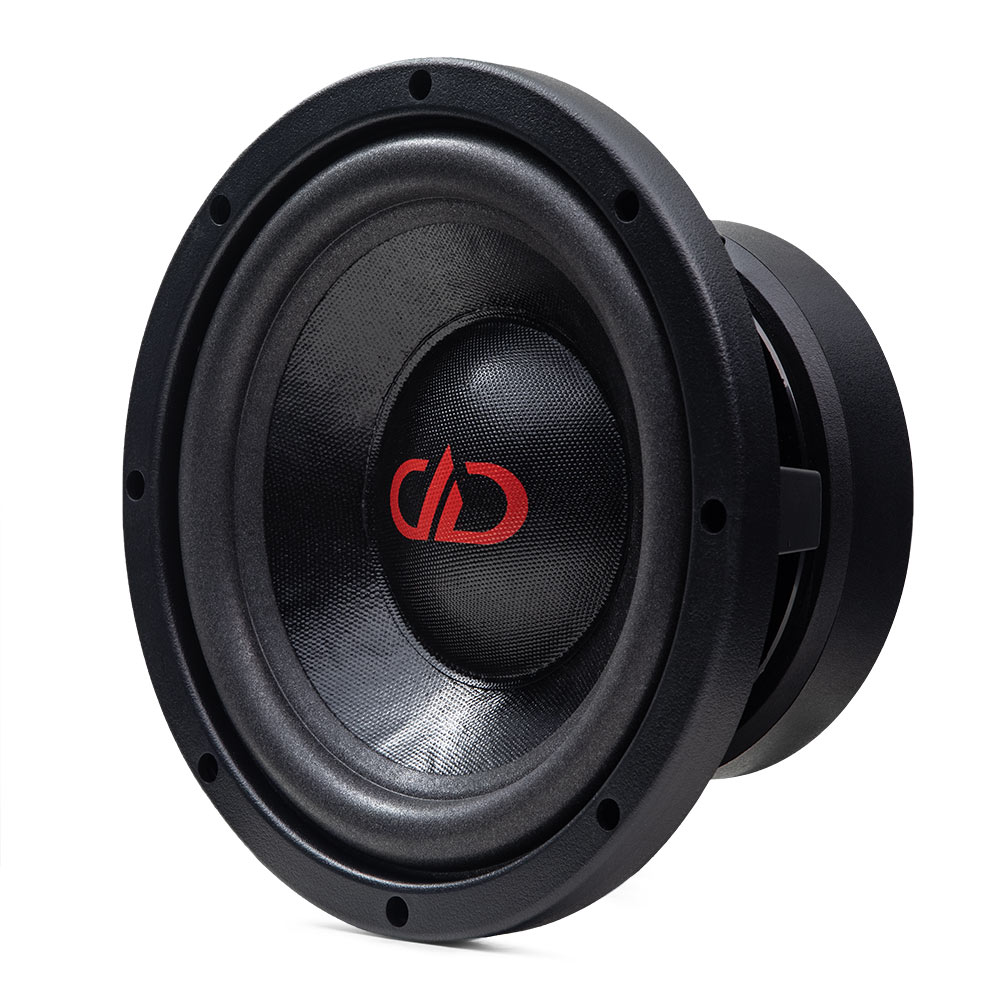

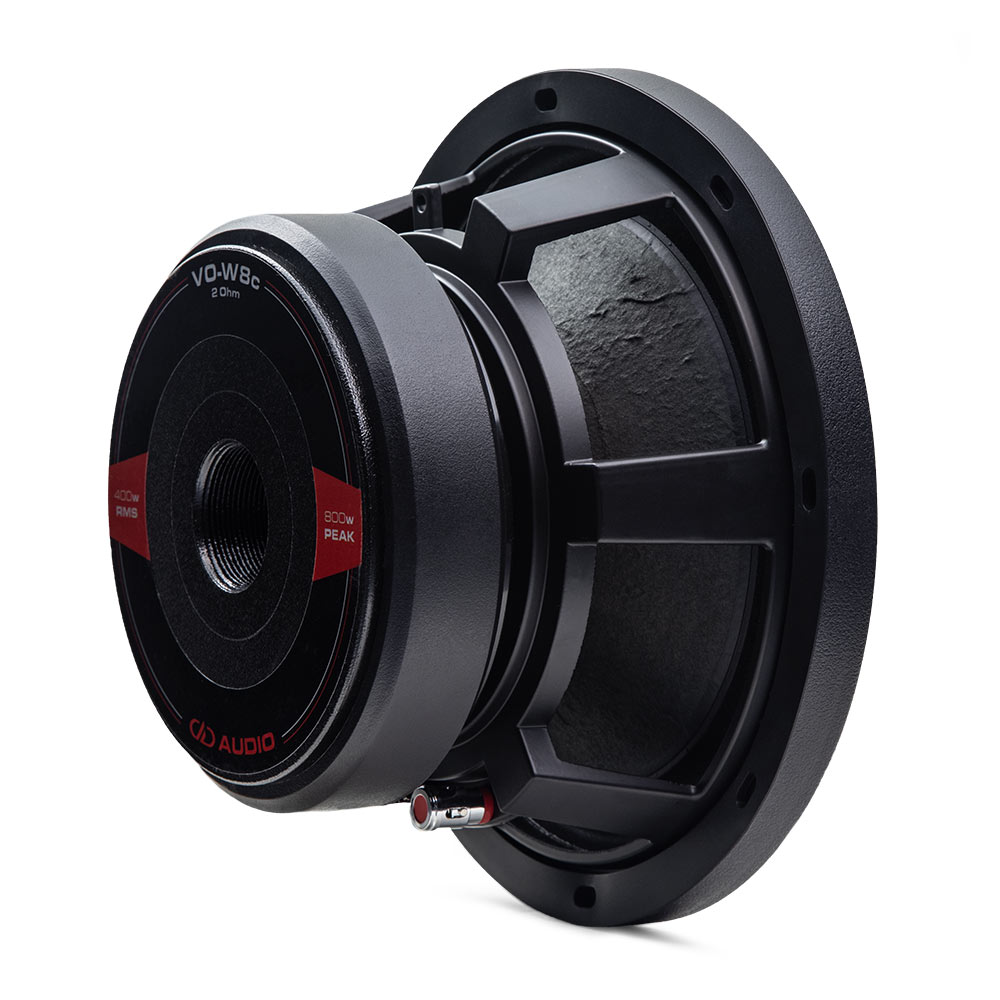

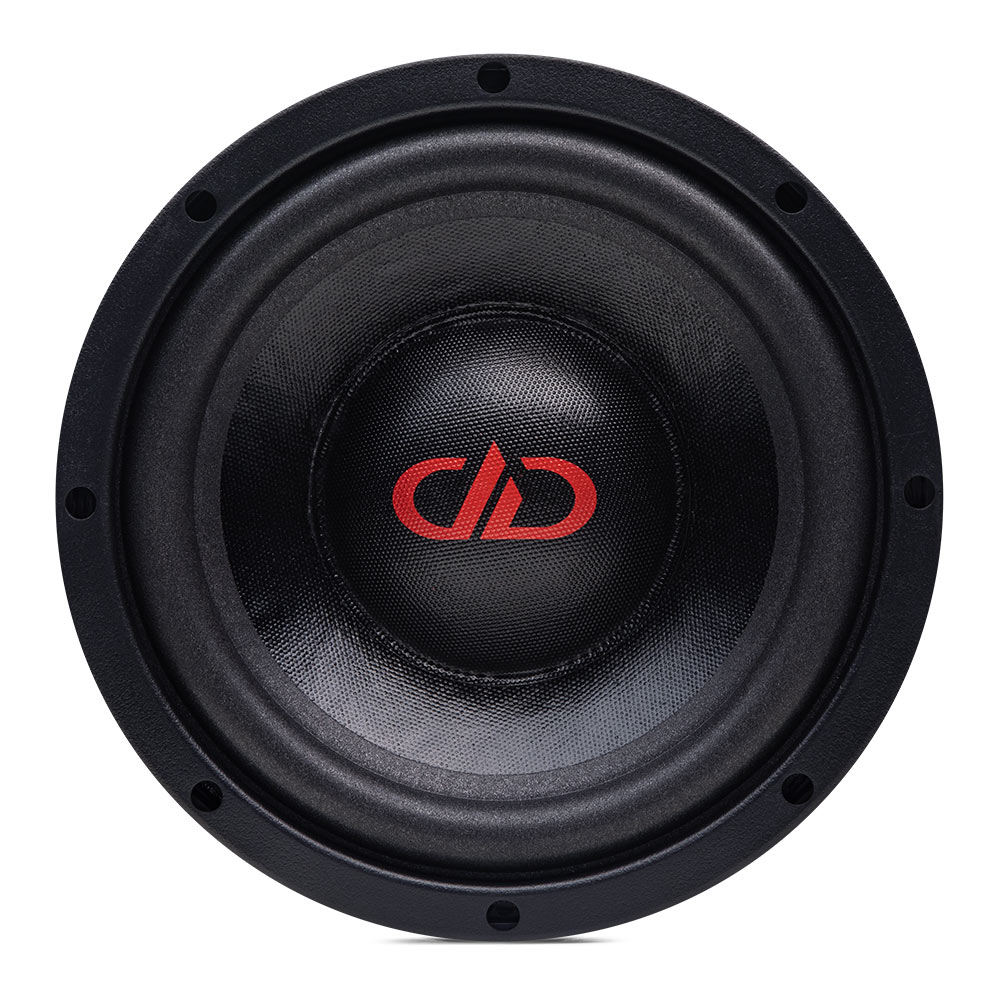

DD Audio VO-W8c-S2
VO-W8C-S2
8″
LOUD woofer
800W
2 Ohm
Läs Mera
1 300,00 kr
Beskrivning
Teknisk information
The VO-W woofers are PA style, high output woofers combining design elements from pro audio and high-end car audio, low moving mass, low inductance and shorting ring motor design coupled with tight tolerances produces ultra fast transients and high output.
The “c” revisions further refine these drivers with improvements to extend the low frequency midbass output using a longer voice coil winding with copper clad aluminum wire, longer excursion 1⁄2 roll surround and a new cast frame basket allowing larger diameter spiders. The Xmax is increased and the midbass frequency range is broadened while upper mids are smooth and relaxed.

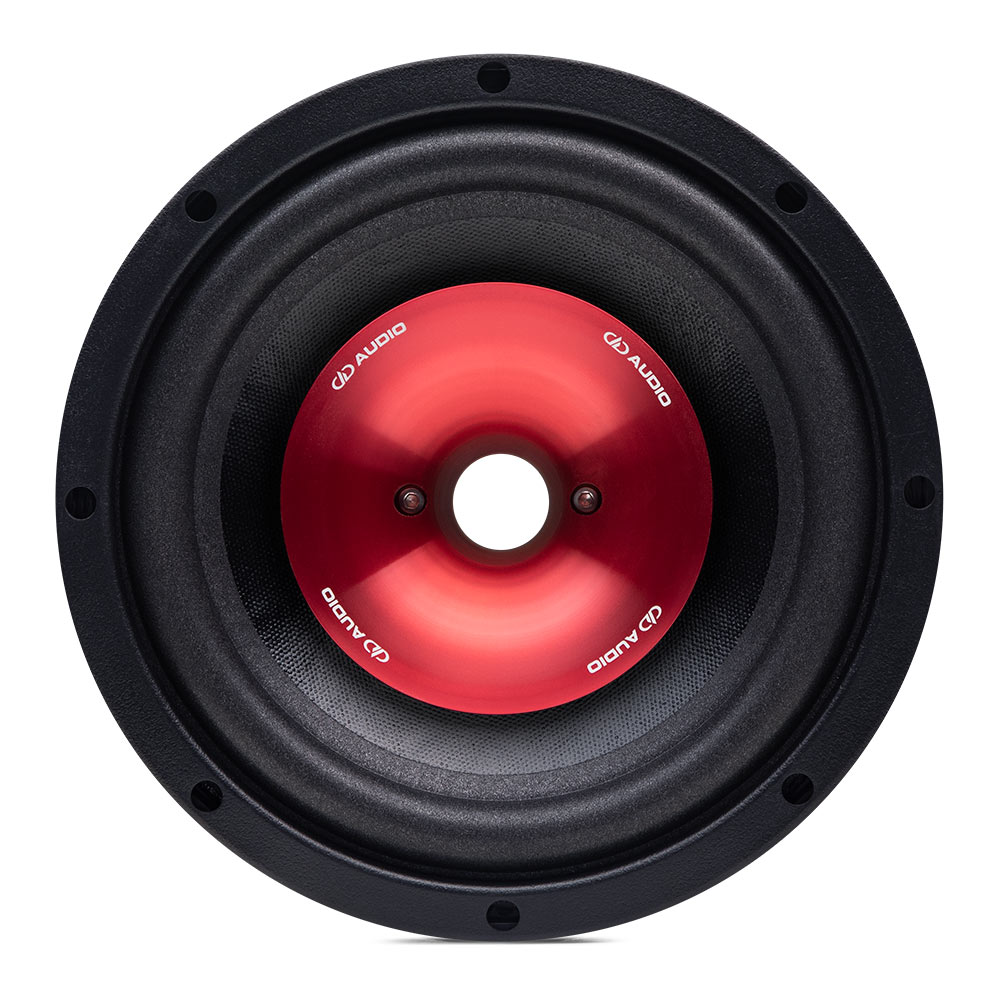

The VO-W woofers feature performance refinements like large diameter voice coils, high-energy Cnc machined motors, cast frames, and the unique ability to thread on our VO-CT compression tweeters and horn for coaxial applications.
The “c” revisions further refine these drivers with improvements to extend the low frequency midbass output using a longer voice coil winding with copper clad aluminum wire, longer excursion 1⁄2 roll surround and a new cast frame basket allowing larger diameter spiders. The Xmax is increased and the midbass frequency range is broadened while upper mids are smooth and relaxed.
The VO-W woofers feature performance refinements like large diameter voice coils, high-energy Cnc machined motors, cast frames, and the unique ability to thread on our VO-CT compression tweeters and horn for coaxial applications.
Speaker Size (In): 8
Watts RMS: 400
Watts Peak: 800
Impedance: S2
Frequency Response (Hz): 60 - 8k
Fs (Hz): 60
Qms: 2.169
Qes: 0.645
Qts: 0.497
Vas (Liters): 25.59
dBSPL: 95
Xmax (MM): 8
Mounting Diameter (In): 7 3/8
Mounting Diameter (MM): 187.3
Mounting Depth (In): 3.75
Mounting Depth (MM): 96
Watts RMS: 400
Watts Peak: 800
Impedance: S2
Frequency Response (Hz): 60 - 8k
Fs (Hz): 60
Qms: 2.169
Qes: 0.645
Qts: 0.497
Vas (Liters): 25.59
dBSPL: 95
Xmax (MM): 8
Mounting Diameter (In): 7 3/8
Mounting Diameter (MM): 187.3
Mounting Depth (In): 3.75
Mounting Depth (MM): 96
