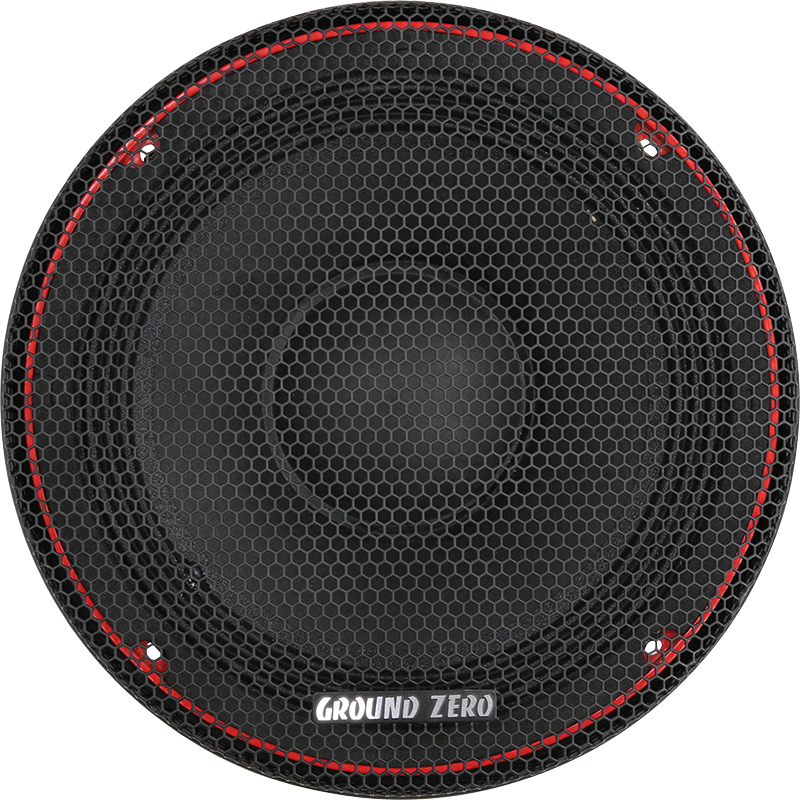

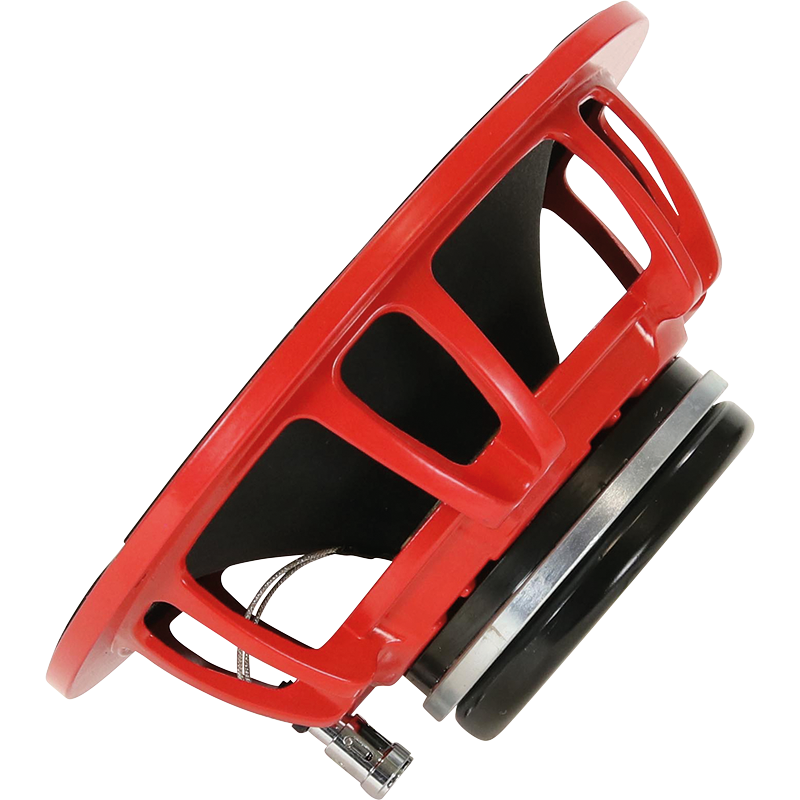

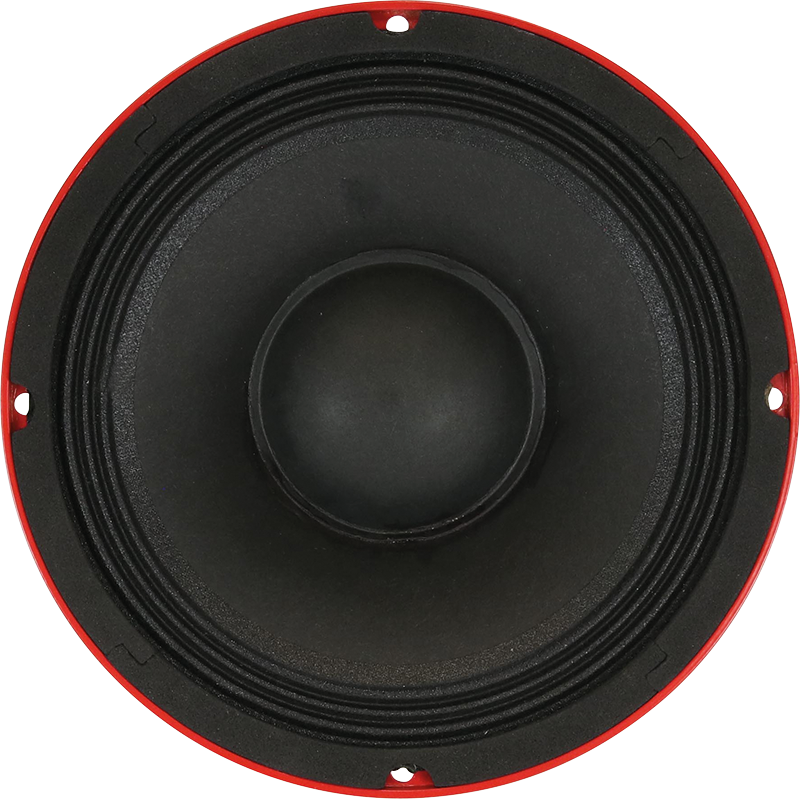

GROUND ZERO GZCM 8.0N-PROX
EAN: 4037072024999
GZCM 8.0N-PROX
8″
Midrange
500W
Neodymium motor
2.5″ CCA voice coil
Läs Mera
2 490,00 kr
Beskrivning
Teknisk information
Bruksanvisningar
8″ high end SPL midrange speaker with neodymium motor and aluminum cast basket
8″ high power midrange speaker with neodymium motor
63 mm / 2.5″ CCA voice coil
Fiber reinforced paper cone
Neodymium motor
Aluminum cast basket
Aluminum phase plug
water repellend cone
Incl. protection grill
Push terminal
1 piece / package
8″ high power midrange speaker with neodymium motor
63 mm / 2.5″ CCA voice coil
Fiber reinforced paper cone
Neodymium motor
Aluminum cast basket
Aluminum phase plug
water repellend cone
Incl. protection grill
Push terminal
1 piece / package
Speaker diameter: 200 mm / 8”
Impedance 4 Ohm
Frequency response: 120 Hz – 7 kHz
Power handling (RMS) 300 Watt / Watts
Power handling (max) 500 Watt / Watts
Sensitivity: 98 dB
Resonance frequency: 90 Hz
Vas: 10.1 L / 0.36 cu.ft.
Qms: 10.21
Qes: 0.22
Qts: 0.21
BL: 13.1 N/A
Re: 3.4 Ohm / ohms
Le: 0.32 mH
Mms: 19.8 g
Cms: 0.16 mm/N
Xmax (p2p) 12 mm / 0.47“
Voice coil: 63 mm / 2.5”
Magnet: 105 mm / 4.1”
Neodym / neodymium
Outer diameter: 210 mm / 8.27”
Mounting cutout: 181 mm / 7.12”
Mounting depth: 82 mm / 3.23”
Impedance 4 Ohm
Frequency response: 120 Hz – 7 kHz
Power handling (RMS) 300 Watt / Watts
Power handling (max) 500 Watt / Watts
Sensitivity: 98 dB
Resonance frequency: 90 Hz
Vas: 10.1 L / 0.36 cu.ft.
Qms: 10.21
Qes: 0.22
Qts: 0.21
BL: 13.1 N/A
Re: 3.4 Ohm / ohms
Le: 0.32 mH
Mms: 19.8 g
Cms: 0.16 mm/N
Xmax (p2p) 12 mm / 0.47“
Voice coil: 63 mm / 2.5”
Magnet: 105 mm / 4.1”
Neodym / neodymium
Outer diameter: 210 mm / 8.27”
Mounting cutout: 181 mm / 7.12”
Mounting depth: 82 mm / 3.23”
