Ground Zero GZHM 80

EAN: 4037072025453
GZHM 80

80 mm / 3.15″ sound quality midrange speaker
Klippel® optimized
Paper-cone
Neodymium motor

Läs Mera
par
2 290,00 kr
Vikt: 1.05 kg
I lager
Frågor? Kontakta ossinfo(at)audioimport.fi
Beskrivning
Teknisk information
Bruksanvisningar

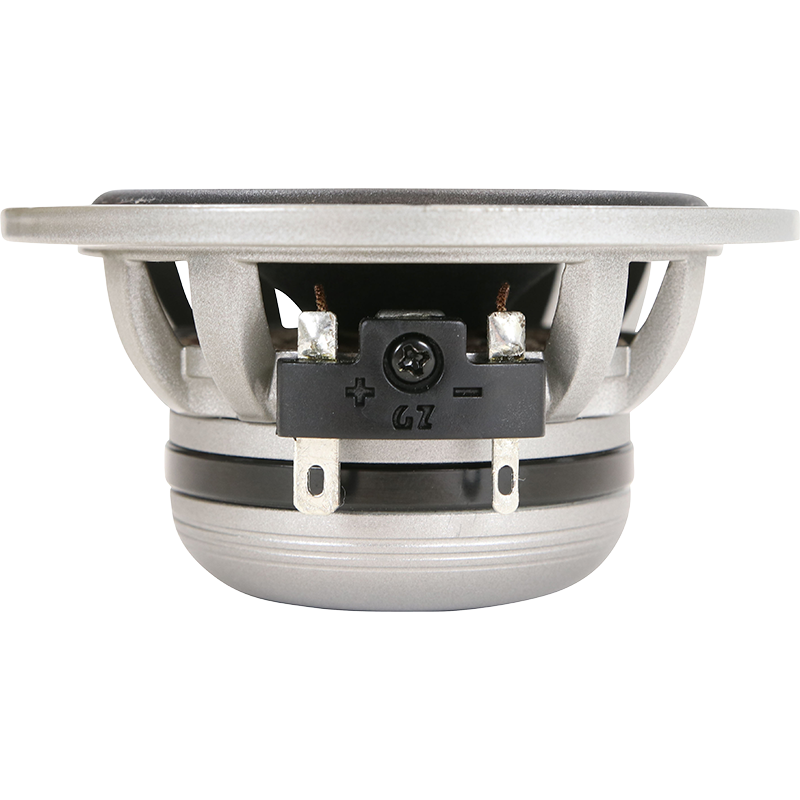

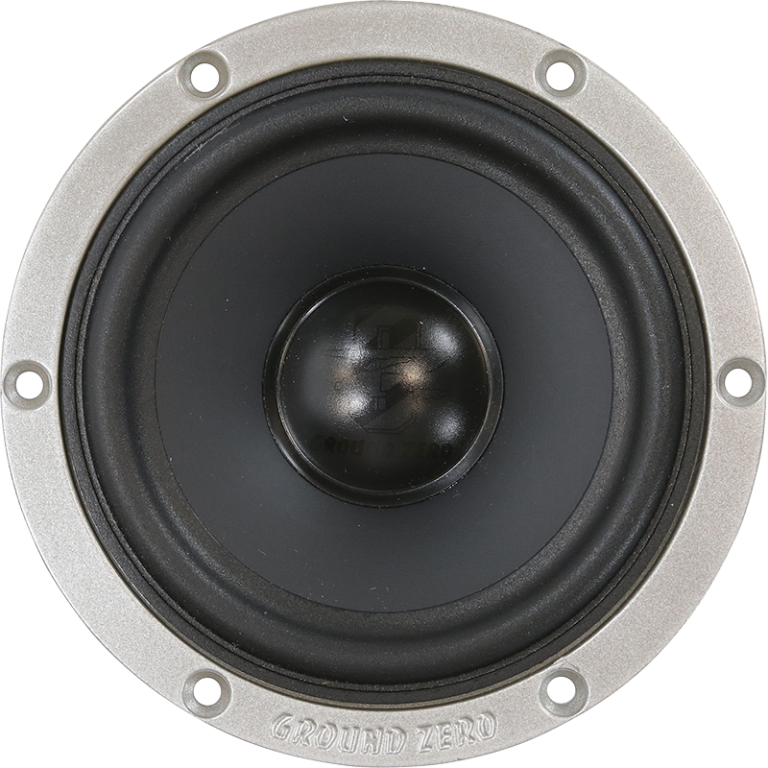

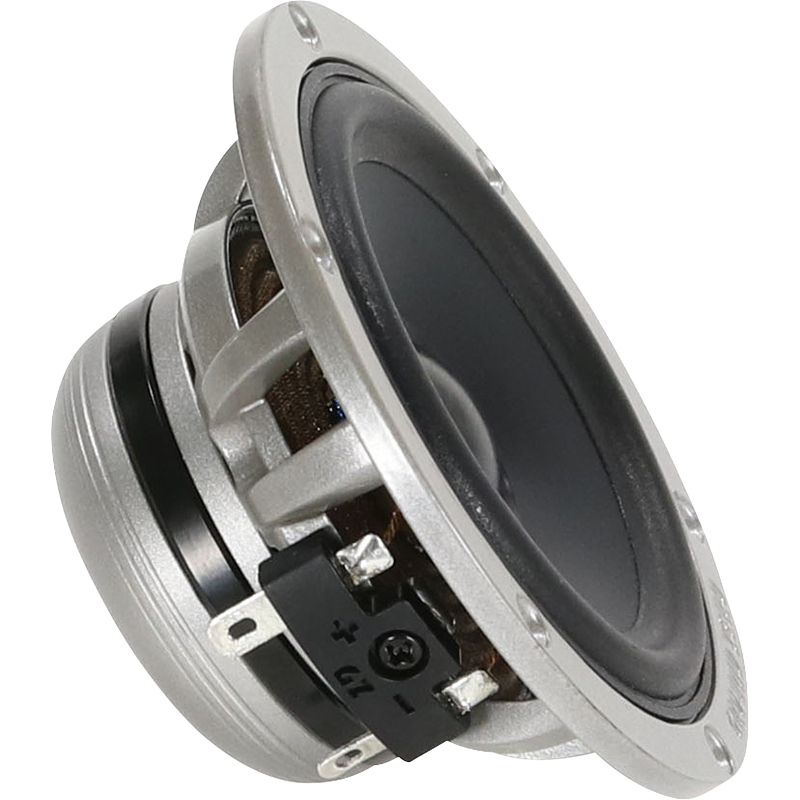

3.15″ sound quality midrange speaker with paper-cone

80 mm / 3.15″ sound quality midrange speaker
Klippel® optimized
Paper-cone
Neodymium motor

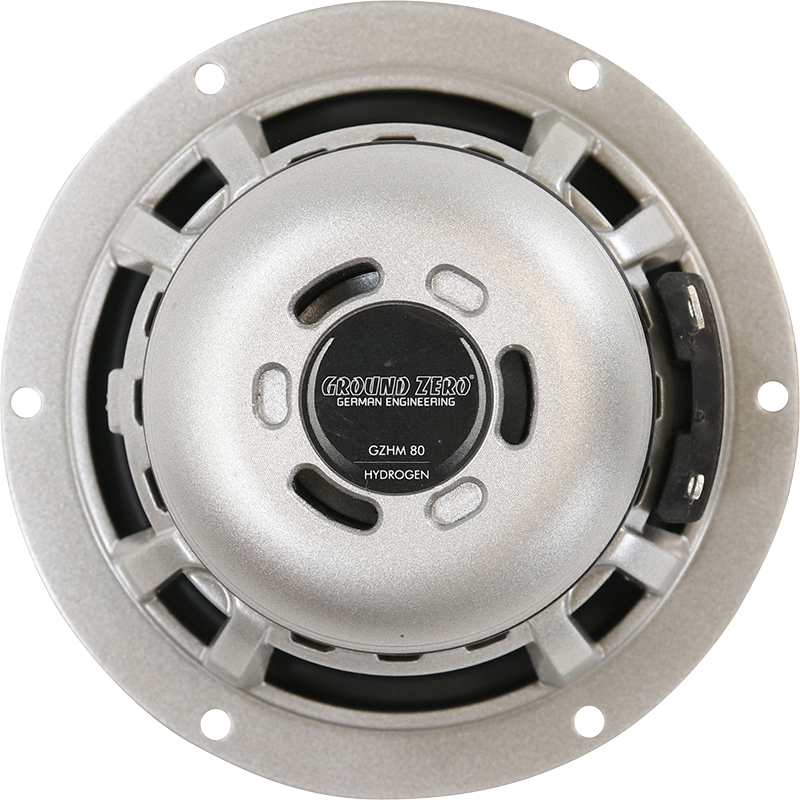

GZ design aluminum cast basket
25 mm / 0.79″ copper voice coil
Durable rubber surround

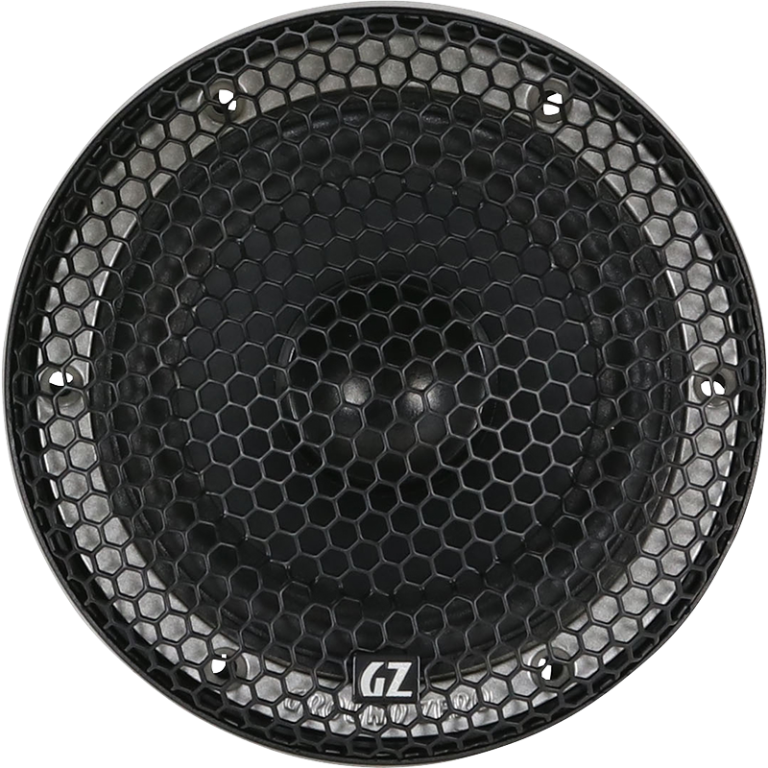

GZ-design hexagon style NRG protection grill
1 pair / package
Speaker type 80 mm / 3.15” SQ midrange loudspeaker
Impedance (nominal) 4 ohms
Frequency response 170 Hz – 5 kHz
Basket Aluminum cast
Cone Pressed paper
Motor Neodymium
Voice coil Ø 20 mm / 0.79“
Power handling (RMS) 50 Watts (with 12dB/oct HPF)
Power handling (max.) 80 Watts (with 12dB/oct HPF)
Technical Parameters (TSP)
Resonance frequency 106 Hz
Efficiency (SPL) 89 dB
Re 3.5 Ohm
Qms 5.58
Qes 0.32
Qts 0.30
Vas 1.50 L
Mms 2.90 g
BL 4.54 N/A
Rms 0.34 kg/s
Cms 0.79 mm/N
LE 0.11 mH
Xmax (excursion) 7 mm (gesamt)
