Ground Zero GZCF 200NEO-PRO
EAN: 4037072025019
GZCF 200NEO-PRO
8″
High-power full range loudspeaker
400W
Neodymium motor
2.5” voice coil
Läs Mera
3 500,00 kr
Beskrivning
Teknisk information
Bruksanvisningar
200 mm / 8″ 2-way coaxial speaker system with coated paper cone and 25 mm / 1″ compression tweeter
2-way high-power coaxial loudspeaker system
Coated paper cone
Wave shaped textile surround
High-efficient neodymium motor
Aluminum cast basket
High efficiency (SPL)
25 mm / 1″ compression tweeter
High-efficient neodymium motor
For active use

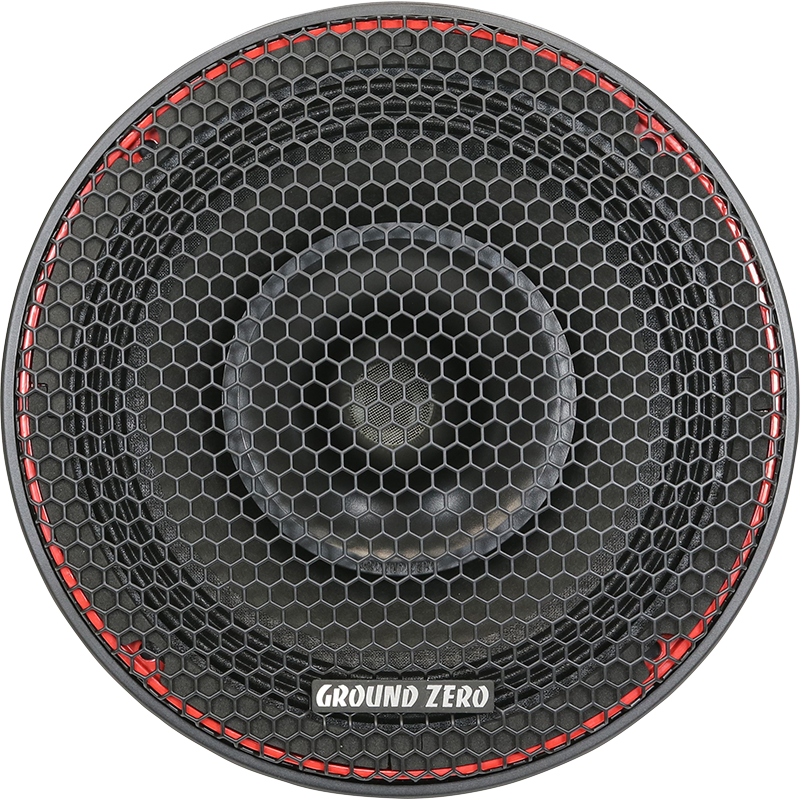

Incl. Hexagon style protection grill
2-way high-power coaxial loudspeaker system
Coated paper cone
Wave shaped textile surround
High-efficient neodymium motor
Aluminum cast basket
High efficiency (SPL)
25 mm / 1″ compression tweeter
High-efficient neodymium motor
For active use
Incl. Hexagon style protection grill
Speaker diameter 200 mm / 8”
Impedance 4 + 4 Ohm / ohms
frequency response 120 Hz – 20 kHz
power handling (RMS) 250 + 50 Watt / Watts (midwoofer/tweeter)
power handling (max) 400 / 100 Watt / Watts (midwoofer/tweeter)
sensitivity 99 dB
resonance frequency: 83.5 Hz
Vas: 13.25 L
Qms: 3.72
Qes: 0.19
Qts: 0.18
BL: 12.74
Re: 3.29 Ohm
Le: 0.36 mH
Mms: 17.63 g
Cms: 0.21 mm/n
Xmax: 12 mm
voice coil: 63 mm / 2.5”
magnet: (midwoofer) Ø 105 mm / 4.1” Neodym
mounting cutout: 181 mm
mounting depth: 104 mm
Impedance 4 + 4 Ohm / ohms
frequency response 120 Hz – 20 kHz
power handling (RMS) 250 + 50 Watt / Watts (midwoofer/tweeter)
power handling (max) 400 / 100 Watt / Watts (midwoofer/tweeter)
sensitivity 99 dB
resonance frequency: 83.5 Hz
Vas: 13.25 L
Qms: 3.72
Qes: 0.19
Qts: 0.18
BL: 12.74
Re: 3.29 Ohm
Le: 0.36 mH
Mms: 17.63 g
Cms: 0.21 mm/n
Xmax: 12 mm
voice coil: 63 mm / 2.5”
magnet: (midwoofer) Ø 105 mm / 4.1” Neodym
mounting cutout: 181 mm
mounting depth: 104 mm
