DD Audio AT-28a
AT28a
28mm
High End tweeter
4 Ohm
125W
Läs Mera
par
2 490,00 kr
Beskrivning
Teknisk information

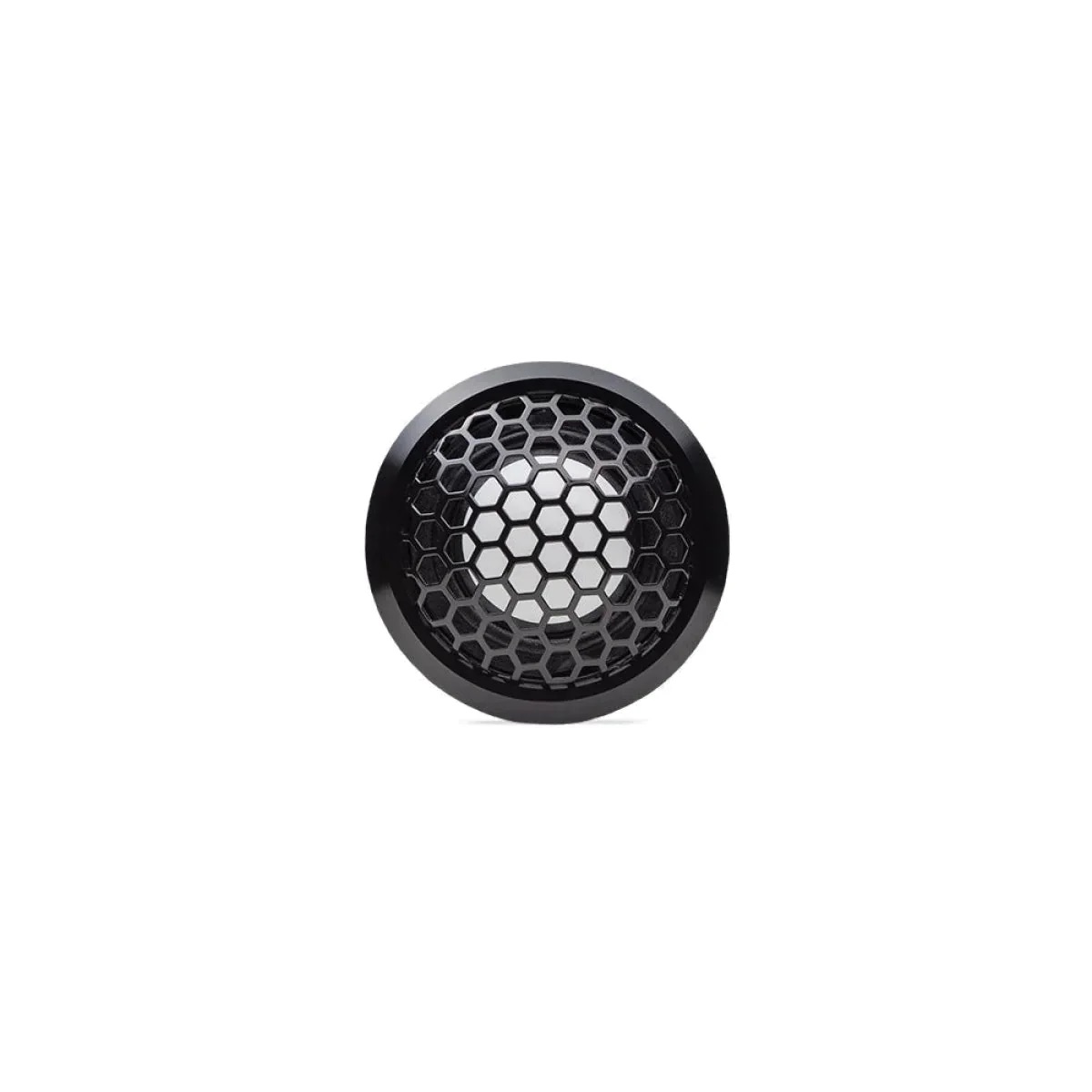

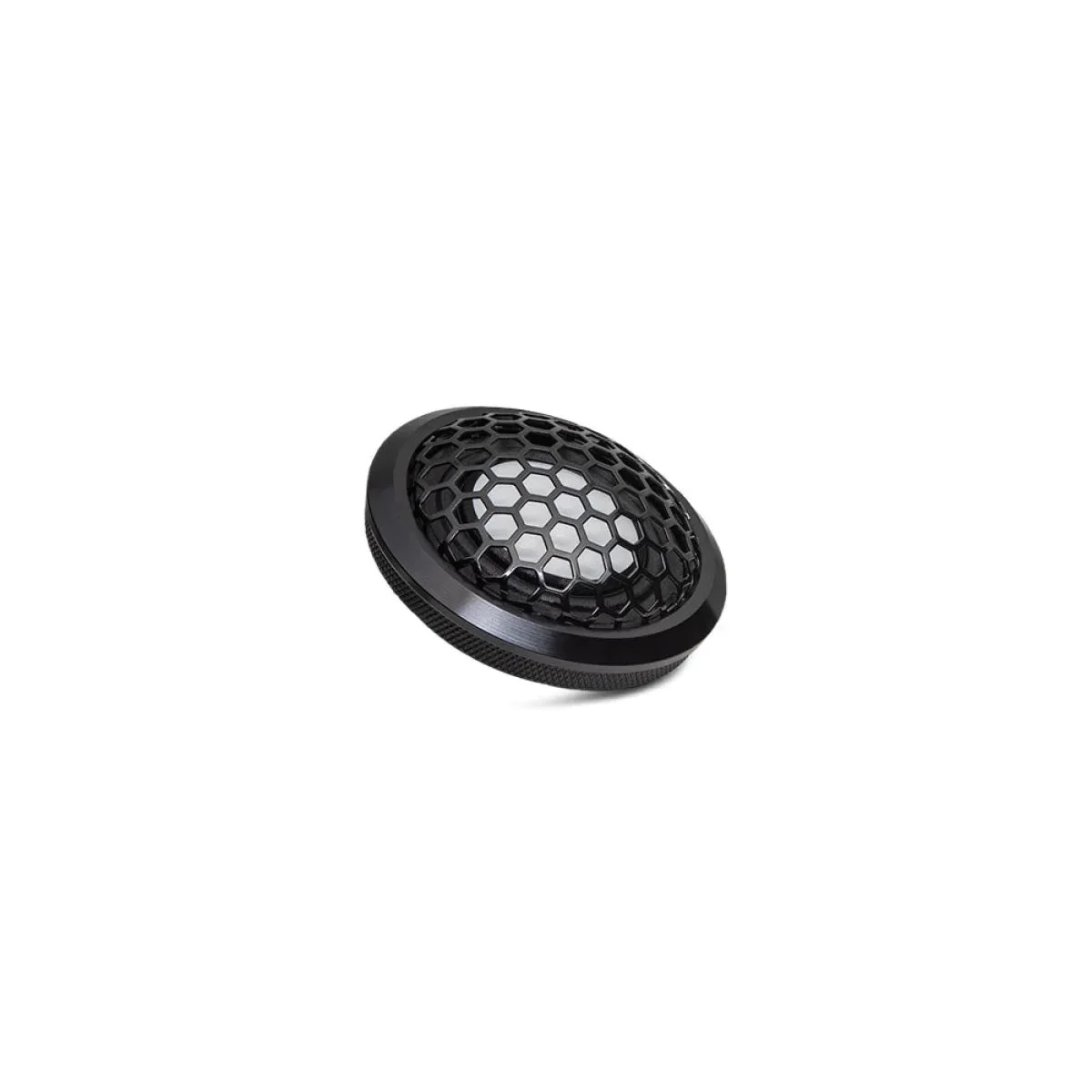

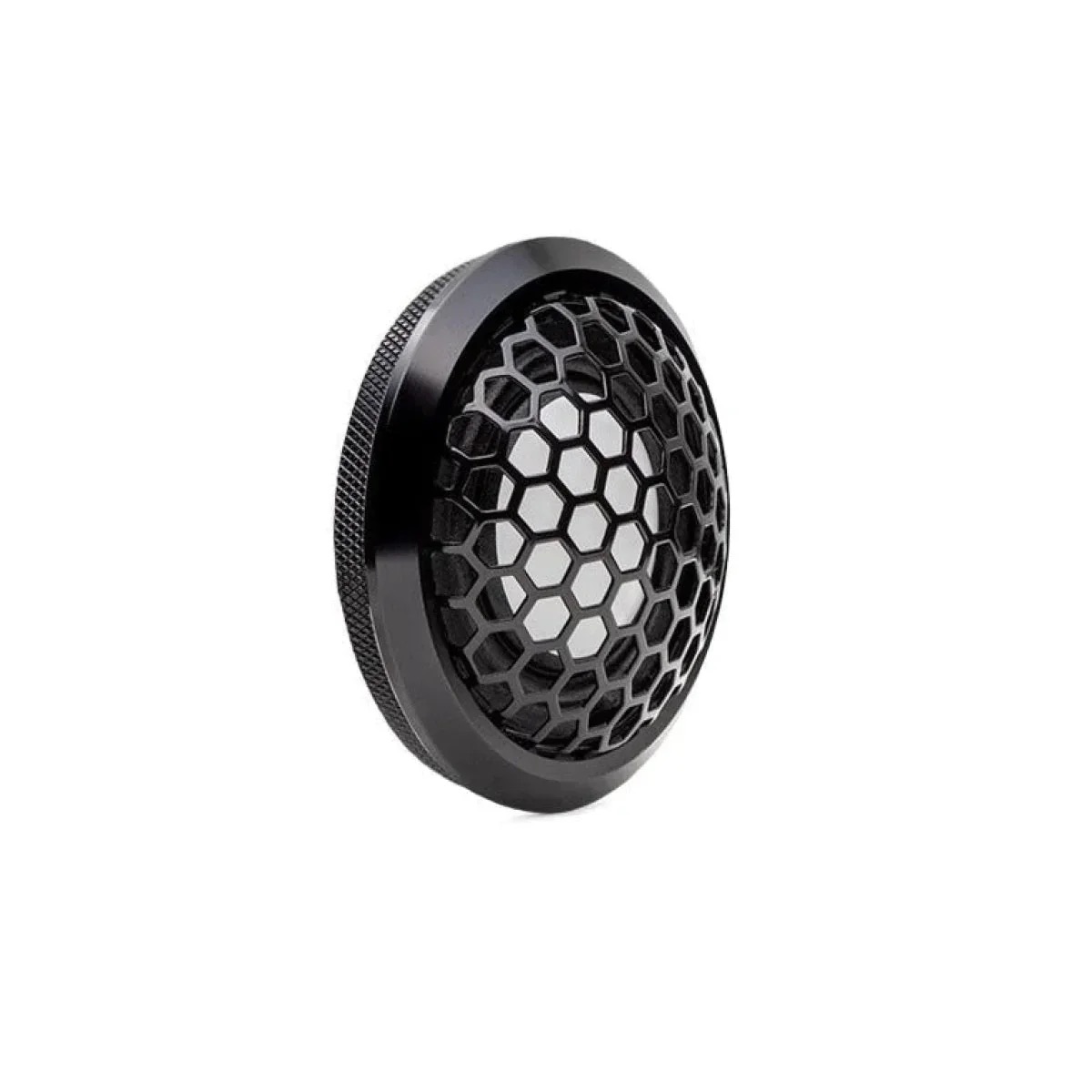

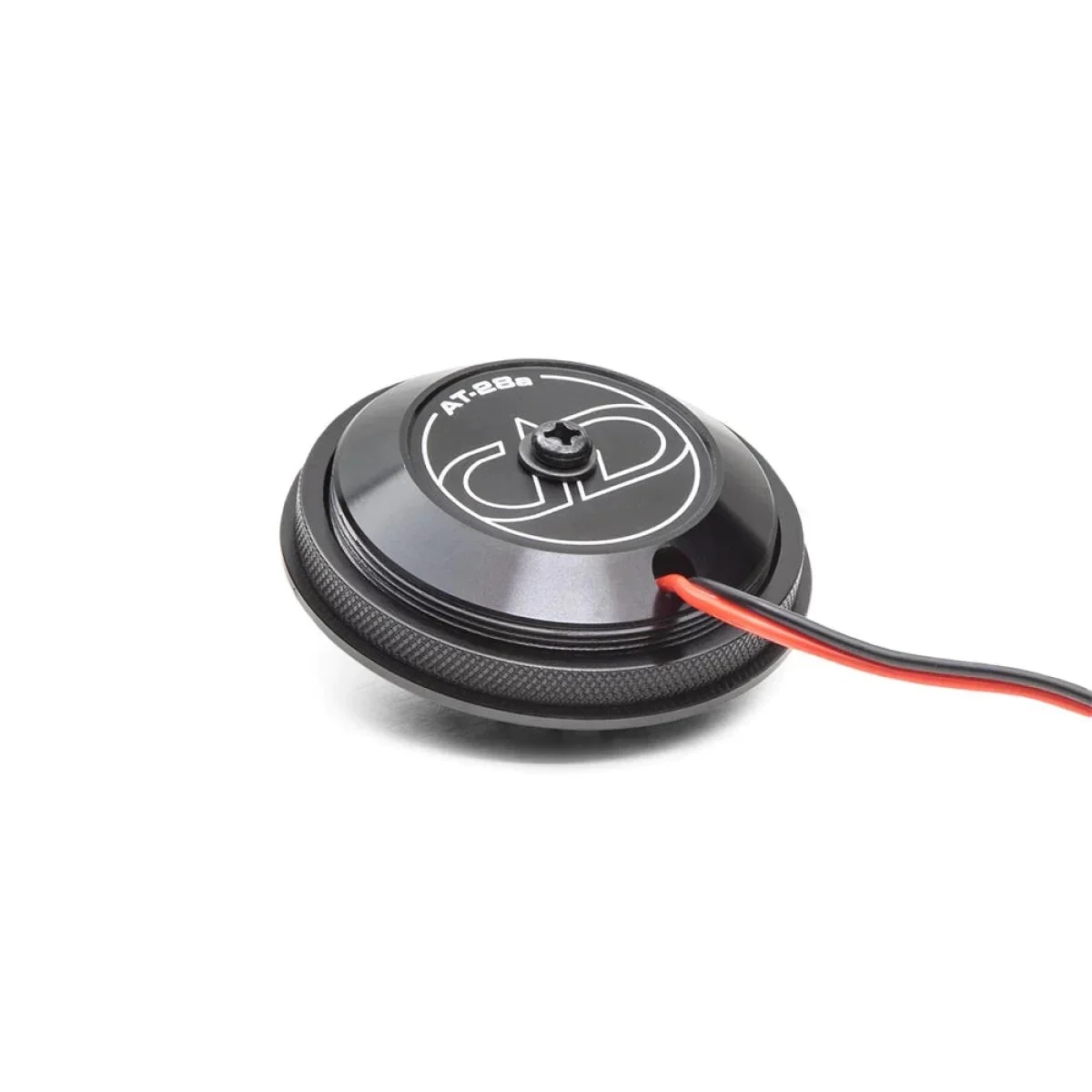

AT-28a offers a soft rich sound with extraordinary detail and excellent off axis response. It features a lightweight, ultra rigid ceramic dome that has excellent damping and offers a breakup mode thousands of cycles above the audible range. A powerful neodymium motor and soft silk surround keep the moving parts linear during the excursion cycle resulting in near perfect pistonic motion and superb accuracy. A tuned rear cavity extends the tweeter’s low frequency response for a broader usable frequency bandwidth.
Features
Ceramic Dome
Treated Silk Surround
Neodymium Motor
Tuned Rear Cavity
Laser Etched Back Plate
Compatible w/ Optional CX02 2-Way and TXOHP High Pass, Passive Crossovers
Features
Ceramic Dome
Treated Silk Surround
Neodymium Motor
Tuned Rear Cavity
Laser Etched Back Plate
Compatible w/ Optional CX02 2-Way and TXOHP High Pass, Passive Crossovers
Features:
Dome tweeter with Ceramic diaphragm!
Treated silk surround
Neodymium motor
Tuned rear cavity
Laser engraved rear panel
Compatible with optional 2-way passive CX02 and TXOHP high pass
Crossovers
Data:
Speaker size (MM): 28
Watt RMS: 50
Watt peak power: 125
Impedance: 4 ohm
voice coil diameter (mm): 28
frequency response (Hz): 3k - 25k
Fs (Hz): 1300 Hz
SPL: 90dB
Dimensions:
Outer diameter: 57.7mm
Mounting diameter: 47.9mm
Installation depth: 12.7mm
Dome tweeter with Ceramic diaphragm!
Treated silk surround
Neodymium motor
Tuned rear cavity
Laser engraved rear panel
Compatible with optional 2-way passive CX02 and TXOHP high pass
Crossovers
Data:
Speaker size (MM): 28
Watt RMS: 50
Watt peak power: 125
Impedance: 4 ohm
voice coil diameter (mm): 28
frequency response (Hz): 3k - 25k
Fs (Hz): 1300 Hz
SPL: 90dB
Dimensions:
Outer diameter: 57.7mm
Mounting diameter: 47.9mm
Installation depth: 12.7mm
