DD AUDIO LE-510.3

DDLE-510.3

DD Audio Bassbox
3 x 10″ PSW series subwoofer
Enclosure litres 80
Plywood front panel

Läs Mera
5 490,00 kr
Vikt: 46.50 kg
I lager
Frågor? Kontakta ossinfo(at)audioimport.fi
Beskrivning
Teknisk information

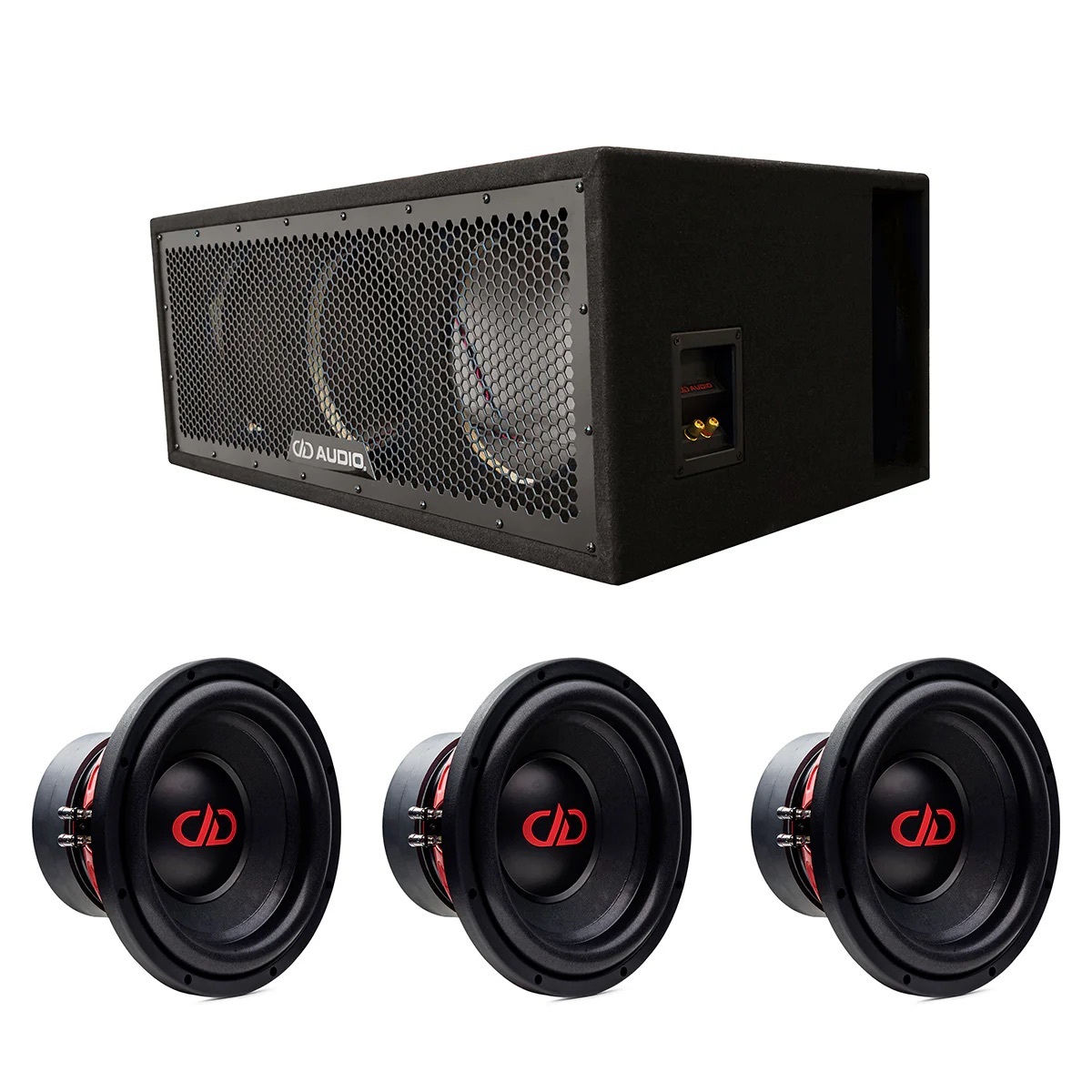

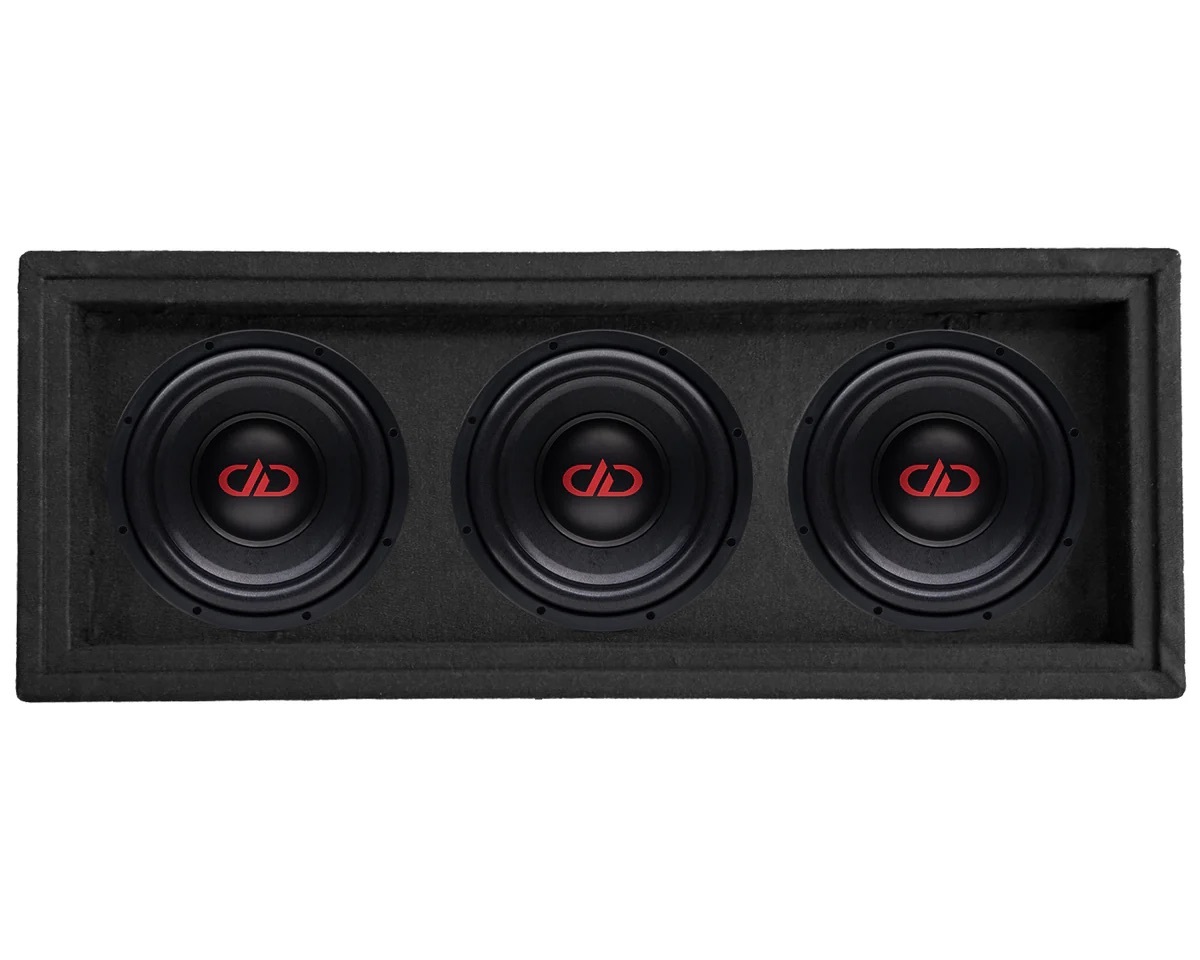

Digital Designs Bassbox with 3x10″ 2 x 4 Ohm PSW subwoofers and BIG subwoofer enclosure.

Subwoofers and enclosure comes from different boxes.

The REDLINE PSW ( power ) Series subwoofers are a more powerful version of the REDLINE SW series subwoofers. REDLINE PSW subwoofers has been improved in every area compared to REDLINE SW series: - Bigger voice coil - Better power handling - Longer Xmax - Bigger magnet - MORE REAL BASS!

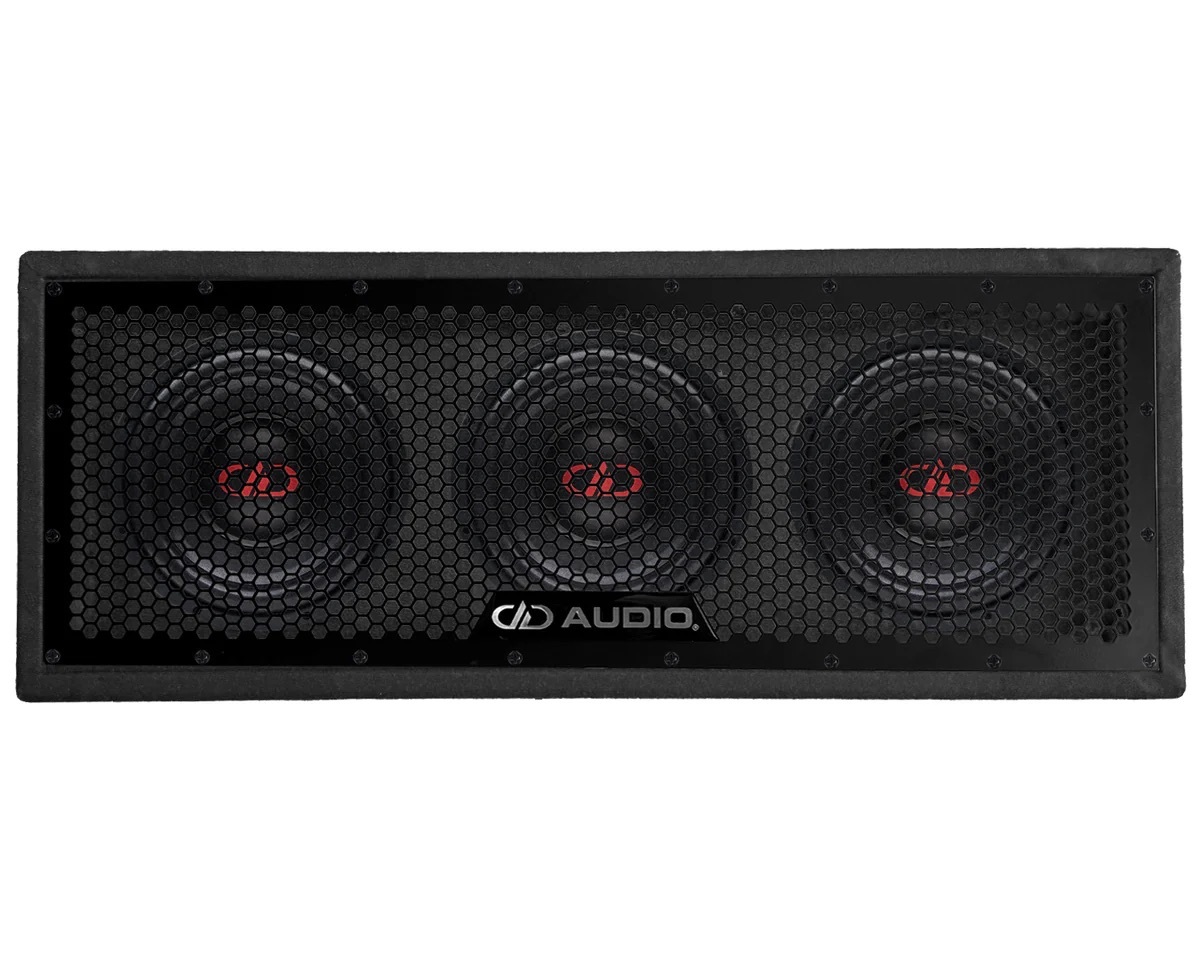

The new DD Audio 3x10″ Unloaded Enclosure.

The large DD tuned rectangular port is side fired to provide optimal acoustic loading throughout the entire power band.

- MDF Construction ( plywood front panel )
- High Flow 35Hz Port Tuning
- Full Hex Cut Custom Metal Grills
- Enclosure volume 80L
- 2.67 Ohm

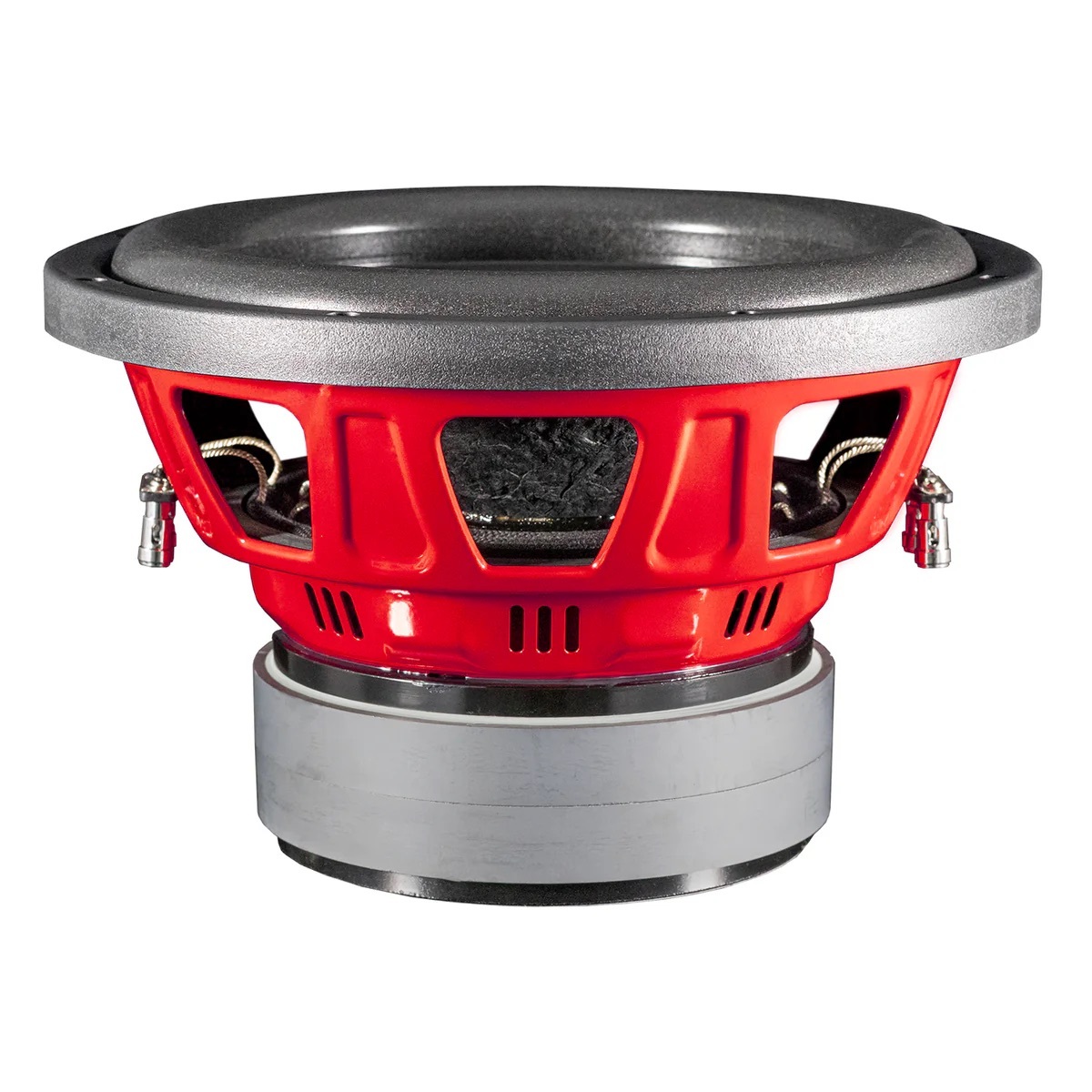

DDRL-PSW10-D4:

Speaker size: (in) 10
Watts RMS: 400
Watts peak: 800
Impedance: D4
VCD: (in) 2.5
Piston diameter: (in) 8
FS: (Hz) 38
Qms: 5.114
Qes: 0.693
Qts: 0.61
Vas: (liters) 17.73
dBSPL: 85
Xmech: (mm) 27
Xmax: (mm) 13
Frame OD: (in) 10
Frame OD w/Gasket: (in) 10.15

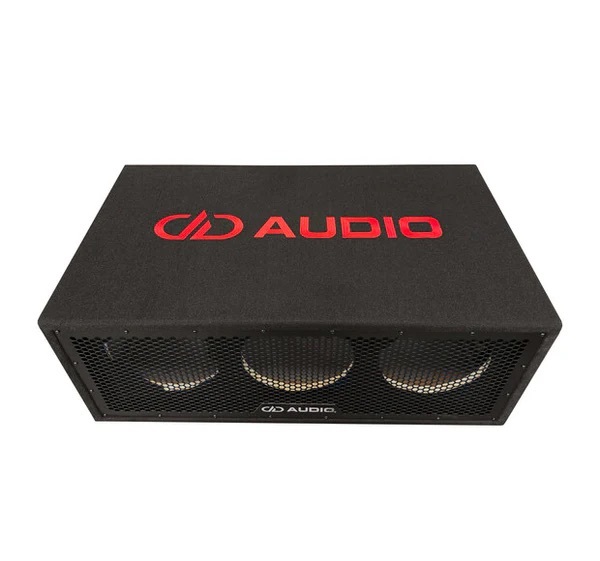

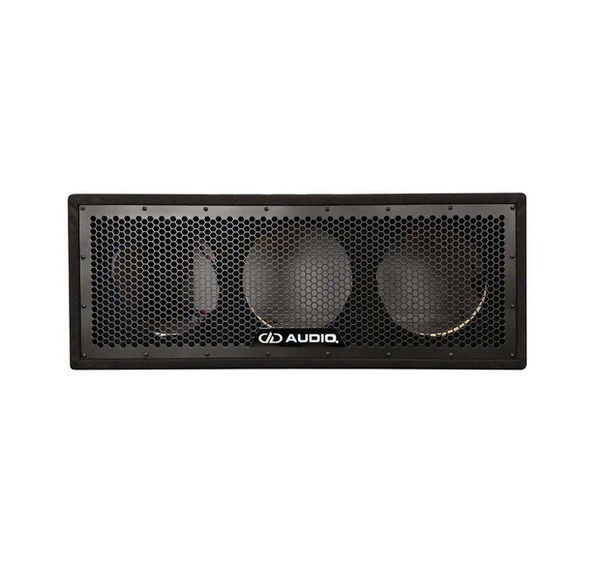

DDUE-10.3a:

Ported enclosure for 3x10″ subwoofer
Net volume: 80 liters.
Tuning frequency: 35 Hz
Diameter of speaker hole: 227mm
Measurements cm: ( W x H x D ): 875 x 340 x 500
