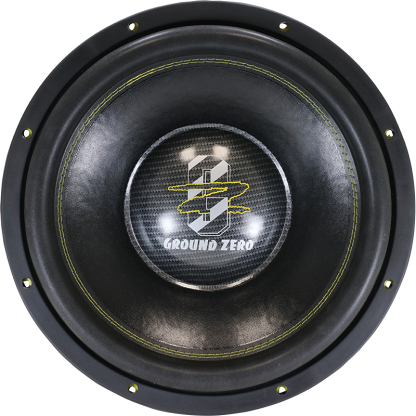

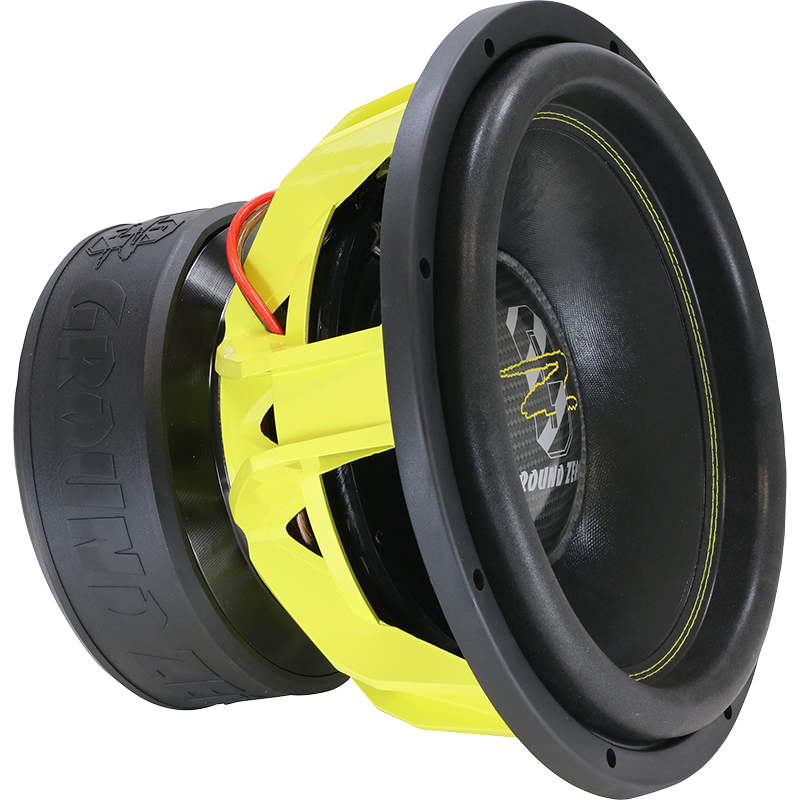

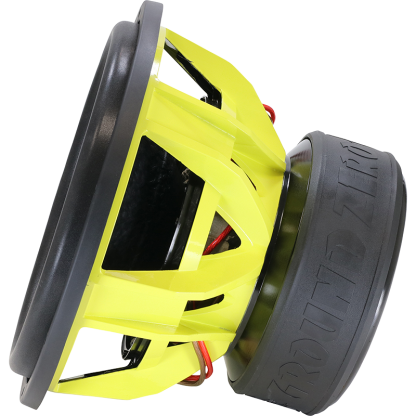

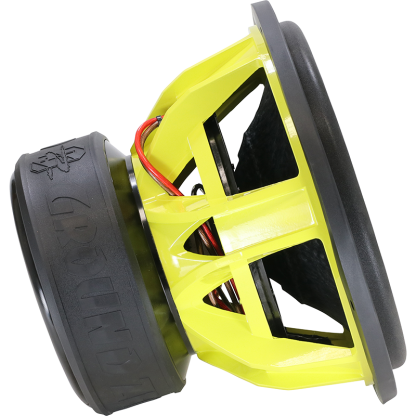

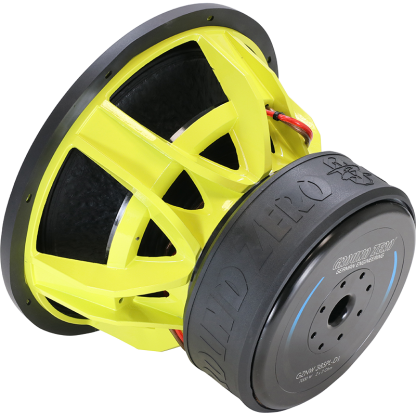

Ground Zero GZNW 38SPL-D1
EAN: 4037072022186
GZNW 38SPL-D1
15″
SPL subwoofer
7000W
2 x 1 Ohm
3″ voice coil
Läs Mera
7 990,00 kr
Beskrivning
Teknisk information
7000 Watts SPL
15″ high performance SPL subwoofer with aluminum cast basket
15″ high performance SPL subwoofer
Klippel® optimized
Reinforced paper cone
Solid aluminum cast basket
75 mm / 3″ CCA round wire voice coil
4-layer Nomex spider
Carbon design dust cap
15″ high performance SPL subwoofer with aluminum cast basket
15″ high performance SPL subwoofer
Klippel® optimized
Reinforced paper cone
Solid aluminum cast basket
75 mm / 3″ CCA round wire voice coil
4-layer Nomex spider
Carbon design dust cap
Model
High-Performance SPL subwoofer
Diameter
38 cm / 15″
Power Handling (RMS/SPL.)
3500 / 7000 Watts
Impedance
2x 1 Ohms
Efficiency
88.5 dB
Power Recommendation
2000 – 7000 Watts
Voice Coil
75 mm / 3″ CCA
Membran Layout
Reinforced paper
Max. Excursion (Xmax)
80 mm / 3.15″
Mounting Ø
358 mm / 14.09″
Mounting Depth
269 mm / 10.59″
Resonance Frequency (Fs)
36.0 Hz
Overall Qaulity (Qts)
0.52
Equiv. Air Volume (Vas)
54 L / 1.91 cu.ft.
High-Performance SPL subwoofer
Diameter
38 cm / 15″
Power Handling (RMS/SPL.)
3500 / 7000 Watts
Impedance
2x 1 Ohms
Efficiency
88.5 dB
Power Recommendation
2000 – 7000 Watts
Voice Coil
75 mm / 3″ CCA
Membran Layout
Reinforced paper
Max. Excursion (Xmax)
80 mm / 3.15″
Mounting Ø
358 mm / 14.09″
Mounting Depth
269 mm / 10.59″
Resonance Frequency (Fs)
36.0 Hz
Overall Qaulity (Qts)
0.52
Equiv. Air Volume (Vas)
54 L / 1.91 cu.ft.
