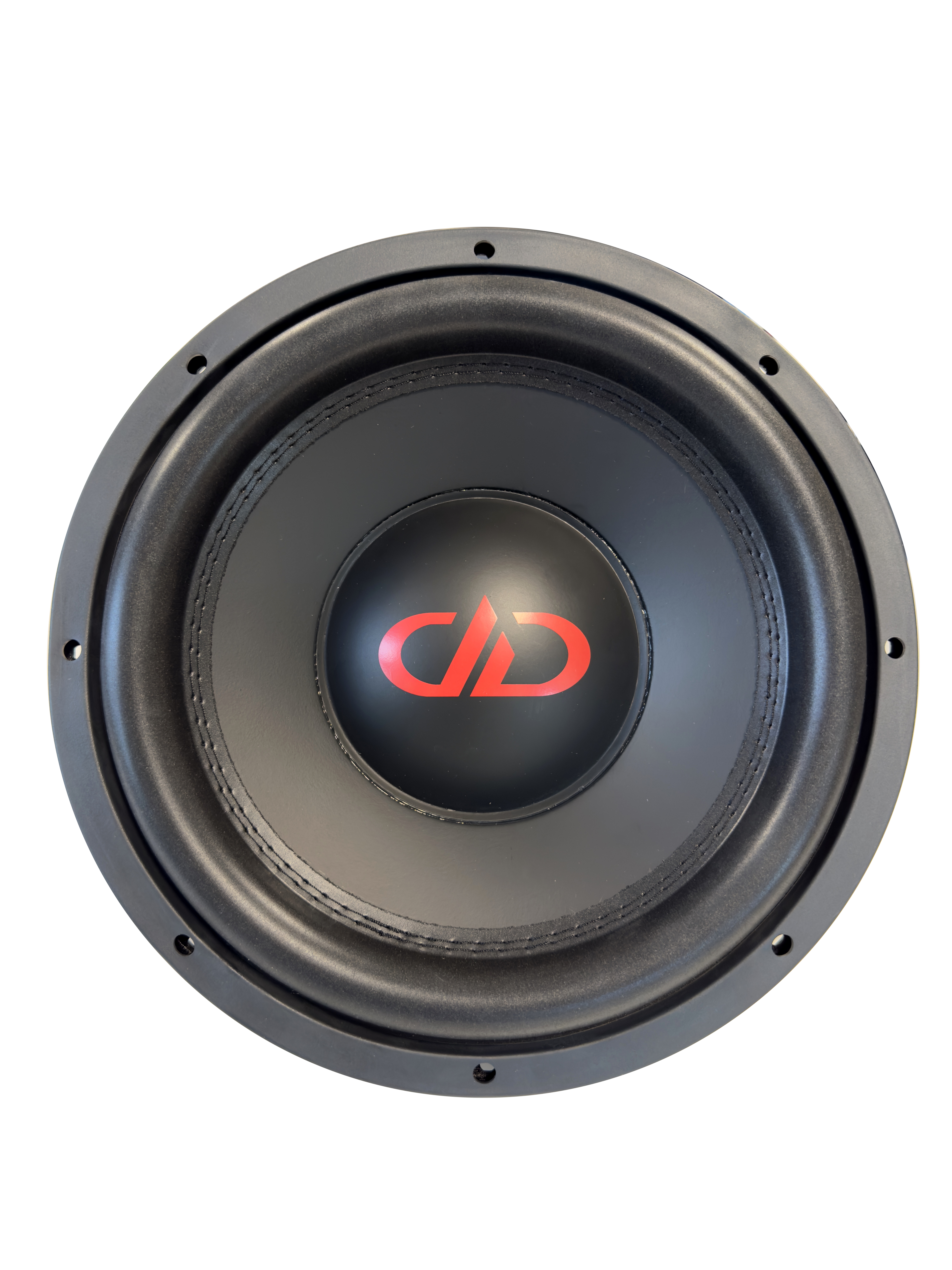

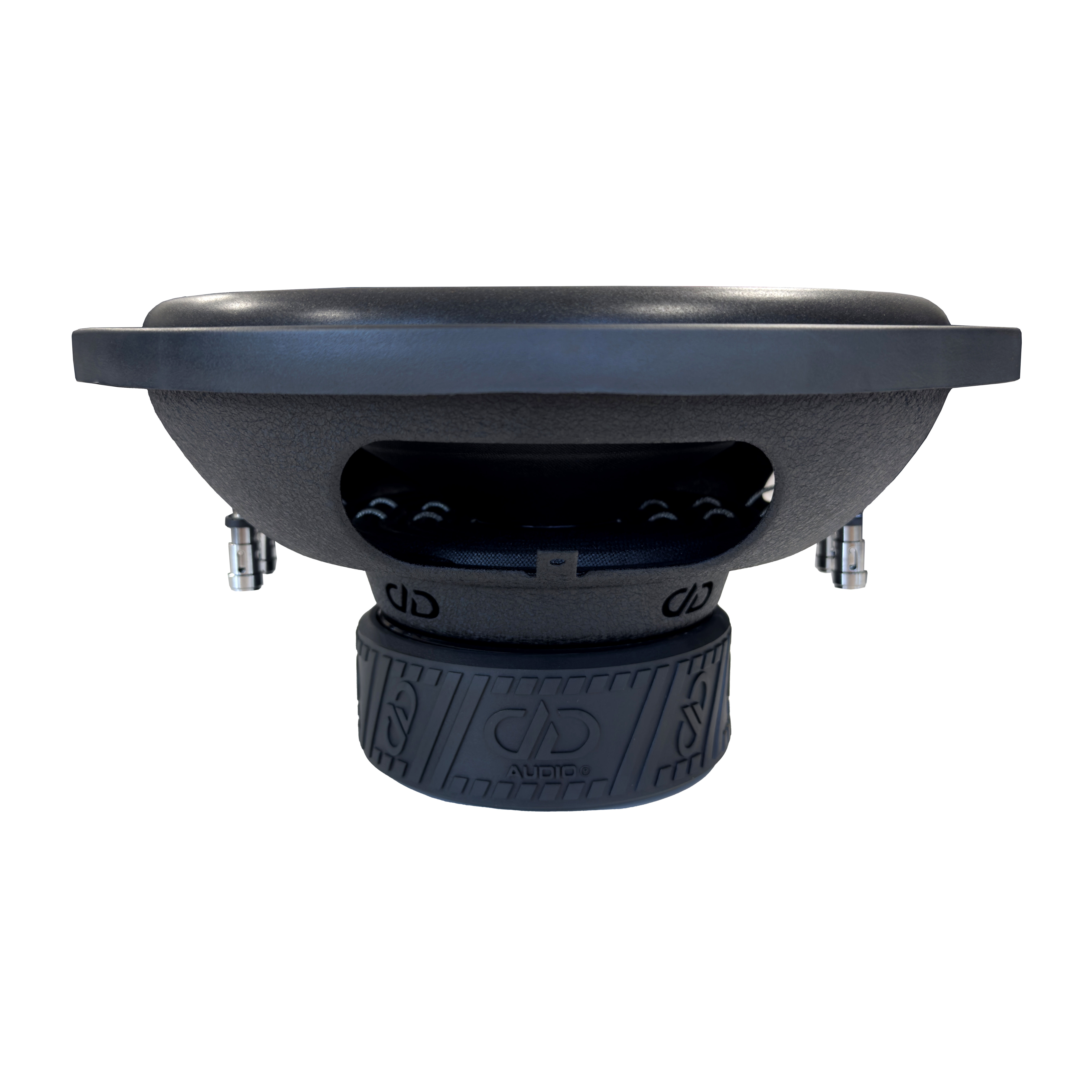

DD Audio 212e-D4

DD212e-D4

12″ Subwoofer
Steel frame
2″ voice coil
2 x 4 Ohm
1100W

Läs Mera
1 090,00 kr
Vikt: 5.75 kg
I lager
Frågor? Kontakta ossinfo(at)audioimport.fi
Beskrivning
Teknisk information
New 200e series offers excellent performance at affordable prices.

The 200e series is designed to provide some satisfying bass on as little as 100-300 Watts. Enhancing these sub’s output efficiency is their smooth, wide bandwidth. They’re tuned to work well in sealed enclosures as well as compact vented designs.
Speaker Size (In): 12
Watts RMS: 350
Watts Peak: 1100
Impedance: D4
VCD (In): 2
Fs (Hz): 37
Qms: 4.96
Qes: 0.75
Qts: 0.65
Vas (Liters): 37.05
BL (TM): 20
Xmech (MM): 30
Xmax (MM): 10
Frame OD (In): 12.22
Frame OD w/ Gasket (In): 12.4
Mounting Diameter (In): 11
Mounting Depth (In): 5.34
Motor Diameter (In): 1.7
Motor Depth (In): 5.27
Magnet Weight (Oz): 55
Woofer Displacement (CuFt): 0.06
Sealed Enclosure (CuFt): 0.75 - 1.0
Ported Enclosure (CuFt): 0.8 - 2.0
Shipping Weight (Lbs): 13
