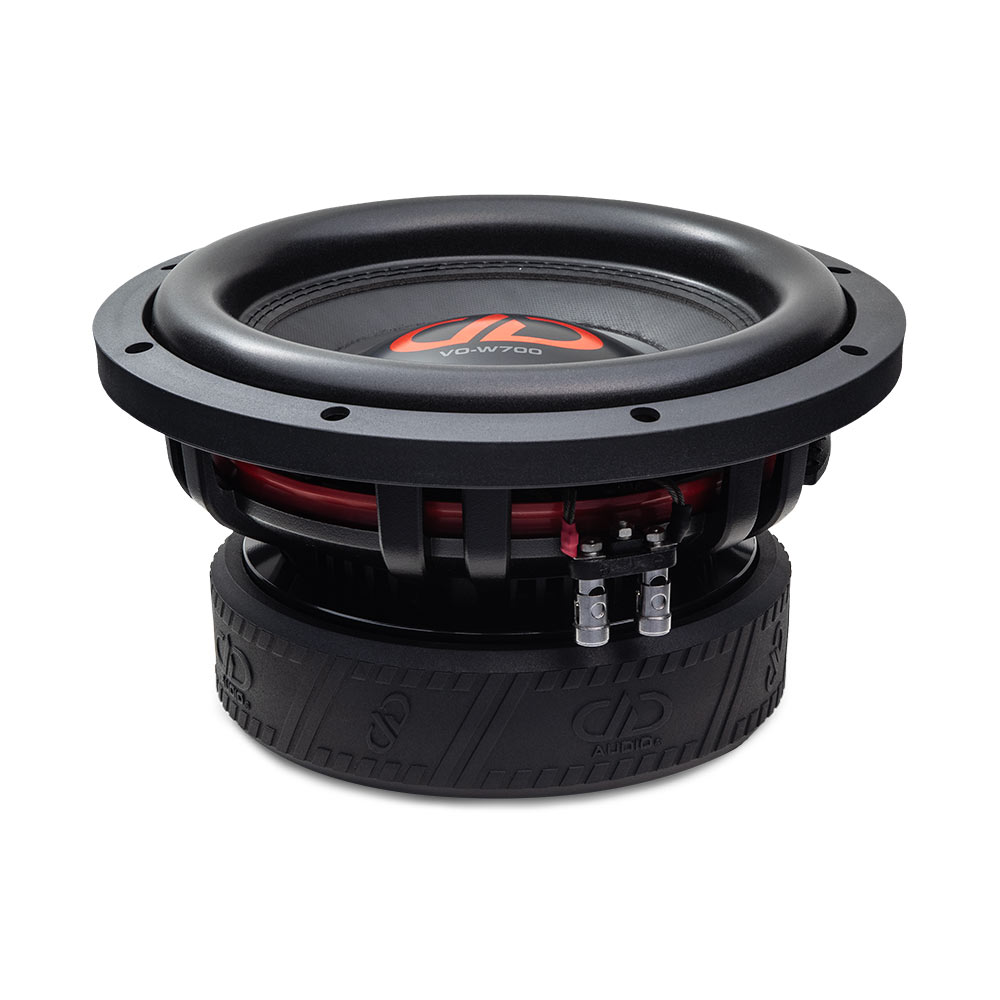

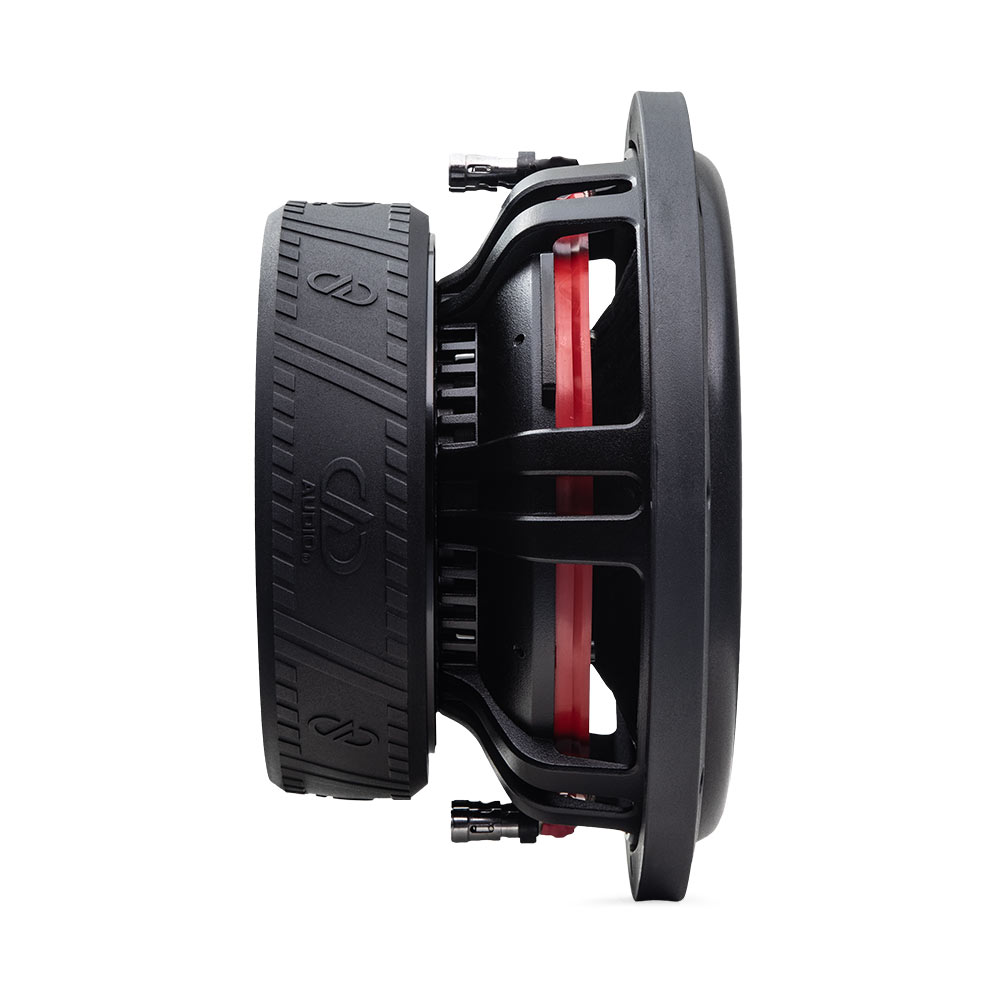

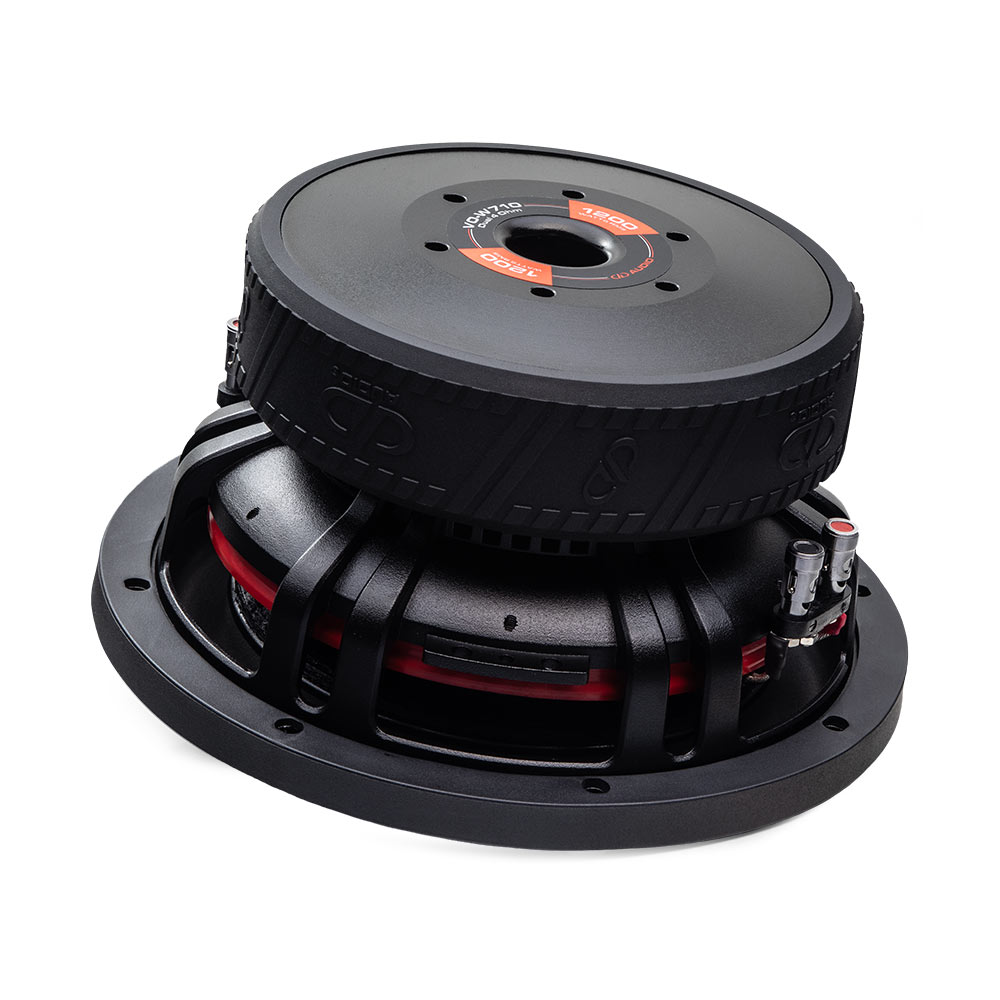

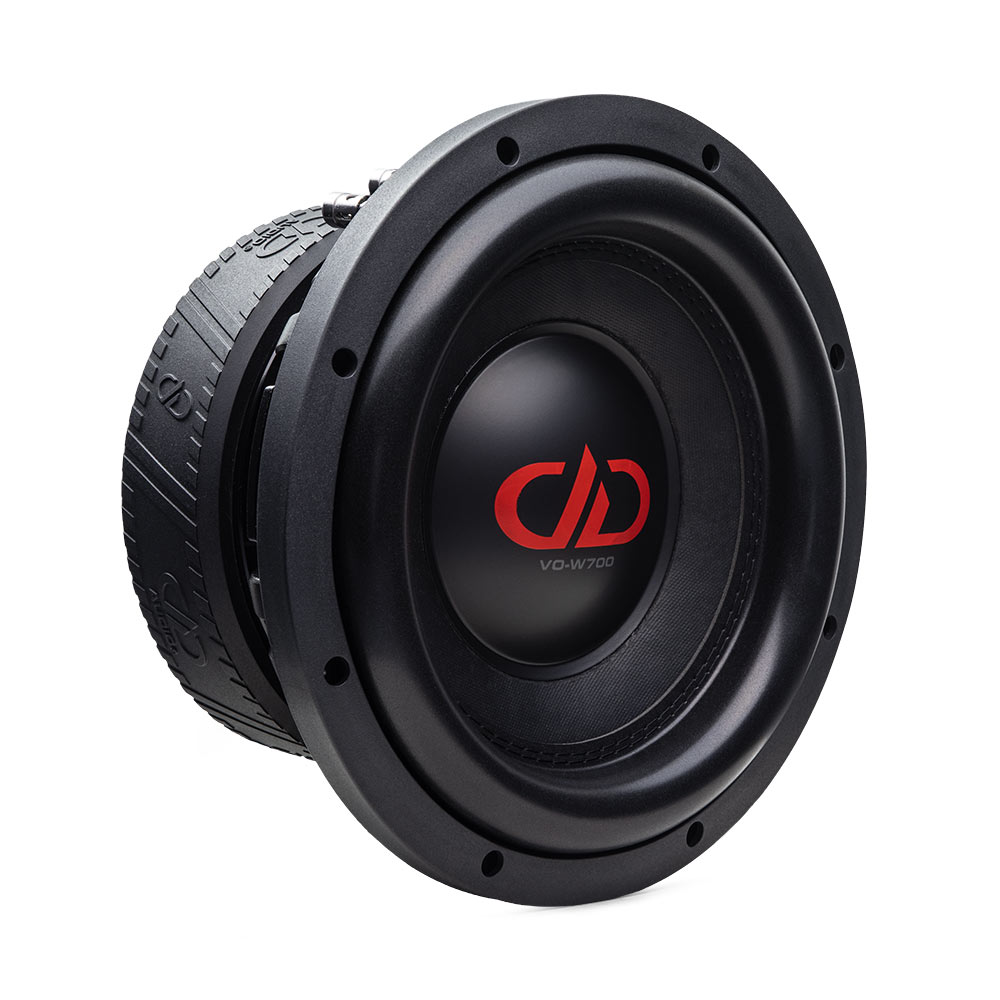

DD Audio VO-W710-D2

VO-W710-D2

10″ PA Woofer
1200W
2 x 2 Ohm
3” High-Temp Voice Coil
7.4” Diameter, Double Magnet Motor

Läs Mera
2 690,00 kr
Vikt: 0.00 kg
I lager
Frågor? Kontakta ossinfo(at)audioimport.fi
Beskrivning
Teknisk information
Media
The VO-W700s are drivers made to satisfy an underappreciated bandwidth between the bottom end of a midrange and the heavy lows of the subwoofer, striking a balance of clarity and power that puts them in a class of their own. With a rich pedigree tracing back to the 1990’s era of Digital Designs 9000 Series subwoofers, and a sleek undemanding profile, these woofers have been made for applications where depth is limited, but expectations are not.

The feature rich VO-W700 woofers are the ideal choice when the system design requires a higher crossover pointing to high output midranges, where normal subwoofer rolloff leaves a frequency gap. Best of all, the combination of high motor force, tight control, and compact cast frame, allow the VO-W700s to be used in small vented box designs, taking advantage of vehicle acoustic loading, allowing you to enjoy the low end punch with a higher frequency attack, from a myriad of locations in the most cramped of cabin spaces.
Speaker Size (In): 10
Watts RMS: 1200
Impedance: D2
VCD (In): 3
Piston Diameter (MM): 203.2
Frequency Response (Hz): 35 - 2k
Fs (Hz): 42
Qms: 4.684
Qes: 0.462
Qts: 0.421
Vas (Liters): 9.331
BL (TM): 30
Xmech (MM): 30
Xmax (MM): 12
Frame OD w/Gasket (In): 10.625
Mounting Diameter (In): 9.375
Mounting Diameter (MM): 238
Mounting Depth (In): 4.8125
Mounting Depth (MM): 122
