Raggarplanka Amplified
Raggarplanka Amplified
GZIB 2.165SPL Raggarplanka
S2-A65.2 amplifier
Läs Mera
set
3 290,00 kr
Beskrivning
Teknisk information

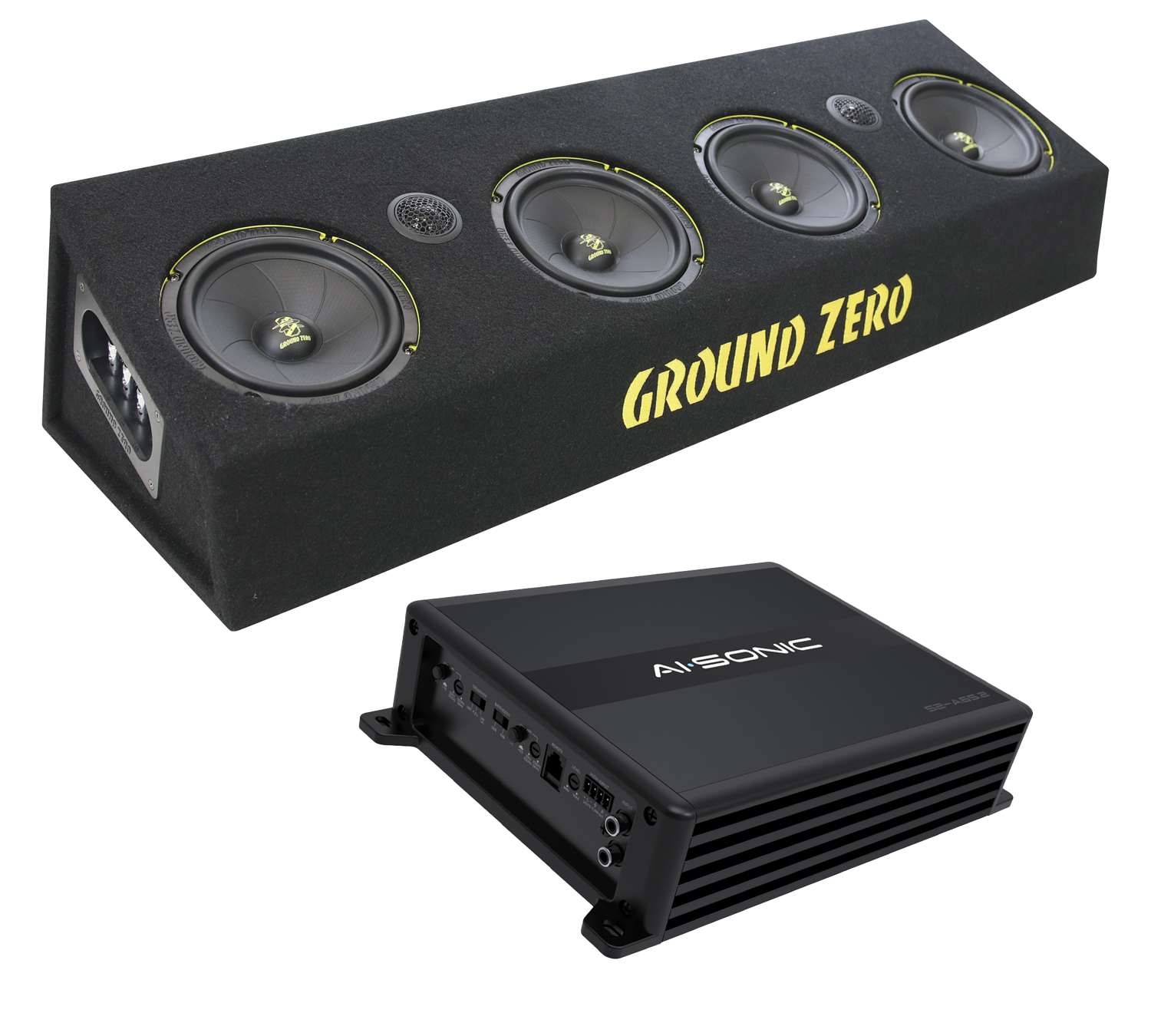

Raggarplanka Amplified includes GZIB 2.165SPL Fullrange SPL speakerbox + Powerful and exceptionally high-quality AI-SONIC S2-A65.2 amplifier.
GZIB 2.165SPL:

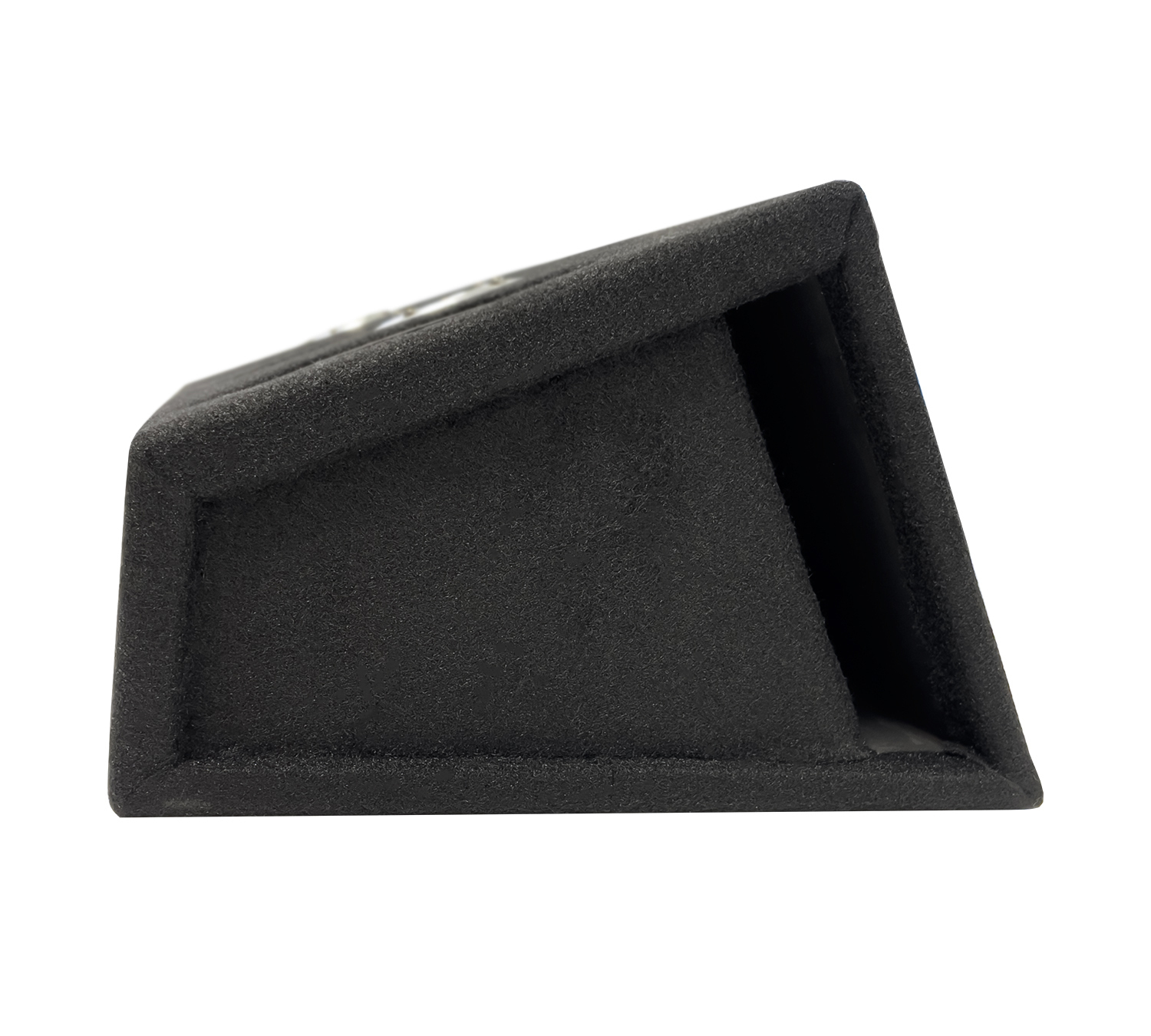

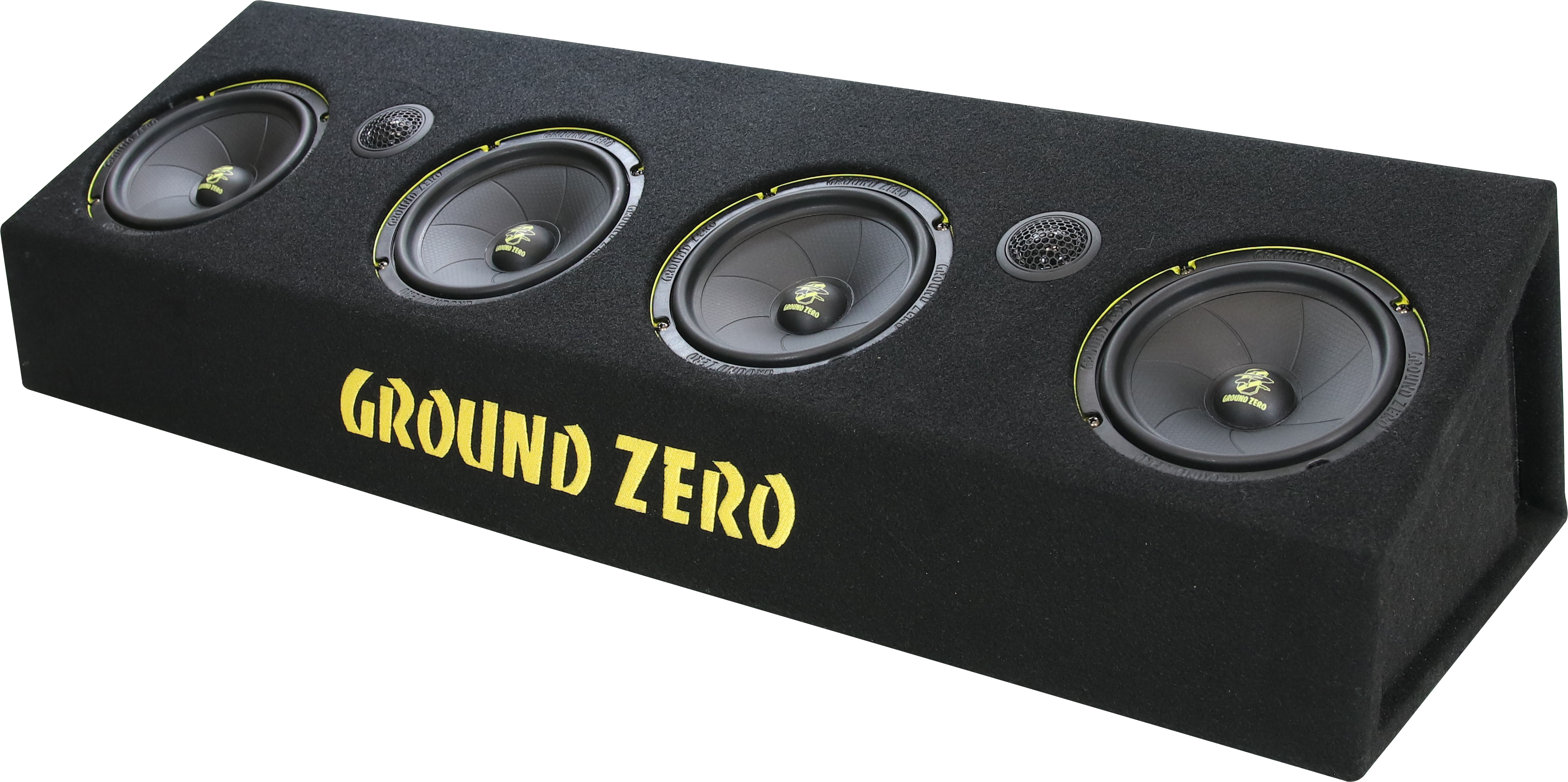

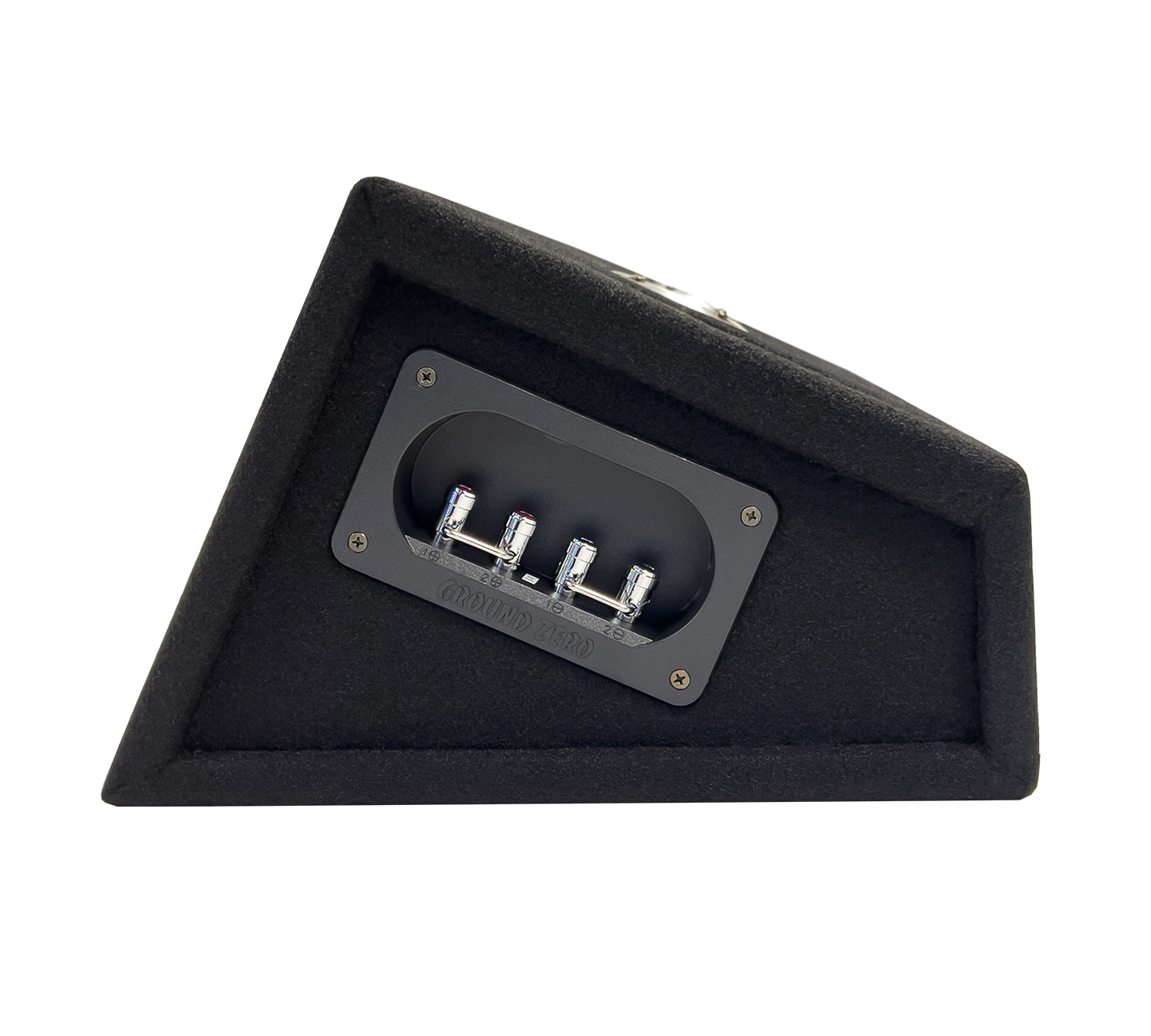

GZIB 2.165SPL Fullrange SPL speakerbox! LOUD enclosure with 4pcs of GZIC 165.2SPL midwoofers and pcs of 28 mm /1,1 ″ Mylar tweeters. There are terminals on the side of the case, so all you have to do, is plug in the speaker cords and you can start enjoying about music! Free placement! You can put the enclosure wherever you want. For a hat rack, camper, trunk, or lift though on the roof as a party booster!
AI-SONIC S2-A65.2

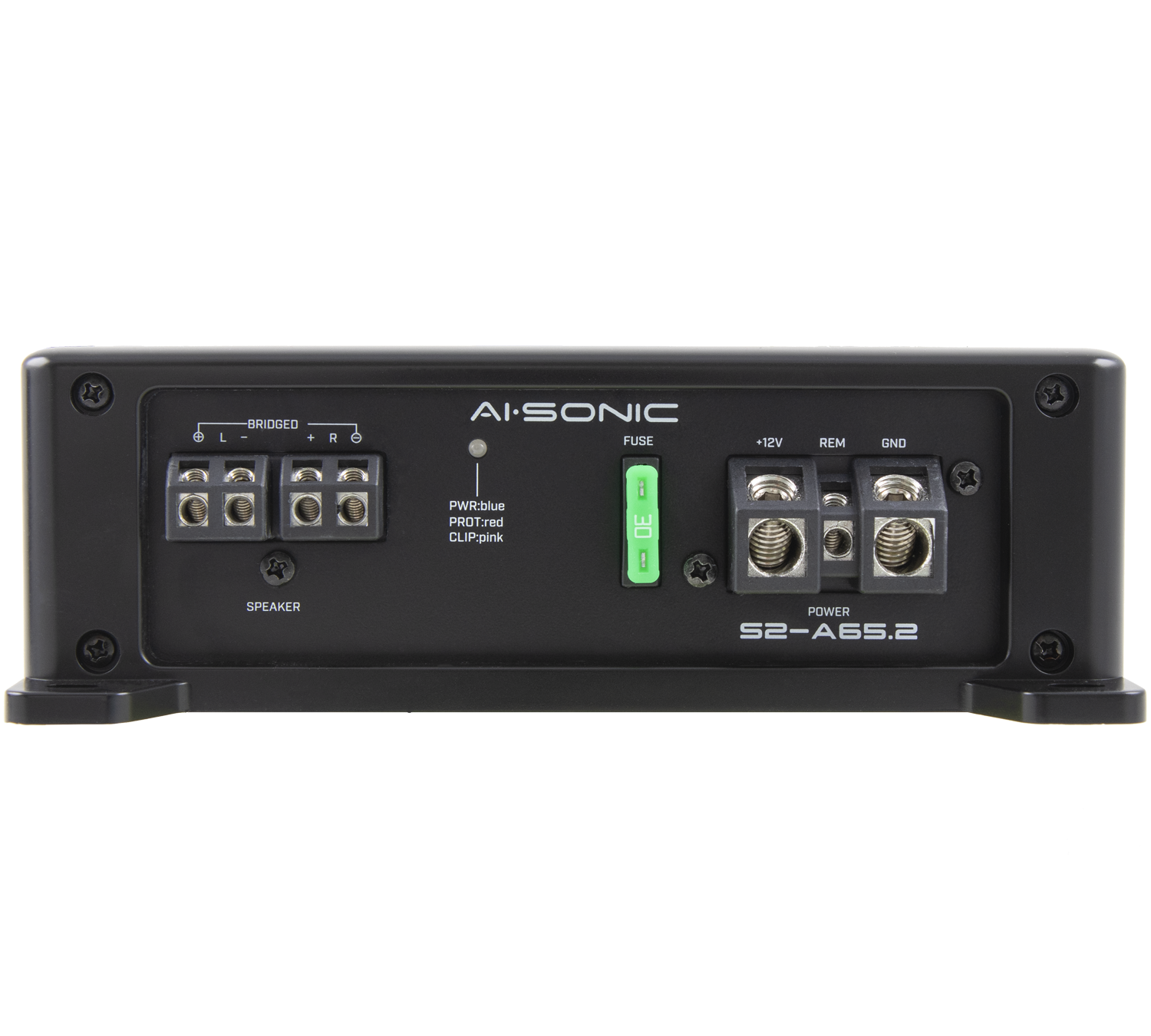

AI-Sonic S2-A65.2 is 2-channel AB class amplifier for users, who want to feel pure sound quality.
Amplifier gives more power as there are mentioned at the specs.
Finished dark cover, which profile is brushed black aluminium.
When amplifier is on. There is indicator light in AI-Sonic logo!
Includes a remote control, which has three different indicator-leds.
(protection, power and clipping)
Designed in Finland.
(Bass level control sold separately and it works only when LPF is turned on.)
GZIB 2.165SPL:
GZIB 2.165SPL Fullrange SPL speakerbox! LOUD enclosure with 4pcs of GZIC 165.2SPL midwoofers and pcs of 28 mm /1,1 ″ Mylar tweeters. There are terminals on the side of the case, so all you have to do, is plug in the speaker cords and you can start enjoying about music! Free placement! You can put the enclosure wherever you want. For a hat rack, camper, trunk, or lift though on the roof as a party booster!
AI-SONIC S2-A65.2
AI-Sonic S2-A65.2 is 2-channel AB class amplifier for users, who want to feel pure sound quality.
Amplifier gives more power as there are mentioned at the specs.
Finished dark cover, which profile is brushed black aluminium.
When amplifier is on. There is indicator light in AI-Sonic logo!
Includes a remote control, which has three different indicator-leds.
(protection, power and clipping)
Designed in Finland.
(Bass level control sold separately and it works only when LPF is turned on.)
GZIB 2.165SPL
Diameter
165 mm / 6.50″
Power Handling (RMS/max.)
120 / 200 Watts
Impedance
3 ohms
Efficiency
89 dB
Frequency Response
45 Hz – 20 kHz
Tweeter
28 mm /1,1 ″ mylar dome
Membran Layout
HQPP cone with 3D structure
Mounting Ø
142.5 mm / 5.61″
Mounting Depth
68 mm / 2.68″
Crossover
12 dB/oct – high pass filter
Crossover Frequency
5000 Hz
Dimensions (straight dispersion) 35.43″ x 11.81″ x 9.65″ / 90 x 30 x 24.5 cm (wxhxl)
Dimensions (angled dispersion) 35.43″ x 8.66″ x 11.81″ / 90 x 22 x 30 (wxhxl).
Specifications:
Frequency response: 50 Hz - 22 kHz
Impedance: 2x 2 ohms
Efficiency: 93 dB
Power handling (stereo) 2x 200 W RMS (@ 2 ohms) 4x 400 W max (@ 2 ohms)
Power handling (serial) 1x 400 W RMS (@4 ohms) 1x 800 W max (@4 ohms)
Dimensions (straight dispersion) 35.43″ x 11.81″ x 9.65″ / 90 x 30 x 24.5 cm (wxhxl)
Dimensions (angled dispersion) 35.43″ x 8.66″ x 11.81″ / 90 x 22 x 30 (wxhxl).
AI-SONIC S2-A65.2
RMS POWER (2ohm) 12v 1%THD 2x105W
RMS POWER (4ohm) 12v 1%THD 2x70 W
BRIDGED POWER(4ohm) 12v 1%THD 1x210W
T.H.D 0,02% 4ohm, 0.04 % 2ohm
BANDWIDTH: 10Hz-40KHz
S/N RATIO (A-WEIGHTED): 105dB
CHANNEL SEPARATION: 45dB
INPUT SENSITIVITY: 0.5-6V

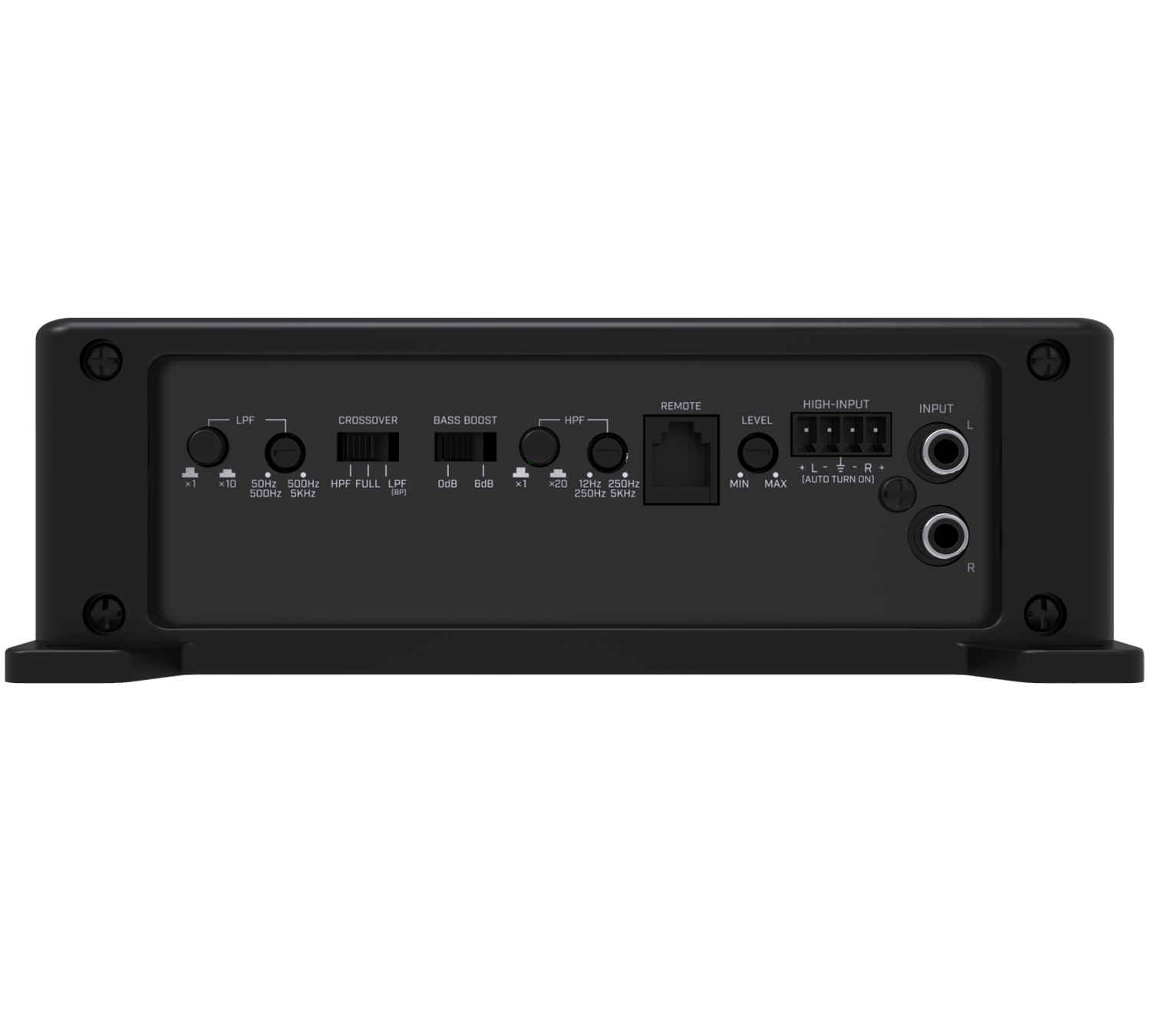

LOW PASS x1: 50Hz-500Hz x10: 500Hz-5KHz
HIGH PASS x1: 12Hz-250Hz x2Q: 250Hz-5KHz
BAND PASS(FRONT ): 12Hz-5KH z
CROSSOVER SLOPE: 12dB/oct
BASS BOOST: 0/6dB(@45Hz)
POWER FUSE: 1x30A
HIGH-LEVEL VOLTAGE: 0.75-9V
Cable fitting size:
+12V = 20mm2
GND = 20mm2
REM = 6mm2
SPEAKER = 6mm2
Current Draw (Max): 25A
DIMENSIONS W: 183mm / (7 .2IN)
H: 60mm / (2.4IN)
L: 274mm / (10.8 IN).
