GZ SQL Bundle 8 inc coax
GZ SQL Bundle 8 inc coax
4 x GZCF 8.0SPL
S2-A150.2
Läs Mera
set
5 290,00 kr
Beskrivning
Teknisk information

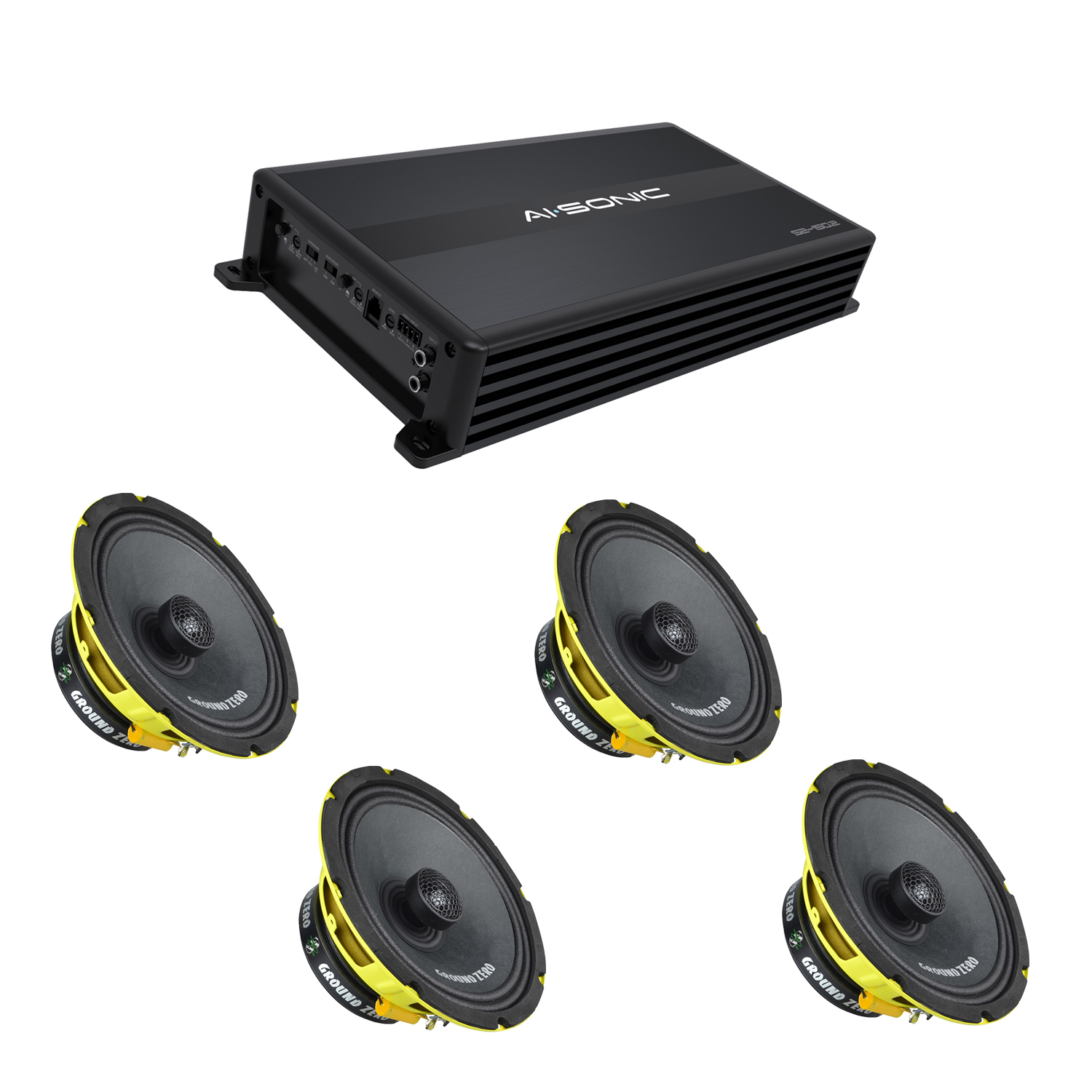

GZ SQL Bundle 8 inc coax includes 4pcs of LOUD GZCF 8.0SPL
speakers and high quality Ai-Sonic S2-A150.2 amplifier
GZCF 8.0SPL:
LOUD 200 mm / 8″ 2-way coaxial speaker system with paper cone and 25 mm / 1″ Mylar tweeter.
S2-A150.2:
AI-Sonic S2-A150.2 is 2-channel AB class amplifier for users, who want to feel pure sound quality.
Amplifier gives more power as there are mentioned at the specs.
Finished dark cover, which profile is brushed black aluminium.
When amplifier is on. There is indicator light in AI-Sonic logo!
Includes a remote control, which has three different indicator-leds.
(protection, power and clipping)
Designed in Finland.
(Bass level control sold separately and it works only when LPF is turned on.)
speakers and high quality Ai-Sonic S2-A150.2 amplifier
GZCF 8.0SPL:
LOUD 200 mm / 8″ 2-way coaxial speaker system with paper cone and 25 mm / 1″ Mylar tweeter.
S2-A150.2:
AI-Sonic S2-A150.2 is 2-channel AB class amplifier for users, who want to feel pure sound quality.
Amplifier gives more power as there are mentioned at the specs.
Finished dark cover, which profile is brushed black aluminium.
When amplifier is on. There is indicator light in AI-Sonic logo!
Includes a remote control, which has three different indicator-leds.
(protection, power and clipping)
Designed in Finland.
(Bass level control sold separately and it works only when LPF is turned on.)

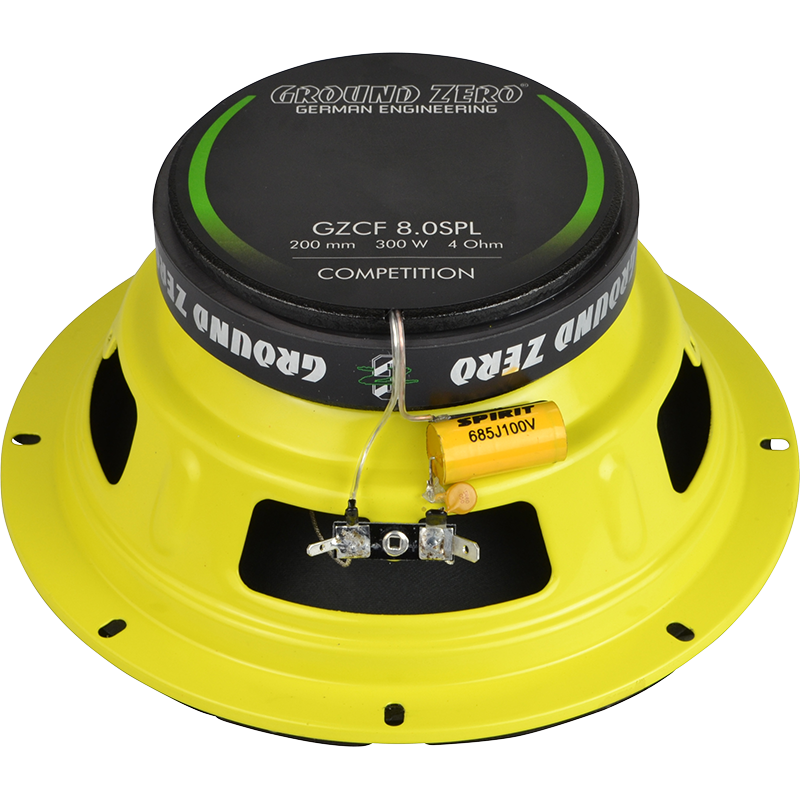

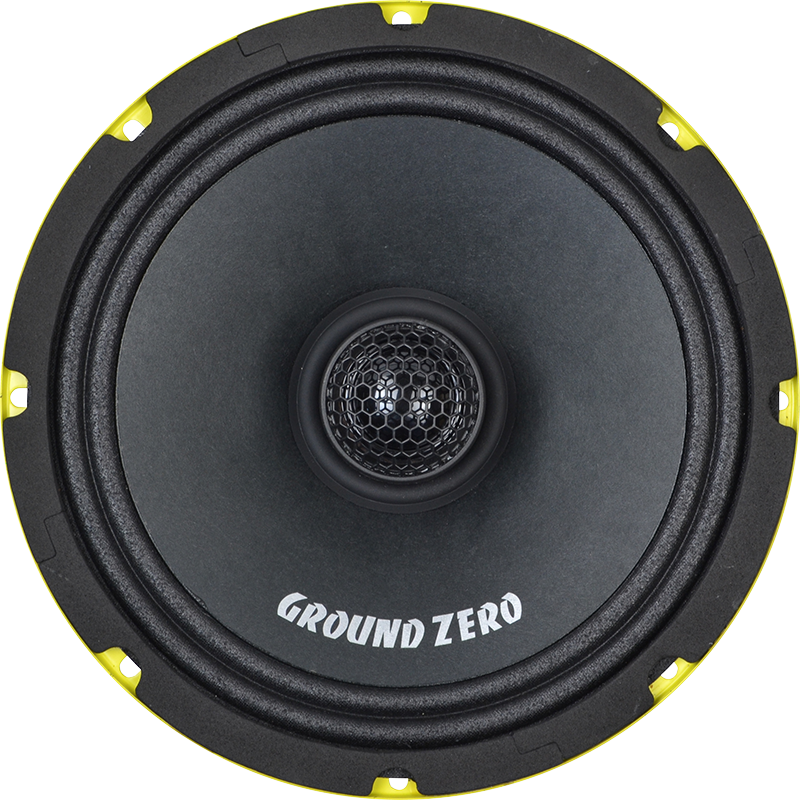

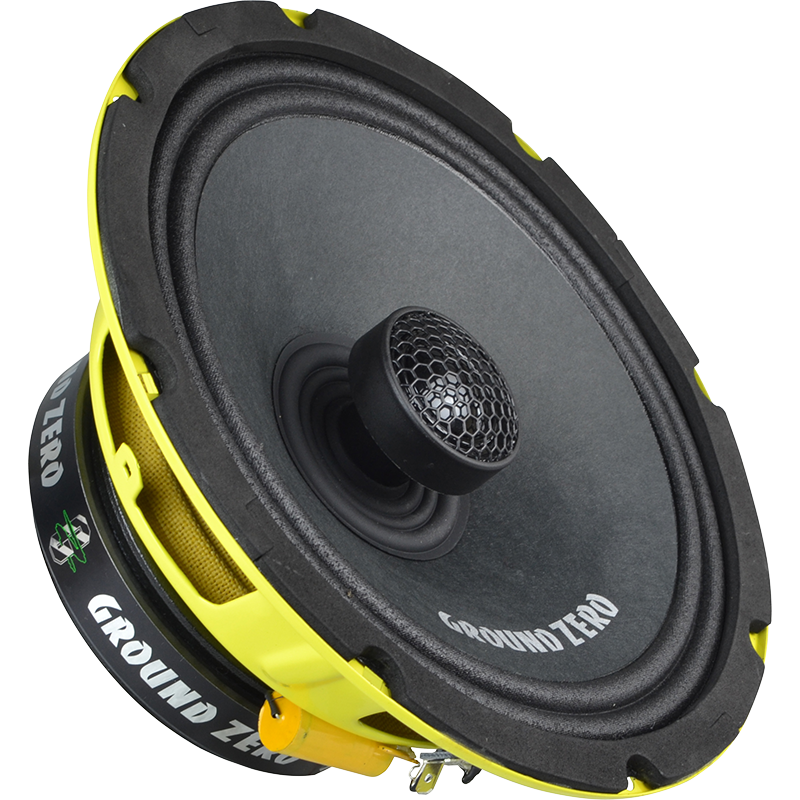

GZCF 8.0SPL:
300 Watts max
200 mm / 8″ 2-way coaxial speaker system with paper cone and 25 mm / 1″ Mylar tweeter
2-way coaxial speaker system
Pressed paper cone
High-excursion foamed W-surround
Resonance free steel basket
25 mm / 1″ Mylar tweeter
Ferrite motor
6 dB/oct high pass filter

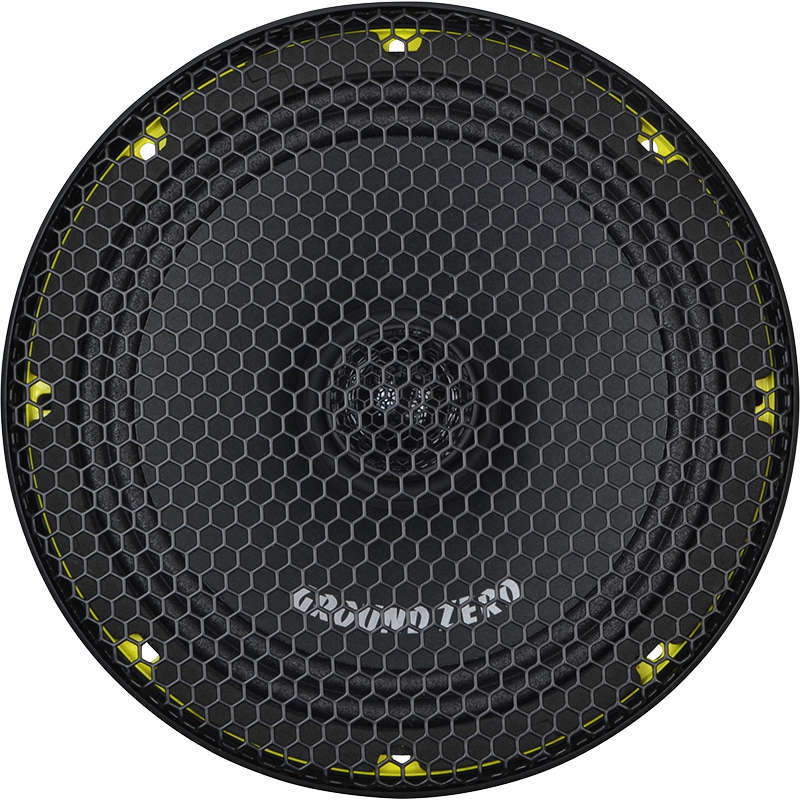

Incl. Hexagon style protection grill.

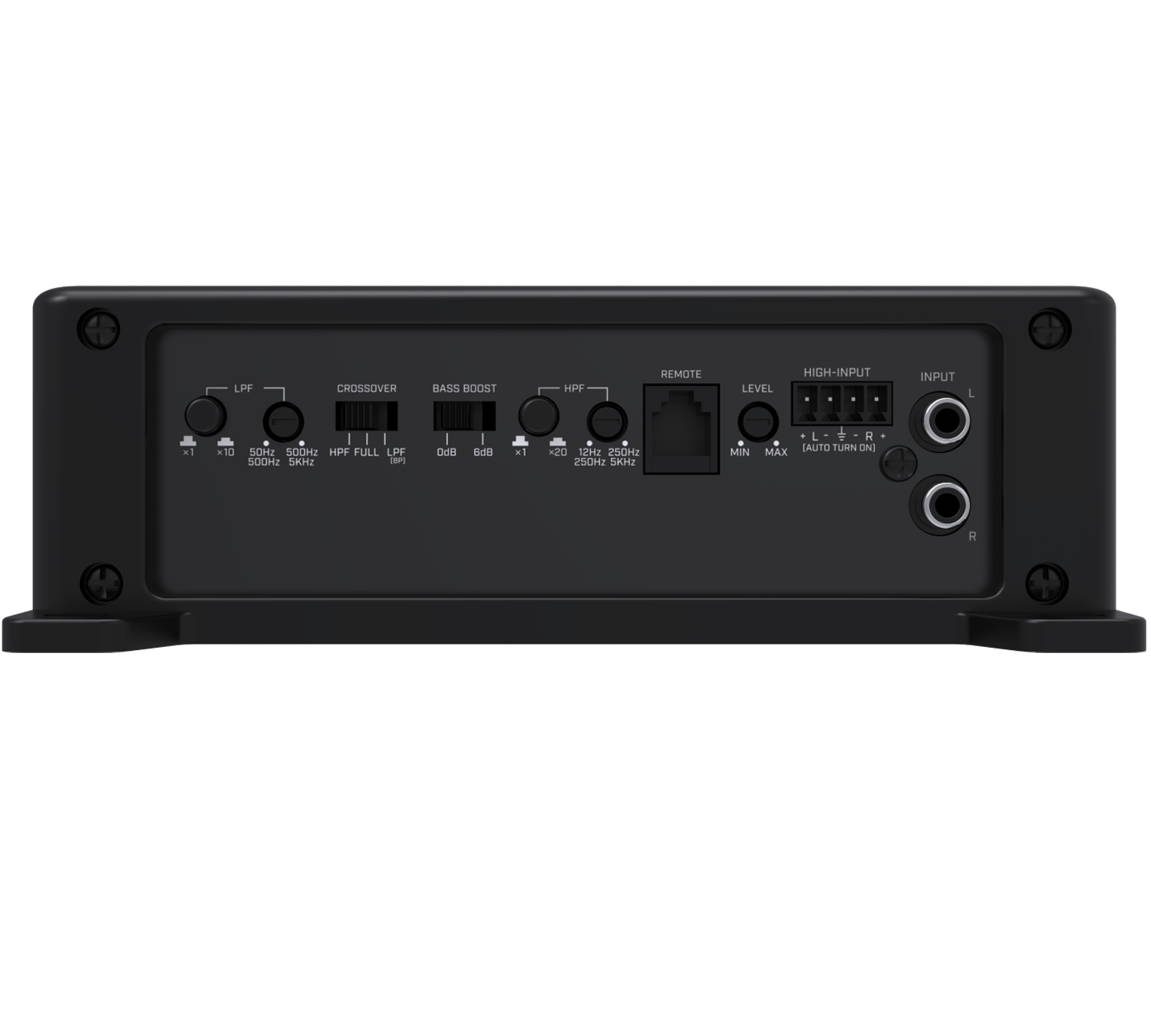

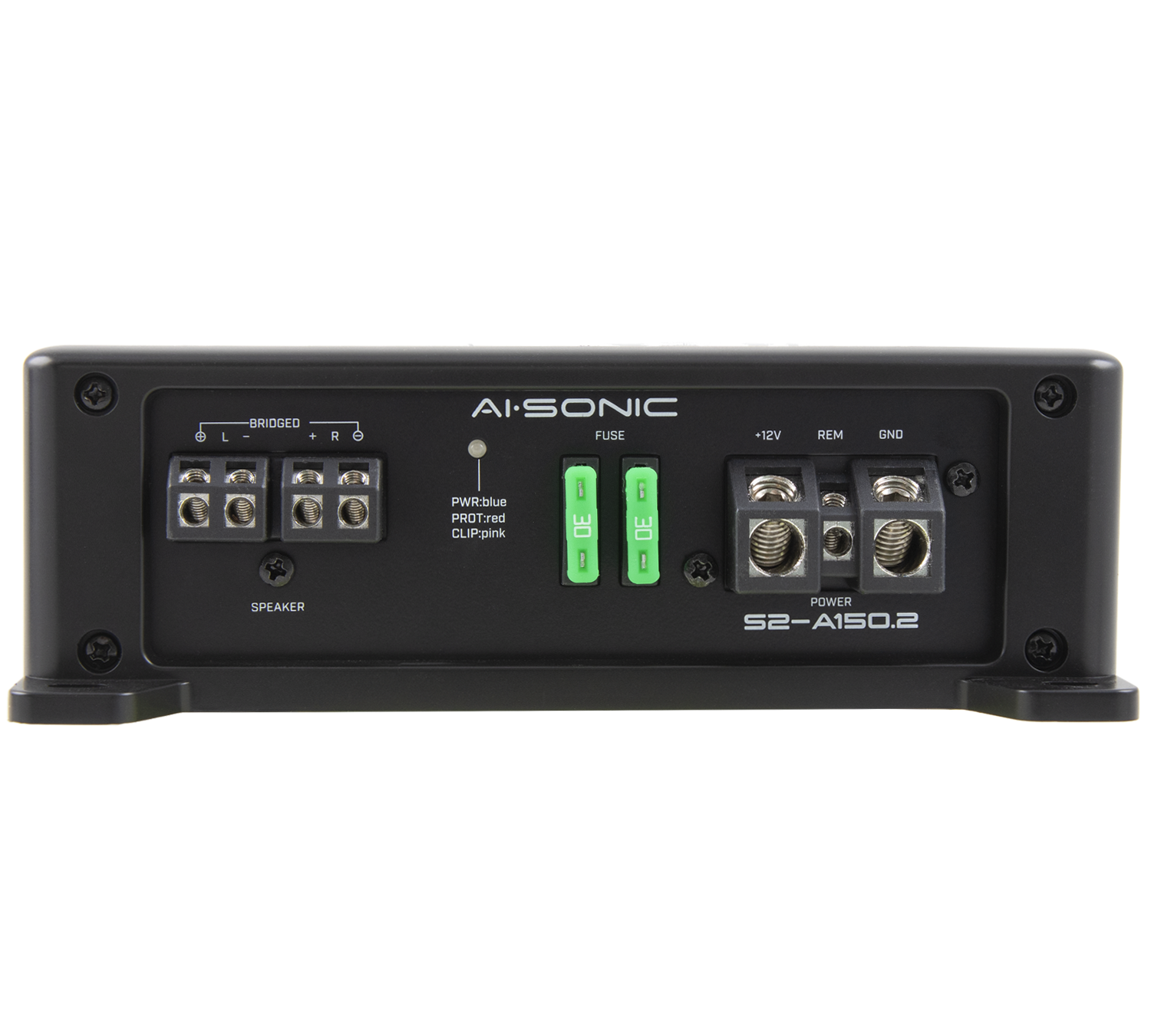

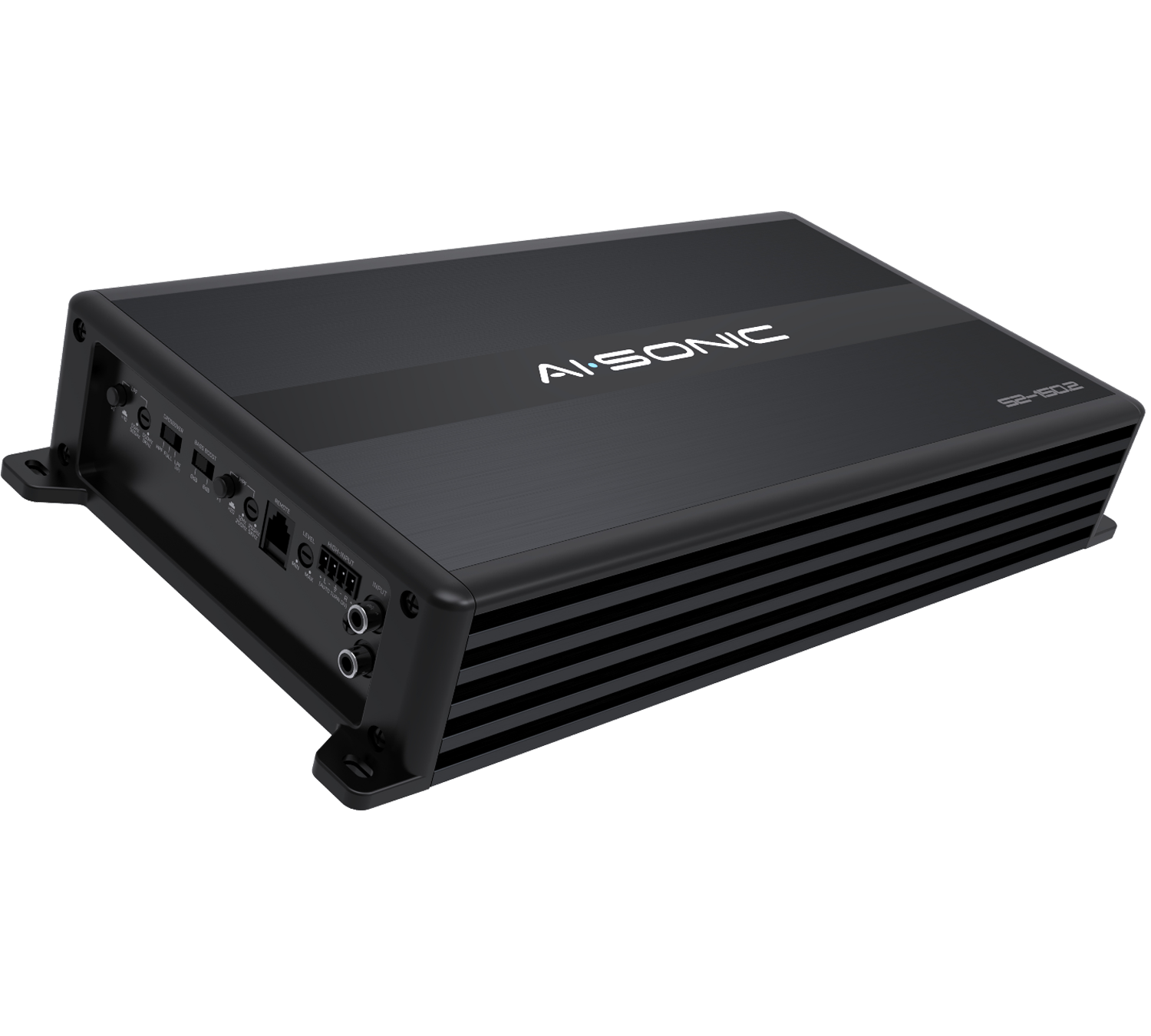

S2-A150.2:
RMS POWER (2ohm) 12v 1%THD 2x225W
RMS POWER (4ohm) 12v 1%THD 2 x 150W
BRIDGED POWER(4ohm) 12v 1%THD 1 x450W
T.H.D 0,02% 4ohm, 0.04 % 2ohm
BANDWIDTH: 10Hz-40KHz
S/N RATIO (A-WEIGHTED): 105dB
CHANNEL SEPARATION: 45dB
INPUT SENSITIVITY :0.5-6V
LOW PASS x1: 50Hz- 500Hz x10: 500Hz-5KHz
HIGH PASS x1: 12Hz-250Hz x2Q: 250Hz-5KHz
BAND PASS(FRONT ): 12Hz- 5KHz
CROSSOVER SLOPE: 12dB/oct
BASS BOOST: 0/6dB(@45Hz)
POWER FUSE: 2 x 30A
HIGH-LEVEL VOLTAGE: 0.75-9V
Cable fitting size:
+12V = 20mm2
GND = 20mm2
REM = 6mm2
SPEAKER = 6mm2
Current Draw (Max): 52A
DIMENSIONS W: 183mm / (7.2 IN)
H: 60mm / (2.4 IN)
L: 374mm / ( 14.7IN).
300 Watts max
200 mm / 8″ 2-way coaxial speaker system with paper cone and 25 mm / 1″ Mylar tweeter
2-way coaxial speaker system
Pressed paper cone
High-excursion foamed W-surround
Resonance free steel basket
25 mm / 1″ Mylar tweeter
Ferrite motor
6 dB/oct high pass filter
Incl. Hexagon style protection grill.
S2-A150.2:
RMS POWER (2ohm) 12v 1%THD 2x225W
RMS POWER (4ohm) 12v 1%THD 2 x 150W
BRIDGED POWER(4ohm) 12v 1%THD 1 x450W
T.H.D 0,02% 4ohm, 0.04 % 2ohm
BANDWIDTH: 10Hz-40KHz
S/N RATIO (A-WEIGHTED): 105dB
CHANNEL SEPARATION: 45dB
INPUT SENSITIVITY :0.5-6V
LOW PASS x1: 50Hz- 500Hz x10: 500Hz-5KHz
HIGH PASS x1: 12Hz-250Hz x2Q: 250Hz-5KHz
BAND PASS(FRONT ): 12Hz- 5KHz
CROSSOVER SLOPE: 12dB/oct
BASS BOOST: 0/6dB(@45Hz)
POWER FUSE: 2 x 30A
HIGH-LEVEL VOLTAGE: 0.75-9V
Cable fitting size:
+12V = 20mm2
GND = 20mm2
REM = 6mm2
SPEAKER = 6mm2
Current Draw (Max): 52A
DIMENSIONS W: 183mm / (7.2 IN)
H: 60mm / (2.4 IN)
L: 374mm / ( 14.7IN).
