GZ Entry SPL 4x6,5 inc
GZ Entry SPL 4x6,5 inc
2 x GZIC 165.2SPL
GZIA 200.2
Läs Mera
set
3 990,00 kr
Beskrivning
Teknisk information

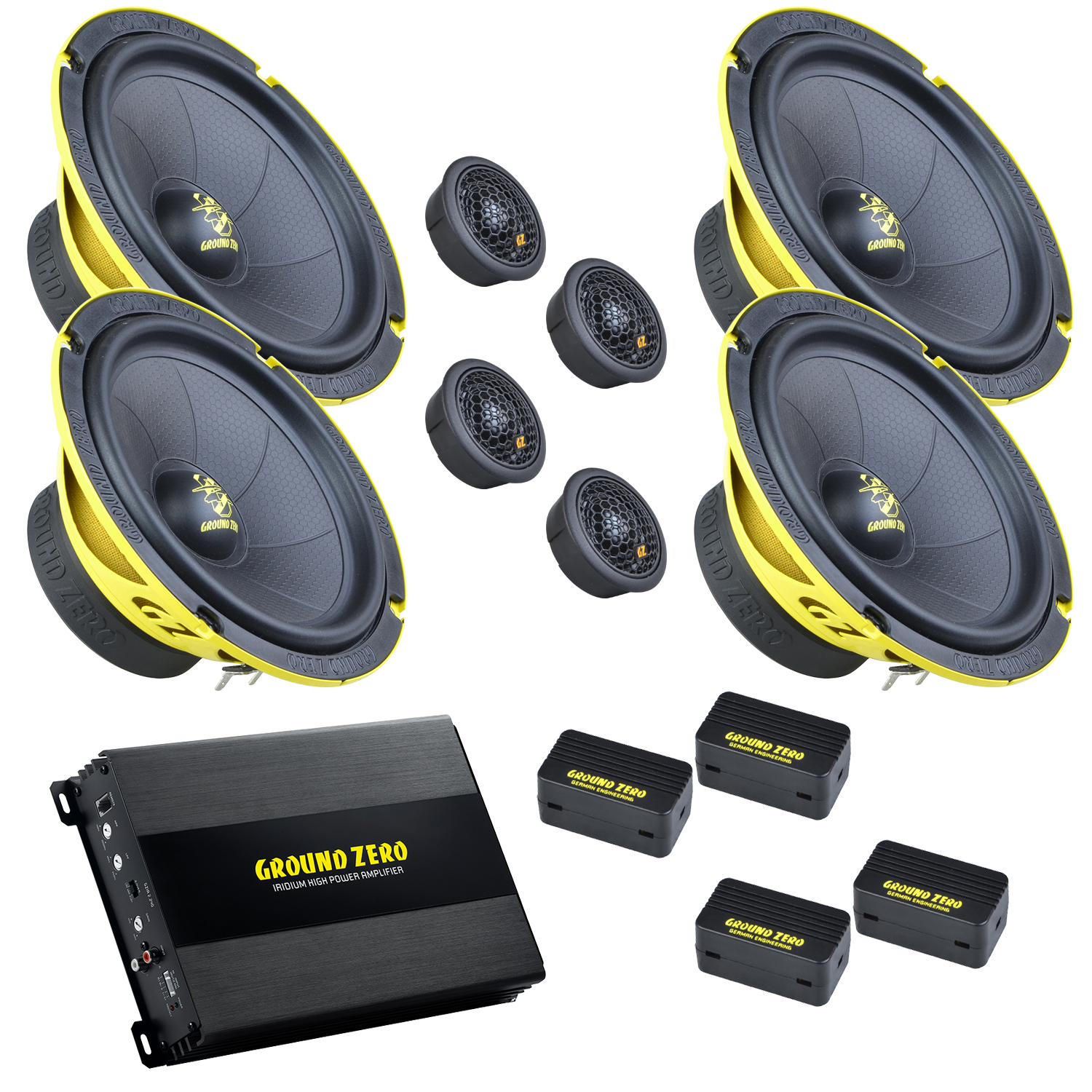

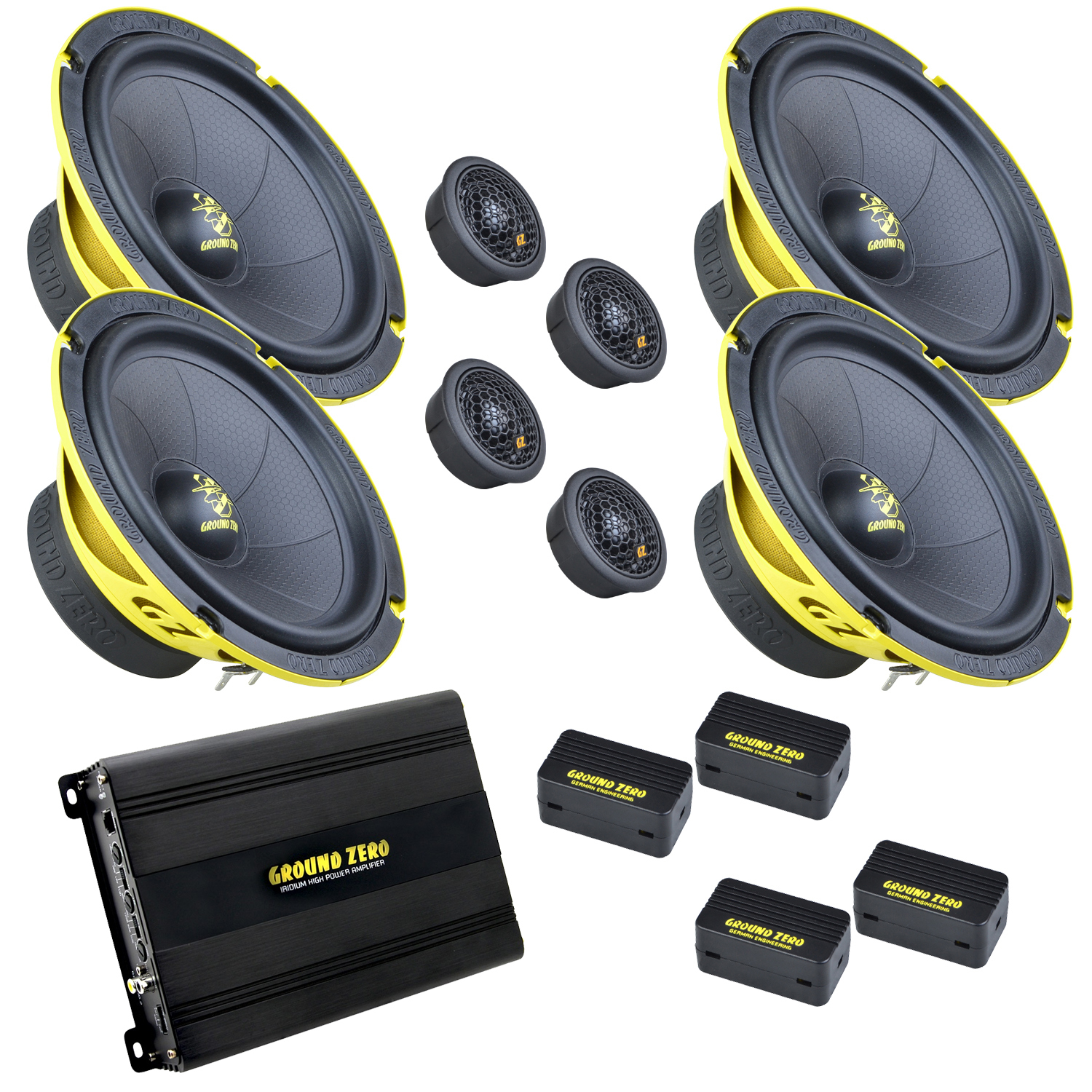

GZ Entry SPL 4x6,5 inc includes 2pcs of GZIC 165.2SPL speaker kits and GZIA 200.2 amplifier.
GZIC 165.2SPL:

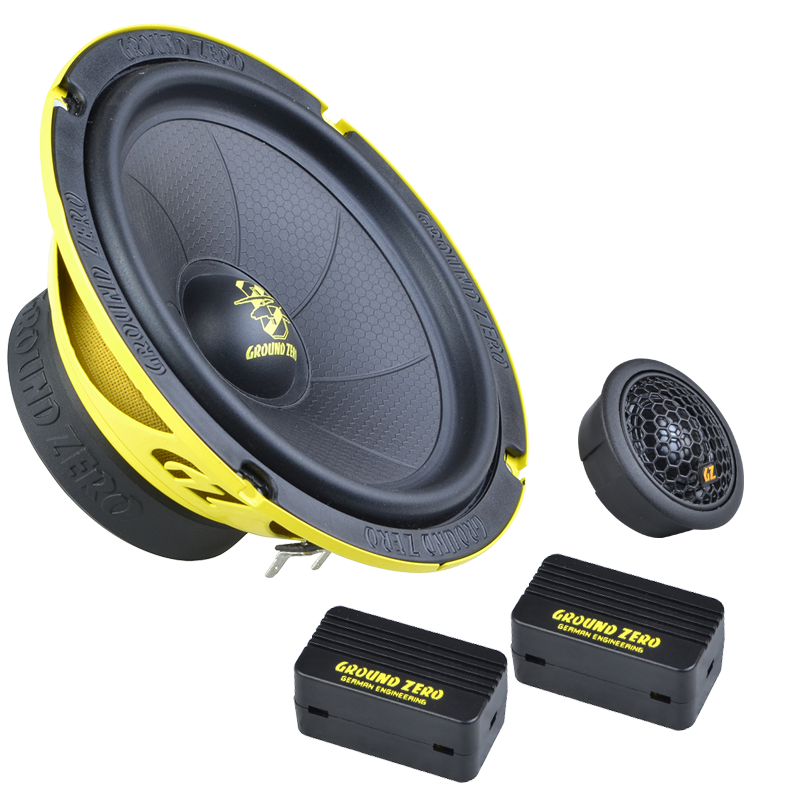

GROUND ZERO introduced the new IRIDIUM series component loudspeakers with a particularly shaped HQPP cone with 3-D honeycomb structure. Expanding the line-up for the fans of SPL levels, the GZ engineers created a high-power capable component speaker system including the high-roll IRIDIUM GZIK 165SPL midwoofer (available separately, as well) and combined it with the GZCT 25M tweeter known from the COMPETITION line. Pointing out its main purpose, the components have been highlighted with yellow color accents, letting everyone know about the GZ SPL affiliation.
GZIA 200.2:

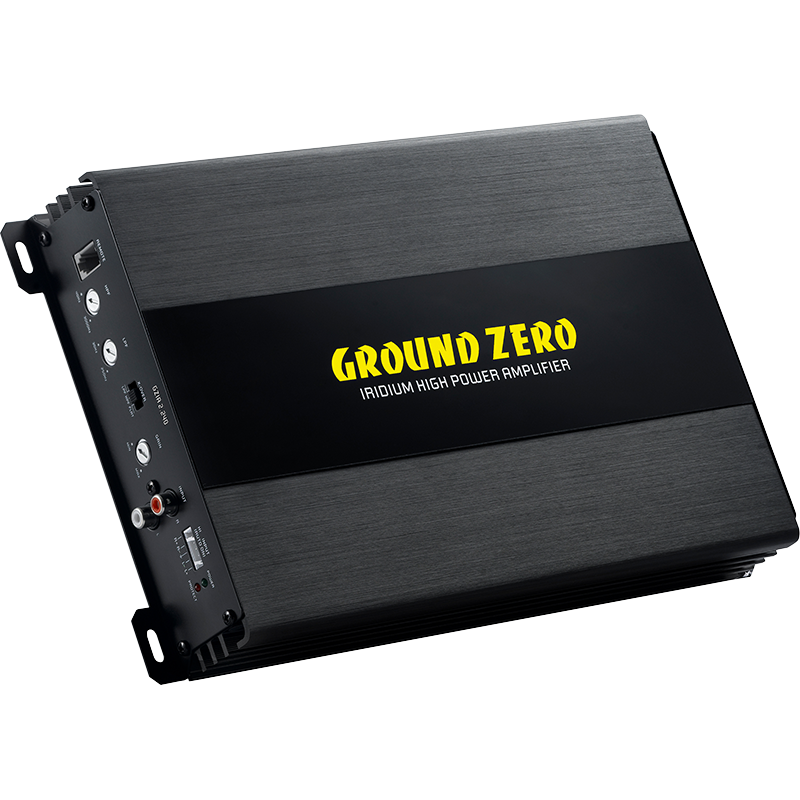

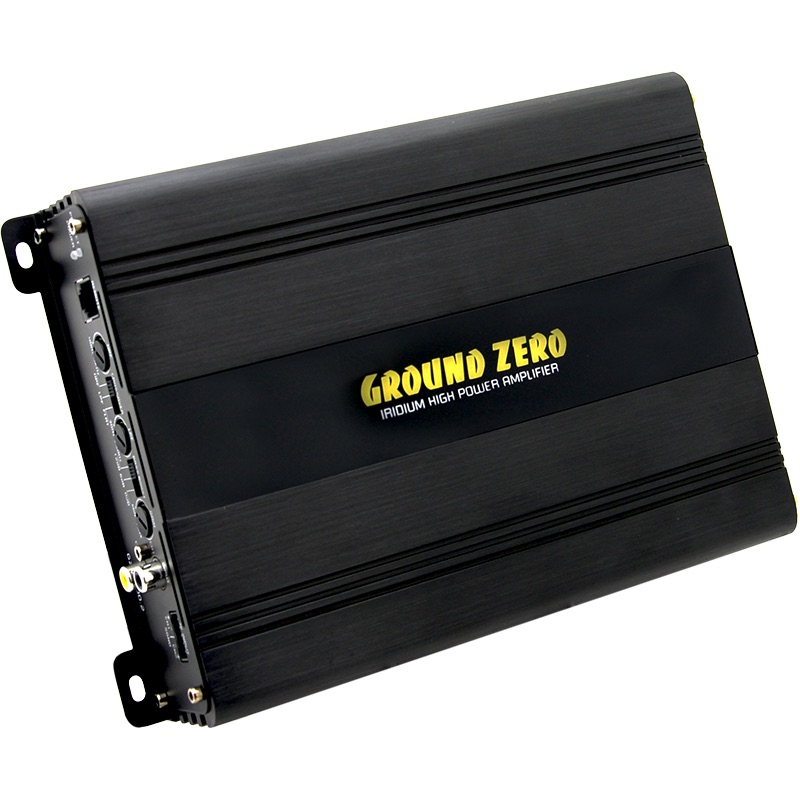

Iridium amplifiers give a maximum bang for the buck. Simple and compact structure includes completely re-designed circuit board that is developed to get best possible sound quality, dependability and power for this price class.
GZIC 165.2SPL:
GROUND ZERO introduced the new IRIDIUM series component loudspeakers with a particularly shaped HQPP cone with 3-D honeycomb structure. Expanding the line-up for the fans of SPL levels, the GZ engineers created a high-power capable component speaker system including the high-roll IRIDIUM GZIK 165SPL midwoofer (available separately, as well) and combined it with the GZCT 25M tweeter known from the COMPETITION line. Pointing out its main purpose, the components have been highlighted with yellow color accents, letting everyone know about the GZ SPL affiliation.
GZIA 200.2:
Iridium amplifiers give a maximum bang for the buck. Simple and compact structure includes completely re-designed circuit board that is developed to get best possible sound quality, dependability and power for this price class.
GZIC 165.2SPL:
Model
2-way SPL component speakers
Diameter
165 mm / 6.50″
Power Handling (RMS/max.)
120 / 200 Watts
Impedance
3 ohms
Efficiency
89 dB
Frequency Response
45 Hz – 20 kHz
Tweeter
25 mm /1 ″ mylar dome
Membran Layout
HQPP cone with 3D structure
Mounting Ø
142.5 mm / 5.61″
Mounting Depth
68 mm / 2.68″
Crossover
12 dB/oct – high pass filter
Crossover Frequency
5000 Hz.
GZIA 200.2:
Type High power class A/B amplifier
Channels 2
Output Power (@ 4Ω) 2x 135 Watts RMS
Output Power (@ 2Ω) 2x 220 Watts RMS
max. Output Power (CEA-2006A / 10%THD+N) 550 Watts
Ouput power (@ 4Ω) bridged 460 Watts RMS
Frequency Response 8 Hz – 28 kHz
HPF / LPF / BPF ● / ● / ○
Bass Boost / Phase Shift ● / ○
High-Level Input / Auto-on ● / ●
Remote Control included
BIAS Setting ○
Linkmode ○
Dimensions (w x h x L) 168 x 49 x 248 mm / 6.61″ x 1.93″ x 9.76″
