BASSKIT AI 8SQ
BASSKIT AI 8SQ
GZUW 8SQ-D2
S2-A500.1
Läs Mera
3 990,00 kr
Beskrivning
Teknisk information

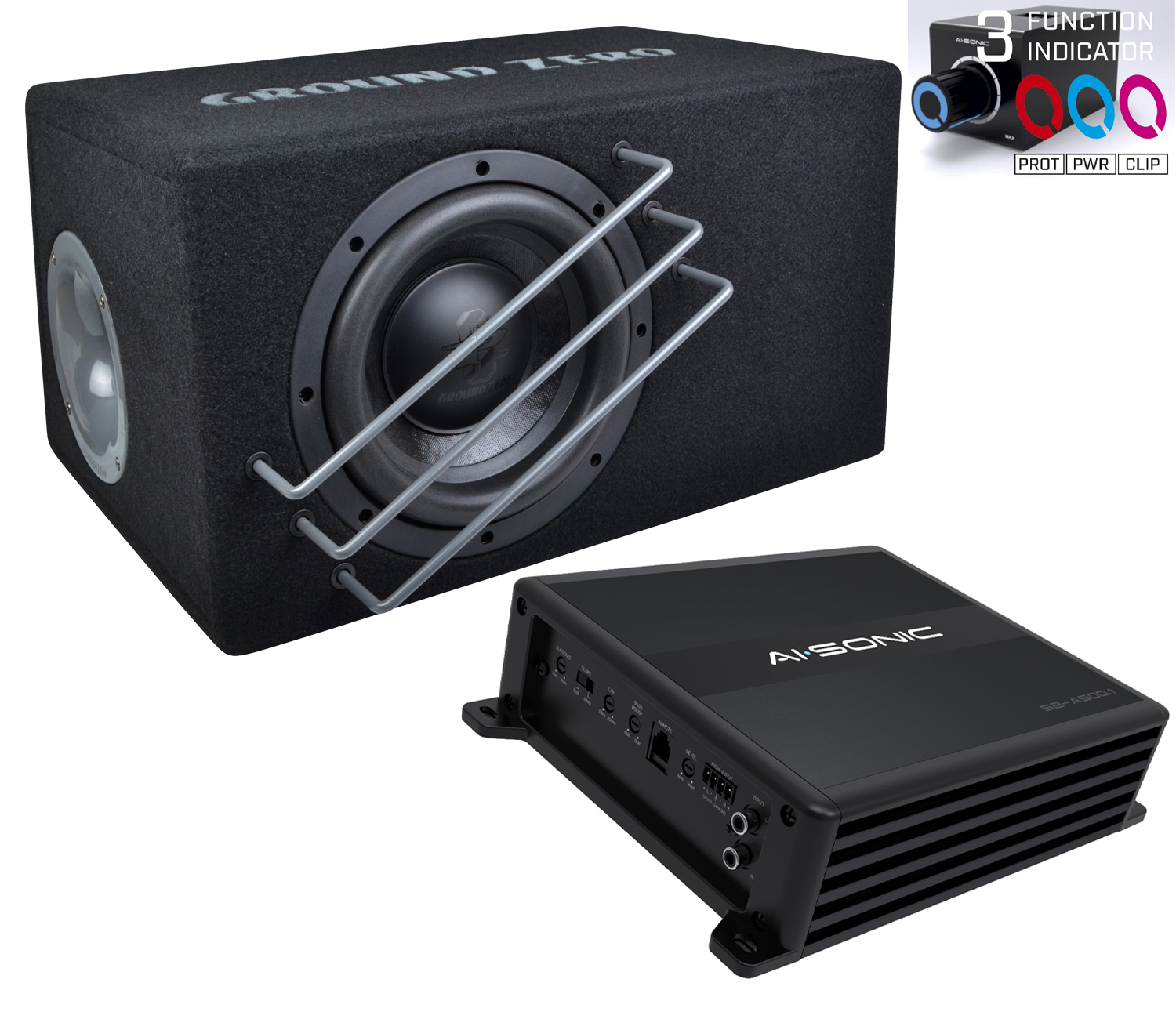

This kit includes Passive vented enclosure including 8″ GZUW 8SQ-D2 subwoofer.

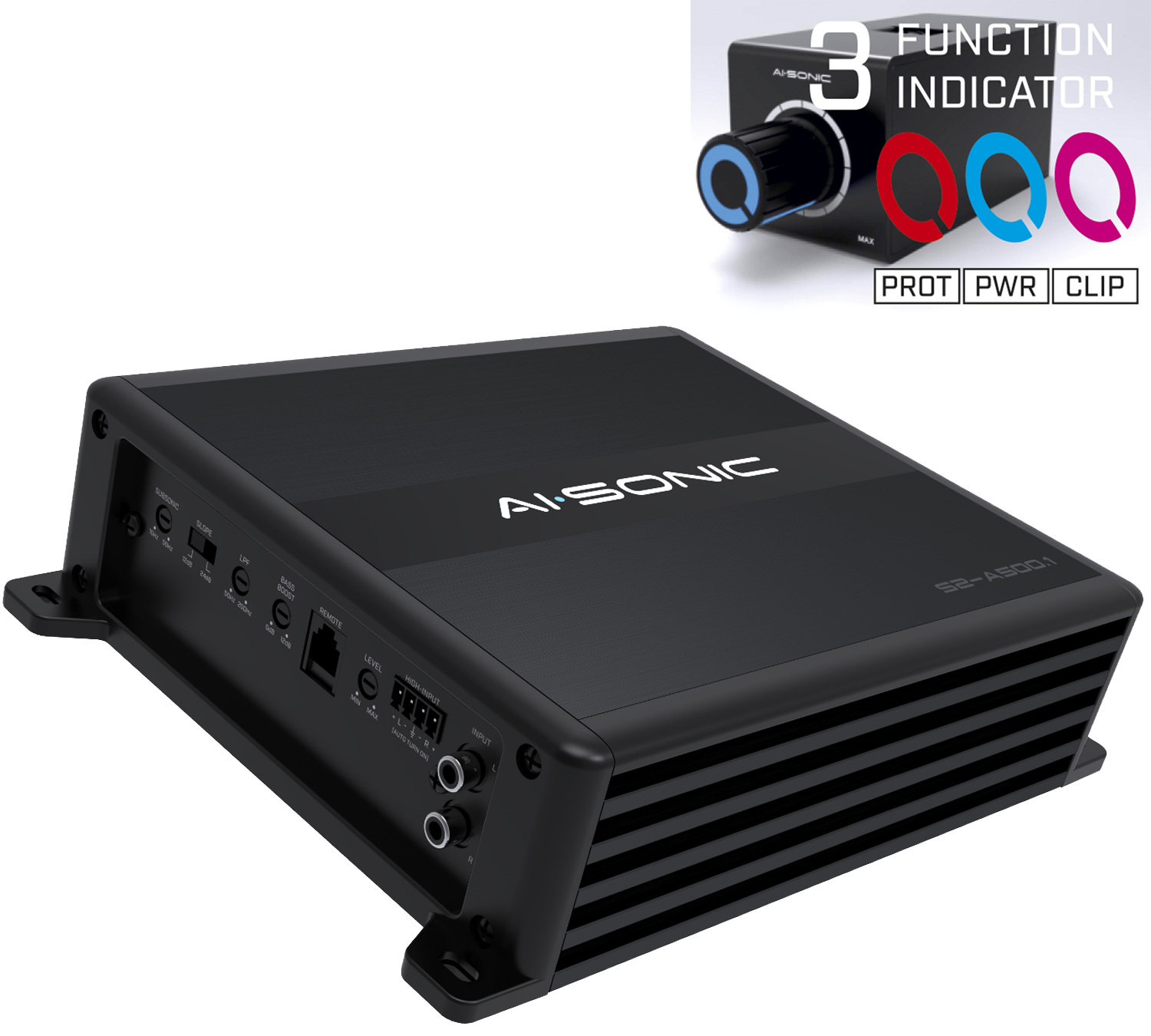

AI-Sonic S2-A500.1 is mono D class amplifier for users, who want to feel pure sound quality. Amplifier gives more power as there are mentioned at the specs. Finished dark cover, which profile is brushed black aluminium. When amplifier is on. There is indicator light in AI-Sonic logo! Includes a remote control, which has three different indicator-leds. (protection, power and clipping) (Works only when LPF is turned on.)
AI-Sonic S2-A500.1 is mono D class amplifier for users, who want to feel pure sound quality. Amplifier gives more power as there are mentioned at the specs. Finished dark cover, which profile is brushed black aluminium. When amplifier is on. There is indicator light in AI-Sonic logo! Includes a remote control, which has three different indicator-leds. (protection, power and clipping) (Works only when LPF is turned on.)
RMS POWER (1ohm) 12v THD 0.5% 500W
RMS POWER (2ohm) 12v THD 0.5% 350W
RMS POWER (4ohm) 12v THD 0.5% 220W
T.H.D 0.5%
BANDWIDTH: 10-200 Hz
S/N RATIO(A-WEIGHTED): 90dB
INPUT SENSITIVITY: 0.35-6V
LOW PASS: 50-200 Hz
SUBSONIC: 10-50Hz
CROSSOVER SLOPE: 12dB/24dB /oct
BASS BOOST: 0-12dB(@45Hz)
POWER FUSE: 30A•2
HIGH-LEVEL VOLTAGE: 0.53-9V
Cable fitting size:
+12V = 20mm2
GND = 20mm2
REM = 6mm2
SPEAKER = 6mm2
Current Draw (Max): 57A
DIMENSIONS W: 183mm / (7.2IN)
H: 60mm / (2.4 IN)
L: 274mm / (10.8 IN)

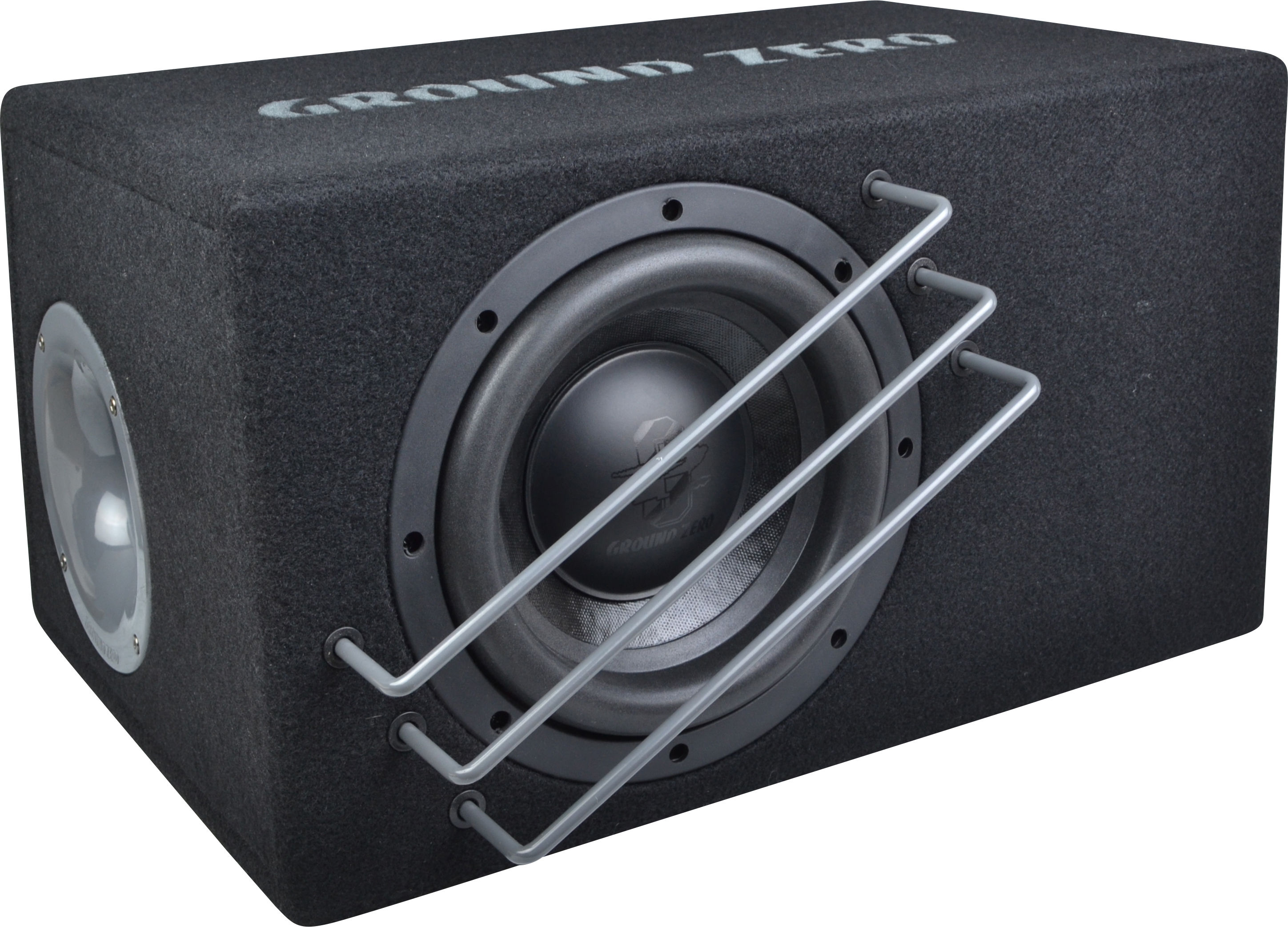

8″ vented SQ loaded enclosure
Subwoofer GZUW 8SQ-D2
Resonance-free aluminum cast basket
2″ copper voice coil
High quality vented enclosure
Airflow optimized ventilation tube
Solid enclosure from MDF
GZ Push terminal
Power handling 300 Watts RMS
Impedance 2x2 Ohm
Xmax 20mm (p2p)
New volume 20.5 Liter
Tuning frequenzy 40 Hz
Roll-off frequenzy 33 Hz
Ventilation port 1x7cm
Port length 34cm
Dimensions (w x h x d) 430 x 250 x 318mm
Backwall angle 78°.
RMS POWER (2ohm) 12v THD 0.5% 350W
RMS POWER (4ohm) 12v THD 0.5% 220W
T.H.D 0.5%
BANDWIDTH: 10-200 Hz
S/N RATIO(A-WEIGHTED): 90dB
INPUT SENSITIVITY: 0.35-6V
LOW PASS: 50-200 Hz
SUBSONIC: 10-50Hz
CROSSOVER SLOPE: 12dB/24dB /oct
BASS BOOST: 0-12dB(@45Hz)
POWER FUSE: 30A•2
HIGH-LEVEL VOLTAGE: 0.53-9V
Cable fitting size:
+12V = 20mm2
GND = 20mm2
REM = 6mm2
SPEAKER = 6mm2
Current Draw (Max): 57A
DIMENSIONS W: 183mm / (7.2IN)
H: 60mm / (2.4 IN)
L: 274mm / (10.8 IN)
8″ vented SQ loaded enclosure
Subwoofer GZUW 8SQ-D2
Resonance-free aluminum cast basket
2″ copper voice coil
High quality vented enclosure
Airflow optimized ventilation tube
Solid enclosure from MDF
GZ Push terminal
Power handling 300 Watts RMS
Impedance 2x2 Ohm
Xmax 20mm (p2p)
New volume 20.5 Liter
Tuning frequenzy 40 Hz
Roll-off frequenzy 33 Hz
Ventilation port 1x7cm
Port length 34cm
Dimensions (w x h x d) 430 x 250 x 318mm
Backwall angle 78°.
