BASSKIT AI 12SQ
BASSKIT AI 12SQ
GZUW 12SQ-D2
S2-A1000.1
Läs Mera
5 290,00 kr
Beskrivning
Teknisk information

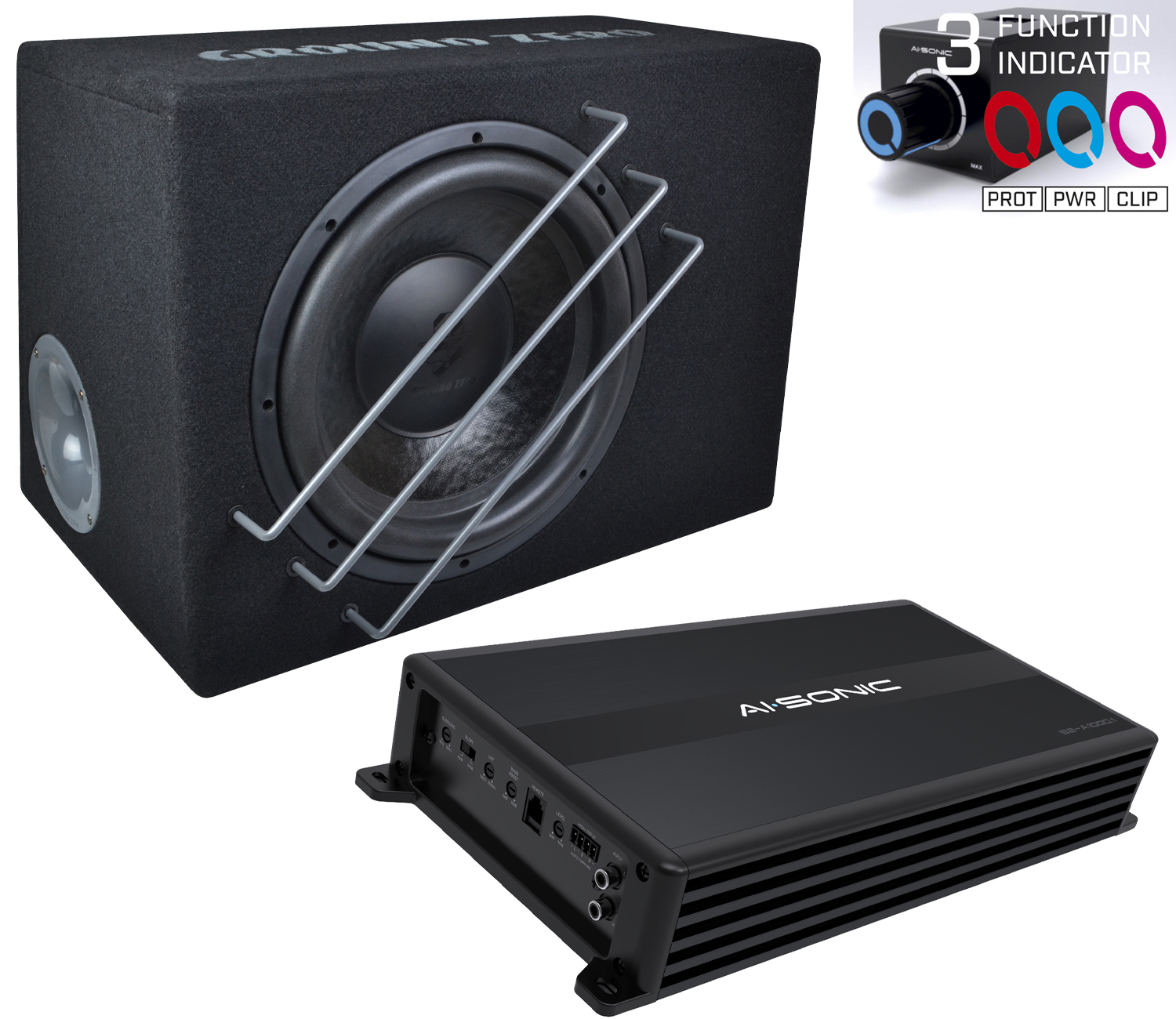

This kit includes Passive vented enclosure including 12″ GZUW 12SQ-D2 subwoofer.

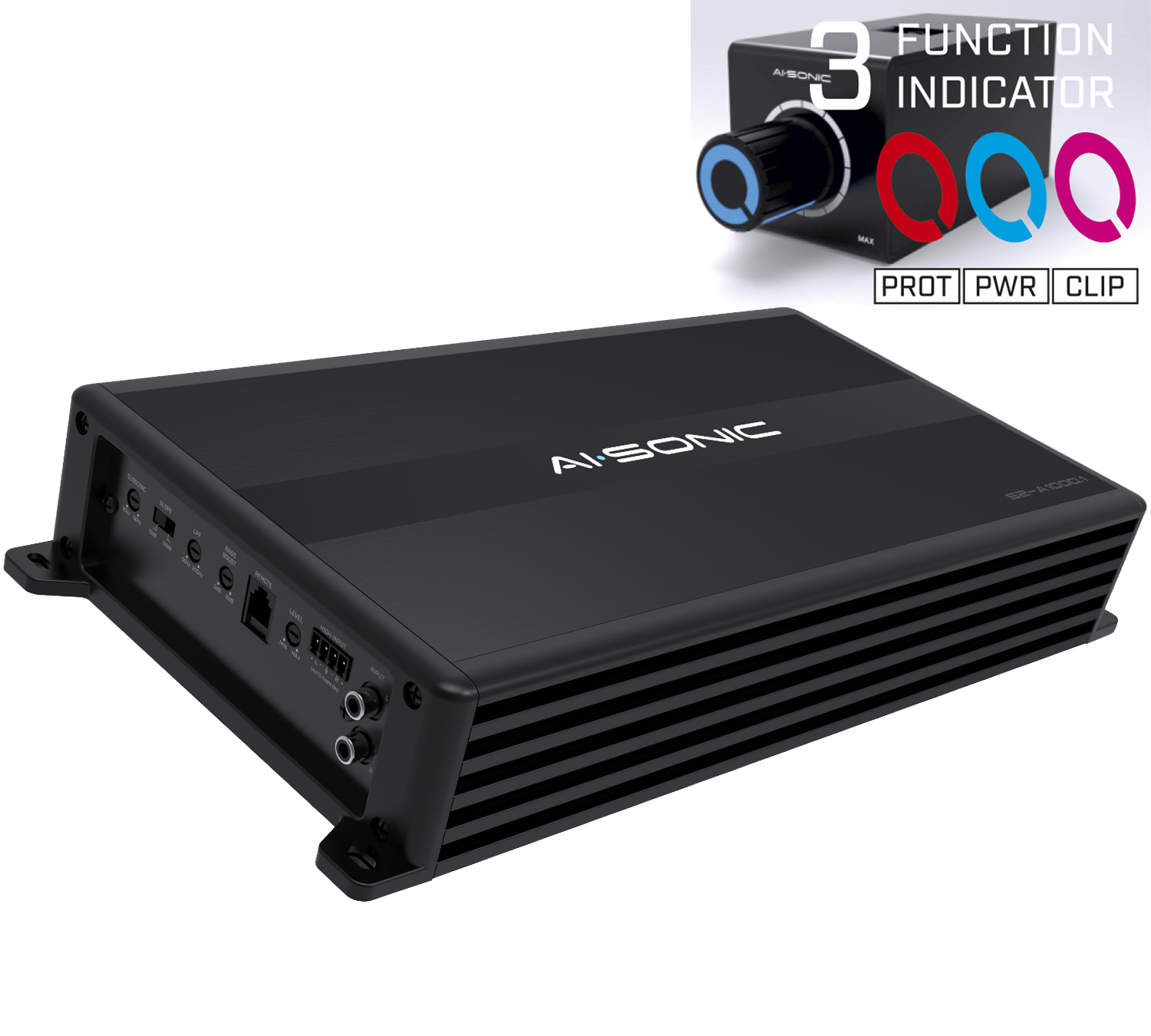

AI-Sonic S2-A1000.1 is mono D class amplifier for users, who want to feel pure sound quality. Amplifier gives more power as there are mentioned at the specs. Finished dark cover, which profile is brushed black aluminium. When amplifier is on. There is indicator light in AI-Sonic logo! Includes a remote control, which has three different indicator-leds. (protection, power and clipping) (Works only when LPF is turned on.) Designed in Finland.
AI-Sonic S2-A1000.1 is mono D class amplifier for users, who want to feel pure sound quality. Amplifier gives more power as there are mentioned at the specs. Finished dark cover, which profile is brushed black aluminium. When amplifier is on. There is indicator light in AI-Sonic logo! Includes a remote control, which has three different indicator-leds. (protection, power and clipping) (Works only when LPF is turned on.) Designed in Finland.
RMS POWER (1ohm) 12v THD 0.5% 1000W
RMS POWER (2ohm) 12v THD 0.5% 650W
RMS POWER (4ohm) 12v THD 0.5% 380W
T.H.D 0.5%
BANDWIDTH: 10-200 Hz
S/N RATIO(A-WEIGHTED): 90dB
INPUT SENSITIVITY: 0.35-6V
LOW PASS: 50-200 Hz
SUBSONIC: 10-50Hz
CROSSOVER SLOPE: 12dB /24dB/oct
BASS BOOST: 0-12dB(@45 Hz)
POWER FUSE: 40A•3
Cable fitting size:
+12V = 20mm2
GND = 20mm2
REM = 6mm2
SPEAKER = 6mm2
Current Draw (Max): 115A
DIMENSIONS W: 183mm / (7.2IN)
H: 60mm / (2.4 IN)
L: 344mm /(13.5 IN)

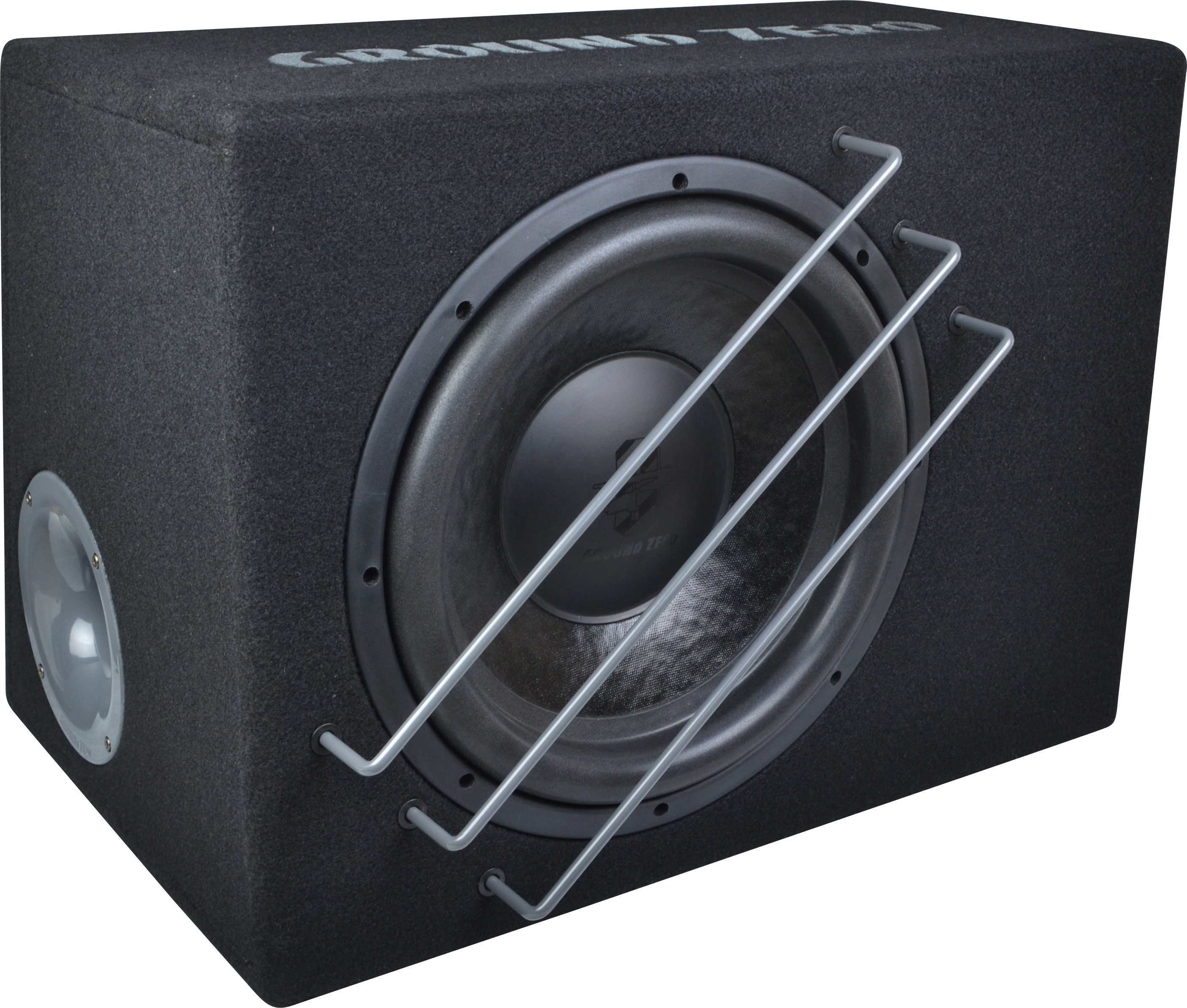

12″ vented SQ loaded enclosure
Subwoofer GZUW 12SQ-D2
Resonance-free aluminum cast basket
2″ copper voice coil
High quality vented enclosure
Airflow optimized ventilation tube
Solid enclosure from MDF
GZ Push terminal
Power handling 600 Watts RMS
Impedance 2x2 Ohm
Xmax 20mm (p2p)
Net volume 42 Liter
Tuning frequenzy 31 Hz
Roll-off frequenzy 326Hz
Ventilation port 1x7cm
Port lenght 24cm
Dimensions (w x h x d) 520 x 380 x 358mm
Backwall angle 76°.
